BRUSHLESS MOTOR boat
#8301 V3 & #8302 V3 MANUAL
Model No: 8301
Model No: 8302
Motor......................................................................Water cooled 2815 out-runer brushless motor(included)
Radio System...............................................................2.4G 2CH Digital Proportional Transmitter(Included)
Speed Control.............................................................Water cooling 60A Brushless ESC w/BEC (Included)
Drive System.................................................................................................... 4mm Flex Cable Direct Drive
Propeller.............................................................................................................Three Blade Metal Propeller
Battery...............................................................Two packs of 7.4V 4000mAh 35C LiPo Pack(Not Included)
Caution for LiPo battery:
ESC with low voltage hard cut off at 3.2V per cell, when driving your boat , as soon as you notice boat stop,
that means ESC low voltage cut off effective, you should immediately drive boat back to shore in slow speed ,
recharge battery and race again. don't keep racing boat when ESC low voltage cut off effective, otherwise,
you will allow battery over discharge, battery voltage will reach very low and won't be recharged again.
Bullet V3 Deep Vee

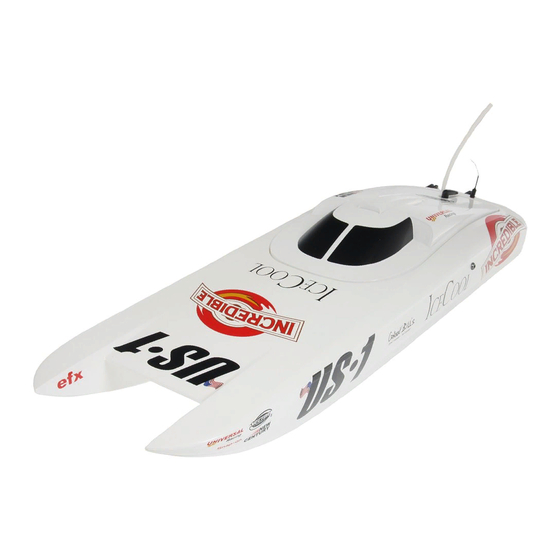

US . 1 V3 Catamaran
Total Length..................................730mm(28.7in)
Beam..............................................180mm(7.1in)
Speed......................................................60+KPH
Total Length.................................730mm(28.7in)
Beam............................................209mm(8.23in)
Speed.....................................................60+KPH
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Joysway 8301 V3
Summary of Contents for Joysway 8301 V3

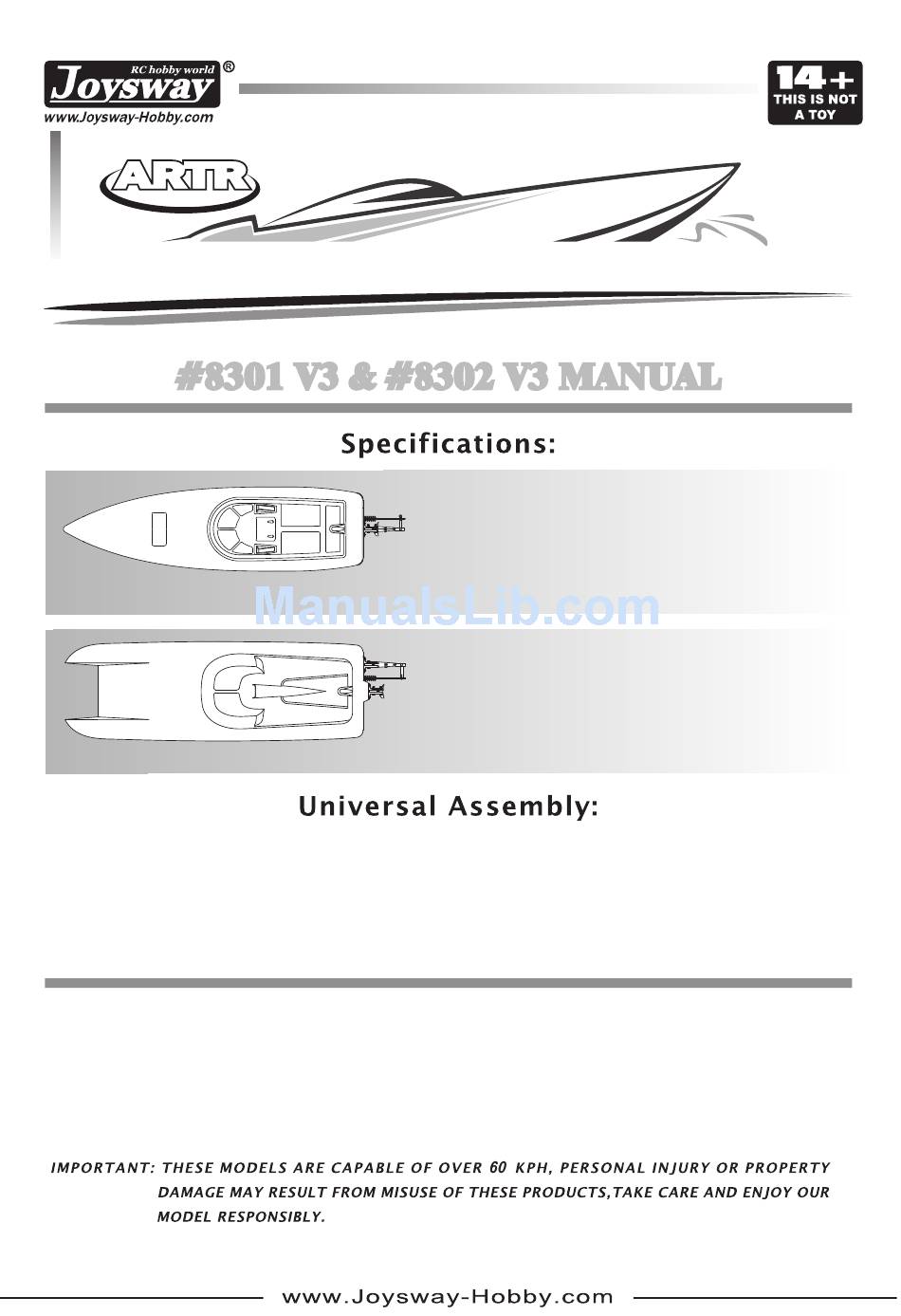

- Page 1 ARTR BRUSHLESS MOTOR boat #8301 V3 & #8302 V3 MANUAL Total Length........730mm(28.7in) Beam..........180mm(7.1in) Speed............60+KPH Model No: 8301 Bullet V3 Deep Vee Total Length.........730mm(28.7in) Beam..........209mm(8.23in) Speed.............60+KPH Model No: 8302 US . 1 V3 Catamaran Motor..............Water cooled 2815 out-runer brushless motor(included) Radio System...............2.4G 2CH Digital Proportional Transmitter(Included) Speed Control.............Water cooling 60A Brushless ESC w/BEC (Included)
- Page 2 7.4V 4000mAh 35C Lipo battery pack (need 2 packs, series connection) NOTE If you have existing7.4 V Lipo battery packs, you can update them for use by changing the connectors to EC4 connectors which are included in the kits bag, be sure to solder the connectors to the batteris in the proper polarity.
- Page 3 ● Water cooled 2815 out-runer brushless motor(included) (Pre-installed) ● 60A Water cooling Brushless ESC w/BEC(Pre-installed) Cable Strap ● Powerful Steering 37g Servo (Pre-installed) ● 2.4GHz 2CH Pistol Transmitter EC4 Plugs (2pcs) ● Display Boat Stand 2 pcs of Allen Key (2.5mm,2mm) Water proof ballon for RX...
- Page 4 1.Loosen the screw on the propeller shaft by 7mm Spanner, put the propeller in then retighten the screw. 2.Insert the rudder support into the support which is already installed on the rear of hull. Thread the two pcs of M3 screw in, Apply two pcs of M3 nut on the screws, retighten the screws and nuts by 2.5mm Allen 2.5mm Key and 5.5mm Spanner.
- Page 5 Receiver connection diagram BATT.(6V) THROTTE SERVO Note: If ESC with BEC function, no need to connect battery with receiver. Caution: Before racing boat, Please use ballon supplied in tool bag to wrap receiver for water proof NOTE: We recommand you 2 packs of 7.4V 4000mAh 35C Lipo battery for maximum performance. Using the Provided Hook and Loop which are already tied on the battery locators inside the hull to tie the battery.
- Page 6 1. Always turn the power “ON” to the transmitter before connecting the batteries with the ESC. 2. Plug the battery into the ESC plugs and listen for three continuous >Be<>Be<>Be< . (Signal noise of auto etected ESC) 3. Pull the throttle & motor rotate in anticlockwise direction, your motor is now armed and ready for operation.
- Page 7 Adjust “TH/TRIM” “B/F” to stop propeller from turning while the throttle trigger is in the neutral position. The Joysway brushless motor boat is assembled with 60A water cooled brushless ESC, please see belowing the specification: protections: Thermo protection activated at 120°C. LVP(low voltage protection) engaged when Lipo battery (per cell) drop down to 3.2 Voltage.
- Page 8 NOTE: Running the model boat in salt water could cause some parts to corrode. If you run the boat in salt water, rinse it thoroughly in fresh water after each use and lubricate the drive system. To order Joysway brushless motor boat spare parts, use the part numbers in the spare parts list that follows.
