Summary of Contents for Wizard ON-BK6 series
-
Page 1: User Manual
Mini Portable Modular Mobile DVR USER MANUAL ON-BK6 series USER MANUAL - 1 -... - Page 2 Mini Portable Modular Mobile DVR USER MANUAL Tips about safety instruction & direction Before installing and using please read the following warning carefully. The recorder uses DC power supply, input DC range is 8V-36V, Please pay attention to VDD and GND when connecting the power, DO NOT make DVR short-circuit.
- Page 3 Mini Portable Modular Mobile DVR USER MANUAL Introduction The manual is about the features and specifications of one kind of car DVR, it is an integration of “4CH monitoring and recording ”, “ Megapixels Digital & Analog mixed car DVR”, “wireless data transmission ”.
-
Page 4: Table Of Contents
Mini Portable Modular Mobile DVR USER MANUAL Contents System Introduction ............................- 6 - 1.1.Product features............................- 6 - 1.2.Appearance...............................- 8 - 1.3 Remote Controller.............................- 9 - 1.4 Panel Definition............................- 10 - 1.5 Product Introduction ..........................- 11 - 2. Main Functions ..............................- 11 - 3. - Page 5 Mini Portable Modular Mobile DVR USER MANUAL 5.7.1 IO Alarm ............................- 35 - 5.7.2 Speed Alarm..........................- 36 - 5.7.3 Temperature Alarm ........................- 36 - 5.7.4 G-sensor............................- 37 - 5.7.5 Voltage Alarm ..........................- 37 - 5.7.6 Motion Detection.........................- 38 - 5.8 Peripheral Set ............................- 38 - 5.8.1 PTZ ...............................- 39 - 5.8.2 Oil ..............................- 39 - 5.8.3 Speaker Set ...........................- 40 -...
-
Page 6: System Introduction
Mini Portable Modular Mobile DVR USER MANUAL System Introduction 1.1 Product features H.264 Compression Mode, Support 4CH 1080P AHD High Definition camera input; Exclusive Pre-allocate DVR Special File System Technology,Solving repeatedly wipe cause file fragmentation, solving SD card file system collapse, data loss and cannot find SD card and file garbled, ensure the integrity of the data. - Page 7 Mini Portable Modular Mobile DVR USER MANUAL Display vehicle traffic status, Vehicle numbers ,Route, Super-low speed vehicle Information, Convenient management. Support GPS and G-sensor Modules Extension. 3G/4G SIM CARD Module and WIFI Module, Wireless AP Module. 3channel-RS232 and 2channel-RS485. ...
-
Page 8: Appearance

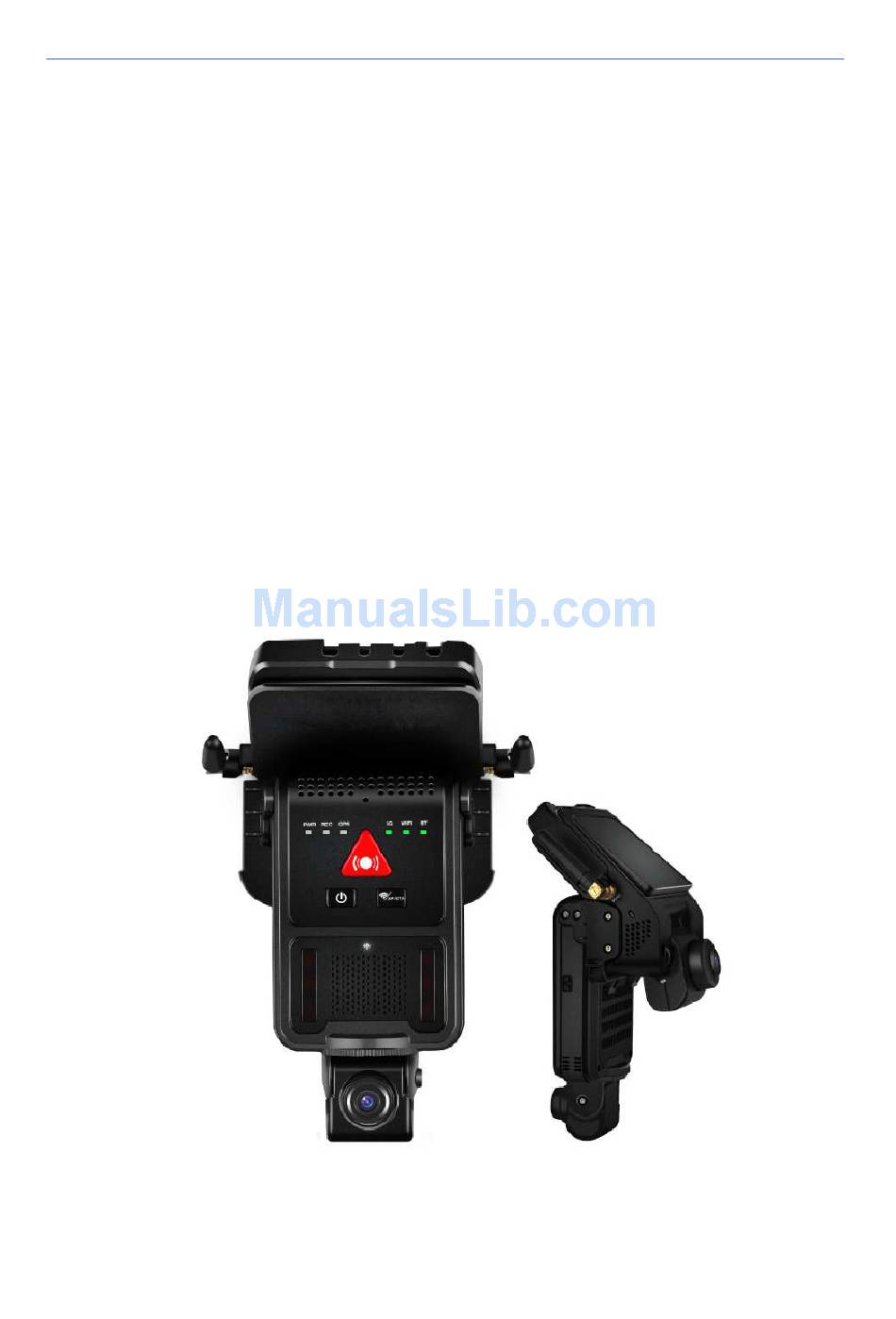

Mini Portable Modular Mobile DVR USER MANUAL 1.2 Appearance Product appearance pictures are displayed as follows: - 8 -... -
Page 9: Remote Controller
Mini Portable Modular Mobile DVR USER MANUAL 1.3 Remote Controller Function Picture Power and Standby Button,Reserved To enter system settings. [0－9] key:In the setting mode, 0-9 is used to select the number of menu items. In playback mode, the key 1-8 to select 1-8 single channel, ESC Button is used to switch back to the original preview interface . -
Page 10: Panel Definition
Mini Portable Modular Mobile DVR USER MANUAL 1.4 Panel Definition “GPS Function”: GPS is working when the light is on . “Video Indicator’’: Video is recording when the light is on “Power Indicator”: When device connect to DC power , this light will be on . “3G/4G Function”: When you use communication card , the light will be on . -
Page 11: Product Introduction
Mini Portable Modular Mobile DVR USER MANUAL 1.5 Product Introduction Before use,Please make sure that you have read this before installing and using . Device Power Connection: Just only connect DVR with power supply, the power of cameras and monitors are all supplied by DVR, aviation connectors is built-in DC 12V output. -
Page 12: Parameter Sheet
Mini Portable Modular Mobile DVR USER MANUAL Parameter Sheet *** Above parameters any changes, please refer to actual product **** Item Parameter Linux Language Chinese/English/Others (can be customized) Video Compression H.264 Compression Mode Overlays information such as date time and vehicle ID Graphical User Can connect to external LED screen. - Page 13 Mini Portable Modular Mobile DVR USER MANUAL Storage Support USB flash disk updating, SD card upgrade , OTA remote upgrade Upgrade automatically File Format .264 File System Special Car system File System Support Two USB Port: 2.0 - Front panel supports USB port, support USB flash disk upgrade to backup;...
- Page 14 Mini Portable Modular Mobile DVR USER MANUAL Parameter Sheet *** Above parameters any changes, please refer to actual product **** Type Camera Imaging Device 1/3 SONY323 Imaging 1945（H)*1097(V) Resolution Effective Pixels 2.13 M pixels Signal System 50HZ/60HZ Against car Camera 0.01Lux(color illumination) outside Low illumination...
- Page 15 Mini Portable Modular Mobile DVR USER MANUAL ≥41db AUTO/ 1/50（1/60）-1/50,000sec IR Distance none Imaging Device 1/3 SONY323 Imaging 1945(H)*1097(V) Resolution Effective Pixels 2.13 M pixels Signal System 50HZ/60HZ 0.05Lux(color illumination) Low illumination 0.01Lux（night vision fill light) Camera AUTO/ 1/50（1/60）-1/50,000sec Parameters Against car Day&night Day&night swift ,IR-Cut...
-
Page 16: Real-Time Video Interface Description
Mini Portable Modular Mobile DVR USER MANUAL 4. Real-time video interface description 4.1 Real-time monitoring interface: Real-time monitoring interface status icons are displayed as follows : 4.2 Various signal status icons as follows: G Signal status: 4G Signal status: GPS Signal status: WIFI Signal status: Center connect succeed status: SIM card Not Exit Status:... -
Page 17: Operation Interface Setup
Mini Portable Modular Mobile DVR USER MANUAL Text scheduling real-time interface displays : ******************************************************************************************* Preview screen, press the remote control - on - next - right, will lock remote control, there will be an underscore prompts between the date and time; Press the remote control - on - next - left to unlock. - Page 18 Mini Portable Modular Mobile DVR USER MANUAL ********************************************************************************** - 18 -...
-
Page 19: System Main Menu
Mini Portable Modular Mobile DVR USER MANUAL 5.2 System Main Menu The main menu includes: Search, System setup, Rec setup, Network setup, Alarm setup, Peripheral setup, System Tools, System Information, as below: 5.3 Search Query menu includes: Record, Picture, Log, Dispatch, call records - 19 -... -
Page 20: Video Search
Mini Portable Modular Mobile DVR USER MANUAL 5.3.1 Video Search **** Green color display indicates current day and time exist video file **** “Search Date”: Press the number key to enter date, default is current date. “Start Time”: Press the number key to enter date, default is 00:00. “End Time”: Press the number key to enter date, default is 23:59. -
Page 21: Picture Search
Mini Portable Modular Mobile DVR USER MANUAL Press the arrow keys to select "Home", "Previous", "Next", "Last" and press [OK] button to display the next page information. 5.3.2 Picture Search This menu is mainly for searching the screenshot pictures. Zoom up single full screen will auto screen capture by default , it will be triggered by the alarm linkage or manually operate. - Page 22 Mini Portable Modular Mobile DVR USER MANUAL When select a single log, press the keys to quickly flip over, and press to turn to first page or last page . - 22 -...
-
Page 23: Dispatch
Mini Portable Modular Mobile DVR USER MANUAL 5.3.4 Dispatch This menu is to query the device scheduling information, text messages, etc. 5.3.5 Call Records This menu is to query log of device voice calls recording. 5.4 System Setup Under System Setup menu includes: Power, time setup, user setup, terminal setup (menu setup and modifying need to choose save to take effect) - 23 -... -
Page 24: 1Power Management
Mini Portable Modular Mobile DVR USER MANUAL 5.4.1Power Management This menu is to setup Power management modes and power distribution. "Power mode":press the number keys to select the type, the default is ignition mode. "Delay Off": Press the number keys to enter the time, the default is 5 minutes, can be set to 1440 minutes "Screen time”: Press the number keys to enter the time, the default is 60 minutes, can be set to 0-1440 minutes "Power On": Press the number key to enter time, setup the timer start time... -
Page 25: Time Set
Mini Portable Modular Mobile DVR USER MANUAL 5.4.2 Time Set This menu is to setup device parameters, such as date and time, etc. "Date Type": Different date format for choosing. "Date": Press the number keys to enter current date. ”Time Synchronization": calibration mode: GPS, NTP and other school models available. Time Zone": Setup the time zone of the location of the device "Timeout": optional remote control does not operate the exit time “Real Time": Press the number key to enter the current time... -
Page 26: Terminal Setup
Mini Portable Modular Mobile DVR USER MANUAL "Password Enable": You can enable or disable password authentication to access the menu. Modify or setup password of users and the administrator by remote control. **** ADMIN Pass : 666666, USER Pass : 000000 **** 5.4.4 Terminal Setup By remote control input settings: device number, phone number, license plate number, license plate color, chassis number, vehicle type, the provincial domain ID, the City ID, driver's license number, authorization code,... -
Page 27: Basic Setup
Mini Portable Modular Mobile DVR USER MANUAL 5.5.1 Basic Setup This menu is to setup the basic video, audio and video parameters and can change into standard definition, AHD high definition and mixed mode. "Video Type": PAL / NTSC, press [OK] key to select. "Record Mode": Auto / timer / alarm recording, press [OK] key to select. -
Page 28: Main Stream
Mini Portable Modular Mobile DVR USER MANUAL 5.5.3 Main Stream his manual is to setup the code stream and definition of video channel. "Enable": open or close the channel of pre-recording function, press [OK] key to select. "Resolution": CIF, HD1, D1 ,720P,1080P resolution for choosing, press [OK] key to select. "FPS": 1-25 frame (P standard), 1-30 frame (N standard) channel recording frame rate for choosing. -
Page 29: Sub-Stream
Mini Portable Modular Mobile DVR USER MANUAL 5.5.4 Sub-stream This menu is used to set the parameters of the transmission stream. "Resolution" Setup the transmission resolution, press [OK] key to enter. "FPS" Setup the transmission time frames, press [OK] key to enter. "Image quality"... -
Page 30: Network Set
Mini Portable Modular Mobile DVR USER MANUAL 5.5.6 Disk Management When there are multiple disks, they can be set up recording parameters and priority grade. "REC": Setup main video or sub video in disk. "Pri": Setup the priority of different memory, enabling loop recording, function missing video recording. 5.6 Network Set Including: Center setup,Local Network ,3G setup ,WIFI setup ,FTP setup and IPC setup. -
Page 31: Center Setup
Mini Portable Modular Mobile DVR USER MANUAL 5.6.1 Center Setup Set Server IP and Port ; “Monitoring Center”:Set 3G /4G Video Center IP or domain,port information etc, “Network Type”:Set 3G network type, IP address/Domain optional; “Center IP”:3G Server IP/Domain setup. Press right key to enter keyboard interface,input the numbers via remote controller,then press [OK] for setting,;... -
Page 32: Local Network Setup
Mini Portable Modular Mobile DVR USER MANUAL In “ Info ” interface, W connected : it means device connected server already; B connected : it means device connected ministerial standard platform already, Connected : it means two platforms both connected device successfully. -
Page 33: 4G Setup
Mini Portable Modular Mobile DVR USER MANUAL 5.6.3 3G/4G Setup 3G/4G Network Configuration “Enable”:3G/4G On/Off Setting,Press [OK] for choosing; “Type”:3G/4G Type setting,WCDMA\EVDO\TD-SCDMA\TD-LTE , FDD-LTE, press [OK] for choosing, “APN”:Set 3G/4G APN,Press [OK] Input, enter into input page to set the information “User”, “Password”:SIM Card Network Operation User and Password, Press [OK] for setting ;... -
Page 34: Ftp Setup
Mini Portable Modular Mobile DVR USER MANUAL **** According to the specific configuration of WIFI network environment, please pay attention to check the accuracy of the characters and the IP address **** **** IP address set by WIFI and local network can not be in the same network segment **** 5.6.6 FTP Setup FTP Server setup for OTA Automatically downloading when new firmware upgrading in FTP Server;... -
Page 35: Io Alarm
Mini Portable Modular Mobile DVR USER MANUAL 5.7.1 IO Alarm Each channel alarm enable/level/time delay/Linkage information setting; “Enable”:Alarm Trigger enable on/off and alarm type, press [OK] for changing; “Level”:Choose Alarm trigger level,High/Low Level optional,press [OK] for optional; “ Delay”:When alarm trigger,if need delay alarm trigger,time can be set to reduce error alarm, press [OK] for changing;... -
Page 36: Speed Alarm
Mini Portable Modular Mobile DVR USER MANUAL Attention: “Enable” function cannot be repeated, otherwise it will lead to abnormal alarm report. 5.7.2 Speed Alarm High/Low Speed or illegal driving alarm can be set. “ Speed Source”: The method to get speed, GPS/Pulse Signal Optional, Press [OK] for changing; “... -
Page 37: G-Sensor
Mini Portable Modular Mobile DVR USER MANUAL Low/High Temperature Parameter Setting. 5.7.4 G-sensor SET G-sensor information of alarm threshold and linkage actions. Before configuration, need to calibrate the current state first, then modify the alarm threshold. 5.7.5 Voltage Alarm Low/High Voltage alarm. - 37 -... -
Page 38: Motion Detection
Mini Portable Modular Mobile DVR USER MANUAL Voltage abnormal delay shutdown: it means the voltage is kept below 6V, automatic shutdown time, this can effectively protect the battery, to avoid abnormal conditions caused by the battery voltage shortage, prolong the service life of the battery. 5.7.6 Motion Detection This menu is to set the image changes and the parameters of the object in the video pictures. -
Page 39: Ptz
Mini Portable Modular Mobile DVR USER MANUAL 5.8.1 PTZ PTZ Camera parameter configuration “ Protocol Type”:The Protocol of PTZ Camera support option,Press [OK] for changing; “ ADD Code”:choose PTZ Camera Address code,press Number for changing; “ Preset”:Choose PTZ Camera Preset code,press number for changing; ** When using remote controller to control PTZ, after configuring parameters, need to zoom in single screen first, then press PTZ ,then use the direction keyboard to control ** 5.8.2 Oil... -
Page 40: Speaker Set
Mini Portable Modular Mobile DVR USER MANUAL Reserved oil set menu, can be set on the serial port currently 5.8.3 Speaker Setup. Support TTS voice broadcast, telephone call, IP intercom, voice report bus stops,playback audio output and other functions. 5.8.4 Serial Port Set External Device parameter setting, can connect LED Advertisement/TTS/Oil/Sensor/POS etc ;... -
Page 41: Tools
Mini Portable Modular Mobile DVR USER MANUAL **** Just need to choose function and modify the baud rate, other options can keep default * *** 5.9 Tools Including: Phone Call,Format,Parameter/Tel Book 5.9.1 Call Call Phone Number ( SIM Card must support Phone Calling function) , press [OK] to enter Dialing interface 5.9.2 FORMAT Format Disk choice, device will reboot disk after confirming, log and pictures and other related info will... - Page 42 Mini Portable Modular Mobile DVR USER MANUAL Attention: Device will format automatically when it starts, new HDD or SD card, can be formatted on the computer, in general, it doesn’t need format disk in DVR by manual. - 42 -...
-
Page 43: Parameters Management
Mini Portable Modular Mobile DVR USER MANUAL 5.9.3 Parameters Management “Import”:Import parameters from HDD or SD Card to current device.Import the system configuration parameters which has set up and restore the factory settings to the factory states “Export”:Export current device parameters to HDD or SD Card; “Default”:Default to factory setting;... -
Page 44: System Info
Mini Portable Modular Mobile DVR USER MANUAL 5.10 System Info System Info have 3 parts for detail information;can view by menu or Press INFO: - 44 -... -
Page 45: Device Installation
Mini Portable Modular Mobile DVR USER MANUAL 6. Device Installation 6.1 Power Cable Connection Attention The recorder is DC power supply; please attention the positive and negative polar. The voltage is 8V~36V.Do not insert voltage that beyond this range. Under low voltage the recorder doesn’t work, under high voltage will be harm to the recorder. -
Page 46: Audio/Video Interface Definition
Mini Portable Modular Mobile DVR USER MANUAL the power supply. 6.2 Audio/Video Interface Definition The device support channel AV1~ AV4.The aviation joint can adapt severe environment in the vehicles; The power in the rear panel, IO and other PIN of the interface below: Expansion interface PIN order is based on the direction of facing to the rear panel,please refer to Figure 24PIN, 30PIN and 12PIN and 10PIN,4PIN, 2PIN detailed definitions are as below:. - Page 47 Mini Portable Modular Mobile DVR USER MANUAL - 47 -...
-
Page 48: Alarm Input/Output Connection Mode
Mini Portable Modular Mobile DVR USER MANUAL 6.3 Alarm Input/Output Connection Mode Device have 8CH Alarm Input Interface, 24 PIN I/O Interface Definition is IN1 - IN8 . Alarm input usually using High Level to trigger, connect SOS button,Kinds of vehicle driving status such as: Braking,Turning,Door open etc;... - Page 49 Mini Portable Modular Mobile DVR USER MANUAL - 49 -...
-
Page 50: Faq
Mini Portable Modular Mobile DVR USER MANUAL 7. FAQ Q:When Device issue appear,you are confused on how to solve it. A:Check Device Item No & Firmware Version,sent back to us with detail description of issue.Our Technical Team will handle it. More detail you described,easier for us to solve it quickly. -
Page 51: Wireless Module Related Faq
Mini Portable Modular Mobile DVR USER MANUAL Q:Deviation of GPS Location on Map? A:The signal is effective if the GPS module has been positioning, there are so many reasons caused bias, government restriction, permissible error, GPS signal break off, The actual satellite map error occurred for the security, GPS Correction can solve the problem. -
Page 52: Other Related Questions
Mini Portable Modular Mobile DVR USER MANUAL A:1)Please set Low Sub-stream,when sub-stream set high it will effect the transmission because of the network; 2)Network environment not good; Q: Device works well in the Client, but cannot see the video a period time later. A:1.Check if connect to server successfully on device, if dialing probably SIM Card no 3G Flow,change another SIM card for testing;...
