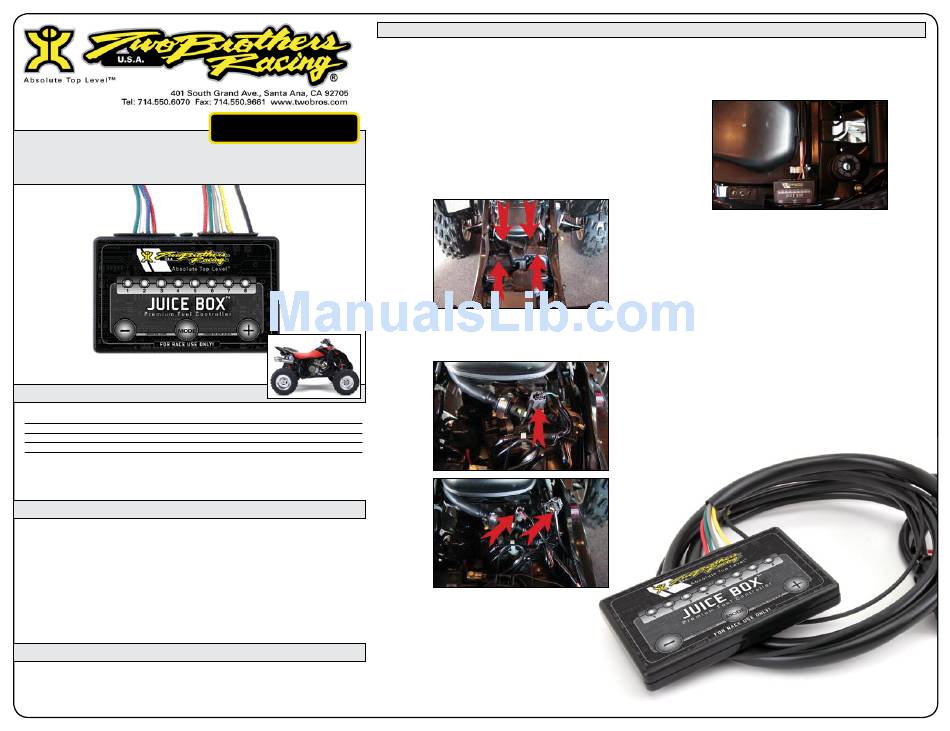

Two Brothers Racing

Juice Box™ - Fuel Controller

2008 Honda TRX700XX Installation & Operation Manual

Part # 008-201

Parts Incuded

Qty.

Description

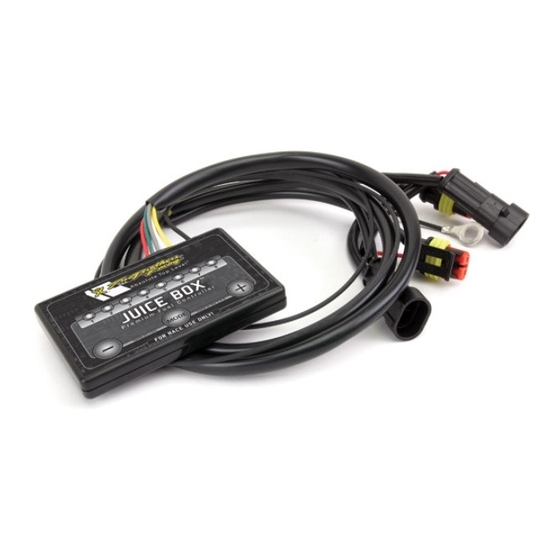

Juice Box™ Fuel Control Kit

Zip T ies

Adhesive Velcro Square

IMPORTANT - PLEASE READ CAREFULLY

We recommend that this performance part be installed by a qualified ATV technician. If

you have any doubts as to your ability to install this performance part, please consult

with your local ATV dealer. Read all instructions first before starting installation. Make

sure the vehicle and exhaust system are completely cool before starting the installation.

Also, make sure the vehicle is secure during installation. Be sure to save all stock

components for possible use later.

The Juice Box™ is legal ONLY for closed course race vehicles. The Juice Box™ is not

applicable, nor inteded for use on EMISSIONS CONTROLLED street, highway or off-road

vehicles. The Juice Box™ is not applicable, nor inteded for use on aircraft.

Warranty

two brothers racing warrants that this product carries a warranty for 2 years from date of purchase against original

defects in materials and workmanship. should this product fail to perform for either of the above reasons, two brothers

racing will repair or replace it with an equivalent product at no charge, except for postage, to the original retail purchaser.

to obtain the benefits of this warranty, the retail purchaser must return the product and proof of purchase to the place of

original purchase.

V.A.L.E.

V a r i a b l e

a x i s

l o c k i n g

e x h a u s t

Part Number

008-201

(9310121)

Thank you for purchasing a genuine T wo Brothers Racing

JUICE BOX™. T his product represents a radical step

forward in tuning fuel-injected motorcycles and ATVs for

optimal performance using "load-based" technology.

We at T wo Brothers Racing hope that you will find this

development as exciting and useful as we do. And

remember: Proper Fuel = Maximum Power!

Make sure the vehicle is completely cool before starting

the installation. Also, make sure the vehicle is secure and

will not roll around.

Remove seat.

Pull back the rubber matting, then the plastic cover (Fig 1).

Fig 1

Locate (Fig 2) and disconnect stock injector connector,

connect JUICE BOX™ connector to ATV's injector then

connect stock injector connector to JUICE BOX™'s black

connector. (Fig 3)

Fig 2

Fig 3

Installation Instructions

Route JUICE BOX™ harness along the air-box so that

the JUICE BOX™ will fit into the spot in the lower Left

hand corner, next to the air-box. Make sure that the

seat doesn't in any way contact the JUICE BOX™ unit or

wiring harness and secure with zip ties. (Fig 4)

Fig 4

NOTE: Re-check your wire routing and JUICE BOX™

location and make certain that in no way the wires can

come into contact with any moving parts or high heat

source and that the JUICE BOX™ is mounted in a way as

to not cause a handling problem with the machine.

Start the ATV and double check to make sure the JUICE

BOX™ lights up.

Reassembly is the opposite of disassembly.

Continued on page 2

Table of Contents

Need help?

Do you have a question about the Juice Box 008-201 and is the answer not in the manual?

Questions and answers

Summary of Contents for Two Brothers Racing Juice Box 008-201

Page 1 The Juice Box™ is not applicable, nor inteded for use on aircraft. Warranty two brothers racing warrants that this product carries a warranty for 2 years from date of purchase against original defects in materials and workmanship. should this product fail to perform for either of the above reasons, two brothers racing will repair or replace it with an equivalent product at no charge, except for postage, to the original retail purchaser.
Page 2 T o enter each successive mode, just (+) button. T o add less fuel, scroll the flashing red LED to press the mode button again. Note that every mode will the left using the (-) button. If you set the flashing red LED be identifiable by the color(s) of the flashing LED(s) on the to the 0.5 position on the LED display, no fuel will be added Two Brothers Racing LED display. There are six modes that are distinguished to the stock fuel curve. Juice Box™ - Fuel Controller by an LED color or color combination. The 6 modes are as follows, respectively: Green, Yellow, Red, Green-Blue, Note: If the flashing green, yellow and red LEDs in modes 2008 Honda TRX700XX Installation &...
Page 3 Pre-set Settings: Honda TRX700XXwith stock airbox, TBR complete exhaust with spark arrestor. (G=4 Y=4, R=1, GB=8, YB=4, RB=4) Mode 1 - green Mode 2 - Yellow Mode 3 - red Two Brothers Racing Juice Box™ - Fuel Controller 2008 Honda TRX700XX Installation & Operation Manual Part # 008-201...
