Summary of Contents for TVB Tech 4908AL

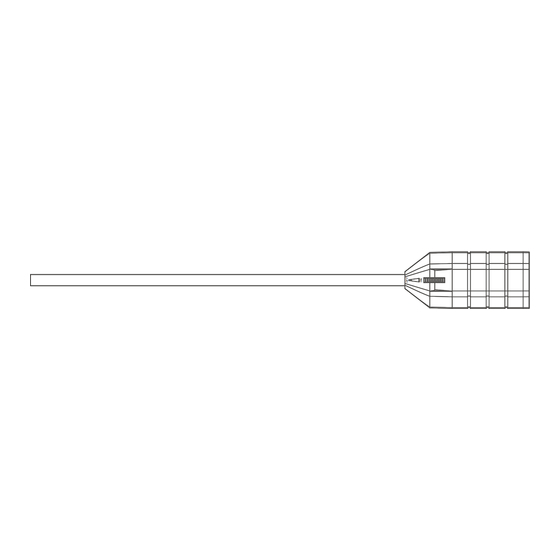

- Page 1 Side View Rigid Inspection Camera Side View Rigid Inspection Camera Model: 4908AL Model: 4908AL Version 1.0 Please read this user manual carefully before using this product. Failure to understand operation procedures may result in injury.
- Page 2 General Safety Information ---------------------------------------------------------------------------- 02 Welcome ------------------------------------------------------------------------------------------------------ 03 Features ------------------------------------------------------------------------------------------------------ 03 Packing List -------------------------------------------------------------------------------------------------- 03 Structure ----------------------------------------------------------------------------------------------------- 04 Installation ---------------------------------------------------------------------------------------------------- 05 T o Install Monitor Mounting Bracket ---------------------------------------------------------- 05 T o Insert SD Card ------------------------------------------------------------------------------------ 05 T o Connect USB Cable ------------------------------------------------------------------------------ 05 T o Connect Monitor Power ------------------------------------------------------------------------ 05 T o Connect Camera Power ------------------------------------------------------------------------ 06 Video Output of Monitor ---------------------------------------------------------------------------- 06...
- Page 3 Thank you for purchasing our side view Rigid Inspection Camera. This product is specially designed for cavity wall inspection, wall tie and dry rot inspection, inspection of spaces under floors, above ceilings and behind panels and ducts, and many more where a rigid side view endoscope is required.
- Page 4 Slide the bracket MAIN UNIT upward. Stainless Steel Insertion T ube Dia. 9mm Lenth 300mm On/Off Switch LED Brightness Control Video Out Side View Camera Indicator LEDs Lighting Distance Up T o 1.5m 2 High Intensity LEDs Side View Camera Lighting Distance: 1.5m USB Charging MONITOR...
- Page 5 To Connect Camera Power Power adapter Plug the USB cable into the power adapter, and the other end into the camera to charge the Photo camera. Icon TC4908 Notice: must original power adapters provided by the vender. power source Video Output of Monitor USB cable Image Insert video cable into the video out socket of...
- Page 6 System Setting 00:00:05 00:05:12 2013/03/21 14:12:19 Press the button to select your desired photo, press ‘OK’ button to view and press the button to exit. 2013/03/21 0001/0005 13:54:15 14:12:19 14:17:34 14:36:40 15:09:03 2013/03/15 2013/03/16 2013/03/17 FOLDER NOT EMPTY ! 2013/03/18 2013/03/19 2013/03/20 2013/03/21...
- Page 7 Camera Monitor (Model No. TC4908) (Model No. GB7307) Specifications Specifications Items Items Diam. of Insertion T ube Screen Size 3.5" TFT-LCD Display Resolution 320(R.G.B.) x 240dot Insertion T ube Length 300mm Video Format NTSC / PAL Overall Length 400mm 2013 / 03 / 21 Modulation Mode T ube Material...
- Page 8 1. Camera not charged 1. charge camera 2. monitor not charged 2. charge monitor...
