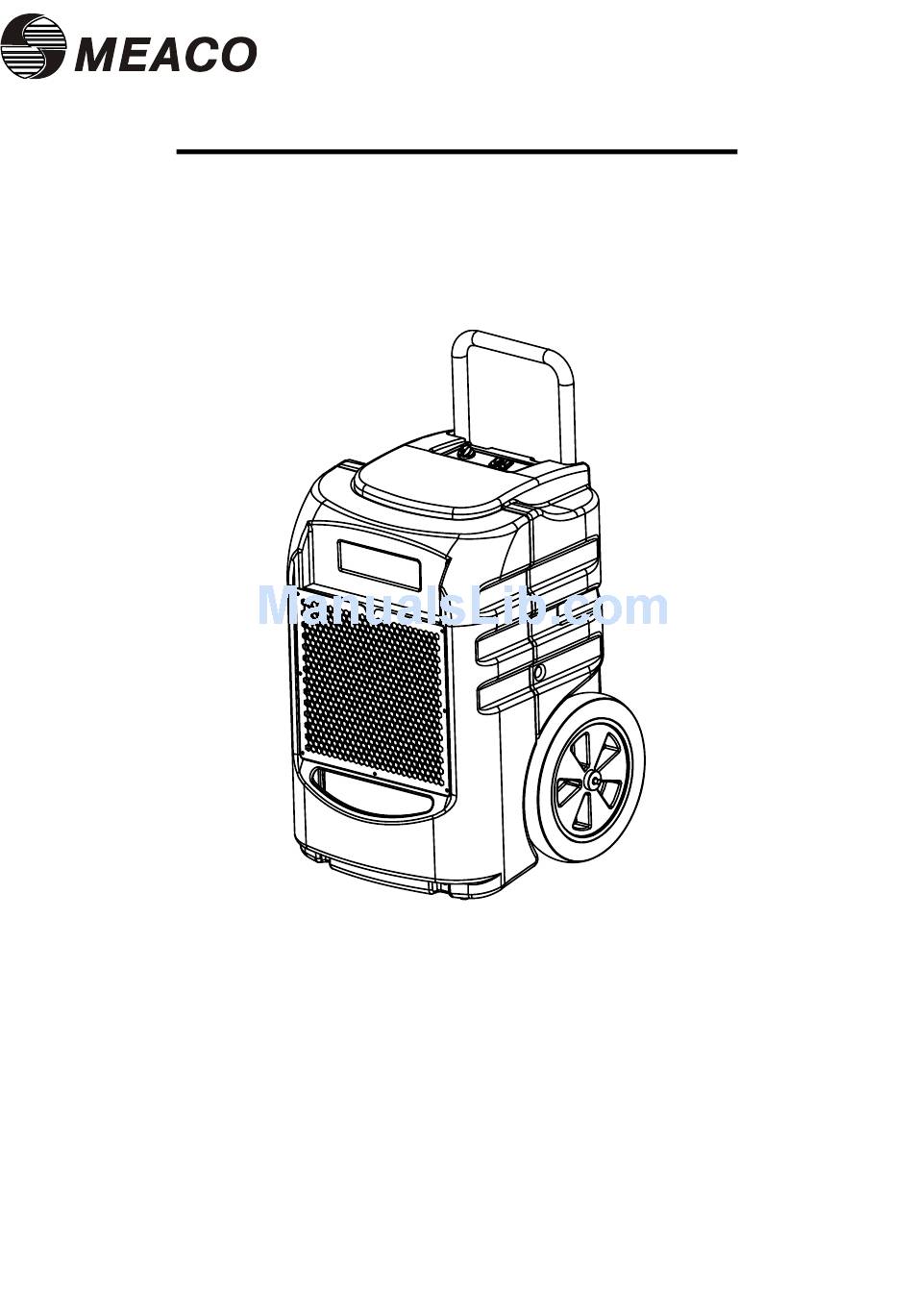

Meaco 60L Building Dryer
INSTRUCTION MANUAL [EN]
60L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 60L and is the answer not in the manual?

Questions and answers

Summary of Contents for Meaco 60L

  • Page 1 Meaco 60L Building Dryer INSTRUCTION MANUAL [EN]...

  • Page 2: Safety Information

    If in doubt do not use the dehumidifier and consult a qualified electrician or a Meaco approved engineer. The operator must make the operating instruction available for the user and make sure that the user does understand the manual.
  • Page 3 Wiring Instructions: Should it be necessary to change the plug please note the wires in the mains lead are coloured in accordance with the following code: BLUE - NEUTRAL BROWN - LIVE GREEN AND YELLOW – EARTH As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: 1.

  • Page 4: General Advice

    1. GENERAL ADVICE Before putting your dehumidifier into operation for the first time, the instruction manual should be studied carefully. After receiving the unit, you should check your dehumidifier for any transport damage. In case of damage, you should inform the sender immediately. Keep the packaging for the dehumidifier in a safe place in order to be able to despatch the dehumidifier safely if it requires a service.

  • Page 5: Condensate Outlet

    4. PRODUCT INDENTIFICATION Pull rod Control panel Power cord Air outlet Filter Power cord fixed support Air intake and metal grill Wheel Water pipe Storage location Water pipe Water pipe connector (male) 5. CONDENSATE OUTLET This dehumidifier contains a built-in pump that connects to a drainage hose which is stored in the front of the unit. Uncoil the entire hose to ensure that there are no kinks or restrictions and place the unattached end into a drain or run to the outdoors.

  • Page 6: Control Panel

    6. CONTROL PANEL  POWER ON/OFF: Press the red switch to turn the unit ON or OFF. The indicator lamp will illuminate when the power is turned on.  PUMP ON/OFF: Press the PUMP ON black switch to empty water from the pump reservoir. During normal operation the pump purges automatically when the reservoir is full.

  • Page 7: Automatic Defrosting System

    8. ATTACHING DUCTING Keep the front air inlet clear. A maximum of 5m of 170mm ducting can be attached. Run the ducting straight and avoid bends and kinks. Air outlet 9. AUTOMATIC DEFROSTING SYSTEM This dehumidifier is equipped with an automatic hot-gas defrosting system. When operating in low temperatures the surface of the evaporator will accumulate frost and this will effect the efficiency of the dehumidifier.

  • Page 8: Specifications

    12. SPECIFICATIONS Model Meaco 60L Temperature Range +5 °C / +35°C Relative Humidity Range 35% - 90%rh Defrosting System Hot gas Air flow 510 cubic metres per hour Rated Voltage 220 - 240V / 50Hz Power Consumption 780 watts Refrigerant R410A / 640g 26.7ºC –...

  • Page 9: Troubleshooting

    The dehumidifier will switch on the fan automatically after some The dehumidifier is running a defrost cycle minutes. If not, the malfunction must The fan is out of operation be repaired by a Meaco approved workshop. Contact a Meaco approved Fan not running workshop.

  • Page 10: Maintenance

    14. MAINTENANCE Always turn off the power and disconnect the main cable before performing maintenance procedures. All service procedures below are to be executed with the unit unplugged. Perform before each use or as needed. INSPECT ELECTRICAL SYSTEM: Inspect the electrical cord for damage at regular intervals. The working performance of the dehumidifier will be greatly reduced if the filters are blocked with dust.
  • Page 11 16. STORAGE Follow the guidelines below when storing the unit: Prior to storing the unit, clean the filter and drain the water from the unit. Wind the power cord to the back of the unit. Put the water pipe to the water pipe storage location in the front of the unit. If necessary, stack machines as shown.

  • Page 12: Warranty And Customer Service

    …………………………………………………….. Meaco are specialists in dehumidifiers and would welcome your comments and questions on this dehumidifier. If you do develop a fault within the first year then please do call us and if we cannot fix the problem over the phone we will be happy to collect the dehumidifier from you at our expense and repair or replace as appropriate.
