F A N O T E C
Nodal Ninja Ultimate R1
Ring Mount Pano Head
Quick Reference Guide
revised: July 16 2009
©2009 Nodal Ninja
For added support visit:
www.nodalninja.com/forum
For videos visit:
youtube.com/nodalninja

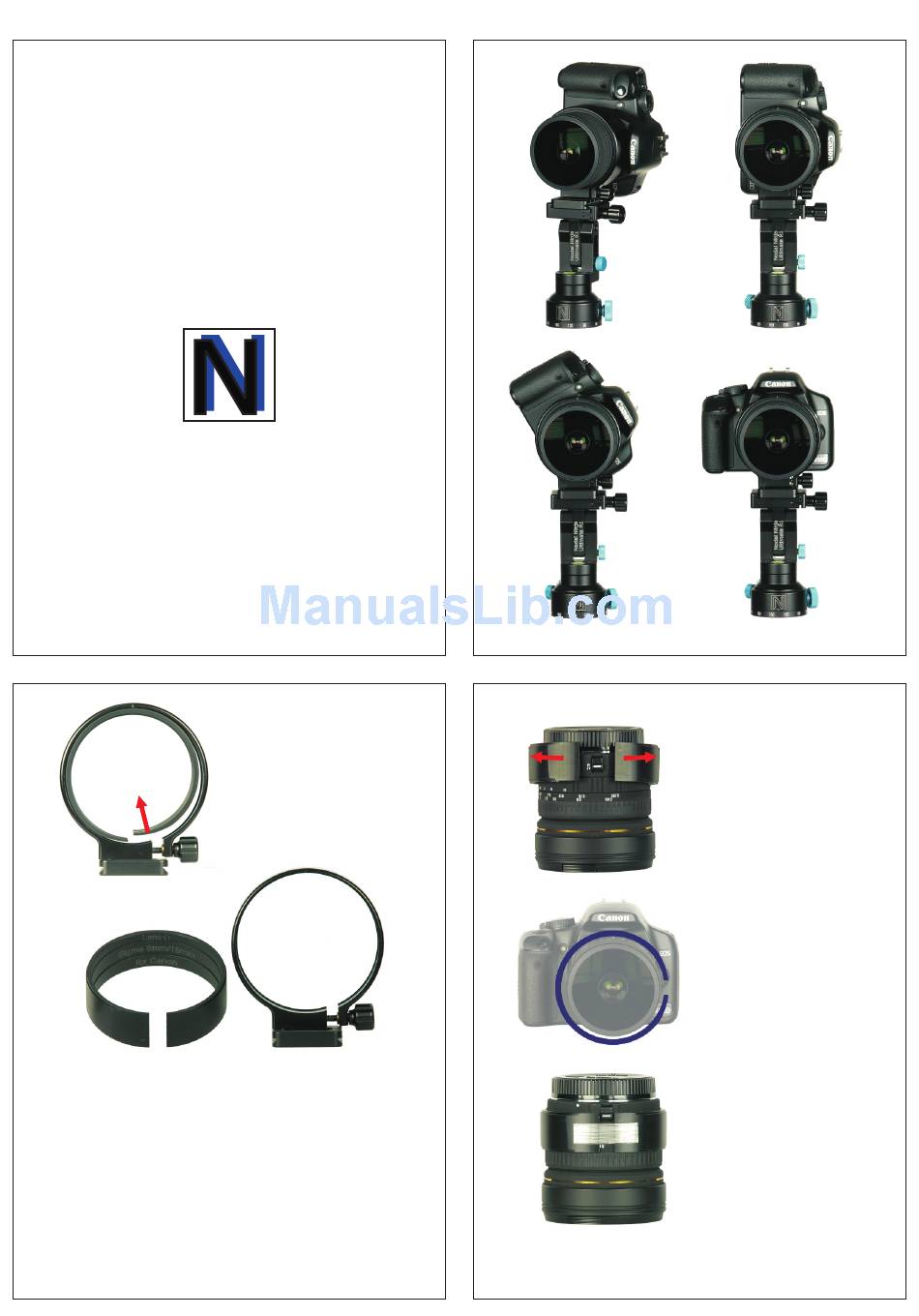

1
Squeeze
Inner ring denotes the lens type. The arrow
should point away from camera.
In many cases, the focusing scale will be
hidden by the lens ring mount. It is
recommended to tape the focusing ring at
p r e d e t e r m i n e d f o c u s d i s t a n c e a t t h e
beginning. Most frequently used distance is
0.5-1 meter using an aperture of F8-F13.
Loosen the knob on the
outer ring until slit of
outer ring is about 6mm
w i d e . S q u e e z e t h e
inner ring to remove it
from the outer ring.
2
stretch
Stretch and slide
the inner ring to the
anchor point on the
l e n s b o d y . T h e
a n c h o r p o i n t o f
each lens is shown
in the Appendix1.
Align the opening
of the inner ring to
the left of camera .
Press the inner ring
a g a i n s t t h e l e n s
body firmly. Tape it
and push it against
the anchor point.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ultimate R1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Nodal Ninja Ultimate R1

  • Page 1 F A N O T E C Nodal Ninja Ultimate R1 Ring Mount Pano Head Quick Reference Guide revised: July 16 2009 ©2009 Nodal Ninja For added support visit: www.nodalninja.com/forum For videos visit: youtube.com/nodalninja Loosen the knob on the Stretch and slide...
  • Page 2 Align the outer ring to the opening of inner Tilt angle ring as shown at the indicating left. Insert the outer windows. ring. Tighten its knob s l i g h t l y. R o t a t e t h e outer ring so that it snaps to the inner ring.
  • Page 3 Appendix 1 Anchor Point For Lenses NPP Settings For Lenses (QR Clamp Knob at the Left Side) Sigma8 f3.5 For Canon (4 shots around) R1 Tilt Reading +12.5° 1.00 +7.5° 1.65 +5° 1.95 0° 2.65 push against -2.5° 2.95 Anchor Point anchor point -7.5°...
