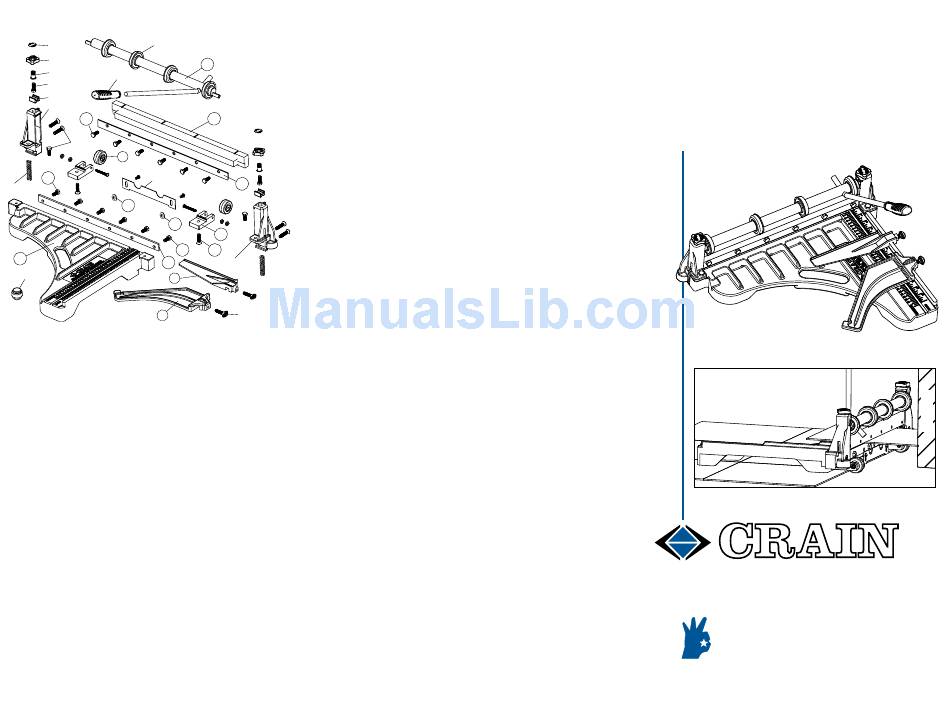

CRAIN 008 Instruction Manual

No. 008 18" VINYL SPECIAL TILE CUTTER
REPLACEMENT PARTS:
1001-26 1001-K
1001-23
1001-25
1001-12
1001-27
1001-24
1001-22
29
1001-20
N
30
1001-R
1001-M
26
26
29
31
21
1001-Q
D
C
Order No. Description
1008-20 Top Blade
1008-21 Bottom Blade
1008-22 Crankshaft Handle & Grip
1008-23 Blade Carrier
1008-26 Floor Guide Spacers (2)
1008-27 Wheel Bracket (1 each)
1008-28 Wheel Bracket Screw
1008-29 Blade Screw Set (12)
1008-30 Blade Screw (1 only)
1008-31 Base Casting
1008-C Diag. Cut Guide & Screw
1008-D Straight Cut Guide & Screw
1008-N Roller Wheel & Fasteners
PARTS COMMON TO NO. 001:
1001-12 Handle Grip Only
1001-20 Standard Screw Set (3X)
1001-21 Right Hand Standard
1001-22 Left Hand Standard
1001-23 Dial Knob (1 each)
1001-24 Cam Bearing (1 each)
1001-25 Threaded Bushing (1 each)
1001-26 Knob Label (1 each)
1001-27 Bushing Screw (1 each)
1001-D Tile Guide Wing Screw (1 each)
1001-K Crankshaft Ball Bearing (1 each)
1001-M Return Spring (1 each)
1001-Q Ball Caster Only
1001-R Floor Guide & Screws (2)
22
23
20
27
28
1001-21
1001-D
CRAIN CUTTER CO., INC.
TELEPHONE (408) 946-6100
Printed by: HF
Milpitas, CA 95035
FORM F1008-01/13
INSTRUCTION
MANUAL
FOR
No. 008 18" VINYL SPECIAL
TILE CUTTER
No. 008
18" VINYL SPECIAL TILE CUTTER
