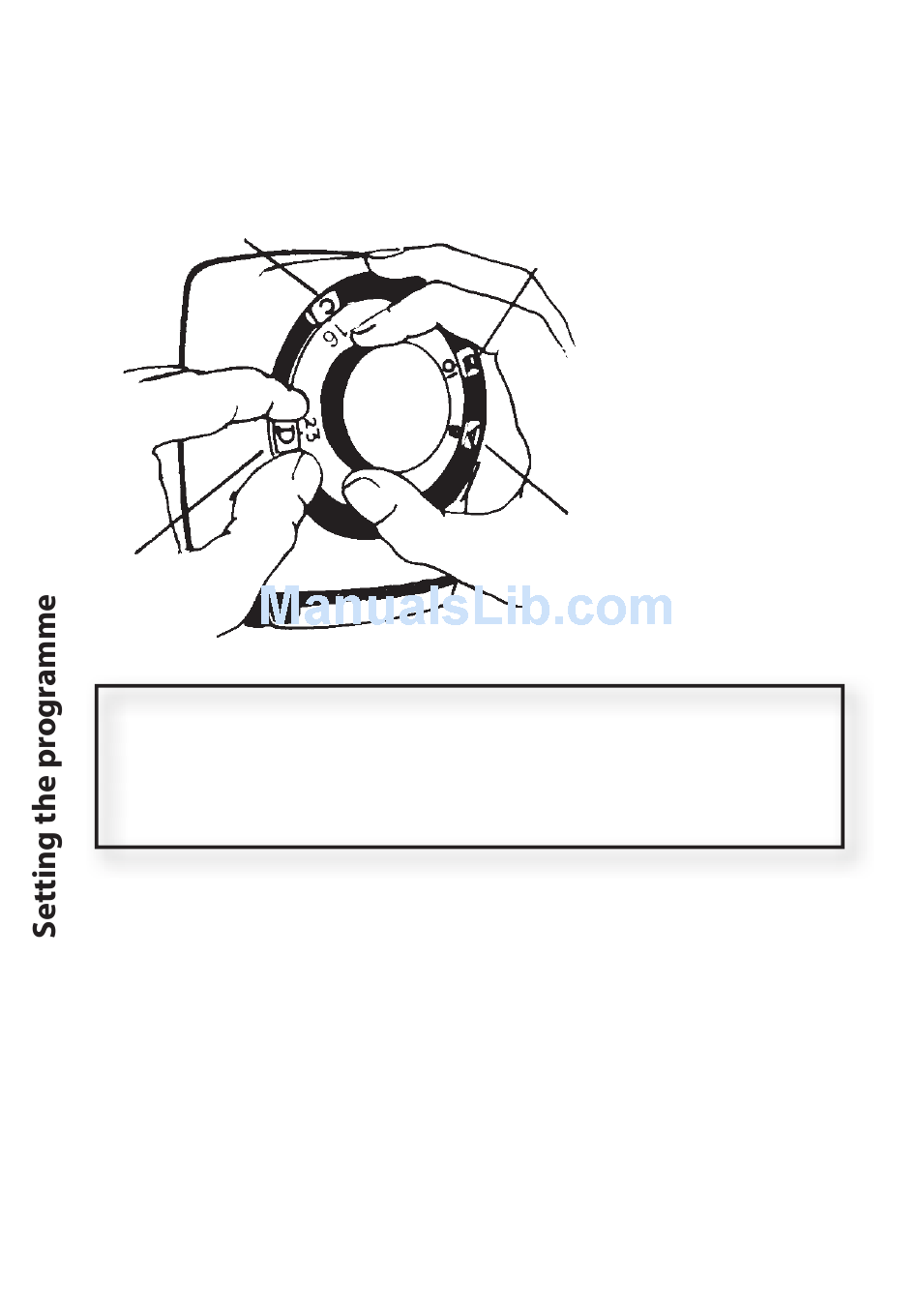

Example:
If you want your system ON between 8am and 10am and again
between 4pm and 11pm, set the tappets as shown. (A to 8, B to
10, C to 16, D to 23).
Remember: Remember:
3. Ensure that the installer has removed the protective tape
covering the pre-selector wheel.
4. Using the dial knob, rotate the dial completely at least
twice, clockwise only, to clear the mechanism.
Note: Tappets can be moved around the dial in a clockwise or anti-
clockwise direction, as convenient.
10
Red tappets (A and C) switch ON Red tappets (A and C) switch ON
Blue tappets (B and D) switch OFF Blue tappets (B and D) switch OFF
A = 1st ON
B = 1st OFF
C = 2nd ON
D = 2nd OFF
