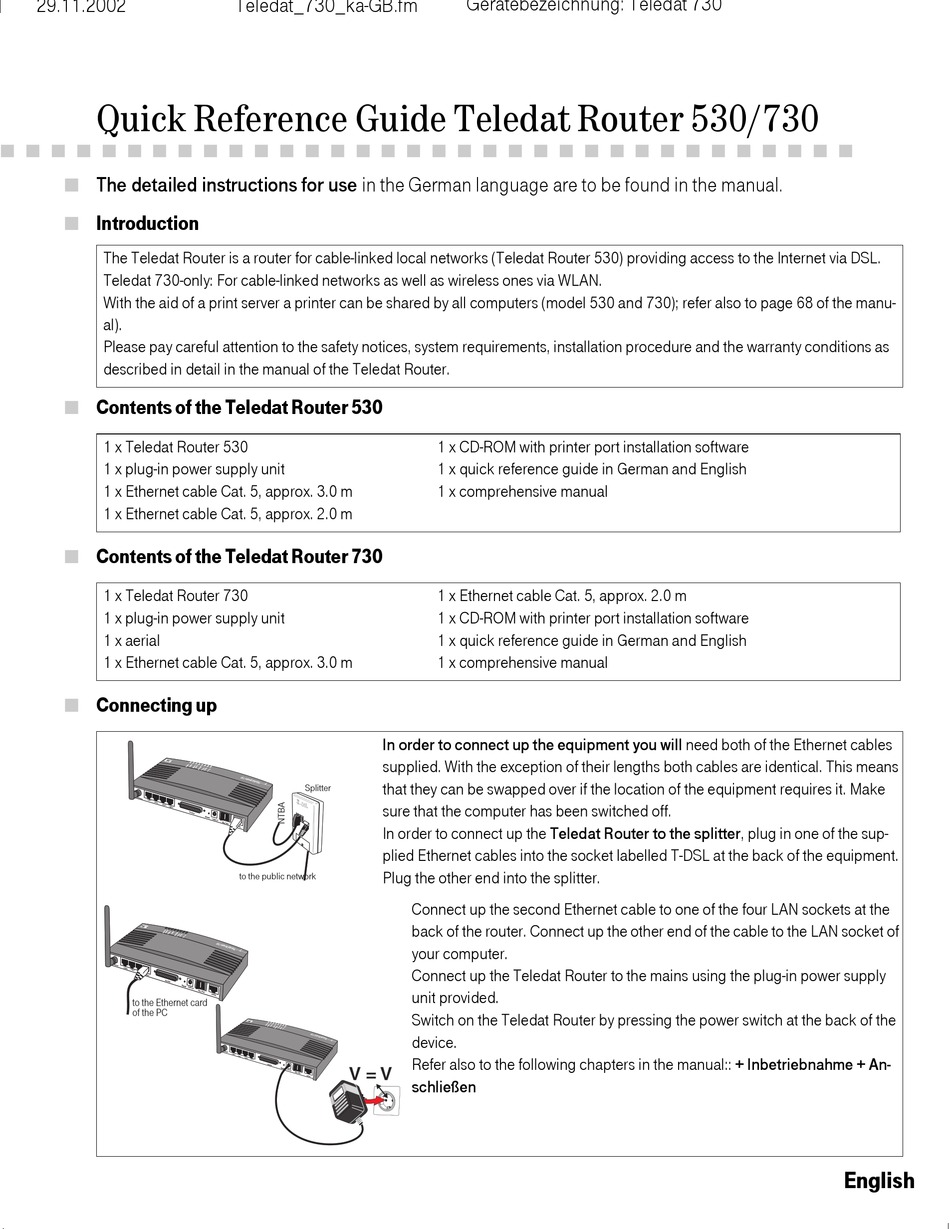

Quick Reference Guide Teledat Router 530/730
The detailed instructions for use in the German language are to be found in the manual.
I

Introduction

I
The Teledat Router is a router for cable-linked local networks (Teledat Router 530) providing access to the Internet via DSL.
Teledat 730-only: For cable-linked networks as well as wireless ones via WLAN.
With the aid of a print server a printer can be shared by all computers (model 530 and 730); refer also to page 68 of the manu-
al).
Please pay careful attention to the safety notices, system requirements, installation procedure and the warranty conditions as
described in detail in the manual of the Teledat Router.

Contents of the Teledat Router 530

I
1 x Teledat Router 530
1 x plug-in power supply unit
1 x Ethernet cable Cat. 5, approx. 3.0 m
1 x Ethernet cable Cat. 5, approx. 2.0 m

Contents of the Teledat Router 730

I
1 x Teledat Router 730
1 x plug-in power supply unit
1 x aerial
1 x Ethernet cable Cat. 5, approx. 3.0 m

Connecting up

I
An ten
ne
LA N
1
LA N
2
LA N
3
LA N
An ten
ne
LA N
1
LA N
2
LA N
3
LA N
4
Dru cke
to the Ethernet card
of the PC
Splitter
T
! ! ! !
D S L
4
Dru cke
r
Re se
t
12 VD
C/1
Ein /
Au s
T-D SL
to the public network
r
Re se
t
12 VD
C/ 1
Ein /
Au s
T-D SL
Ant enn
e
LAN
1
LAN
2
LAN
3
LAN
4
Dru cke
r
Re set
12V DC
/1
Ein /
Aus
T-D SL
1 x CD-ROM with printer port installation software
1 x quick reference guide in German and English
1 x comprehensive manual
1 x Ethernet cable Cat. 5, approx. 2.0 m
1 x CD-ROM with printer port installation software
1 x quick reference guide in German and English
1 x comprehensive manual
In order to connect up the equipment you will need both of the Ethernet cables
supplied. With the exception of their lengths both cables are identical. This means
that they can be swapped over if the location of the equipment requires it. Make
sure that the computer has been switched off.
In order to connect up the Teledat Router to the splitter, plug in one of the sup-
plied Ethernet cables into the socket labelled T-DSL at the back of the equipment.
Plug the other end into the splitter.
Connect up the second Ethernet cable to one of the four LAN sockets at the
back of the router. Connect up the other end of the cable to the LAN socket of
your computer.
Connect up the Teledat Router to the mains using the plug-in power supply
unit provided.
Switch on the Teledat Router by pressing the power switch at the back of the
device.
Refer also to the following chapters in the manual:: + Inbetriebnahme + An-
schließen
English
