ARQAMI HUMMER-D5 User Manual

All-in-one pos system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
All-in-One POS System
User Manual
ARQAMI HUMMER
Ver. 1.2
© Copyright ARQAMI
Downloaded from
www.arqami.net
manuals search engine

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HUMMER-D5 and is the answer not in the manual?

Questions and answers

Summary of Contents for ARQAMI HUMMER-D5

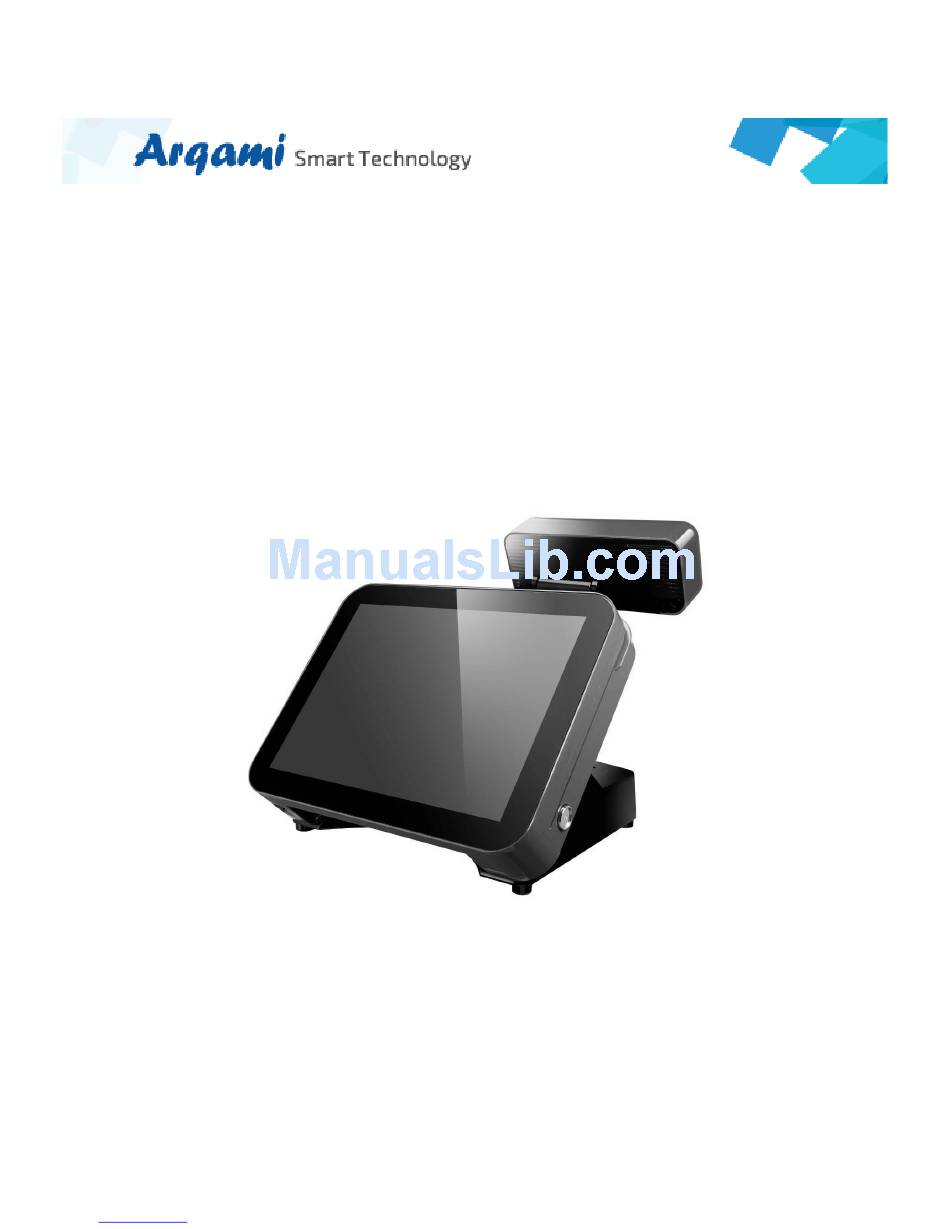

  • Page 1 All-in-One POS System User Manual ARQAMI HUMMER Ver. 1.2 © Copyright ARQAMI Downloaded from www.arqami.net manuals search engine...

  • Page 2: General Information

    IT technology. Users can get the most up to date information from our web sites: http://www.arqami.net DISCLAIMER This manual has been examined for accuracy. While precaution has been taken in the...

  • Page 3: Caution

    Warranty does not cover any damage caused by improper use. TRADE MARKS AND SERVICE MARKS TYSSO is a registered trademark of FAMETECH INC. Other brand and product names are trademarks and registered trademarks and service marks of their respective owners. Downloaded from www.arqami.net manuals search engine...

  • Page 4: Important Safety Information

    1. The power cord or plug is damaged or frayed. 2. Liquid is spilled into the system. 3. The system is dropped or the cabinet is damaged. When the system is not in use, cover the system and store it with care.  Downloaded from www.arqami.net manuals search engine...

  • Page 5: Table Of Contents

    3.4. Advanced Chipset Features ..................36 3.5. Integrated Peripherals ....................38 3.5.1. OnChip IDE Device ......................39 3.5.2. Onboard Device ......................41 3.5.3. Super IO Device ......................42 3.5.4. Second IO Device ......................43 3.5.5. USB Device Setting......................44 Downloaded from www.arqami.net manuals search engine...
  • Page 6 6.4. Cash Drawer ......................88 7. Jumper Settings & Connectors ................. 91 7.1. The Main Board Jumper Location ................91 7.2. Jumper Settings ......................92 7.3. Connector Function List ..................... 95 7.4. Internal Connector Pin Assignment ................96 Downloaded from www.arqami.net manuals search engine...
  • Page 7 Downloaded from www.arqami.net manuals search engine...

  • Page 8: Product Overview

    Magnetic Stripe Card Reader (MSR)  I-Button Customer Display  Secondary Display Wi-Fi module * For more information relating to the other optional peripherals, please contact the local representatives or technical support personnel of the providers. Downloaded from www.arqami.net manuals search engine...

  • Page 9: Specifications

    8.5 Kg Dimension (W x D x H:mm) 370 x 320 x 300 Operating Temperature 0°C~40°C Operating Humidity 20% ~ 80% RH non-condensing Storage Temperature -20°C~ 60°C Storage Humidity 20% ~ 85% RH non-condensing Downloaded from www.arqami.net manuals search engine...
  • Page 10 DC 24V/1A, 6-Wire RJ-11 Socket Others 24VDC/2.5A Power Input (Printer) (with External Adapter 100~240VAC 50/60Hz) Operating Temperature 0°C~45°C Operating Humidity 10% ~ 80% RH non-condensing Storage Temperature -10°C~ 60°C Storage Humidity 10% ~ 90% RH non-condensing Downloaded from www.arqami.net manuals search engine...
  • Page 11 8.4”, 10.4”, 12.1”, 15” with or without Touch 2nd Display Wi-Fi Mini-PCIe interface Module * For more information relating to the other optional peripherals, please contact the local representatives or technical support personnel of the providers. Downloaded from www.arqami.net manuals search engine...
  • Page 12 Dimensions  Left View Front View Right View Right View (VFD Pole max. height) (VFD Pole min. height) Downloaded from www.arqami.net manuals search engine...

  • Page 13: Parts Description

    Power Switch of Touch Screen Customer Display Power Switch Bottom I/O Cover Rear View Customer Display Receipt Slot Printer Cover Button HDD Cover Paper Feed Button Printer Cover Power Switch of Receipt Printer Unit Downloaded from www.arqami.net manuals search engine...
  • Page 14 Bottom View  Bottom I/O Cover AC Power Cord Connector I/O Ports for Printer Unit Side View  i-Button Left View Right View Downloaded from www.arqami.net manuals search engine...

  • Page 15: I/O Ports

    Bottom I/O ports Bottom I/O Cover Printer I/O ports Bottom I/O Ports Side I/O Ports RJ-11 I/O Ports for Printer Unit * Printer Unit is an optional part and may not include in the product. Downloaded from www.arqami.net manuals search engine...
  • Page 16 1 x 15 pin D-type connector serves to transmit VGA data to the monitor. PWR COM and Cash Drawer Voltage Jumper Settings Modem Ring In Setting +12V (Default) COM 1 COM 2 9-10 11-12 Setting +12V +24V Cash Drawer 13-14 15-16 Downloaded from www.arqami.net manuals search engine...

  • Page 17: Components & Peripherals Installation

    Please keep all packing materials in case you need to ship back the device for service.  Unpacking The product and accessories are packed in a paperboard carton. And it is wrapped by foam padding for protection during shipping. Downloaded from www.arqami.net manuals search engine...

  • Page 18: Install Your Pos System

    Always install the POS system and the optional peripherals on a flat, clean and stable location surface with additional cushioned material (for example: blanket).  To prevent obstruction on the operator, reserve appropriate space for the POS system and remove unnecessarily objects or items. Downloaded from www.arqami.net manuals search engine...

  • Page 19: Replace The Hard Disk

    Then replace a new hard disk (with protective film attached to the HDD) Protective Film Re-install the HDD module and replace the HDD cover to the POS. Downloaded from www.arqami.net manuals search engine...

  • Page 20: Plug Ac Power Cord To The Pos System

    Carefully lay the front of the unit face down on a flat, clean and stable surface with additional cushioned material (for example: blanket). Plug the AC power cord into the power connector. Plug the AC power cord in to the AC outlet. Downloaded from www.arqami.net manuals search engine...

  • Page 21: I/O Interface

    I/O interface of the POS system according to your request. To install the peripherals to the POS system: Note: The Optional Accessory may not include in the package. Please contact your local representative for further information. Downloaded from www.arqami.net manuals search engine...

  • Page 22: Install Your Receipt Printer (Optional)

    Turn on the power switch of the printer If the paper does not feed easily check whether (in the rear of the POS system) you are using the paper slot and there are no obstructions in the paper path. Downloaded from www.arqami.net manuals search engine...

  • Page 23: Buttons & Indicators Of Receipt Printer Unit

    Press and hold the Paper Feed Button. Turn on the Power Switch of the printer. Turn On the Release the Paper Feed Button. Power Switch The Indicators would blink and then the printer starts printing out the se-f test data. Downloaded from www.arqami.net manuals search engine...

  • Page 24: Dip Switch Configuration Of The Receipt Printer

      e. Turn over the printer unit and open the The Dipswitches of Receipt Printer cover of DIP Switch Cover (bottom) (in the bottom of receipt printer unit) Downloaded from www.arqami.net manuals search engine...
  • Page 25 Yes (*) Print Density Dark Light (*) Two-byte Character Code Yes (*) Character Per Line 48 (*) Cutter with Cash Drawer No (*) 7 & 8 Baud Rate Setting OFF (*) 9600 115200 38400 (*Default) Downloaded from www.arqami.net manuals search engine...

  • Page 26: Virtual Serial Port Installation (For Usb Connection Only)

    Found New Hardware Wizard automatically (as image below illustrated): RS-232 Printer Cable Cash Power (USB) Drawer Adaptor Found New Hardware Wizard is initiated; click “Install from a specific location (Advanced) and then click “Next” to continue. Downloaded from www.arqami.net manuals search engine...
  • Page 27 To specify the location of driver, click “include this location in the search and “Browse” the specified folder manually. Browse the subfolder “Virtual COM Driver” (x86 for Windows XP 32 bit version). Click “OK” to continue. Downloaded from www.arqami.net manuals search engine...
  • Page 28 As the location of the driver is specified. Click “Next” to continue. Start Notification. Click “Continue Anyway” to continue. Downloaded from www.arqami.net manuals search engine...
  • Page 29 The wizard is installing the driver. The driver of Virtual Serial Port is successfully installed. Click “Finish” to exit. Note: Reboot the HOST PC It’s recommended to reboot the HOST PC and proceed to the next step. Downloaded from www.arqami.net manuals search engine...
  • Page 30 The Virtual COM port activates automatically when the printer is switched on. You can Access “My Computer>>Proprieties>>Hardware>>Device Manager>> Ports (COM & LPT)” and see the Virtual COM Port Number. When turn on the printer, the Virtual COM activates automatically (Virtual Serial Port). Downloaded from www.arqami.net manuals search engine...

  • Page 31: Install The Driver And Setup Of Receipt Printer Unit

    There are categorized folders for POS Terminal, Peripherals and Touch Screen drivers. Select “Peripherals” to access the subfolders. To install the drivers of the Printer unit Double click the folder “Printer” and access the subfolders Select “Printer Driver” Downloaded from www.arqami.net manuals search engine...
  • Page 32 Double-click the “PRPDRVEN.EXE” and follow the on-screen instructions to install the driver. The setup wizard of receipt printer driver. Click “Next” to continue. m. Select the appropriate operating system for your POS. Click “Next” to continue. Downloaded from www.arqami.net manuals search engine...
  • Page 33 Module Type Setting: Select the printer model number using the menu below. Default Printer Setting: To set the printer as the default printer, click the checkbox to confirm . Downloaded from www.arqami.net manuals search engine...
  • Page 34 Select appropriate serial port (COM 2 recommended) or Virtual COM port according to your system setting. Click “Configure Port” ” to continue. Configure Port: Select the Bit per secnd (Baud Rate) to 19200. Click “OK” to continue. Downloaded from www.arqami.net manuals search engine...
  • Page 35 Click “Install” to Start Installation. Configuration Completed. Click “Finish” to exit the menu. Note: Reboot the HOST PC It’s recommended to reboot the HOST PC and proceed to the next step. Downloaded from www.arqami.net manuals search engine...
  • Page 36 Make sure the port of printer is correctly configured. Access sub menu “Ports”, and click to select the correct port for your printer. Click “Configure Port to examine the COM port setting. Click “OK” to exit. Downloaded from www.arqami.net manuals search engine...

  • Page 37: Adjust The Customer Display (Optional)

    2.8. Configuration of Customer Display There is a configuration utility to setup your pre-installed customer display (refer to the configuration instruction manual for further information). Note: COM Port Setting The recommended (default) COM port setting is COM 1. Downloaded from www.arqami.net manuals search engine...

  • Page 38: Bios Setup

    Return to the main menu and press <F10> and then press “Y” to save and complete the setting. ※ The BIOS configuration is for reference only, it may subject to change without prior notice. Downloaded from www.arqami.net manuals search engine...

  • Page 39: Main Menu

    3.1. Main Menu Please use arrow keys to select item, then press <Enter> key to accept or enter the sub-menu. Downloaded from www.arqami.net manuals search engine...

  • Page 40: Standard Cmos Features

    □ IDE Channel 3 Master Press <Enter> for IDE device automatic detection. □ Video Select Video device type. □ Halt on Select stop procedure or ignore when error detected during POST (Power-On Self Test). Downloaded from www.arqami.net manuals search engine...

  • Page 41: Advanced Bios Features

    □ CPU L3 Cache Select “CPU L3 Cache” Enabled/Disabled. □ Hyper-Threading Technology Select “Hyper-Threading Technology” Enabled/Disabled □ Quick Power On Self Test Select “Quick Power On Self Test” Enabled/Disabled. □ First/Second/Third Boot Device Select boot device priority. Downloaded from www.arqami.net manuals search engine...
  • Page 42 Windows 95/98's SCT test, if select “Disabled”, BIOS will not report missing floppy drive to Win95/98. □ Small Logo(EPA) Show Select EPA (Environmental Protection Agency) Energy Star logo appears during the system boot-up process. Downloaded from www.arqami.net manuals search engine...

  • Page 43: Advanced Chipset Features

    □ Boot Display Select boot display device type: CRT, LVDS, or CRT+LVDS. □ LVDS-18 Panel Type Select LCD 18 bit resolution □ BackLight Active Mode Select Backlight Active Mode: PWN Mode or DC Mode. Downloaded from www.arqami.net manuals search engine...
  • Page 44 Select Backlight Output Mode: Step1 to Step 10. □ PCI Express Root Port Func PCI Express Root Port Func [ AUTO ] ↑↓ →← :Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1: General Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults Downloaded from www.arqami.net manuals search engine...

  • Page 45: Integrated Peripherals

    3.5. Integrated Peripherals Integrated Peripherals Onboard Device Super IO Device SecondIO Device ↑↓ →← :Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1: General Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults Downloaded from www.arqami.net manuals search engine...

  • Page 46: Onchip Ide Device

    □ IDE DMA transfer access UDMA (Ultra DMA) is a DMA data transfer protocol that utilizes ATA commands and the ATA bus to allow DMA commands to transfer data at a maximum burst rate of 33 MB/s. Downloaded from www.arqami.net manuals search engine...
  • Page 47 When you select Auto in the four IDE UDMA fields (for each of up to four IDE devices that the internal PCI IDE interface supports), the system automatically determines the optimal data transfer rate for each IDE device. Downloaded from www.arqami.net manuals search engine...

  • Page 48: Onboard Device

    Onboard Device Onboard Lan Boot ROM [ Disabled ] ↑↓ →← :Move □ Onboard Lan1 Enable/Disable onboard Lan1. □ Onboard Lan Boot ROM Decide whether to invoke the boot ROM of the onboard LAN chip Downloaded from www.arqami.net manuals search engine...

  • Page 49: Super Io Device

    □ Parallel Port Mode Select Parallel Port Mode: SPP, EPP, ECP, ECP+EPP, or Normal. □ Watchdog Timer Select Select Watch dog Disabled or set timer value: 10sec, 20sec, 30sec, 40sec, 1 min, 2min, or 4min. Downloaded from www.arqami.net manuals search engine...

  • Page 50: Second Io Device

    Second IO Device [ 4F8h ] ↑↓ →← :Move Enter:Select +/-/PU/PD:Value F10:Save □ Onboard Serial Port 3/4/5/6 Select serial port address. □ Serial Port 3/4/5/6 Use IRQ Select serial port IRQ. Support IRQ sharing mode. Downloaded from www.arqami.net manuals search engine...

  • Page 51: Usb Device Setting

    Press <Enter> to select USB device configuration. USB Device Setting USB Keyboard Function [ Enabled ] ↑↓ →← :Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1: General Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults Downloaded from www.arqami.net manuals search engine...

  • Page 52: Power Management Setup

    Select wake-up by PCI device Enabled/Disabled. □ Power On by Ring Select Power on by Ring Indicator signal from Modem. □ Resume by Alarm Set date and time to power on system from soft-off state. Downloaded from www.arqami.net manuals search engine...
  • Page 53 Press <Enter> to select “Wake-up by LAN” Enabled/Disabled. PCI Express PM Function ↑↓ →← :Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1: General Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults □ Wake-up by Lan Select wake-up by LAN Enabled/Disabled. Downloaded from www.arqami.net manuals search engine...

  • Page 54: Pnp/Pci Configurations

    If you choose Auto, you cannot select IRQ DMA and memory base address fields, since BIOS automatically assigns them. □ PCI/VGA Palette Snoop Select PCI/VGA Palette Snoop Enabled/Disabled. □ Maximum Payload Size Set maximum TLP payload size (byte) for the PCI Express devices. Downloaded from www.arqami.net manuals search engine...

  • Page 55: Pc Health Status

    If CPU temperature reaches the setting value will beep in DOS mode. □ CPU Smart Fan Temperature Setup the CPU Smart FAN temperature. □ System Smart Fan Temp. Setup the System Smart FAN temperature. Downloaded from www.arqami.net manuals search engine...

  • Page 56: Frequency/Voltage Control

    3.9. Frequency/Voltage Control Frequency / Voltage Control □ Auto Detect PCI Clk Select “Auto Detect PCI Clk” Enabled/Disabled □ Spread Spectrum Select “Spread Spectrum” Enabled/Disabled. Downloaded from www.arqami.net manuals search engine...

  • Page 57: Load Fail-Safe Defaults

    3.10. Load Fail-Safe Defaults ment Setup Set User Passw PnP/PCI Config urations Load Fail-Safe Defaults (Y/N)? N Save & Exit Set Exit Without Sa ving This item will set configuration for non-optimized system operation. Downloaded from www.arqami.net manuals search engine...

  • Page 58: Load Optimized Defaults

    Load Optimized Defaults ment Setup Set User Passw PnP/PCI Config urations Load Optimized Defaults (Y/N)? N Save & Exit Set Exit Without Sa ving This item will restore factory default setting for optimized system operation. Downloaded from www.arqami.net manuals search engine...

  • Page 59: Set Supervisor Password

    3.12. Set Supervisor Password ations Save & Exit S etup Enter Password: Exit Without S aving Change/Set/Disabled Password If set supervisor password, it will request typing password to enter BIOS setup utility. Downloaded from www.arqami.net manuals search engine...

  • Page 60: Set User Password

    Set User Password ations Save & Exit S etup Enter Password: Exit Without S aving Change/Set/Disabled Password If set user password will request typing password to enter BIOS setup utility, and does not allow modifying configuration. Downloaded from www.arqami.net manuals search engine...

  • Page 61: Save & Exit Setup

    Exit Without Sa ving This item confirm save configuration or not before exit BIOS setup utility, Press <Y> and <Enter> to save configuration, then reboot system. Press <N> and <Enter> will back to BIOS setup utility. Downloaded from www.arqami.net manuals search engine...

  • Page 62: Exit Without Saving

    Exit Without This item confirm save configuration or not before quit BIOS setup utility, Press <Y> and <Enter> will not save configuration, then reboot system. Press <N> and <Enter> will back to BIOS setup utility. Downloaded from www.arqami.net manuals search engine...

  • Page 63: Install The Drivers Of Pos Terminal

    (i.e. double click the folder “Win XP” for the Windows XP system, or the folder “Win 7” for Windows 7) There are categorized folders of components. Select the folder to install the driver of POS terminal. Downloaded from www.arqami.net manuals search engine...

  • Page 64: Install The Chipset Driver

    4.1. Install the Chipset Driver Open (double click) the folder “Chipset”. Double click the icon to start installation. Click “Next” to proceed. Read the License Agreement and click “Yes” to continue Downloaded from www.arqami.net manuals search engine...
  • Page 65 Click “Next” to continue the setting process Select “Next” to continue the setting process Select “Yes” and click “Finish”, and then restart the system Downloaded from www.arqami.net manuals search engine...

  • Page 66: Install The Graphics Driver

    4.2. Install the Graphics Driver Open (double click) the folder “Graphics”. Access the sub folder and double click “Setup.EXE” to start the setting process Click “Next” to continue. Click “Cancel” to abort the installation. Downloaded from www.arqami.net manuals search engine...
  • Page 67 Click “Next” to proceed. Declaration of License Agreement, click “Yes” to agree and continue. Downloaded from www.arqami.net manuals search engine...
  • Page 68 Click “Next” to continue Click “Next” to continue Downloaded from www.arqami.net manuals search engine...
  • Page 69 The graphic card driver is successfully installed. It’s recommended to restart the system after the driver is installed. Click “Finish” to restart the computer. Downloaded from www.arqami.net manuals search engine...

  • Page 70: Install The Audio Driver

    4.3. Install the Audio Driver Open (double click) the folder “Audio” Double click the icon to initiate the Install Shield Wizard. The Install Shield Wizard will extract the contents and then start the installation Downloaded from www.arqami.net manuals search engine...
  • Page 71 Click “Next” to start installing the driver to the computer. The audio driver is successfully installed. It’s recommended to restart the system after the driver is installed. Click “Finish” to restart the computer. Downloaded from www.arqami.net manuals search engine...

  • Page 72: Install The Lan Driver

    4.4. Install the LAN Driver Open (double click) the folder “LAN” Access to the subfolder. Double click the file “Setup.EXE” to start the installation. Click “Next” to start installing the driver to the computer. Downloaded from www.arqami.net manuals search engine...
  • Page 73 Click “Install” to continue the setting process Click “Finish” to finish the installation Downloaded from www.arqami.net manuals search engine...

  • Page 74: Install The Touch Screen Driver

    Double click the folder “Touch Driver” to access the subfolder. There are drivers of Resistive type and SAW type touch screen. To install the driver for Resistive type, select (double click) the folder “Resistive Touch” to start installation. Downloaded from www.arqami.net manuals search engine...

  • Page 75: Install The Driver Of Resistive Type Touch Panel

    (for example: select “Win 7 & Vista & XP & 2K & ME98-32bits” for the Windows XP 32-bit version) Double click the file “Setup.EXE” to start the installation. Click “Next” to start the installation. Downloaded from www.arqami.net manuals search engine...
  • Page 76 Select the destination folder and click “Next” to continue. COM port (RS-232) driver installation. If the touch screen is for RS-232 interface, please click the checkbox “Install RS232 driver” additionally to install the driver. Click “Next” to continue. Downloaded from www.arqami.net manuals search engine...
  • Page 77 Multi-monitor driver installation: Click the checkbox “Install Multi-monitor driver” to install the driver. Click “Install” to start the installation. Downloaded from www.arqami.net manuals search engine...
  • Page 78 Installation completed. Click “Finish” to exit. Initializing the touch tool program. Installation completed. There is an icon on the screen for quick launch. Downloaded from www.arqami.net manuals search engine...

  • Page 79: Touch Screen Calibration (Resistive Type)

    5.2. Touch Screen Calibration (Resistive Type) There is a Utility “Touch Tool” for Touch Screen Calibration. Double click the icon to access the utility. User can perform 4-point-calibration by selecting the function “4 pts calibration". Downloaded from www.arqami.net manuals search engine...
  • Page 80 There are 4 calibration points on the screen. Tap the blinking mark to complete the first calibration point. Proceed to the next mark and complete all calibration points The calibration is completed; tap the icon “Save” to save the setting. Downloaded from www.arqami.net manuals search engine...
  • Page 81 Tips: Advanced 9-point/25-point Calibration There are advanced 9-point calibration and 25-point calibration for more accurate calibration demands. Access “Advance” menu, and select either “9 pts linearization” or “25 pts linearization” to calibrate your touch screen. Downloaded from www.arqami.net manuals search engine...

  • Page 82: Peripherals Testing

    There are categorized folders for POS Terminal, Peripherals and Touch Screen drivers. Select “Peripherals” to access the subfolders. The subfolders of peripherals are as follows: Select (double click) the folder for the peripheral required. Downloaded from www.arqami.net manuals search engine...

  • Page 83: Install The Wi-Fi Driver (Optional)

    Please refer to the local representative for the hardware information before install the driver. Open the folder to find the appropriate driver. Access the subfolders and double click the icon to install the driver. Downloaded from www.arqami.net manuals search engine...
  • Page 84 Click “Yes” to accept the terms of License Agreement and continue. Select “Install driver only” and click “Next” to continue. Downloaded from www.arqami.net manuals search engine...
  • Page 85 Click “Install” to begin Installation. The Wi-Fi driver is successfully installed. Click “Finish” to complete and exit the Wizard Downloaded from www.arqami.net manuals search engine...
  • Page 86 Note: To access the wireless network and initiate the connection, please refer to the service provider for further information. Downloaded from www.arqami.net manuals search engine...

  • Page 87: Test Your Magnetic Stripe Card Reader(Msr) And I-Button Module

    6.2. Test Your Magnetic Stripe Card Reader(MSR) and i-Button Module For RS-232 Interface: Execute Start >> All Programs >> Accessories >> Communications >> Hyper Terminal. Enter a name and press “OK.” Downloaded from www.arqami.net manuals search engine...
  • Page 88 If the POS unit is equipped with MSR+i-Button module, set Bits per second to 9600, Data bits to 8, Parity to Even, Stop bits to 1, and Flow control to Hardware. Press “OK." to continue Downloaded from www.arqami.net manuals search engine...
  • Page 89 Bits per second to 9600, Data bits to 8, Parity to None, Stop bits to 1, and Flow control to Xon/Xoff. Press “OK." to continue MSR Test: Swipe a card through the card reader and the information will be displayed on the terminal. Downloaded from www.arqami.net manuals search engine...
  • Page 90 Test: Attach the i-button to the reader and the information will be displayed on theterminal Downloaded from www.arqami.net manuals search engine...
  • Page 91 For Keyboard Wedge Interface: Execute Start >> All Programs >> Accessories >>Notepad. MSR Test: Swipe a card through the reader and the information will be displayed on the window Downloaded from www.arqami.net manuals search engine...
  • Page 92 Test: Attach the i-button to the reader and the information will be displayed on the window Downloaded from www.arqami.net manuals search engine...

  • Page 93: Test Your Customer Display

    There are two folders for LCD type Customer Display (DSP) and Vacuum Fluorescent type Display (VFD). Select the folder by the Customer Display installed. Select the subfolder “Test Utility”. Double click the file “BREAKOUT” to initiate the program. Downloaded from www.arqami.net manuals search engine...
  • Page 94 The texts are displayed on the customer display. To terminate the program, click (X) to close the Communications Window. There is a pop up window for notice. Click “Exit Now” to terminate the program. Downloaded from www.arqami.net manuals search engine...

  • Page 95: Cash Drawer

    Select “Cash Drawer” to access the subfolders Open the folder “Peripherals” “Cash Drawer” and double click the file “setup.EXE” Click “OK” on the welcome window. Select the destination folder and click the icon to start the installation. Downloaded from www.arqami.net manuals search engine...
  • Page 96 Select an existed group name or enter a new name. Click “Continue.” to proceed. Click “OK” to finish the installation. Execute Start >> All Programs >> Cash Drawer >> Cash Drawer to open the program. Downloaded from www.arqami.net manuals search engine...
  • Page 97 Allow to close cash drawer Set the I/O address 280 bit 4 = 1 to open the cash drawer by “DIO OUTPUT” pin control. Set the I/O address 280 bit 4 = 0 to close the cash drawer. Downloaded from www.arqami.net manuals search engine...

  • Page 98: Jumper Settings & Connectors

    7. Jumper Settings & Connectors 7.1. The Main Board Jumper Location Downloaded from www.arqami.net manuals search engine...

  • Page 99: Jumper Settings

    JCOM5 / JCOM6：COM5 / COM6 (5V/12V/RI) Select Pin No. Modem Ring In Function +12V (Default) Jumper Setting JCOM_SEL：COM1 / COM2 (5V/12V/RI) Select (1/4) Pin No. 5-6, 11-12, 13-14 Function COM1 (Ring In) ,COM2 (Ring In), DIO(+12V) (Default) Jumper Setting Downloaded from www.arqami.net manuals search engine...
  • Page 100 7 5 3 1 7 5 3 1 7 5 3 1 Jumper Setting 8 6 4 2 8 6 4 2 8 6 4 2 Note: Other hardware JP setting as 1024x768-18bit resolution. Downloaded from www.arqami.net manuals search engine...
  • Page 101 JVLVDS：LCD Power (+3.3V / +5V) Select Pin No. Function LCD Power +3.3V (Default) LCD Power +5V Jumper Setting Downloaded from www.arqami.net manuals search engine...

  • Page 102: Connector Function List

    USB2_LAN, USBx2 and RJ45 Connector USB2/3, USB Connector USB4/5 USB4/5_KB USBx2 and PS2 KB/MS with Pin-header USB6, USB7 USB with Pin Header USB_KB USBx2 and PS2 KB/MS Connector VGA Connector VGA_POWER1 +12V with DC-Jack Downloaded from www.arqami.net manuals search engine...

  • Page 103: Internal Connector Pin Assignment

    INV1：Inverter Connector with Box header (2.50 mm) Pin No Sign l +12V Ground Inverter Enable Inverter rightness Control Ground INV2：Inverter Connector with Box header (1.25 mm) Pin No. Signal +12V +12V Ground Inverter Enable Inverter Brightness Control SW_PWR# Downloaded from www.arqami.net manuals search engine...
  • Page 104 Pin No. Signal Ground KDAT_CON KCLK_CON KDAT_KBC KCLK_KBC COM3_TX COM3_RX KB_EN Ground MSR2：External Keyboard Connector with Pin-header (2.0 mm) Bottom Side Pin No. Signal Pin No. Signal Ground KDAT_KBC KDAT_CON KCLK_KBC KCLK_CON KB_EN Ground Downloaded from www.arqami.net manuals search engine...
  • Page 105 Ground Reset SATA_PWR1 / SATA_PWR2：SATA Power Connector with Box-header 2.5 mm) Pin No. Signal +12V Ground Ground SPKR_OUT：Audio Amplifier Output with Pin-header (2.0 mm) Pin No. Signal Amplifier -Out Left Ground Ground Amplifier-Out Right Downloaded from www.arqami.net manuals search engine...
  • Page 106 PS2 Power (+5V) MDAT_CON KDAT_CON MCLK_CON KCLK_CON Ground USB6, 7：USB Port Connector with Pin-header (2.0mm) Pin No. Signal Pin No. Si n l USB Ground USB DATA+ USB DATA- USB Ground USB Power (+5V) Downloaded from www.arqami.net manuals search engine...
  • Page 107 Downloaded from www.arqami.net manuals search engine...
