Valve Assembly Check
1. Verify the gas control knob is in the "ON" position (Fig. 1)
2. Verify the ON/OFF manual rocker switch is in the "OFF" position
Battery Check
1. Verify that both batteries are good - Test with a multi meter
- The Voltage range for each battery is 1.6v - 1.4v
- Batteries should be changed annually
Remote Receiver Wiring Check
1. Move the switch on the receiver to the "ON" position (Fig. 2)
Fireplace turns "ON" - Action: reprogram the remote and receiver
Fireplace does not turn "ON" - Action: Verify the wiring is correct
2. Verify the Thermopile is generating at least 200 MV
Action: Replace Thermopile if less than 200MV
Action: Replace receiver (after wiring has been verified)
Security Code Check
1. Move switch on the receiver to the "REMOTE" position (Fig. 2)
2. Push the "LEARN" button (an audible beep will be heard )
NO audible beep is heard - Plug in receiver, verify 120v to the
junction box (outlet)
-Wait 2 minutes and try steps 1 and 2 again - If still no audible
beep Action: Replace receiver
3. When the receiver "beeps" press the "MODE" button on the
remote and the fireplace will turn "ON"
NO, the fireplace does not turn "ON"
-Wait 2 minutes and try steps 1 and 2 again - If the fireplace does not turn on
Action: Replace transmitter
Thermostat Check
1. Set the transmitter to the "THERMO" mode (Fig. 3, #1)
2. Adjust the temperature (Fig. 3, #2) two degrees above
desired room temperature using the UP/DOWN buttons (Fig. 3, #3)
**There will be a two degree Fahrenheit and one degree Celsius temperature
difference to prevent the fireplace from cycling ON and OFF continuously
NO, the thermostat mode is not turning the fireplace "ON' and "OFF"
Action: Replace transmitter
*The remote must be reprogrammed if a power outage occurs or if the batteries have been changed
*Max operational distance is 20 feet

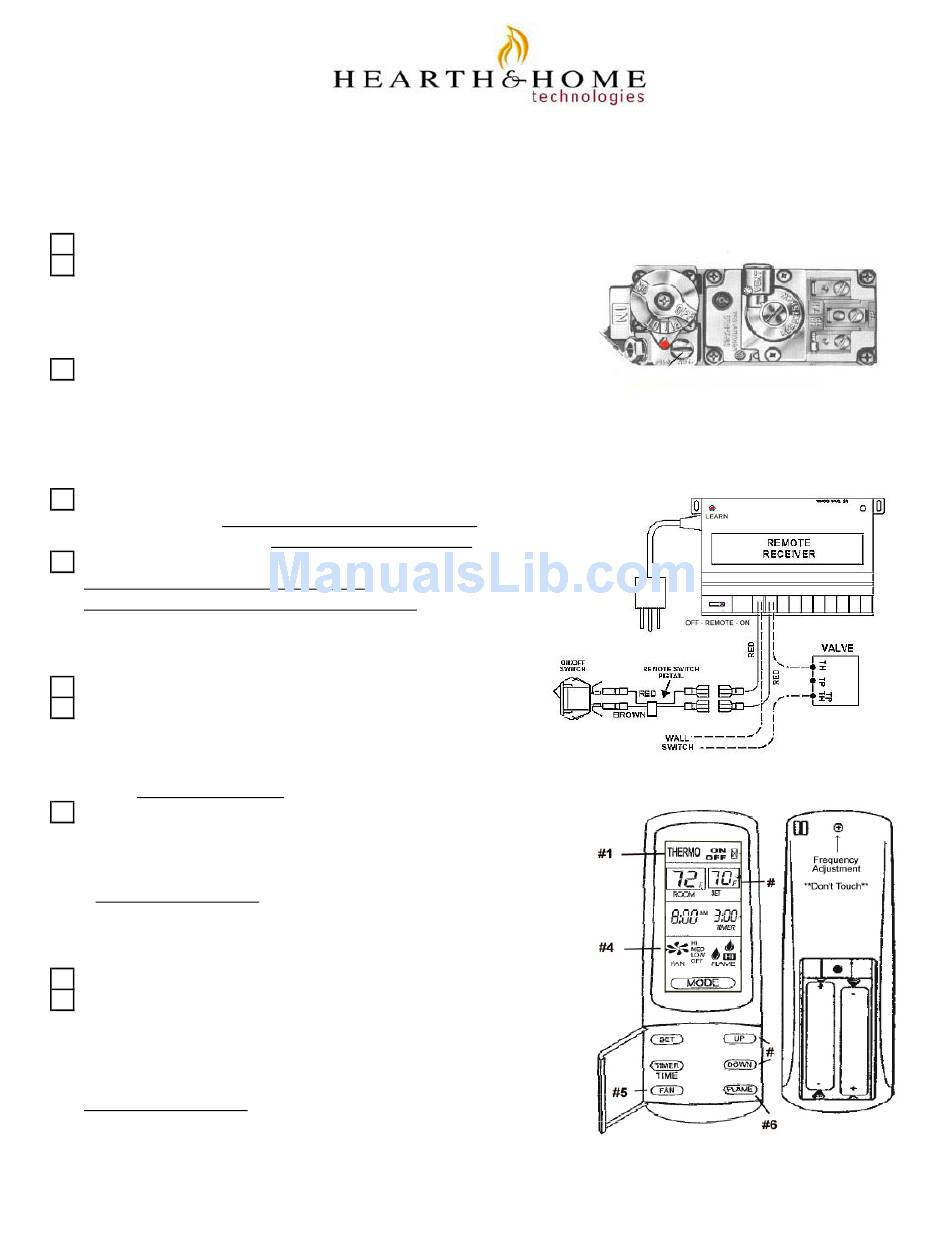

Remote Trouble Shooting Guide
Models: RCT-MLT-HNG & RCT-MLT-HTL
(Remote will not turn fireplace ON )
Fig. 1
Fig. 2
Fig. 3
1
