serverLink SL-DKX-050 Quick Installation Manual

Quick Installation Guide
SL-DKX-050
ServerLink DVI KVM Extender over Cat 5, DVI, USB
KB & Mouse, Audio & 1 x USB 2.0 Device up to 50mtr
Transmitter Unit (TX)
Receiver Unit (RX)

INTRODUCTION

The SL-DKX-050 DVI Extender over Cat 5 can extend your
DVI monitor, keyboard, mouse, audio and a USB 2.0 device
up to 50mtr away from your computer over a two (2) CAT 5 or
CAT 6 UTP cables.
The CAT5 DVI Extender comprises two separate units - the
Receiver (RX) Unit and the Transmitter (TX) Unit.
With automatic EDID configuration, stereo audio support and
crystal clear video reproduction, the SL-DKX-050 is simple to
install, configure and operate.
SL-DKX-050 ServerLink DVI KVM Extender over Cat 5 - DVI, USB KB & Mouse, Audio & 1 x USB 2.0 Device up to 50mtr

Package Contents

 Transmitter (TX) Unit x 1
 Receiver (RX) Unit x 1
 DVI-D Male to Male cable x 1
 USB cable (Type A to Type B) x 1
 USB to DC Jack Cable x 1
 Power Adapter (DC5V 2A) x 1
 This Quick Installation Guide x 1

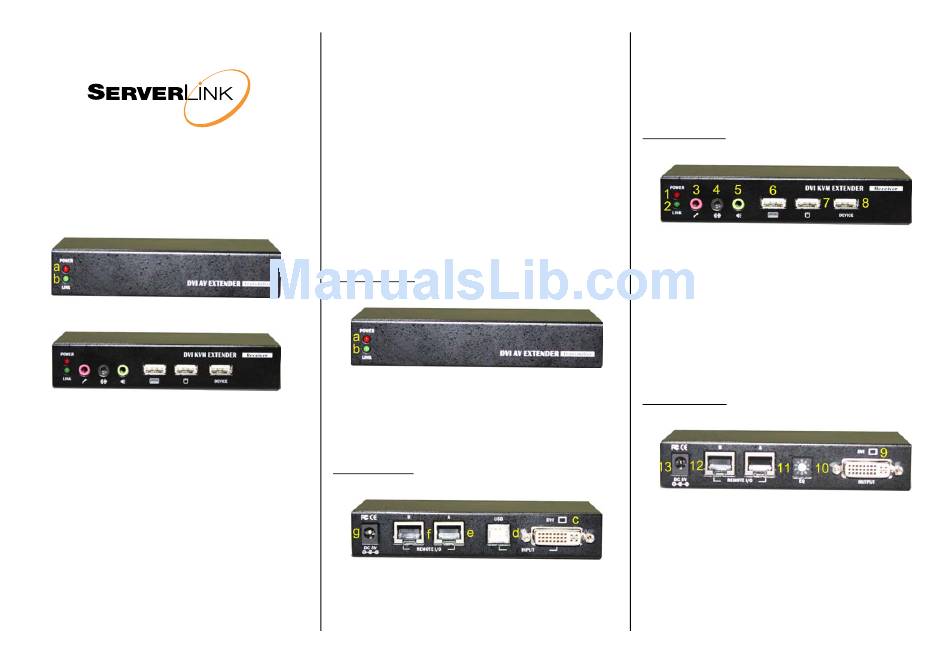

Front & Rear Panel Connectors
The front and back panels are where the various connectors
are located on the CAT5 DVI KVM Extender. Before you
connect these two units to any cabling or devices, you should
familiarise yourself with these connectors to simplify
Installation.

Transmitter Unit (TX) - Local

[TX - Front Panel]
Transmitter (TX) Unit – Front Panel
a. Power LED (Red) (Lit when the power is on)
b. Link LED (Green) (Lit when the link is on)
[TX - Back Panel]
Transmitter (TX) Unit – Back Panel
1
c. DVI input - connect to computer's DVI output port
d. USB Port (USB Type B) - connect to PC USB port
e. RJ45 CAT5 Extension Port (A)
f. RJ45 CAT5 Extension Port (B)
g. Power Receptacle (DC5V 500mA, centre-positive)

Receiver Unit (RX) - Remote

[RX - Front Panel]
Receiver (RX) Unit – Front Panel
1. Power LED (Red) (Lit when the power is on)
2. Link LED (Green) (Lit when the link is on)
3. Microphone Jack
4. Line-in Jack
5. 3.5mm Stereo Audio Speaker Jack
6. USB Keyboard Port
7. USB Mouse Port
8. USB 2.0 Device Port
[RX – Back Panel]
Receiver (RX) Unit – Back Panel
9. DVI output - connect to DVI monitor
10. EQ (Equalizer) Port
11. RJ45 CAT5 Extension Port (A)
12. RJ45 CAT5 Extension Port (B)
13. Power Receptacle (DC5V 2A, centre-positive)
Rev. 1.2 Copyright© All rights reserved.
