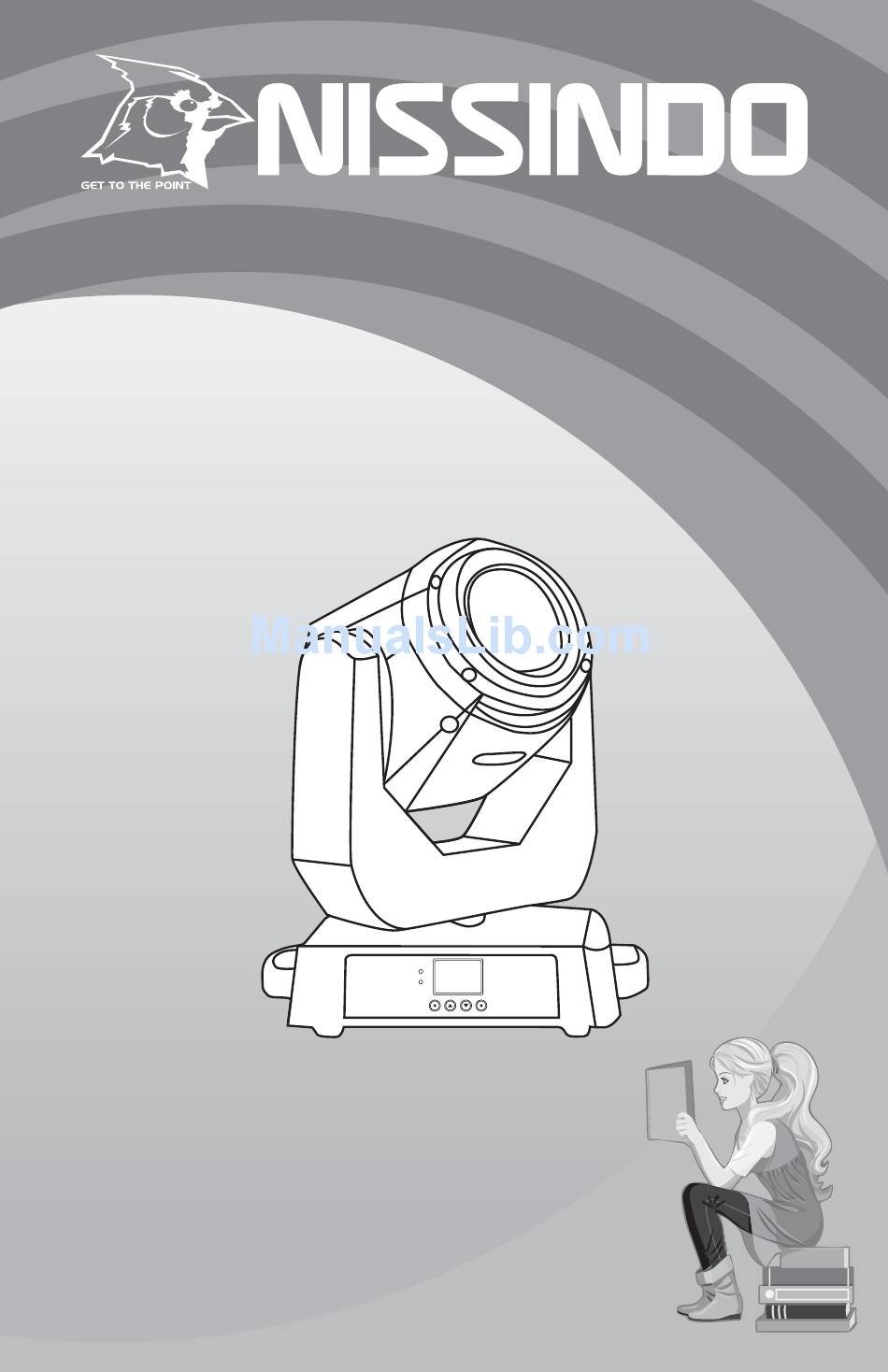

OPERATING INSTRUCTIONS
130W Beam 2R Moving Head Spot Light
IC-A001A
DMX
001
ERR
LCD DISPLAY
MENU
UP
DOWN
ENTER
MANUAL
Thank you for purchasing this unit. To
make full and effective use of this unit,
please read this Owner's Manual
carefully before operating it. Please
retain this manual for future reference.
w w w . N i s s i n d o U S A . c o m
Advertisement
Table of Contents
Summary of Contents for Nissindo IC-A00IA
- Page 1 OPERATING INSTRUCTIONS 130W Beam 2R Moving Head Spot Light IC-A001A LCD DISPLAY MENU DOWN ENTER MANUAL Thank you for purchasing this unit. To make full and effective use of this unit, please read this Owner's Manual carefully before operating it. Please retain this manual for future reference.
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION................3 Intro SYSTEM FEATURES................3 Features LED LIGHTING................... 4 • LED Lights Controls And Functions..............4 • Operation.................... 5 Settings Function..............5 ► Manual Control Function........... 6 ► System Function..............6 ► Advanced Function............. 7 ► • Channel Mode..................8 Color wheel: channel 1............. -
Page 3: Introduction
INTRODUCTION Intro Nissindo USA is proud to introduce the new IC-A001A Beam Moving Head. Equipped with a strong 130 Watt Phillips 2R lamp, the beam is sure to “wow” any audience with its blinding performances. The IC-A001A Beam comes with a total of 15 rotating gobo effects and displayed by 13 different colors including white. -
Page 4: Led Lighting
LED LIGHTING LED Lights CONTROLS AND FUNCTIONS FRONT VIEW REAR VIEW LCD DISPLAY DMX IN DMX OUT POWER IN POWER OUT MENU DOWN ENTER 10 11 FRONT PANEL: REAR PANEL: 1. Green DMX indicator 7 . DMX input 3-pin XLR socket 2. -
Page 5: Operation
OPERATION SETTINGS FUNCTION: OPTION SPECIFICATION Slave status: Receives DMX Signal from Control & master Auto1 Auto2 Auto3 Auto4 Forward 0 Running Mode Master status: Operates automatically and send out Picture up 8 DMX signal to slaves Picture front Vertical 8 Picture front to sleep 8 Random... -
Page 6: Manual Control Function
MANUAL CONTROL FUNCTION: OPTION SPECIFICATION 1. Color Wheel 0~255 1. Press MENU “●” button to select Manual. 2. Press ENTER “●” button to go to Manual Mode. 2. Stop/Strobe 0~255 3. Press UP “▲” / DOWN “▼” button to select 3. -
Page 7: Advanced Function
ADVANCED FUNCTION: The default password is Up▲ > Down▼ > Up▲ > Down▼ 1. Press button (shows first “*”) UP “▲” ► Password 2. press button (shows second “*”) DOWN “▼” Please input password: 3. Press button (shows third “*”) UP “▲”... -
Page 8: Channel Mode
CHANNEL MODE CTO 3 Yellow Pink Light Green Green Cyan CTO 2 Aquamarine CTO 1 Orange White Dark Blue CHANNEL MODE CHANNEL 16CH 20CH COLOUR WHEEL COLOUR WHEEL STOP/STROBE STOP/STROBE DIMMER DIMMER STATIC GOBO CHANGE STATIC GOBO CHANGE PRISM INSERTION PRISM INSERTION PRISM ROTATION PRISM ROTATION... -
Page 9: Color Wheel: Channel 1
COLOR WHEEL: CHANNEL 1 EFFECT EFFECT FAST ROTATION PINK + YELLOW …… …… YELLOW SLOW ROTATION CTO 300 + PINK DARK BLUE + WHITE CTO 300 LIGHT GREEN + LAVENDER DARK BLUE CTB 8000 + DARK BLUE LIGHT GREEN CTB 8000 GREEN + LIGHT GREEN CTO 190 + CTB 8000 GREEN... -
Page 10: Static Gobo Change: Channel 4
STATIC GOBO CHANGE: CHANNEL 4 EFFECT EFFECT GOBO 17 SHAKE, FAST FAST ROTATION …… …… GOBO 17 GOBO 17 SHAKE, SLOW GOBO 16 GOBO 16 SHAKE, FAST GOBO 15 GOBO 14 …… …… GOBO 16 SHAKE, SLOW GOBO 13 …… ……... -
Page 11: Frost: Channel 8
FROST: CHANNEL 8 EFFECT REMARKS 128~255 FROST INSERTED 0~127 FROST EXCLUDED RESET: CHANNEL 15 EFFECT REMARKS Reset is activated when it is 128~255 COMPLETE in unused range for 5 77~127 PAN/TILT seconds. 26~76 EFFECTS 0~25 UNUSED LAMP CONTROL: CHANNEL 16 EFFECT REMARKS Lamp switches on when it is... -
Page 12: Technical Specification
TECHNICAL SPECIFICATION Spec 1. Voltage: AC 110~240V, 50/60Hz 2. Power Consumption: 150W 3. Approved Lamp: Philips MSD Platinum 2R/130W (8000K color temperature, 2000 hours) 4. Ballast: Electronics ballast 5. Optics: 3-layer HQ optics glass lens 6. Electronic Focus: Optical focus 7 . -
Page 13: Contact Information
CONTACT INFORMATION Contact Us MAILING ADDRESS NISSINDO 29300 Kohoutek Way #150 Union City, CA 94587 U.S.A. TELEPHONE NUMBERS USA Region USA Toll Free: 1-800-318-2218 Sales & Marketing: 510-477-9955 Customer Service: 510-477-9955 FAX NUMBERS USA Region Sales & Marketing: 510-477-9922 Customer Service: 510-477-9922 WORLD WIDE WEB E-mail: sales@NISSINDOUSA.com... - Page 14 MAINTENANCE NOTE...
- Page 15 MAINTENANCE NOTE...
- Page 16 Comments to 29300 Kohoutek Way #150 Union City, CA 94587 U.S.A. E-mail: sales@nissindousa.com Website: www.nissindousa.com MFD Code: Y20140301 378140374000 Printed on 100% Recycled Paper Design and Engineered in U.S.A Copyright © 2014 NISSINDO. All rights reserved. Legal trademark.
