HOBO® Temp/RH 3.5% Data Logger (UX100-003) Manual
HOBO Temp/RH 3.5%
Data Logger
UX100-003
Included Items:
• Command™ strip
• Double-sided tape
• Hook & loop strap
Required Items:
• HOBOware 3.4 or later
• USB cable (included with
software)
16209-E

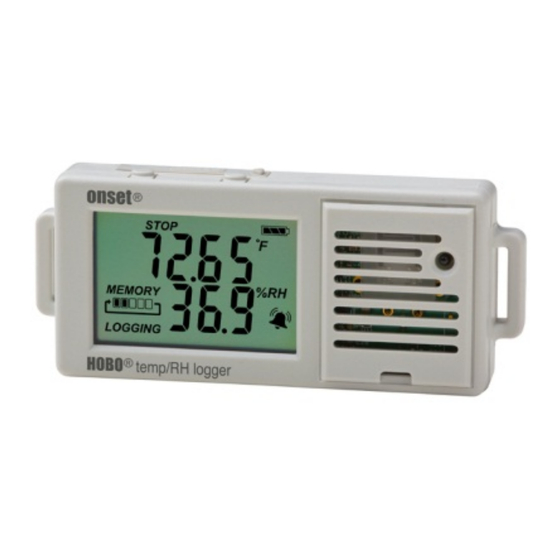

The HOBO Temp/RH data logger records temperature and relative humidity (within 3.5%
accuracy) in indoor environments with its integrated sensors. Using HOBOware®, you can easily
configure the logger alarm to trip for specific high or low sensor readings. Or, you can set up burst
logging in which the logger records data at a different interval during certain conditions. The
logger can also calculate minimum, maximum, average, and standard deviation statistics. This
compact data logger has a built-in LCD screen to monitor the current temperature, relative
humidity, logging status, battery use, and memory consumption in between readouts.
Specifications
Temperature Sensor
Range
Accuracy
Resolution
Response Time
Drift
RH Sensor
Range
Accuracy
Resolution
Response Time
Drift
Logger
Logger Operating Range
Logging Rate
Logging Modes
Memory Modes
Start Modes
Stop Modes
Restart Mode
Time Accuracy
Battery Life
Battery Type
Memory
Download Type
Full Memory Download Time
LCD
Size
Weight
Environmental Rating
-20° to 70°C (-4° to 158°F)
±0.21°C from 0° to 50°C (±0.38°F from 32° to 122°F), see Plot A
0.024°C at 25°C (0.04°F at 77°F), see Plot A
4 minutes in air moving 1 m/s (2.2 mph)
<0.1°C (0.18°F) per year
15% to 95%
±3.5% from 25% to 85% over the range of 15° to 45°C (59° to 113°F)
including hysteresis; ±5% from 25% to 95% over the range of 5° to
55°C (41° to 131°F) including hysteresis, see Plot B
0.07% at 25°C (77°F) and 30% RH
43 seconds to 90% in airflow of 1 m/s (2.2 mph)
<1% per year typical
Logging: -20° to 70°C (-4° to 158°F); 0 to 95% RH (non-condensing)
Launch/Readout: 0° to 50°C (32° to 122°F) per USB specification
1 second to 18 hours, 12 minutes, 15 seconds
Normal, burst, or statistics
Wrap when full or stop when full
Immediate, push button, date & time, or next interval
When memory full, push button, or date & time
Push button
±1 minute per month at 25°C (77°F), see Plot C
1 year, typical with logging rate of 1 minute and sampling interval of
15 seconds or greater
One 3V CR2032 lithium battery
128 KB (84,650 measurements, maximum)
USB 2.0 interface
20 seconds
LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly
or go blank in temperatures outside this range
3.66 x 8.48 x 1.52 cm (1.44 x 3.34 x 0.6 in.)
30 g (1.06 oz)
IP50
The CE Marking identifies this product as complying with all relevant
directives in the European Union (EU).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HOBO UX100-003 and is the answer not in the manual?

Questions and answers

Related Manuals for Onset HOBO UX100-003

Summary of Contents for Onset HOBO UX100-003

  • Page 1 HOBO® Temp/RH 3.5% Data Logger (UX100-003) Manual The HOBO Temp/RH data logger records temperature and relative humidity (within 3.5% accuracy) in indoor environments with its integrated sensors. Using HOBOware®, you can easily configure the logger alarm to trip for specific high or low sensor readings. Or, you can set up burst logging in which the logger records data at a different interval during certain conditions.
  • Page 2 HOBO Temp/RH 3.5% Data Logger (UX100-003) Manual Specifications (continued) 100% Not Specified +/- 5% +/-3.5% Plot A: Temperature °C Plot C: Time Accuracy Plot B: RH Accuracy Accuracy and Resolution Logger Components and Operation Battery Door Alarm/Stats Button USB Port: Use this port (not visible in the diagram) to connect Start/Stop Button Temperature Sensor the logger to the computer or the HOBO U-Shuttle via USB...
  • Page 3 HOBO Temp/RH 3.5% Data Logger (UX100-003) Manual a logging interval less than 15 seconds, the data will be LCD Symbol Description recorded at the faster interval, but the sensor readings In this example, the memory is full (all five segments are filled in) and new data is now will only be updated on the screen every 15 seconds.

  • Page 4: Setting Up Alarms

    HOBO Temp/RH 3.5% Data Logger (UX100-003) Manual • Normal. In Normal mode, data will always be recorded at 1. Click the Alarms button from the Launch Logger window. If the regular logging interval set in the previous step. This the Alarms button is disabled, make sure the Logging Mode is not set to Burst.

  • Page 5: Burst Logging

    HOBO Temp/RH 3.5% Data Logger (UX100-003) Manual Notes: • Once the logger is launched, alarms will trip as determined by these settings. Logger alarms will display on the LCD screen. Note that the alarm limits are only checked when the logger’s LCD screen refreshes every 15 seconds.

  • Page 6: Reading Out The Logger

    HOBO Temp/RH 3.5% Data Logger (UX100-003) Manual and burst logging began at 9:06. Burst logging then continued until 9:12 when the sensor reading fell back below the high level. Now back in normal mode, the next logging interval will be 10 minutes from the last burst logging point, or 9:22 in this case.

  • Page 7: Mounting The Logger

    The replacement sensor is available from Onset Connect the logger to the computer, click the Readout button (HUM-UPS-500). To replace the sensor: on the toolbar, and save the data as prompted.
  • Page 8 It is recommended you only record battery voltage for diagnostic purposes. © 2013 Onset Computer Corporation. All rights reserved. Onset, HOBO, and HOBOware are 1-800-LOGGERS (564-4377) • 508-759-9500 trademarks or registered trademarks of Onset Computer Corporation. All other trademarks are the www.onsetcomp.com •...
