RESET - This feature resets most menu settings back to the factory defaults. Try using Reset when
the Fishin' Buddy 4200™ does not appear to be working properly and you are not sure if the
problem is in the settings. When the Reset menu is on the screen, press the UP or DOWN button
to reset the settings.
SIDE - This feature will allow the Sidefinder to be on or off.
SIDE RANGE - The Sidefinder Range control allows you to set how far to the side the Fishin'
Buddy 4200™ will display fish. If you are casting, you'll probably want to choose a close range
to get the maximum detail in the cone. The Sidefinder Range is displayed in the upper-left
corner of the display.
• Operation: Press the MENU button, then press the LEFT or RIGHT button until SIDE
RANGE appears. Press and release the UP or DOWN button to select a manual range, then
press MENU to clear the menu.
SIDE FILTER - The Sidefinder Filter is used to reduce false markings from submerged objects like
pier poles and submerged branches. The filter is best used around docks and other shoreline
structures where false markings might occur. In most situations, and especially in open water, the
best performance is obtained with the filter turned off.
• Operation: Press the MENU button, then press the LEFT or RIGHT button until SIDE
FILTER appears. Press and release the UP or DOWN button to turn the filter on or off, then
press MENU to clear the menu.
- This symbol in the upper-right corner of the display indicates that the Sidefinder Filter is on.
NOTE: The Sidefinder will show fewer fish with the filter on.
Page 12
11

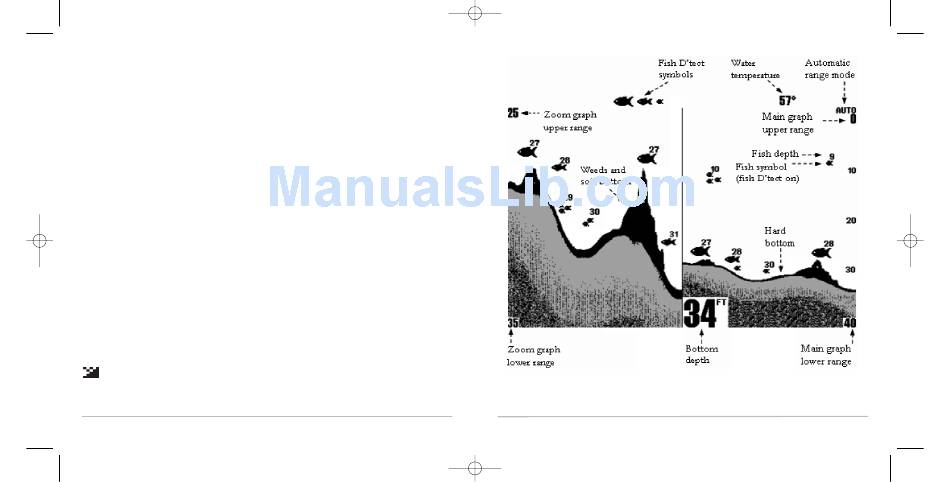

Fishin' Buddy 4200™ Display
12
