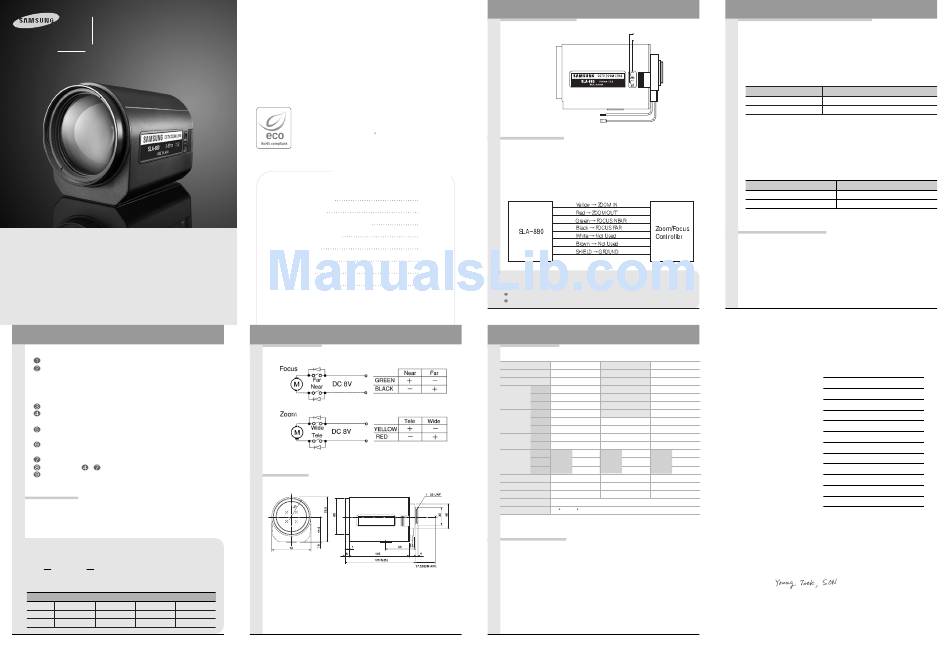

Samsung SLA-880 Operating Instructions

Powerful Clear Zoom
Motorized 10X Zoom Lens SLA-880 User's Manual
Thank you for purchasing a Samsung CCTV Zoom Lens.
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
ENGLISH
Motorized 10X Zoom Lens SLA-880
For the flauge back adjustment, follwing procedure is recommended.
Set up object or a test pattern about 25 meters or more away from the camera.
Keep the iris open fully. For the AI Lens, reduce the illumination or apply a neutral
density filter in front of the lens. Or, if possible, supply DC8.5~16V power between
Vcc(+) [red] and Vcc(-) [black] without connection of Video signal [white]. At the time if
the image on the monitor is too bright, use ND Filter in front of the lens to reduce the
light to come in.
Turn the focus to extremely far position.
Turn the zoom extremely to wide position. Then observe the image on the monitor
whether it is clear.
If it is not clear, adjust flange back length of the camera by turning flange ring or
moving image sensor of the camera.
Turn the zoom extremely to tele position. Then observe the image on the monitor
whether it is clear.
If it is not clear, turn the focus to get best focus.
Repeat the process to until you get clear focus all the way through the zoom range.
Getting clear focus, please fix the flange ring or image sensor of the camera. The
flange back of C-mount is fixed to 17.526mm.
5. Angle of View
It is important to know the angle of view of the lens to take in the object. Angle of view
changes with focal length of lens and image size of camera. The focal length to cover
the object can be calculated from the next formula.
* Formula for calculation f : focal length of lens
V : Vertical size of object
H : Horizontal size of object
D D
... (1) ... (2)
f= v X f= h X D : Distance from Lens to Object
V H
v : vertical size of image
h : horizontal size of image
Format Size
Format 1 inch 2/3 inch 1/2 inch 1/3 inch
v 9.6mm 6.6mm 4.8mm 3.3mm
h 12.8mm 8.8mm 6.4mm 4.4mm
SAMSUNG AUTO IRIS LENS FOR CCD CAMERA OPERATING
INSTRUCTIONS
The SLA-880 is a CCD camera lens with automatic iris function, electronically
controlled by video signals, and optical 10x zoom. Distant objects can be zoomed in
and focused for clear images with a simple operation of a switch. The photometric
system, designed to provide continuous adjustable readings between peak and
average values, provides optimum image quality even in conditions where the
contrast of the object changes in a wide range. When power is cut off, the iris is
automatically closed to protect the product from strong light.
Samsung Techwin cares for the environment at all product manufacturing
stages to preserve the environment, and is taking a number of steps to
provide customers with more environment-friendly products. The Eco
mark represents Samsung Techwin s will to create environment-friendly
products, and indicates that the product satisfies the EU RoHS Directive.
CONTENTS
Product appearance
Lens Connection
Adjustment of Automatic Iris System
Focusing of Zoom Lens
Angle of View
Circult Diagram
Dimensions
Specification
* Specifications are subject to change without prior notice.
Motorized 10X Zoom Lens SLA-880
• Circult Diagram
• Dimensions
5
1. Product appearance
CABLE 7Lines : Adjusting the zoom and focus
Auto Iris Jack
2. Lens Connection
1) Mount the lens turing it clodkwise onto the camera mount.
2) Turn the lens clockwise until it stops.
3) As lens mount is constructed bo be rotatable, please adjust the lens attitude,
if necessary. Turn the lens counterclockwise slowly till it gets the best attitude.
4) Connect the cable correctely
3
3
4
4
5
6
6
Remarks
7
Make sure to apply 8V to power zoom/focus.
If a higher voltage is applied to improve the zoom/focus speed, the motor may be damaged.
Make sure to keep the rated voltage.
• SPECIFICATION
Model No. SLA-880
Focal Length 8mm - 80mm
Max. Aperture Ratio 1:1.2
Iris
F1.2 - F560C
Operation Range Focus
1.5m - Inf.
Zoom
8mm - 80mm
Iris
Video Auto Iris
Control Focus
Motorized
Zoom
Motorized
Object Dimension 8mm 124.8cm x 92.5cm
at M.O.D. 80mm 12.3cm x 9.2cm
D 54.3˚ - 5.8˚
Angle of View H 1/2 type 44.0˚ - 4.7˚
V 33.3˚ - 3.5˚
Iris
Supply Voltage DC8.5V - DC16V
Current 40mA or less
Input Signal Video Signal (V or VS)
Operating Temperature -10 C ~ +50 C
6
Motorized 10X Zoom Lens SLA-880
3. Adjustment of Automatic Iris System
ALC
1) Light Metering Method (ALC)
LEVEL
It is alllowed variable selections of light metering between average and peak by
adjusting ALC potentiometer. ALC potentiometer is set at Average position at
shipment. The method of ALC adjustment is as follows.
Take off the ALC-cap on the lens cover and turn the ALC potentiometer with(-)
precision screw driver until suitable exposure is obtained.
ALC Mode
to Average Metering
to Peak Metering
2) Image Signal Level Adjustment (LEVEL)
Image level of video signal can be readjusted by turning the Level Potentiometer when
necessary according to the characteristics of the camera and the light conditions of the
objects. It is normally unnecessary to make sensitivity adjustment, since the video signal
level is set to an appropriate value at shipment. The method of readjustment, if necessary,
is as follow. Take off the Level-cap on the lens cover and turn the Level Pot. with(-)
precision screw driver so that an optimum level is obtained.
Picture brightness on monitor
to get brighter picture
to get darker picture
To proceed above Level adjustment, please, set AGC switch of the camera to be off position.
4. Focusing of Zoom Lens
1) Move the zoom to the extremely Tele position.
2) Operate the Focus switch to focus on the object.
3) Move the zoom to extremely Wide position, and make sure to find the
clearness of the image.
4) Again move the zoom to get the view angle of the desired object.
* Even after the process of(1) to (3), if the image is not clear, it may be necessary to
adjust the Flange back of the camera.
3
Motorized 10X Zoom Lens SLA-880
DECLARATION OF CONFORMITY
Back Focal Length 15.3mm
Flange Back Length 17.526mm
Application of Council Directive(s)
Mount C-Mount
Manufacturer's Name
Filter Size M62 P0.75mm
Manufacturer's Address
Tripod Screw 1/4 - 20UNC
Dimensions W70mm x H81mm x D123.5mm
Weight 670g
European Representative Name
European Representative Address
Equipment Type/Environment
41.3˚ - 4.4˚ 31.2˚ - 3.3˚
Model Name
1/3 type 33.3˚ - 3.5˚ 1/4 type 25.0˚ - 2.6˚
25.0˚ - 2.6˚ 18.8˚ - 2.0˚ Beginning Serial NO.
Focus Zoom
Year of Manufacture
DC8V DC8V
Conformance to
40mA or less 35mA or less
We, the undersigned, hereby declare that the equipment specified above conforms
to the above Directive(s).
Manufacturer SAMSUNG TECHWIN CO., LTD
Signature
Full Name YOUNG TAEK SON
Position QUALITY CONTROL MANAGER
Place CHANGWON, KOREA
Date 2007. 7. 4
7
Motorized 10X Zoom Lens SLA-880
ALC Adjustment
Turn the ALC Pot. to "A" direction
Turn the ALC Pot. to "P" direction
Level Adjustment
Turn the Level Pot. to "H" direction
Turn the Level Pot. to "L" direction
4
