DTL Broadcast 5DV2401 User Manual

Specification

Inputs
Number 5DV2401 - 1 x 75W BNC
5DV2402 - 2 x 75W BNCs
Standard SMPTE 259M 143, 177, 270 & 360Mb/s
Signal level 800mV ±10%
Common mode rejection 30Vp-p at 50Hz
Return loss >22 dB
Equalisation Automatic to over 200m Belden 8281 at
270Mb/s
Outputs
Number
5DV2401 - 7 re-clocked x 75Ω BNC
5DV2402 - 3 re-clocked x 75Ω BNC per channel
Standard SMPTE 259M 143, 177, 270 & 360Mb/s
800mV ±10%
Signal level
Return loss >18dB to clock frequency
DC offset 0V ±0.5V
Rise & fall time 400-700pS (20-80% amplitude)
Overshoot <10%
Other
Power supply required 230VAC 50Hz
Temperature range
0°C to 40°C
Power consumption Approx 5VA
Temperature range
0°C to 40°C
Measurements relate to the 5DV2401 DA with the 5DV2491 connector unit in
a 5AV2645 frame.
Physical
Weight (kg) Height (mm)
5DV2401 600g 88mm(2U)
5DV2491 210g 88mm(2U)
5DV2402 600g 88mm(2U)
5DV2492 210g 88mm(2U)
DTL Broadcast Ltd, Johnson's Estate, Silverdale Road, Hayes, Middlesex, UB3 3BA, UK
Phone: +44 (0) 20 8813 5200
Internet: www.dtl-broadcast.com
F:\PRODUCTS\2600\User Guides\UG5DV2401_2 Iss1.1.doc
Width (mm) Depth (mm)
44mm(1U) 300mm
44mm(1U) 120mm
44mm(1U) 300mm
44mm(1U) 120mm
Fax: +44 (0) 20 8813 5022
support@dtl-broadcast.com
- 4 -

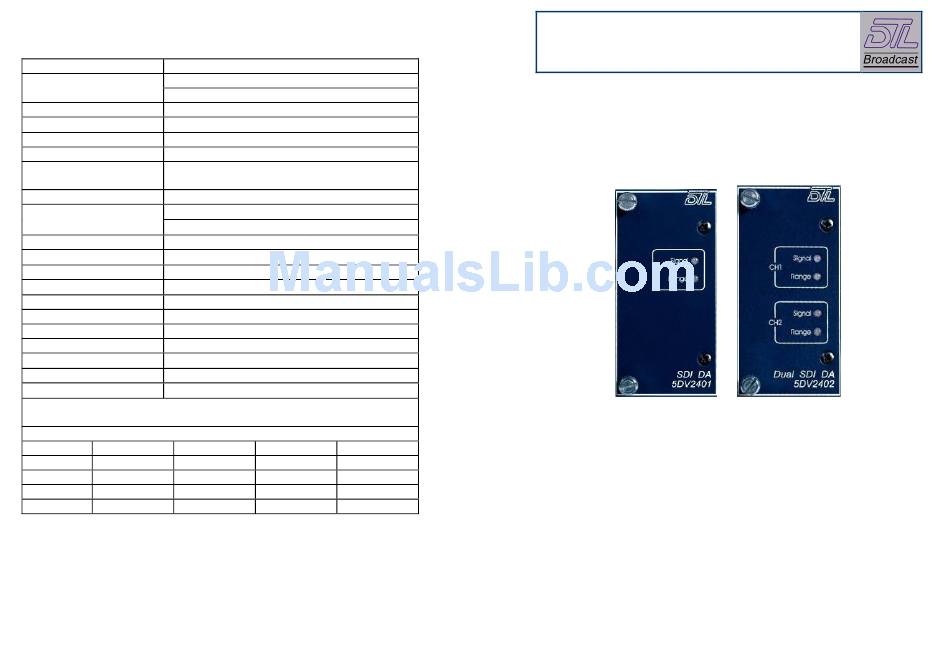

DTL 2600 range

User Guide

5DV2401 single & 5DV2402 dual channel
SDI equalising & re-clocking distribution
amplifiers
www.dtl-broadcast.com
