SCUDO 600 Quick Manual

SCUDO Automatic Voltage Regulator
1

Introduction

Thank you for purchasing SCUDO product. This series is designed to automatically
maintain a constant voltage level to protect sensitive electronics from brownouts
and overvoltages. With its fashionable and flexible cabinet, it can be installed on a
desk or wall without causing an unsightly or unprofessional image, and will perfectly
utilize a limited working environment. This series offers one-step boost and one-step
buck stabilizer to continuously supply a clean power source to its connected equipment.
2

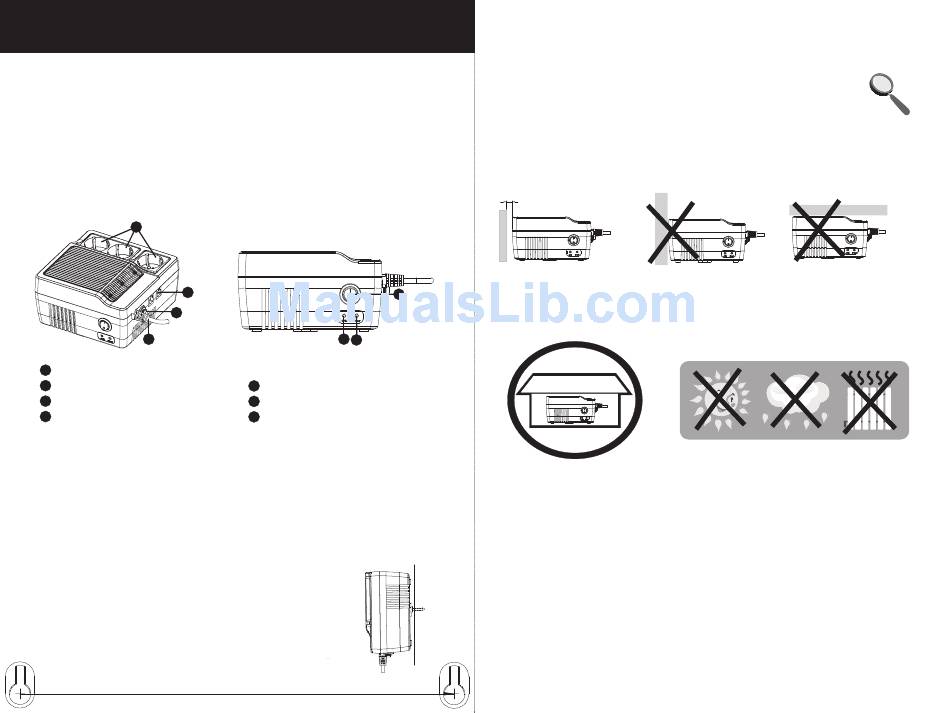

Product Overview

1
4
3
2
1 Output receptacles (for connecting equipment)
2 AC input
3 Circuit breaker
4 Modem/phone surge protection

Wall Mount the Unit

The unit can be mounted to a wall surface. Please follow below steps:
1. Use tape to hold this page in place against the wall.
2. Use a sharp nail to puncture the center of the two holes to mark the wall.
(see below chart 1)
3. Mount the unit by positioning the key-hole slots over the mounting
nails. (see chart 2)
Chart 1
Quick Guide V.1.0
7
6
5 Power switch
6 Power LED
7 Boost/Buck LED
Chart 2
128 mm
3
Installation & Initial Startup

Inspection

Remove the unit from the shipping package and inspect it for damage
that may occurred during transportation. Notify the carrier and place
of purchase if any damage is found.
Placement & Storage Conditions
Install the unit in a protected area that is free of excessive dust and has adequate
air flow. Please place the UPS away from other units at least 2.5cm to avoid
interference. Do NOT block the top or side air vents on the unit.
2.5cm
(1 inch)
Do not operation the unit in an environment where the ambient temperature or
5
humidity is outside the limits listed in the specifications. Operate the unit in an
environment free of excessive dust, mechanical vibration, inflammable gases and
explosive or corrosive atmospheres.

Connect to the Wall Outlet

Plug the input power cord of the unit to the wall outlet.

Connect the Loads

Plug in the loads to output receptacles of the unit and switch the unit "ON" by pressing
the side panel ON/OFF switch to "ON" position. Then the connected devices will be
powered.
Wall

Connect Modem/Phone for Surge Protection

(Only for the model with RJ-11)
Connect a single modem/phone line into surge-protected "IN" outlet on the unit.
Connect from "OUT" outlet to the computer with phone line cable.

Turn On/Off the Unit

Turn on the unit by pressing the power switch to "ON" (l)position. This switch may be
used as the master ON/OFF switch for all connected devices.
