PUBLICATION NUMBER: 10515-0365-4200
JUNE 2017
Rev. C

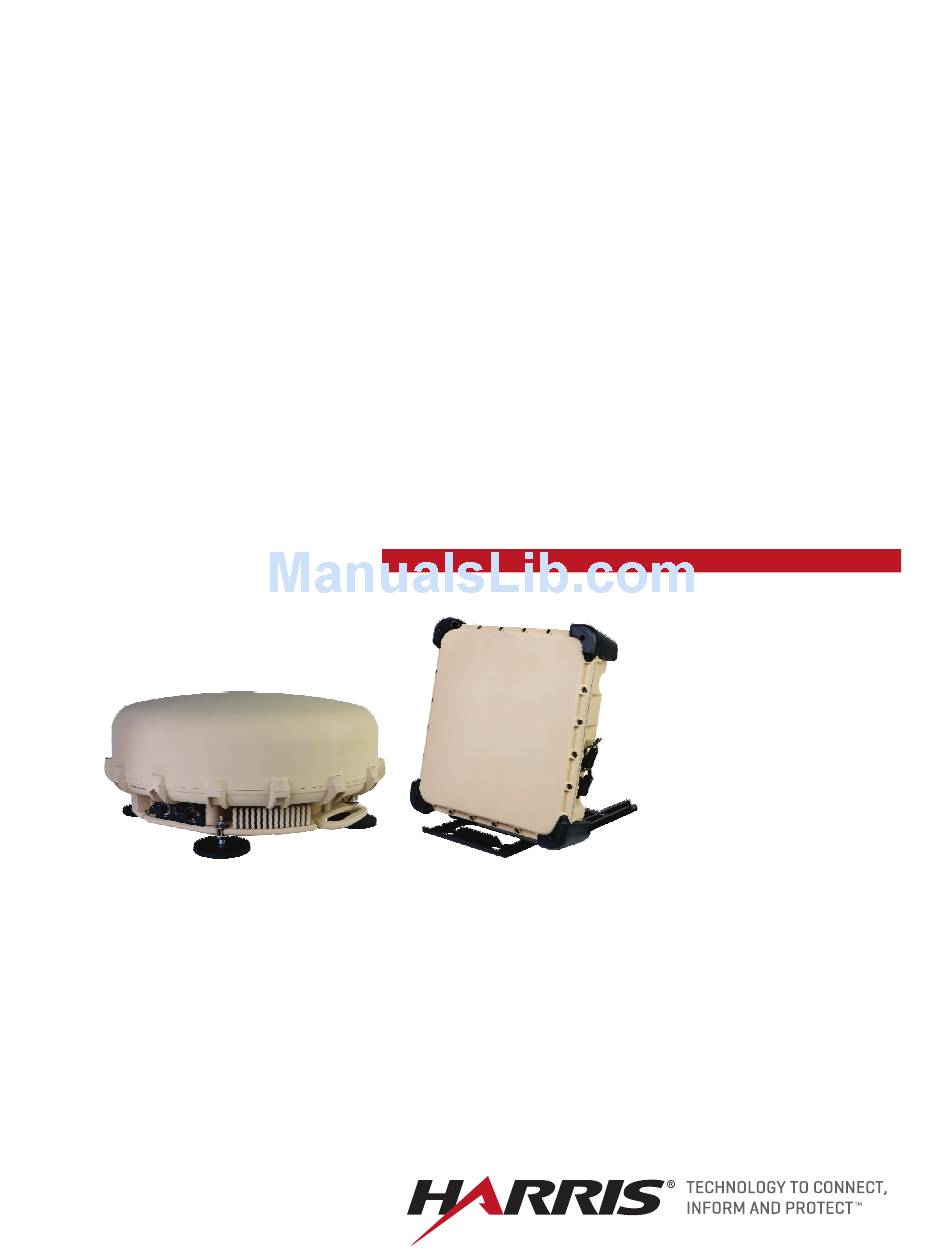

RF-7800B-DU024 LAND PORTABLE
RF-7800B-VU104 LAND MOBILE
BROADBAND GLOBAL AREA
NETWORK TERMINAL
OPERATION
MANUAL
This information is controlled by the U.S. Department of Commerce Export Administration Regulations 15 CFR
730-774, ECCN EAR99. Information contained herein is property of Harris Corporation and may not be copied
or reproduced by any means, without prior written permission. Information contained herein is property of
Harris Corporation and may not be copied or reproduced by any means, without prior written permission.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RF-7800B-DUO24 and is the answer not in the manual?

Questions and answers

Related Manuals for Harris RF-7800B-DUO24

Summary of Contents for Harris RF-7800B-DUO24

  • Page 1 This information is controlled by the U.S. Department of Commerce Export Administration Regulations 15 CFR 730-774, ECCN EAR99. Information contained herein is property of Harris Corporation and may not be copied or reproduced by any means, without prior written permission. Information contained herein is property of...
  • Page 2 Harris Product Service: Phone (585) 242-3561, Toll-free (866) 264-8040, Fax: 585-242-4483 Harris will repair or replace the defective equipment or part and pay for its return to you, provided the repair or replacement is due to a cause covered by this warranty.
  • Page 4 NETWORK TERMINAL OPERATION MANUAL Information and descriptions contained herein are the property of Harris Corporation. Such information and descriptions may not be copied or reproduced by any means, or disseminated or distributed without the express prior written permission of Harris Corporation, Communication Systems, 1680 University Avenue, Rochester, New York 14610-1887.

  • Page 6: Table Of Contents

    RF-7800B TABLE OF CONTENTS TABLE OF CONTENTS Paragraph Page CHAPTER 1 – GENERAL INFORMATION SAFETY PRECAUTIONS ........PURPOSE OF THIS MANUAL.
  • Page 7 RF-7800B TABLE OF CONTENTS TABLE OF CONTENTS – Continued Paragraph Page CHAPTER 3 – OPERATION INTRODUCTION ..........OPERATIONS TASK SUMMARY .
  • Page 8 RF-7800B TABLE OF CONTENTS TABLE OF CONTENTS – Continued Paragraph Page CHAPTER 4 – CONFIGURATION - CONTINUED 4.4.4.1 Automatic Network Connections Settings for TE with Static IP Address ..4-15 4.4.4.2 Automatic Network Connections Settings for TE using DHCP Assigned IP Address .
  • Page 9 RF-7800B TABLE OF CONTENTS LIST OF FIGURES Figure Page RF-7800B-VU104 Land Mobile BGAN Terminal ..... . RF-7800B-DU024 Land Portable BGAN Terminal ..... BGAN Worldwide Coverage.
  • Page 10 RF-7800B TABLE OF CONTENTS LIST OF TABLES Table Page RF-7800B BGAN Terminal Specifications ......Antenna Status ATB State .
  • Page 11 RF-7800B TABLE OF CONTENTS This page intentionally left blank.
  • Page 12 RF-7800B SAFETY SUMMARY SAFETY SUMMARY INTRODUCTION All operators and maintenance personnel must observe the following safety precautions during operation and maintenance of this equipment. Specific warnings and cautions are provided in the manual and at the end of this Safety Summary. Warnings, Cautions, and Notes appear before various steps in the manual and will be used as follows: •...
  • Page 13 RF-7800B SAFETY SUMMARY Personnel must react when someone is being electrically shocked. Perform the following steps: Shut off power. Call for help. Administer first aid if qualified. Under no circumstances should a person come directly in contact with the body unless the power has been removed.
  • Page 14 RF-7800B SAFETY SUMMARY DO NOT BYPASS INTERLOCKS Do not bypass any interlocks unnecessarily. If it is necessary to employ an interlock bypass for equipment servicing, use extreme care not to come in contact with hazardous voltages. RADIATION HAZARD Operators must keep a minimum required clearance of 1 m away from the equipment during operation. USE CARE HANDLING HEAVY EQUIPMENT Never attempt to lift large assemblies or equipment without knowing their weight.
  • Page 15 SOLDERING GUNS MUST NEVER BE USED. FCC COMPLIANCE This device conforms to the FCC rules. Any changes or modifications to Harris Corporations equipment, not expressly approved by Harris Corporation could void the user's authority to operate the equipment.
  • Page 16 RF-7800B RF-7800B-DU024 LAND PORTABLE RF-7800B-VU104 LAND MOBILE BROADBAND GLOBAL AREA NETWORK TERMINAL OPERATION MANUAL...
  • Page 17 RF-7800B This page intentionally left blank.

  • Page 18: Chapter 1 - General Information

    For warranty information, refer to the inside front cover of this manual. EQUIPMENT DESCRIPTION The Harris RF-7800B Land Mobile and Land Portable BGAN Terminals provide a high-performance Satellite Communications (SATCOM) solution with reliable voice and broadband data connectivity for Beyond-Line-of- Sight (BLOS) SATCOM-on-the-Move (SOTM) and SATCOM-on-the-Quick-Halt (SOQH) applications.

  • Page 19: Rf-7800B-Vu104 Land Mobile Bgan Terminal

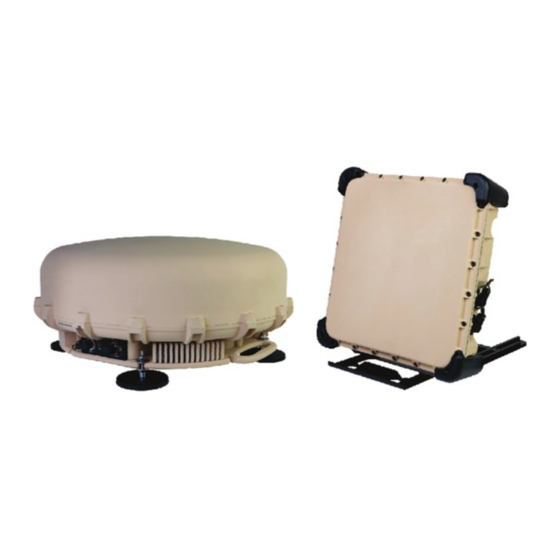

    1.3.1 RF-7800B-VU104 Land Mobile BGAN Terminal The Harris RF-7800B-VU104 Land Mobile BGAN Terminal is a Class 10 BGAN SOTM Terminal that provides data rates of up to 492 kbps while on the move. See Figure 1-1.

  • Page 20: Rf-7800B-Du024 Land Portable Bgan Terminal

    RF-7800B GENERAL INFORMATION 1.3.2 RF-7800B-DU024 Land Portable BGAN Terminal The RF-7800B-DU024 Land Portable BGAN Terminal is a Class 2 BGAN Land Portable Terminal that provides data rates of up to 432 kbps. See Figure 1-2. This BGAN terminal is designed for operation in harsh environmental conditions.

  • Page 21: Features

    Network Address Translation (NAT) Mode: for direct computer(s) connection − Relay Mode: for direct router connection − Bridge Mode: for direct Harris radio connection • Multi-user capability for sharing a single unit (up to 11 simultaneous primary user contexts/sessions) •...
  • Page 22 RF-7800B GENERAL INFORMATION Table 1-1. RF-7800B BGAN Terminal Specifications (Continued) Function Specification Power Options DC voltage input range 12/24 VDC, Internal MIL-STD-1275 power supply, (RF-7800B-VU104) 120/240 VAC power supply, Standard vehicle DC adapter (refer to Paragraph 3.3.2 for available power cables) Power Options DC voltage input range 12/24 VDC, Optional Battery Box (12091-4010) for use (RF-7800B-DU024)

  • Page 23: Configurations

    RF-7800B GENERAL INFORMATION NOTE Because Harris engineers continuously strive to improve all aspects of Harris equipment, specifications are subject to change without notice. CONFIGURATIONS For the equipment firmware revision used when documenting this manual, refer to the title page inside the front cover of this manual.

  • Page 24: Compatibility

    RF-7800B GENERAL INFORMATION CL-0365-4200-0003 Figure 1-3. BGAN Worldwide Coverage COMPATIBILITY Successful communications depends on using compatible radios and terminal equipment (computer with web interface). 1.8.1 BGAN Compatible Radios The following radios with embedded BGAN terminal remote control capability are compatible with the BGAN terminal: •...

  • Page 25: Compatible Encryption Equipment

    RF-7800B GENERAL INFORMATION When linked to Harris Falcon III manpack radios or SecNet 54 encryption modules, RF-7800B BGAN terminals provide end-to-end Type-1 High Assurance Internet Protocol Encryptors (HAIPE)-certified security (AN/PRC- 117G) or AES256 (RF-7800M-MP) for data transmissions over long-range commercial networks.

  • Page 26: Rf-7800B-Du024 Options

    RF-7800B GENERAL INFORMATION • 12043-0891-A006 AC/DC Power Supply Cable (RF-505X PS), 6 feet 12043-0891-A015 AC/DC Power Supply Cable (RF-505X PS), 15 feet • 12043-0892-A006 RF-505X PS / RF-7800B-VU Remote On/Off, 6 feet 12043-0892-A015 RF-505X PS / RF-7800B-VU Remote On/Off, 15 feet •...
  • Page 27 RF-7800B GENERAL INFORMATION This page intentionally left blank. 1-10...

  • Page 28: Chapter 2 - System Setup And Teardown

    RF-7800B SYSTEM SETUP AND TEARDOWN CHAPTER 2 SYSTEM SETUP AND TEARDOWN ITEMS INCLUDED WITH RF-7800B BGAN TERMINAL The standard items included with the Broadband Global Area Network (BGAN) terminals are described below. Refer to Paragraph 1.9 for optional accessories. RF-7800B-VU104 Land Mobile BGAN Terminal includes the following. See Figure 2-1.

  • Page 29: Installation Guidelines

    RF-7800B SYSTEM SETUP AND TEARDOWN LAND PORTABLE BGAN TERMINAL (12091-0020-12) BGAN - AC TO DC POWER SUPPLY ASSEMBLY (12043-0894-A1) ADAPTERS NOT SHOWN BGAN - ETHERNET CABLE ASSEMBLY (12043-0833-A010) CL-0365-4200-0005 Figure 2-2. Items Included with RF-7800B-DU024 INSTALLATION GUIDELINES The information contained here provides general guidelines for installing the BGAN terminal. Read this chapter in its entirety before beginning installation.

  • Page 30: Dimension And Weight Information

    Move the boxed equipment to the general location where it is to be installed. After removing the equipment, check the contents against the packing slip to see that the shipment is complete. Report discrepancies to Harris Product Service Department (telephone: 585-244-5830, toll free: 866-264-8040, web: https://tcpremier.harris.com/).

  • Page 31: Installing Usim In Rf-7800B-Du024

    RF-7800B SYSTEM SETUP AND TEARDOWN 2.4.1 Installing USIM in RF-7800B-DU024 Perform the following procedure to install the USIM/SIM in RF-7800B-DU024: Position the BGAN terminal so that the bottom surface is facing you. Remove the four screws and the USIM plate to access the USIM card holder. See Figure 2-3.

  • Page 32: Opening The Usim Card Holder On Rf-7800B-Du024

    RF-7800B SYSTEM SETUP AND TEARDOWN UNLOCKED POSITION CL-0365-4200-0007 Figure 2-4. Opening the USIM Card Holder on RF-7800B-DU024 ANGLED EDGE OF USIM CARD GOLD CONTACTS ON THIS SIDE CL-0365-4200-0008 Figure 2-5. Placing the USIM Card in Holder on RF-7800B-DU024 LOCKED POSITION CL-0365-4200-0009 Figure 2-6.

  • Page 33: Installing Usim In Rf-7800B-Vu104

    RF-7800B SYSTEM SETUP AND TEARDOWN 2.4.2 Installing USIM in RF-7800B-VU104 Perform the following procedure to install the USIM/SIM in the RF-7800B-VU104: Position the BGAN terminal with the topside down onto a smooth/soft surface to prevent scratching the radome and with the bottom surface facing you. Remove the four screws and the USIM plate to access the USIM card holder.

  • Page 34: Accessing The Usim Card Holder And Drain Holes On Rf-7800B-Vu104

    RF-7800B SYSTEM SETUP AND TEARDOWN DRAIN HOLE (4 PLACES) USIM CARD HOLDER CL-0365-4200-0010 Figure 2-7. Accessing the USIM Card Holder and Drain Holes on RF-7800B-VU104 GOLD CONTACTS ANGLED EDGE ON THIS SIDE OF USIM CARD CL-0365-4200-0012 Figure 2-8. Placing the USIM Card in Holder on RF-7800B-VU104...

  • Page 35: Installation Procedures

    RF-7800B SYSTEM SETUP AND TEARDOWN INSTALLATION PROCEDURES The paragraphs that follow describe the installation of an BGAN terminal. 2.5.1 RF-7800B-VU104 Installation RF-7800B-VU104 is intended for installation onto a vehicle roof. Some installation hardware may need to be installer furnished. Tools and installation materials will vary for each application. The four drain holes on the bottom of the RF-7800B-VU104 are shipped in the open position.

  • Page 36: Rf-7800B-Du024 Fixed/Semi-Fixed Installation

    RF-7800B SYSTEM SETUP AND TEARDOWN SEE DETAIL DETAIL (4 PLACES) CL-0365-4200-0011 Figure 2-9. Pole Mount Option 2.5.2 RF-7800B-DU024 Fixed/Semi-fixed Installation The Land Portable BGAN Terminal can be mounted on a pole or flat surface (such as a wall or roof) using the Fixed Mount Kit, 12091-4150-01.

  • Page 37: Cable Connections

    RF-7800B SYSTEM SETUP AND TEARDOWN AZIMUTH CANISTER/INCLINE BRACKET ASSEMBLY BUBBLE LEVEL INDICATOR SCREW, CAP, AND HOLDER HEX SOCKET, 1/4 - 20X1/2 (4 PLACES) UNIVERSAL MOUNT NOTE: USE CUSTOMER FURNISHED MOUNTING HARDWARE FOR POLE OR SURFACE MOUNT. CL-0365-4200-0013 Figure 2-10. Fixed Mount Option 2.5.3 Cable Connections For connector pinouts, refer to...

  • Page 38: Protecting Connectors

    RF-7800B SYSTEM SETUP AND TEARDOWN NOTE: LAND MOBILE TERMINAL AC TO DC POWER SHOWN. LAND PORTABLE MAY SUPPLY ASSEMBLY, ALSO BE USED. 12043-0894-A1 BGAN ETHERNET CABLE, 12043-0833-A010 AUTOMOBILE 12 VDC POWER CABLE, 12043-0843-A015 BGAN TO RADIO ETHERNET CABLE, USB AND 12043-0830-A006 ISDN CABLE, 12043-0836-A010...

  • Page 39: Initial Turn-On / Check

    RF-7800B SYSTEM SETUP AND TEARDOWN INITIAL TURN-ON / CHECK Once the system is installed, verify that the BGAN terminal is operational. Perform the following: Make sure the data cable is connected to BGAN terminal and computer. Make sure the power cable is connected to BGAN terminal and power source. Turn on power to BGAN Terminal and wait at least 30 seconds for the BGAN Terminal to power-up.

  • Page 40: Chapter 3 - Operation

    RF-7800B OPERATION CHAPTER 3 OPERATION INTRODUCTION The Broadband Global Area Network (BGAN) terminal contains an integrated Global Positioning System (GPS) receiver that is used to provide location information to the BGAN system. GPS location information is required to register with the BGAN system, and the BGAN terminal automatically tries to get a GPS position fix every time it is powered up.

  • Page 41: Data Connections

    RF-7800B OPERATION POWER DATA CL-0365-4200-0016 Figure 3-2. RF-7800B-DU024 Connectors 3.3.1 Data Connections Make a data connection to a computer, radio, an Internet Protocol (IP) encryption device, or an ISDN device. The Data Extension Cable for Ethernet & ISDN, 12043-0837-A0xx, can be used to extend the terminal data connection out 15, 25, or 50 feet (4.57, 7.62, or 15.24 meters).

  • Page 42: Connect Data By Usb

    RF-7800B OPERATION ISDN CONNECTOR ETHERNET CONNECTOR CL-0365-4200-0019 Figure 3-4. Standalone Ethernet and ISDN Cable, 12043-0834-A010 (Optional) 3.3.1.2 Connect Data by USB Connect the BGAN terminal to the computer USB port using a USB cable option. Use Standalone Ethernet, ISDN, USB Cable, 12043-0832-A010, or Standalone USB and ISDN Cable, 12043-0836-A010 (see Figure 3-5).

  • Page 43: Connect Data By Isdn

    RF-7800B OPERATION 3.3.1.3 Connect Data by ISDN Connect the BGAN terminal to the computer or phone ISDN port using an ISDN cable option. • Standalone Ethernet, ISDN, USB Cable, 12043-0832-A010. • Figure 3-4 for Standalone Ethernet and ISDN Cable, 12043-0834-A010. •...

  • Page 44: Power Connections

    RF-7800B OPERATION 3.3.2 Power Connections Connect the BGAN terminal to a power source as described in this section. Each of these power connection options can be extended using the BGAN DC Power Extension, 12043-0895-A015, -A025, or -A050 (includes activation). For power sources which do not have built-in current limiting (< 100 W) or fuses, procure the F03-0008-906 Fuse Holder along with the F15-0012-003 Automotive Fuses (Automotive Blade, 5 A 32 V) for applications for 12 V applications.

  • Page 45: Connect Bgan Terminal Power To 26 Vdc Power Supply

    RF-7800B OPERATION Optionally, for RF-7800B-VU104, use the 12043-0890-A010, or -A015 Cable Assembly, BGAN DC Power to 4 Leads as follows: red (+DC), black (ground), orange (power control signal), brown (ground). See Figure 3-12. The Power Control Signal allows the BGAN terminal to be remotely powered on/off. Connecting the power control signal to ground will turn the power on to the BGAN terminal.

  • Page 46: Connect Rf-7800B-Du024 Power To Bgan Battery Box Kit

    RF-7800B OPERATION 3.3.2.5 Connect RF-7800B-DU024 Power to BGAN Battery Box Kit Connect RF-7800B-DU024 to BGAN Battery Box Kit, 12091-4010-01, using 12043-0850-A006 BGAN DC Power to Battery Box cable. See Figure 3-15. Refer to Paragraph 5.3 for information on batteries. See Figure 3-16 Battery Box.

  • Page 47: Using Rf-7800B-Du024 Terminal Stand

    RF-7800B OPERATION USING RF-7800B-DU024 TERMINAL STAND The Land Portable BGAN terminal stand is used to position the terminal in the correct direction. Place the Satellite terminal face down on a flat surface to open up the stand. See Figure 3-17. Open the stand by placing your index finger in the upper right (or upper left) hand corner of the unit and placing your other hand on the side of the unit and pulling upwards.

  • Page 48: Rf-7800B-Du024 Initial Settings And Turn-On

    RF-7800B OPERATION CARRY HANDLE SET KNOBS CL-0365-4200-0034 Figure 3-18. Slide Out Stabilizer RF-7800B-DU024 INITIAL SETTINGS AND TURN-ON Perform the following to point RF-7800B-DU024 Land Portable BGAN terminal and get a GPS fix. CAUTION Do not stand in front of the BGAN terminal. The BGAN terminal emits radio frequency energy when in operation.

  • Page 49: Rf-7800B-Vu104 Initial Settings And Turn-On

    RF-7800B OPERATION Access the Web interface. Open a web browser and type in the Ethernet IP address of the BGAN terminal (default is http://192.168.128.100). Refer to Paragraph 2.6 Initial Turn-On / Check for detailed instructions. The web interface opens up to the Properties page. See Figure 4-6.

  • Page 50: Bgan Services

    RF-7800B OPERATION Monitor the Web interface PROPERTIES page GPS Position information to determine when a GPS Fix is obtained. Typically, a GPS 3D fix can be successfully attained in less than 90 seconds. Refer to Paragraph 3.7.1. Automatic tracking keeps the antenna pointed towards the satellite once the vehicle starts moving. During short outages (while driving under a bridge, for example), the antenna will remain in the same position and will pick up the satellite signal immediately upon exiting the blockage.

  • Page 51: Isdn Voice Telephony Services

    RF-7800B OPERATION For the RF-7800B-VU104, traveling from one spot beam to another, GPS information will be used to allow a seamless spot beam transition, without the end user even knowing. Finally, there are Universal Mobile Telecommunications System (UMTS) Subscriber Identification Module (USIM) cards known as “Discreet SIM cards”, which do not provide GPS location information of the BGAN terminal to the BGAN Network.

  • Page 52: Data Services

    RF-7800B OPERATION 3.7.4 Data Services The five types of Packet Switched data connections (Network Connections) consist of a Background data service, and four Quality of Service (QoS) Streaming services. Background Service: A Background connection shares the bandwidth of the satellite spot beam with all the other active background connections in the spot beam, minus all the bandwidth allocated to streaming connections.
  • Page 53 RF-7800B OPERATION This page intentionally left blank. 3-14...

  • Page 54: Chapter 4 - Configuration

    Ability to choose automatic or manual satellite selection, when in areas of two satellite coverage. • Ability to work in multiple modes: Network Address Translation (NAT) Mode (for direct computer connections), Relay Mode (for direct router connection), and Bridge Mode (for direct Harris Radio connection). •...

  • Page 55: Rf-7800B-Du024 Land Portable Bgan Terminal

    NAT Mode (for direct computer connection(s)) • Relay Mode (for direct Router connection) • Bridge Mode (for direct Harris Radio connection) 4.3.1 NAT Mode The RF-7800B NAT Mode enables the use of directly connected computers to access the BGAN Network. Up to 11 computers can be directly connected to the BGAN Terminal (when more than one computer is connected, a network hub/switch will be required).

  • Page 56: Relay Mode

    RF-7800B CONFIGURATION The RF-7800B BGAN Terminals are configured for NAT Mode by default. The ability to Restore to Factory Defaults is provided in the BGAN Terminal's Web Interface, and will place the terminal back to all settings appropriate for NAT Mode. The following is a sample configuration, modified by the Web Interface, to create BGAN network connections by a computer when using the default NAT Mode: Navigate to the Registration, GPS, Properties page of the Web Interface.
  • Page 57 RF-7800B CONFIGURATION In Relay Mode, when the BGAN Terminal does not have an active BGAN network connection, the BGAN Terminals DHCP Server will assign a private IP address from its DHCP Server Address range configured via the web interface. When the BGAN Terminal has an active BGAN Network connection, the DHCP Server will reassign the public IP address associated with the active network connection to the Router, and data will be automatically routed between the Local Area Network (LAN) and the BGAN network though the BGAN Terminal.

  • Page 58: Bridge Mode

    Figure 4-3 for the Bridge Mode of operation. There is no manual configuration required to operate in Bridge Mode. If a compatible Harris Falcon III Radio is used to control the BGAN Terminal, all required configurations will be set automatically.

  • Page 59: Configuration Parameters

    • Relay Mode. Use this for single direct router connection. • Bridge Mode. Use this for direct Harris radio connection. DHCP Server (Enable/Disable): Use this to allow an automatic IP address allocation to the computer(s) connected to the BGAN Terminal.
  • Page 60 RF-7800B CONFIGURATION DHCP Server Address Range: The DHCP Server Address Range (default of 192.168.128.101 to 199) are provided to the connected computers which have been configured for dynamic Transmission Control Protocol/Internet Protocol (TCP/IP) addressing. If the DHCP Server is set to Disable, then devices connected to the BGAN terminal must be configured to be in the same IP subnet address space as the BGAN terminal Ethernet IP address.

  • Page 61: Bgan Terminal Configuration

    RF-7800B CONFIGURATION Figure 4-4. BGAN Terminal Configuration...

  • Page 62: Registration, Gps, Properties

    RF-7800B CONFIGURATION 4.4.2 Registration, GPS, Properties Figure 4-5 Figure 4-6. The Properties page shows the current status of the BGAN terminal. The three status items in the top left-hand corner of the screen update automatically when the status of that item changes: •...

  • Page 63: Bgan Terminal Properties

    Extract System Log: Click this button to automatically extract a system log from the BGAN terminal and save the file to a location on the computer for debugging purposes. This file can be e-mailed to Harris directly for fault analysis.

  • Page 64: Connect To Network

    RF-7800B CONFIGURATION 4.4.3 Connect to Network Figure 4-7. The Connect to Network page is used to setup and configure Network Connections for any computer that is connected to the BGAN terminal. NOTE Before attempting a connection, ensure that the terminal is Registered.

  • Page 65: Bgan Terminal Network Connections

    RF-7800B CONFIGURATION If the Service Provider requires a username and password, enter it in the Username and Password boxes, then click Apply. The new connection appears in the Network Connections table. Once the context has been setup, whether it is successful or not, the properties will remain in the table above. In the table above, the entry can be cleared by clicking the associated Clear button.

  • Page 66: Activating Multiple Network Connections

    RF-7800B CONFIGURATION 4.4.3.2 Activating Multiple Network Connections To activate multiple Network Connections for additional computers, repeat the instructions for a single Network Connection. Each time a context is activated for a particular local IP address, it will show up in the table. NOTE Multiple network connections are only possible in NAT mode.

  • Page 67: Bgan Terminal Ip Automatic Network Connections

    RF-7800B CONFIGURATION Figure 4-8. BGAN Terminal IP Automatic Network Connections 4-14...

  • Page 68: Automatic Network Connections Settings For Te With Static Ip Address

    RF-7800B CONFIGURATION 4.4.4.1 Automatic Network Connections Settings for TE with Static IP Address A custom range of static IP addresses can be used for setting up an automatic Network Connection with any of the QoS's offered by the network. To turn on a particular range of addresses: Select DA and enter the low and high range of IP addresses to use (e.g.

  • Page 69: Isdn Setup

    RF-7800B CONFIGURATION 4.4.5 ISDN Setup Figure 4-9. To establish Integrated Services Digital Network data communication, connect the BGAN terminal ISDN port to ISDN equipment using the ISDN/Ethernet cable. Use the ISDN Interface page to activate 40 V power sourcing on the ISDN interface, and set Multi-Subscriber Numbering (MSN) numbering options. Figure 4-9.

  • Page 70: Usage Report

    RF-7800B CONFIGURATION MSN RDI: By default, MSN 3 is entered into the MSN Restricted Digital Information text box. RDI is a 56 kbps service that is normally found in the USA. Trigger for Mobile-Originated call type (Bearer): This drop down box controls the mechanism used by the BGAN terminal to select the bearer type for mobile originated calls.

  • Page 71: Antenna Status

    RF-7800B CONFIGURATION Figure 4-10. BGAN Terminal Usage Report 4.4.7 Antenna Status Figure 4-11. The Antenna Status page is only used for the RF-7800B-VU104 tracking antenna. It is used to monitor the status of the antenna. This page does not automatically update and must be refreshed to poll for the latest status.

  • Page 72: Bgan Terminal Antenna Status

    RF-7800B CONFIGURATION Built-in Test Results: Provides values for the built-in tests performed at startup. A displayed value of Pass means No Fault. A displayed value of 255 means test result not available. A displayed value other than Pass or 255 indicates a possible failure.

  • Page 73: Abit Test Results

    RF-7800B CONFIGURATION Table 4-1. Antenna Status ATB State (Continued) State Name State Description Track Track state. Block Blocked state Freeze Antenna has stopped all motors. Test Test state. Table 4-2. Satellite Frequencies Primary Frequency Alternate Satellite ID Satellite Longitude Frequency kHz 5 (I4-F1) 143.5 East (E) 1537485...

  • Page 74: Upgrading The Bgan Terminal Software

    RF-7800B CONFIGURATION UPGRADING THE BGAN TERMINAL SOFTWARE Software updates for the RF-7800B BGAN Terminals can be accessed from the Harris Premier website: https://tcpremier.harris.com/. The new embedded software will come with Harris created Microsoft Windows application called the BGAN Terminal Upgrader. This application simplifies installing new BGAN Terminal software.

  • Page 75: Bgan Terminal Upgrader

    RF-7800B CONFIGURATION Figure 4-12. BGAN Terminal Upgrader NOTE The HPA file is only used for the RF-7800B-DU BGAN Terminal. The Upgrade Application will automatically ignore this file if not upgrading a RF-7800B-DU. Click the Upgrade Now button to begin the upgrade process. Click the Yes button to confirm the desire to proceed with the upgrade.

  • Page 76: Bgan Terminal Upgrade Complete

    RF-7800B CONFIGURATION After the Upgrade Application displays the message “Upgrade operation completed successfully!”, select the Check Connection button to query the installed version from the BGAN Terminal. See Figure 4-13. At this point, you may attach another BGAN Terminal to the PC and select the Check Connection button to begin upgrading an additional BGAN Terminal.
  • Page 77 RF-7800B CONFIGURATION This page intentionally left blank. 4-24...

  • Page 78: Chapter 5 - Scheduled Maintenance

    RF-7800B SCHEDULED MAINTENANCE CHAPTER 5 SCHEDULED MAINTENANCE PREVENTIVE MAINTENANCE Preventive maintenance is the systematic, daily care and inspection of equipment to prevent equipment failure and reduce downtime. Table 5-1 contains the checks and services that should either be performed on a daily basis when the equipment is in use or on a weekly basis when the equipment is in a standby condition.

  • Page 79: Troubleshooting Procedures

    RF-7800B SCHEDULED MAINTENANCE The following procedures assume that the operator has determined that the BGAN terminal is faulty. This could be determined in three ways: • The self-test has been run and a fault code has been identified by the BGAN terminal. •...

  • Page 80: Non-Bit Troubleshooting

    RF-7800B SCHEDULED MAINTENANCE Table 5-4. Non-BIT Troubleshooting Observation Action BGAN terminal does not power on. Check batteries and/or power source. Check cable connections. Battery Box not supplying power. Check Fuse F1, F2 (Automotive Blade, 5 A 32 V). Applies to the RF-7800B-DU024 only. Check Batteries.
  • Page 81 RF-7800B SCHEDULED MAINTENANCE Table 5-4. Non-BIT Troubleshooting (Continued) Observation Action The terminal will not register with the BGAN Network. The 'Satellite Selection' allows for specification of • Is the 'Satellite Selection' configured with the the satellite to use. This can be configured to use a specific satellite, or to automatically locate the most appropriate setting? appropriate one.
  • Page 82 RF-7800B SCHEDULED MAINTENANCE Table 5-4. Non-BIT Troubleshooting (Continued) Observation Action The Network Connection activation attempt fails because It is possible during periods of heavy network usage the requested static public IP address is in use or otherwise that the network is too busy to grant a Network unavailable.
  • Page 83 RF-7800B SCHEDULED MAINTENANCE Table 5-4. Non-BIT Troubleshooting (Continued) Observation Action The Network Connection is active, but data will not flow On the 'Network Connection Web interface page, over the connection. confirm that the Local IP address of the active context matches the Ethernet IP address of the device attempting to send data.

  • Page 84: Batteries

    RF-7800B SCHEDULED MAINTENANCE BATTERIES The BGAN Battery Box Kit 12091-4010-01 can use one of the following batteries: • BA-5590/U Lithium Sulfur Dioxide (Li-SO2) non-rechargeable • BA-5390/U Lithium Manganese Dioxide (Li-MnO2) non-rechargeable • BB-590/U Nickel-Cadmium (Ni-Cd) rechargeable • BB-390A/U Nickel-Metal Hydride (Ni-MH) rechargeable •...

  • Page 85: Rechargeable Battery Packs

    Optional battery chargers are available to provide fully automatic battery charging and fault detection. Models are available for single or multiple battery charging, and display the status of each connected battery during operation. Contact Harris for particular applications. 5.3.4 Disposing of Lithium Batteries...

  • Page 86: Chassis Connector Pinout Data

    RF-7800B APPENDIX A APPENDIX A TECHNICAL INFORMATION CHASSIS CONNECTOR PINOUT DATA Table A-1, and Table A-2, provide pinout data for the connectors mounted to the BGAN terminal. Figure A-1 shows the connector locations and pinouts. For information on connectors that mate to the BGAN terminal chassis connectors, refer to Paragraph A.1.1.

  • Page 87: Mating Connectors

    RF-7800B APPENDIX A A.1.1 Mating Connectors Table A-3 provides part numbers for the cable connectors that mate to the chassis connectors. Table A-3. Connectors and Mating Connector Part Numbers Chassis Connector Mating Connector Part Number RF-7800B Data J09-0024-102 RF-7800B Power J09-0007-207...

  • Page 88: Appendix B - Glossary

    RF-7800B APPENDIX B APPENDIX B GLOSSARY GLOSSARY The following provides a glossary of terms used in this manual. Ampere ABIT Antenna Built-In Test Alternating Current Advanced Encryption Standard Access Point Name Antenna Tracking Board Built-In Test BGAN Broadband Global Area Network BLOS Beyond-Line-of-Sight °C...
  • Page 89 RF-7800B APPENDIX B GLOSSARY - CONTINUED -D- (Continued) Direct Current DHCP Dynamic Host Configuration Protocol (Automates the assignment of IP addresses to computers) Domain Name System East EEPROM Electrically Erasable Programmable Read Only Memory EIRP Effective Isotropic Radiated Power °F Fahrenheit, degrees Federal Communication Commission File Transfer Protocol...
  • Page 90 RF-7800B APPENDIX B GLOSSARY - CONTINUED -H- (Continued) High Power Amplifier http Hypertext Transfer Protocol (world wide web protocol) Abbreviation for hertz, or cycles per second. Identification IMEI International Mobile Equipment Identity IMSI International Mobile Subscriber Identity INMARSAT International Marine/Maritime Satellite Internet Protocol IPSEC Internet Protocol Security...
  • Page 91 RF-7800B APPENDIX B GLOSSARY - CONTINUED Milliampere Abbreviation for Megahertz, or one million cycles per second. Military MIL-SPEC Military Specification MIL-STD Military Standard Miles Per Hour MS-ISDN Mobile Subscriber Integrated Services Digital Network Mobile Subscriber Number milli Watt Network Address Translation Ni-Cd Nickel-Cadmium Ni-MH...
  • Page 92 RF-7800B APPENDIX B GLOSSARY - CONTINUED -R- (Continued) RoHS Restriction of Hazardous Substances RSSI Low Received Signal Strength Indication Receive SATCOM Satellite Communications Subscriber Identification Module SOQH SATCOM-on-the-Quick-Halt SOTM SATCOM-on-the-Move Secure Terminal Equipment TCP/IP Transmission Control Protocol/Internet Protocol Terminal Equipment Tactical Operation Centers Transmit Unrestricted Digital Information...
  • Page 93 RF-7800B APPENDIX B GLOSSARY - CONTINUED Watts, West WEEE Waste from Electrical and Electronic Equipment...
  • Page 94 EVALUATION FORM To the User of this Instruction Manual: HARRIS Corporation, continually evaluates its technical publications for completeness, technical accuracy, and organization. You can assist in this process by completing and returning this form. Please specify section, page number, figure or table number where applicable.
  • Page 95 MAKE LAST FOLD HERE NO POSTAGE NECESSARY IF MAILED IN THE UNITED STATES BUSINESS REPLY MAIL FIRST CLASS PERMIT NO. 4033 ROCHESTER, N.Y. POSTAGE WILL BE PAID BY ADDRESSEE HARRIS CORPORATION COMMUNICATION SYSTEMS 1680 UNIVERSITY AVENUE ROCHESTER, NEW YORK 14610-1887 ATTN: TECHNICAL SERVICES...
  • Page 96 │ │ Communication Systems 1680 University Ave Rochester, NY USA 14610 Tel: 585-244-5830. Fax: 585-242-4755 www.harris.com...
