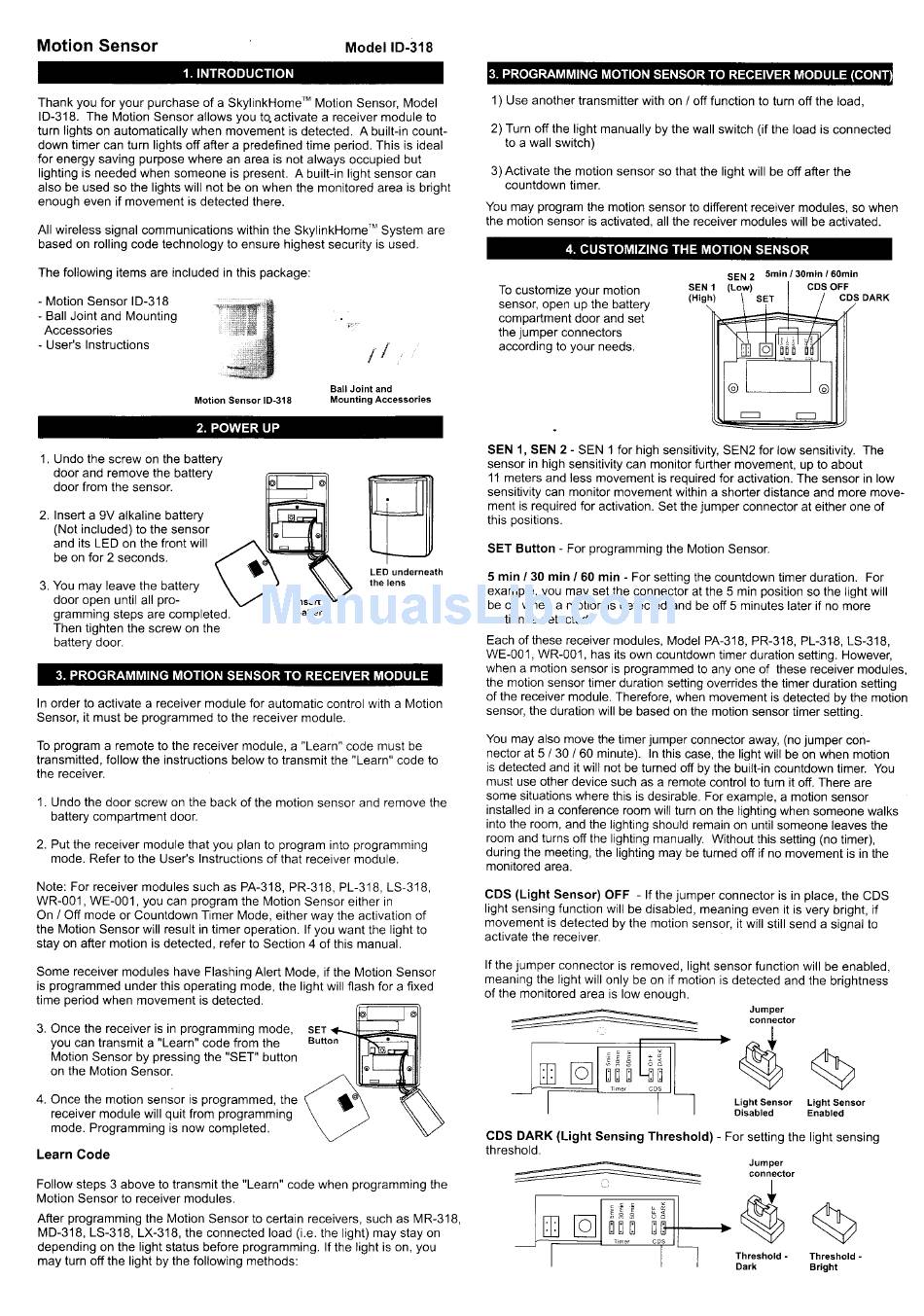

SkylinkHome lD-318 Manual

Motion Sensor
ModellD-318
Thank you for
your
purchase of a SkylinkHome-"
Motion Sensor, Model
lD-318. The Motion Sensor allows you
to.
activate
a
receiver module to
turn lights on automatically when movement
is
detected.
A built-in count-
down timer can
turn
lights off after a
predefined
time period. This is ideal
for energy
saving purpose where
an
area
is not always occupied but
lighting is needed when someone is
present.
A built-in light sensor can
also be used so the
lights
will
not be on when the monitored area is bright
enough even if movement
is
detected there.
All wireless signal communications within the SkylinkHome-"
System are
based on rolling code technology to ensure highest security is used.
The following items are included in this package:
- Motion Sensor
lD-318
- Ball Joint and
Mounting
Accessories
-
User's lnstructions
/
//
Ball Joint and
Mounting Accessories
1. Undo the screw on
the
battery
door
and
remove the battery
door from the sensor.
1) Use another transmitter with
on / off function to turn off the load,
2) Turn off the
light manually by the
wall switch (if the
load is connected
to
a
wall switch)
3)Activate the
motion sensor so that the light will be off after the
countdown timer.
You may program the motion sensor to different receiver modules, so when
the motion sensor
is activated, all the receiver modules will be activated.
SEN
2
(Low)
smin/30min/60min
CDS OFF
2. lnsert a 9V alkaline battery
(Not included) to the sensor
and its LED on the front will
be on for 2 seconds.
3. You may leave
the
battery
door open until all pro-
gramming steps are completed,
Then tighten the screw on the
battery door.
ln order to activate a receiver module for
automatic
control with
a
Motion
Sensor, it must be programmed to
the receiver module.
To
program
a remote to
the receiver
module, a "Learn" code must
be
transmitted, follow the
instructions below to
transmit the "Learn" code
to
the receiver.
'1
.
Undo the door screw on the
back of
the
motion sensor
and
remove the
battery compartment
door.
2. Put
the
receiver module
that you plan to program into programming
mode. Refer to the User's lnstructions of that receiver module.
Note: For receiver modules such as PA-318, PR-318, PL-318, LS-318,
WR-001, WE-001, you can program the
Motion Sensor either
in
On
/
Off mode or Countdown Timer Mode, either way the activation of
the
Motion Sensor will
result
in timer operation.
lf
you want
the light to
stay on after motion
is
detected, refer to Section 4 of this manual.
Some receiver modules have Flashing Alert
Mode, if
the
Motion Sensor
is programmed under this operating mode,
the light will flash for
a
fixed
time
period
when
movement is detected.
CDS
DARK
SEN
1,
SEN
2
- SEN
1
for high sensitivity, SEN2 for low sensitivity.
The
sensor in high sensitivity can monitor further movement,
up
to about
11
meters and less movement
is
required for activation. The sensor in low
sensitivity can monitor movement within
a shorter distance and more move-
ment is required for activation. Set
the
jumper
connector at either one
of
this positions.
SET
Button - For programming the Motion Sensor.
5
min /
30
min /
60
min - For setting the countdown timer
duration. For
example, you may set the connector
at
the 5 min position so the light
will
be on when a motion
is detected and
be
off 5 minutes later if no more
motion
is
detected.
Each of these receiver modules, Model PA-318, PR-318, PL-318, LS-318,
WE-001, WR-001, has
its own countdown timer duration setting.
However,
when a motion sensor
is
programmed to any one of
these receiver modules,
the motion sensor timer duration setting overrides the timer duration setting
of the receiver module. Therefore, when movement
is detected by the motion
sensor,
the duration will be based on the motion sensor timer setting.
You may also move the
timer
jumper connector away,
(no
jumper con-
nector at 5
/
30 / 60 minute). ln this case, the
light will
be
on when motion
is
detected and
it
will not
be
turned off
by
the built-in countdown timer.
You
must
use
other device such as a
remote control to turn it off. There
are
some situations where this
is
desirable. For example, a motion sensor
installed in
a
conference room will turn on the lighting when someone walks
into
the room, and the lighting should remain on until someone leaves the
room and turns
off
the lighting manually.
Without this setting (no timer),
during the meeting, the lighting may
be turned off if no movement is
in
the
monitored
area.
CDS
(Light
Sensor)
OFF -
lf the
jumper connector
is in place,
the CDS
light sensing function will
be disabled, meaning even it
is very
bright,
if
movement is detected by the motion sensor,
it will still send a signal
to
activate
the
receiver.
lf
the
jumper
connector is removed, light sensor function
will
be enabled,
meaning
the
light will
only be
on
if motion
is
detected and the
brightness
of the monitored
area is low enough.
Light Sensor
Enabled
CDS DARK
(Light
Sensing
Threshold)
-
For setting
the
light sensing
threshold.
Jumper
connector
To
customize your motion
sensor, open up the battery
compartment door and set
the
jumper
connectors
according to your needs.
Motion Sensor lD-318
LED underneath
the lens
3. Once
the receiver is in programmtng mode,
you can
transmit a "Learn" code from the
Motion
Sensor by pressing the "SET" button
on
the
Motion Sensor.
4. Once the motion sensor is programmed, the
receiver module will quit
from
programming
mode. Programming is now completed.
Learn Code
SET
Button
Follow steps 3 above to transmit the "Learn" code when programming the
Motion Sensor to receiver modules.
After programming the Motion Sensor to certain receivers, such as
MR-318,
MD-318, LS-318,
LX-3'18,
the connected load (i.e. the
light) may stay on
depending on
the
light status
before programming.
lf
the light
is
on, you
may turn off the light by the following methods:
:
i#f9,",
AJ
,.i
(R)
Fr\=
I
t-
\\\t/,4
\
\,/./
\I//
Light Sensor
:
