GE-C351 Gigabit Ethernet 1000Mbps
Single Fiber WDM Media Converter
1000Base-T (RJ-45) to 1000Base-X (SC)
(620−0691−010)
User's Manual

1. Overview

GE-C351 is a Gigabit Ethernet 1000Base-T to 1000Base-X
converter. It supports conversion of Gigabit Ethernet
1000Base-T signal to 1000Base-X. The single fiber converter
is designed with an optic Wavelength Division Multiplexing
(WDM) technology that transports bi-directional full-duplex
signal over a single fiber simultaneously.
GE-C351 can be installed as a standalone unit or as a slide-in
module to the 19" converter rack (up to 10 units) for use at a
central wiring closet.

2. Model Description

Model TX, RX Wavelength
TX(Transmit)
GE-C351S3.S20/∗S40/∗S60
RX(Receive)
TX(Transmit)
GE-C351S5.S20/∗S40/∗S60
RX(Receive)
∗: GE-C351S3.S40/S60 or GE-C351S5.S40/S60 models
are option
Note: GE-C351S3 and GE-C351S5 must be installed in
pairs, i.e. GE-C351S3 at one end and GE-C351S5
at the other one.

3. Checklist

Before you start installing the Converter, verify that the
package contains the following:
⎯
The TP-Fiber WDM Converter
⎯
AC-DC Power Adapter
⎯
This User's Manual
Please notify your sales representative immediately if any of
the aforementioned items is missing or damaged.
1
The

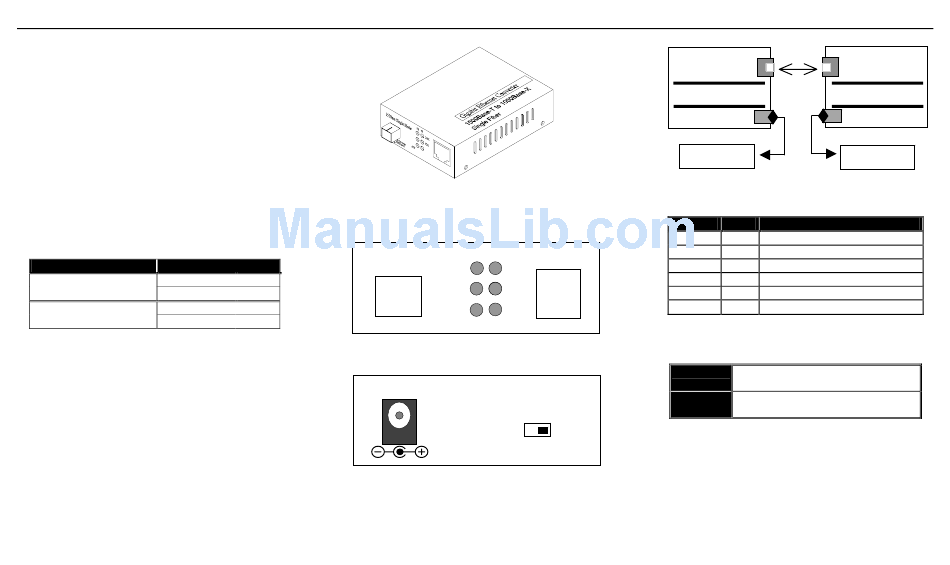

Fig. 1 The View of 1000Mbps TP-to-Fiber Converter
1550nm Single-Mode
1310nm
1550nm
1550nm
1310nm Gigabit Ethernet Converter
1000Base-T to 1000Base-X
Single Fiber
Fig. 2 1000Mbps TP-to-Fiber Converter Front Panel
5VDC
Fig. 3 1000Mbps TP- to- Fiber Converter Rear Panel
FX TP
LINK
FDX
ACT PWR
Fiber Mode
AUTO FORCE
2
TX-1310/RX-1550
1000 TP-to-1000LX
Single Fiber
WDM Single Fiber
TP
10/100/1000
NWay Network
Fig. 4 Basic Networ

4. LED Description

LED Color Function
FX LINK Green Lit when fiber connection is good
FX FDX Green Lit when fiber full-duplex is active
TP LINK Green Lit when TP connection is good
TP FDX Green Lit when TP full-duplex is active
ACT Green Lit when any traffic is present
Lit when +5V power is coming up
PWR Green

5. Connecting to Gigabit Device

Converter
1000FDX with NWay
TP Port
Converter AUTO: 1000FDX with NWay
FORCE(Default): 1000FDX
Fiber Port
3
TX-1550/RX-1310
1000 TP-to-1000LX
WDM Single Fiber
TP
10/100/1000
NWay Network
k Connection
