Ness 100-691 Installation Notes

COVERAGE

The detection pattern can be changed to suit
your application by changing the lens.
There are 3 lenses available:
WIDE ANGLE – 12m x 12m 90°
Supplied as standard
CURTAIN – 12m x 5° x Solid barrier
LONG RANGE – 25m x 13°

SPECIFICATIONS

Dimensions ................... 99(h) x 79(w) x 48(d) mm
Mounting Height ............ 2.1m
Coverage ...................... 12m x 12m @ 90°
Detector zones .............. 20 dual element zones
Pulse count ................... Selectable 1–2 or 3–4
Range ........................... Selectable High/Low
Sensor .......................... Dual element pyroelectric
Visual display ................ Red alarm LED
Alarm period ................. 5 seconds
Warm up period ............ 30 seconds
Operating voltage .......... 7-9V DC
Battery .......................... 9V Lithium (Ultralife U9VL)
Quiescent current draw . 16µA
Radio transmitter .......... SAWR stabilised
Radio frequency ............ 303.875MHz
Transmit power ............. 100µW PEP
QUANTUM R12 RADIO PIR
INSTALLATION NOTES
Revision1, Feb 2002
Document part number: 890-277
For products: 100-691 Quantum R12 Radio PIR
© 2002 Ness Security Products Pty Ltd ABN 28 069 984 372
Specifications may change without notice.
R12 Radio PIR manual pmo140202

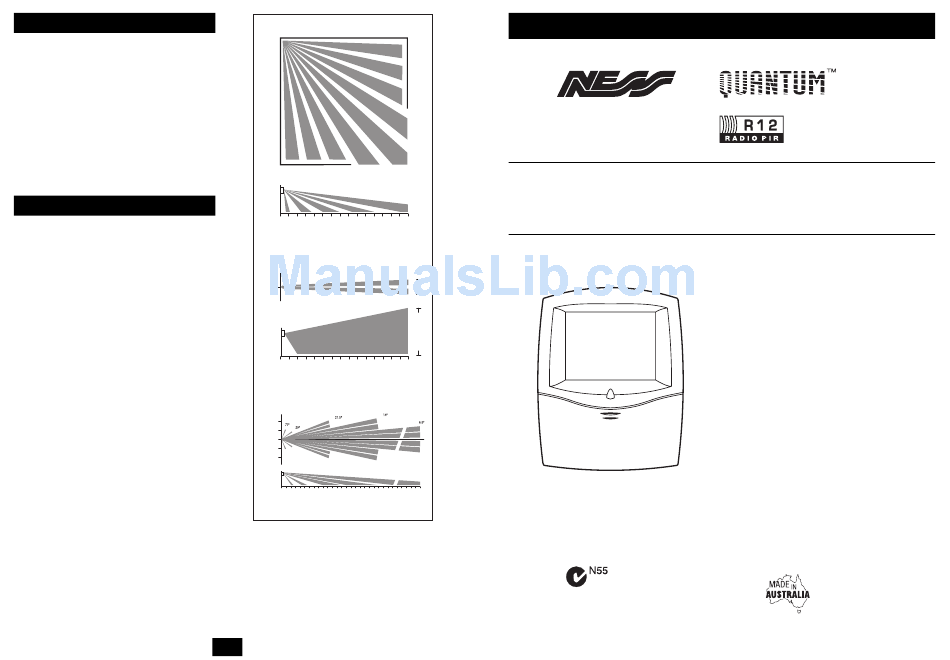

WIDE ANGLE (Supplied)
12m x 12m
2.1m
0.3m 1m 3m 6m 12m
CURTAIN
2.1m
0.3m 1m 3m 6m 12m
LONG RANGE
5m
2.5m
0
2.5m
5m
2.1m
2.2m 3m 10.7m 18.3m
*Not to scale
4
5.6°
7m
25m
NESS SECURITY PRODUCTS
Australian Communications Authority
RADIO COMMUNICATIONS COMPLIANCE
I N S T A L L A T I O N N O T E S
PART NUMBER: 100-691
MODEL: Quantum R12 Radio PIR

FEATURES

• 12m x 12m wide angle coverage
• SAWR stabilised radio transmitter
• High R.F. and E.S.D. immunity
• High white light immunity
• Adjustable Pulse Count
• Adjustable range
• Long life Lithium battery supplied
• Up to 50m radio transmission range
• Low battery warning signal
• Hourly Supervision radio signals
• Separate battery compartment
• Automatic Test Mode disable
