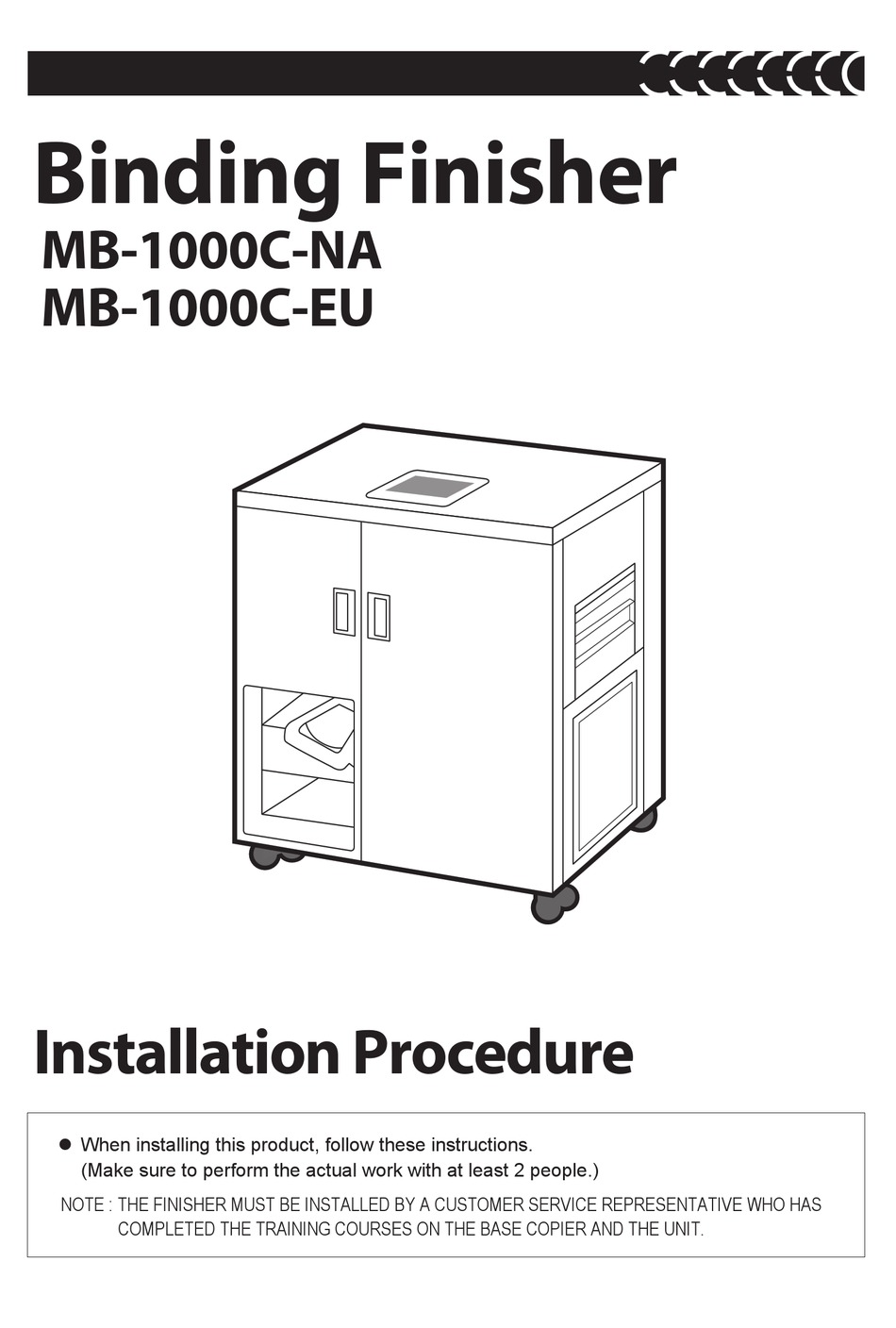

Binding Finisher
MB-1000C-NA
MB-1000C-EU
Installation Procedure
When installing this product, follow these instructions.
(Make sure to perform the actual work with at least 2 people.)
NOTE : THE FINISHER MUST BE INSTALLED BY A CUSTOMER SERVICE REPRESENTATIVE WHO HAS
COMPLETED THE TRAINING COURSES ON THE BASE COPIER AND THE UNIT.
April 18, 2014
Revision 1
Advertisement
Summary of Contents for Max MB-1000C-NA
- Page 1 Binding Finisher MB-1000C-NA MB-1000C-EU Installation Procedure When installing this product, follow these instructions. (Make sure to perform the actual work with at least 2 people.) NOTE : THE FINISHER MUST BE INSTALLED BY A CUSTOMER SERVICE REPRESENTATIVE WHO HAS COMPLETED THE TRAINING COURSES ON THE BASE COPIER AND THE UNIT.
-
Page 2: Read This First
Read this first These Installation Procedure instructions use indications to help you safely perform installation. The meaning of each indication is explained below. About indications Indicates a potentially hazardous situation which, if not avoided, WARNING could result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, CAUTION may result in minor or moderate injury. -
Page 3: Checking Supplied Items
Checking supplied items Equipment/Accessories Equipment/Accessories Ring opener Warranty/Guarantee card (NA only) Rebinding board DFD docking bracket for upstream Interface cable DFD docking bracket for down Upper side cover Operation manual +Screw 4×6 Lower side cover Slope Installation procedure Finisher door cover AC power cord Tapping screw 3x6 Cartridge label... -
Page 4: Installation Space
Installation space The dimensions in the diagram below indicate the minimum amount of space that is necessary. 300mm more (860mm) DOWN 900mm more If this unit is the last downstream unit, leave the space indicated below open. 30mm or more... - Page 5 Directions for opening the cardboard box (1) Remove the cover of the cardboard box. Cut the plastic band and remove the cover of the cardboard box. (2) Remove the included items. Remove all of the included items. (3) Remove the side cover of the cardboard box, and then remove the upper cover of the cardboard box.
- Page 6 (5) Cut the tape at the bottom 4 corners of the cardboard box and open the corners. (6) Extend the length of the 4 casters at the bottom. Position after unboxing Use the supplied spanner to Extend the caster by rotating loosen the upper nut by rotating it the lower nut clockwise.
- Page 7 (8) Remove the 2 pieces of cardboard packaging from the bottom center of the product. There two locations are at the front and back. (9) Remove the cardboard from the upper side. Remove the cardboard from the upstream side by cutting at the There are no dotted lines on the actual locations indicated with dotted lines.
- Page 8 (11) Lower the product from the upper side. CAUTION Make sure to hold the product by the locations indicated with dotted lines. (12) Check that the heights of the entrance and exit are 860 mm from the floor. If the heights are not 860 mm, perform steps (6) and (7).
- Page 9 Directions for installing the Binding Finisher WARNING Check that all connected devices are turned OFF, and that the power plug is disconnected from the power outlet. (1) Remove the 2 brackets from the upstream side. Remove the 4 screws. Remove the 4 screws. (2) Remove the bracket from below the right door.
- Page 10 (5) Open the doors and remove the tape and cushion. · Remove the binder unit. (A) · Remove each piece of tape. · Open the door and pull out the · Remove the cushion inside. cartridge. (B) (6) Attach the Upper side cover to the upper side. ·...
- Page 11 (7) Attach the Lower side cover to the downstream side. · Tighten the upper-right screw first. Tapping screw 3×6 (8) Open the supplied cardboard box. (9) Attach the DFD docking bracket for upstream to the bottom of the upper side. Base Insert this into the holes in the top.
- Page 12 (10) Insert the Cartridge label into the cartridge.
- Page 13 If there are devices connected to the downstream unit side (refer to the installation manual of the downstream unit) (1) If using a DFD-specification downstream unit, attach the DFD docking bracket for down to the bottom of the downstream side. Base Insert this into the holes in the top.
- Page 14 Connecting the Binding Finisher to the upstream unit (1) Remove the screw from the DFD docking bracket. Remove the screw. Pull it forward. (2) Connect the unit to the upstream unit. (3) Lock the connector and secure it. Push the lever all the way inward. Secure it with a screw.
- Page 15 (4) From behind the unit, connect the power cord and the cable for the upstream unit. Connection with upstream unit Connection with downstream unit Secure these 2 locations with screws. Check that the ground fault breaker switch is set to the right position, and connect the power cord. Connect the power cord.
- Page 16 If there is any downstream finishing unit after the Max binder, it is imperative that you perform the following procedure. (1) Press the power switch to turn on the power and close the front door. Set this to the up position.
- Page 17 (6) Press the up and down arrow keys to select “Non-DFD” and press the SET key. If this is set to any other selection you will get a message on the varioPRINT UI “Check Max Binder” (7) Press the ESC key 2 times, and check if "Bind", "Bypass" or "Punch" is displayed in the LCD to complete the procedure.
- Page 18 How to Adjust the Alignment (1) Separate the upstream unit and the Binding Finisher. (See page 13.) (2) Remove screw 1 from the DFD docking bracket and loosen screws 2, 3, and 4. (3) Slide the DFD docking bracket to the back side and the front side, and align it with the center. (4) Tighten 3 screws (screw 2, 3, and 4), and see page 13 to connect the unit to the upstream unit.
- Page 19 (Binding/Punching) mm/s Upstream unit Stacker Stacker Downstream unit None or finisher None Max. supported printing speed Caution The Bypass mode cannot be used when the Binding Finisher is set up to eject finished documents to the right. ― 18 ―...
-
Page 20: Parts For Conversion To Document Ejection To The Right
Parts for conversion to document ejection to the right Top transfer guide Right side cover Bottom transfer guide Docking bracket Parts to be changed out or added Part Note Right side cover Add because FB is farthest downstream unit Docking bracket Change because upstream unit is on other side Top transfer guide Install because documents are transferred in opposite direction... - Page 21 This instruction manual is subject to change without notice due to functional enhancement. N1212G0000 PRINTED IN JAPAN...
