Summary of Contents for TechLogix Network TL-IPFO
-

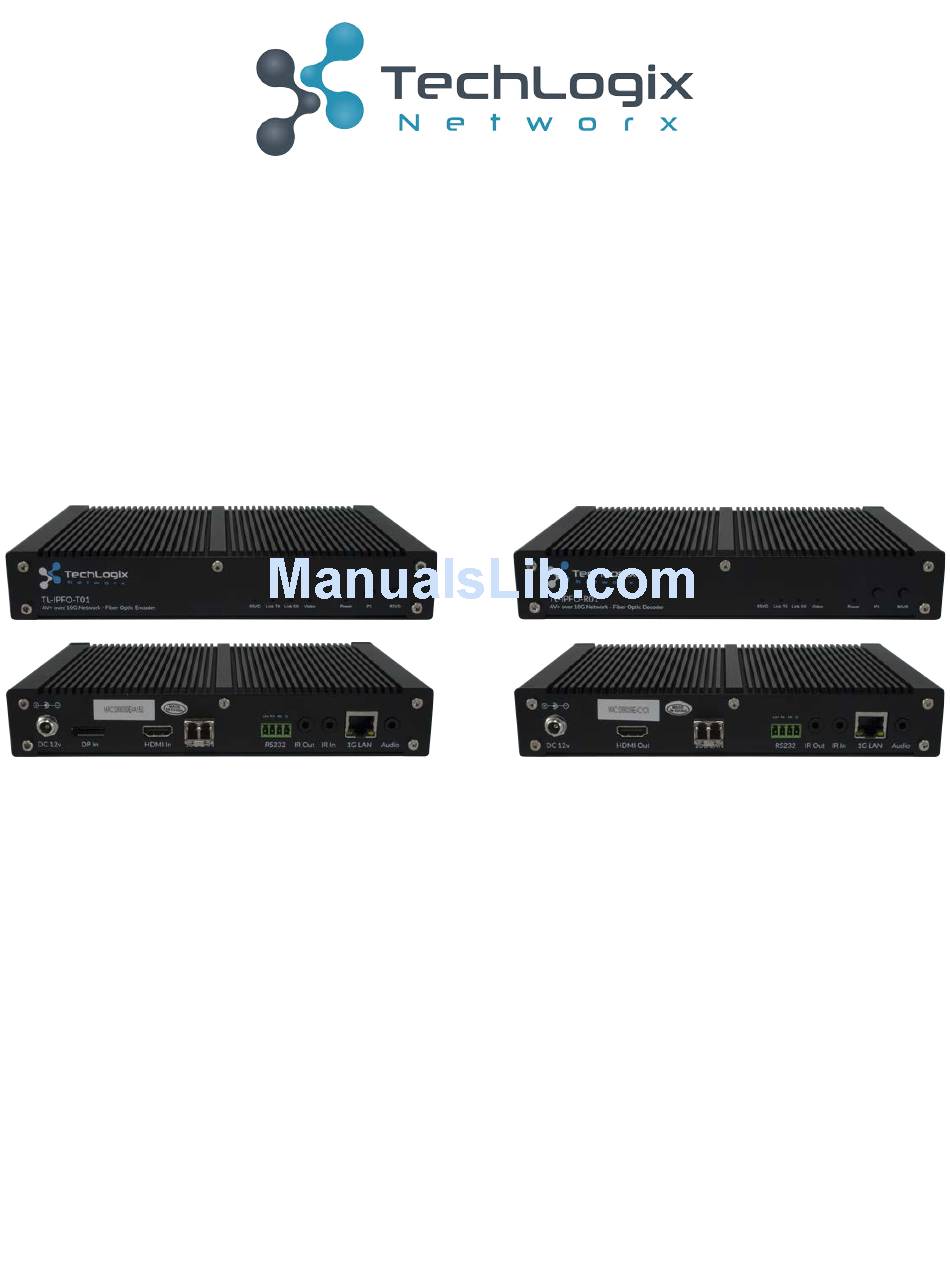

Page 1: User Manual
User Manual TL-IPFO Fiber Optic AV over IP Extenders All Rights Reserved Version: TL-IPFO_170911... -
Page 2: Safety Instructions
TL-IPFO User Manual Safety Instructions Do not expose this apparatus to rain, moisture, dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus. 2. Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. -
Page 3: Fcc Warning
TL-IPFO User Manual FCC Warning This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. - Page 4 TL-IPFO User Manual www.tlnetworx.com...
- Page 5 (300 m) over fiber optic cable with the included GBIC modules. Standard features like, bi- directional RS232, bi-directional IR, and independent analog audio input/output are included. TL-IPFO series encoders and decoders are the perfect solution for any zero-frame latency and signal routing applications. Common applications include classrooms, conference rooms, performing arts, and broadcasts.
- Page 6 TL-IPFO User Manual Receiver • Decodes (receives) audio & video from compatible encoders • Operates in point-to-point, point-to-many, many-to-point, many-to-many & video wall modes • Receives 18G HDMI over a 10G network switch • 4K seamless switching • Doesn’t require a proprietary network switch •...
-
Page 7: Panel Descriptions
TL-IPFO User Manual Panel Descriptions TL-IPFO-T01 (Transmitter) Front Name Description RSVD LED No current function. Link TX LED Blinking – The device is transmitting Ethernet data. Off – The device is not transmitting Ethernet data. Link RX LED On – The device is processing the video signal but not receiving Ethernet data. - Page 8 Connect this port to a RS232 device such as a computer or control system for bi-directional serial communication with a RS232 device connected to another TL-IPFO series unit on the network. IR Output Port Connect this port to an IR transmitter for IR communication with an IR receiver in another TL-IPFO series unit on the network.
- Page 9 Power LED On – The device is powered on. Off – The device is powered off. P1 Button Press once to copy the connected HDMI display's EDID to all TL-IPFO- T01 transmitters in the network. RSVD Button No current function.
- Page 10 Connect this port to a RS232 device such as a computer or control system for bi-directional serial communication with a RS232 device connected to another TL-IPFO series unit on the network. IR Output Port Connect this port to an IR transmitter for IR communication with an IR receiver in another TL-IPFO series unit on the network.
-
Page 11: Typical Applications
There are typically five different configurations in which TL-IPFO Series products are installed: point-to-point, point-to-many, many-to-point, many-to-many and video wall applications. Some applications even require multiple configurations in a single system, and the TL-IPFO Series is an ideal choice due to the flexible hardware and software design. The following information details various example configurations, as well as the hardware and software required. - Page 12 TL-IPFO User Manual Point to Many A single encoder connected to multiple decoders. Encoder required: one TL-IPFO-T01 Decoder required: multiple TL-IPFO-RO1 Network switch required: yes Physical control interface: one TL-IPTP-CI Software required: TLXpress (included with TL-IPTP-CI) Licensing required: one TL-IPTP-LIC per encoder & decoder...
- Page 13 TL-IPFO User Manual Many to Point Multiple encoders connected to a single decoder. Encoder required: multiple TL-IPFO-T01 Decoder required: one TL-IPFO-RO1 Network switch required: yes Physical control interface: one TL-IPTP-CI Software required: TLXpress (included with TL-IPTP-CI) Licensing required: one TL-IPTP-LIC per encoder & decoder...
- Page 14 TL-IPFO User Manual Many to Many Multiple encoders connected to multiple decoders. Encoder required: multiple TL-IPFO-T01 Decoder required: multiple TL-IPFO-RO1 Network switch required: yes Physical control interface: one TL-IPTP-CI Software required: TLXpress (included with TL-IPTP-CI) Licensing required: one TL-IPTP-LIC per encoder & decoder...
- Page 15 TL-IPFO User Manual Video Wall A single encoder connected to multiple decoders. Encoder required: one TL-IPFO-T01 Decoder required: multiple TL-IPFO-RO1 Network switch required: yes Physical control interface: one TL-IPTP-CI Software required: TLXpress (included with TL-IPTP-CI) Licensing required: one TL-IPTP-LIC per encoder & decoder...
- Page 16 TL-IPFO User Manual Network Hardware Installation www.tlnetworx.com...
