Summary of Contents for Moniteq Crypto Lock CC-8521BN

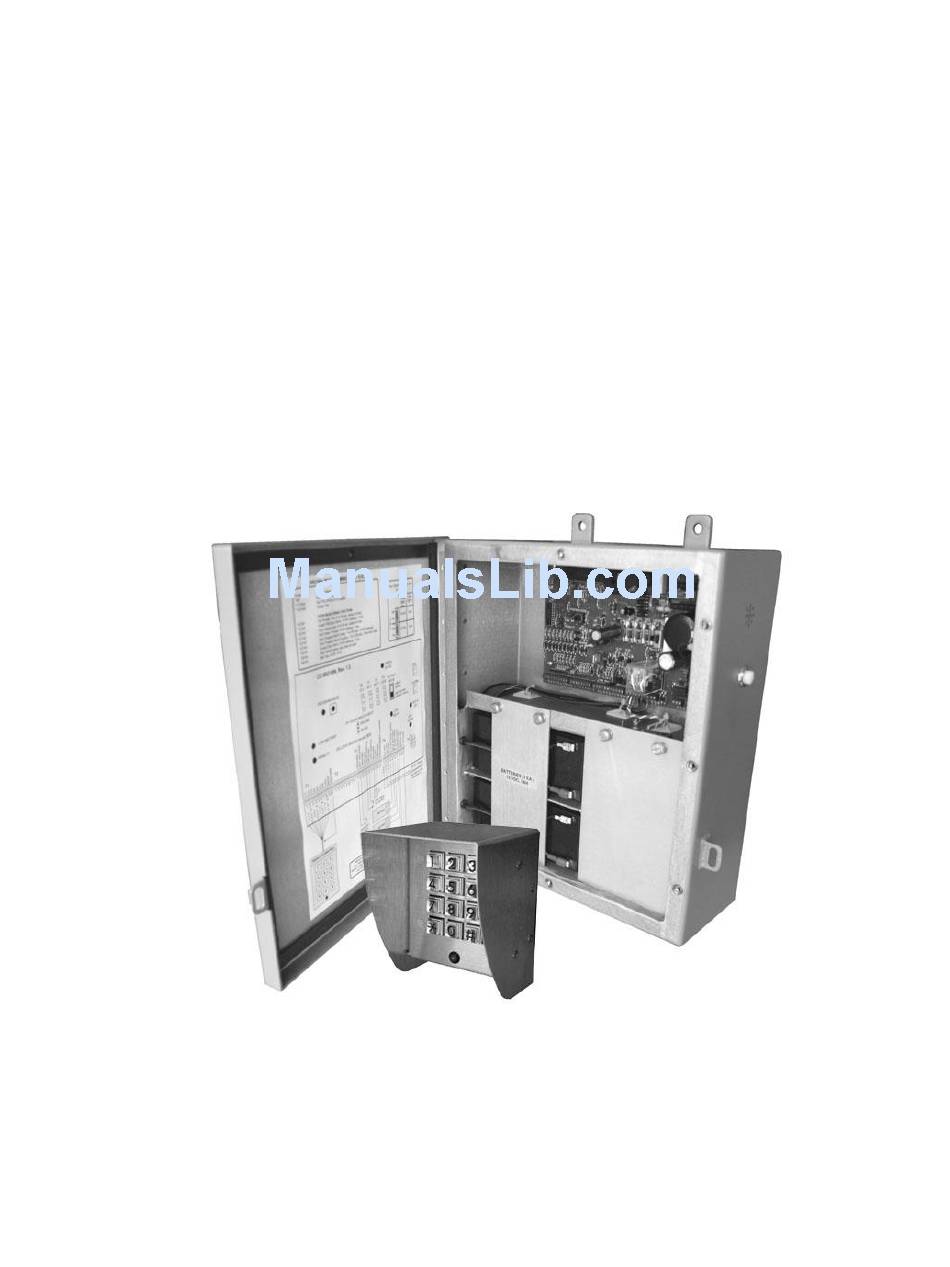

- Page 1 Crypto Lock CC-8521BN 7/17 Access Control System INSTRUCTION MANUAL MONITEQ, Inc.
-
Page 3: Table Of Contents
Table of Contents 1. INTRODUCTION ..........................4 2. SPECIFICATIONS ..........................6 3. SUPPLIED EQUIPMENT ........................7 4. FUNCTIONS OF CONTROLS AND INDICATORS ................ 7 4.1 KEYPAD ............................7 4.2. CONTROL PANEL ........................7 5. INSTALLATION ..........................8 5.1 GENERAL ............................8 5.2 INSTALLATION PROCEDURE .................... -
Page 4: Introduction
1. INTRODUCTION Crypto-Lock is a versatile, easily installed and operated single door access control system. It provides reliable, secure access control using a single 3, 4, 5 or 6-digit PIN code for all users. It can be used with virtually all magnetic locks and electric locks and door strikes. - Page 5 Features: 3, 4, 5, or 6-digit PIN Adjustable open duration Block after invalid PINs * Door Propped Alarm Versatile lock power: * Forced Door Alarm 24Vdc @ 2A Built-in Horn and * Anti Follow Through High in-rush current capacity Release Buttom Holding current limiting protects lock CC-8521BN CRYPTO-...
-
Page 6: Specifications
Battery back-up: 24Vdc, automatic Dimensions: 4.625H x 3.625W x 3.5D in., transfer and charging (batteries optional, Weight: 3 Lbs. (with supplied 20 ft. cable) Moniteq Type CC-BATT) Cable: Type LSC5OSW-4, 8-cond., #24 Enclosure: 0.09” welded aluminum, RF Battery monitoring: Warning lamp,... -
Page 7: Supplied Equipment
3. SUPPLIED EQUIPMENT The Crypto-Lock consists of two main comprise the Crypto-Lock along with a units, the Keypad and the Control Panel. brief description of each to aid in their The table below lists all of the items that identification and use. ITEM PURPOSE Control Panel... -
Page 8: Installation
5. INSTALLATION Control Panel using additional cable. 5.1 GENERAL (Requires eight conductors, #22 or larger). Installation of the Crypto-Lock requires 6. Connect the electric lock as shown in mounting the Keypad and Control Panel, Figure 5-1. connecting the Keypad, AC power, external lock, and a door switch (required to utilize door monitoring functions) to the 7. -
Page 9: Power Supply Settings
Use only 12V, 7AH re- chargeable sealed batteries. (Moniteq 11. Connect the AC line cord to the Control Type CC-BATT or equivalent.) Panel as shown in diagram below. CC-8521BN, AC POWER COMPARTMENT WIRING DIAGRAM FUSE CC-8521BN MAIN PCB... - Page 10 Door Switch Compartment (see table above) (see diagram inside compartment lid) BATTERY PRESS # TO RING BELL REQUEST TO EXIT BATTERY ELECTRIC LOCK MONITEQ, Inc. Tel. 1-800-989-9891 Model CC-8521BN Crypto- Lock (Rel. 1.2) Figure 5-1, Wiring Diagram for External Devices...
-
Page 11: Programming
6.1 PROGRAMMING Panel into the Programming Mode and 6.1 GENERAL then entering the programming sequences listed in Table 6-1 on the keypad. Programming includes setting the valid PIN, open duration time, invalid PIN Programming sequences are entered on the keypad in the form *FC*N*, where FC penalty time, and options for the door is a 2-digit Function Code and N is a propped, and forced door alarms and anti-... -
Page 12: Door Monitoring
no PIN can then be used to release the Anti-Tailgating door.) The Anti-Tailgating mode is provided to prevent the door from being re-opened a The CC-8521BN includes an invalid PIN second time during the Open Duration time penalty feature that protects against an period. -
Page 13: Operation
7. OPERATION To operate the Crypto-Lock, enter the valid and entering the valid PIN code on the 3, 4, 5, or 6 digit PIN code on the keypad. Keypad will release the door. When the valid PIN code is entered, the green LED on the Keypad will illuminate The internal Release Button on the Control and the lock will release. - Page 14 Programmed Alarm Output (T3-11) a. The door switch input (T3-5 and T3-6) The output at T3-11 is similar to that indicates that the door is ajar, and described for the horn in Table 7-1 except b. The Lock Switch Input (T3-7 and T3-8) that the Programmed Alarm output does is open, and not respond to the # button on the keypad.
-
Page 15: Key Pad Installation Template
8. KEY PAD INSTALLATION TEMPLATE CRYPTO-LOCK Model CC-8421BN Keypad Mounting Template Keyhole (for #8 screws) 3/4" D (cable grommet) Threaded inserts for 8-32 screw or threaded rod Pilot holes 3-5/8"... -
Page 17: Control Panel Mounting Diagram
9. CONTROL PANEL MOUNTING DIAGRAM 1/4" Aluminum Mounting Bars 12" 3.38" 5.28" Mounting holes for 3/8" studs, 4 places... - Page 20 One Year Limited Warranty MONITEQ products are warranted to be free from factory defects for a period of one year from the date of shipment. The repair or replacement of a defective part shall be at the option of the factory when the product is shipped prepaid and insured by the owner.
