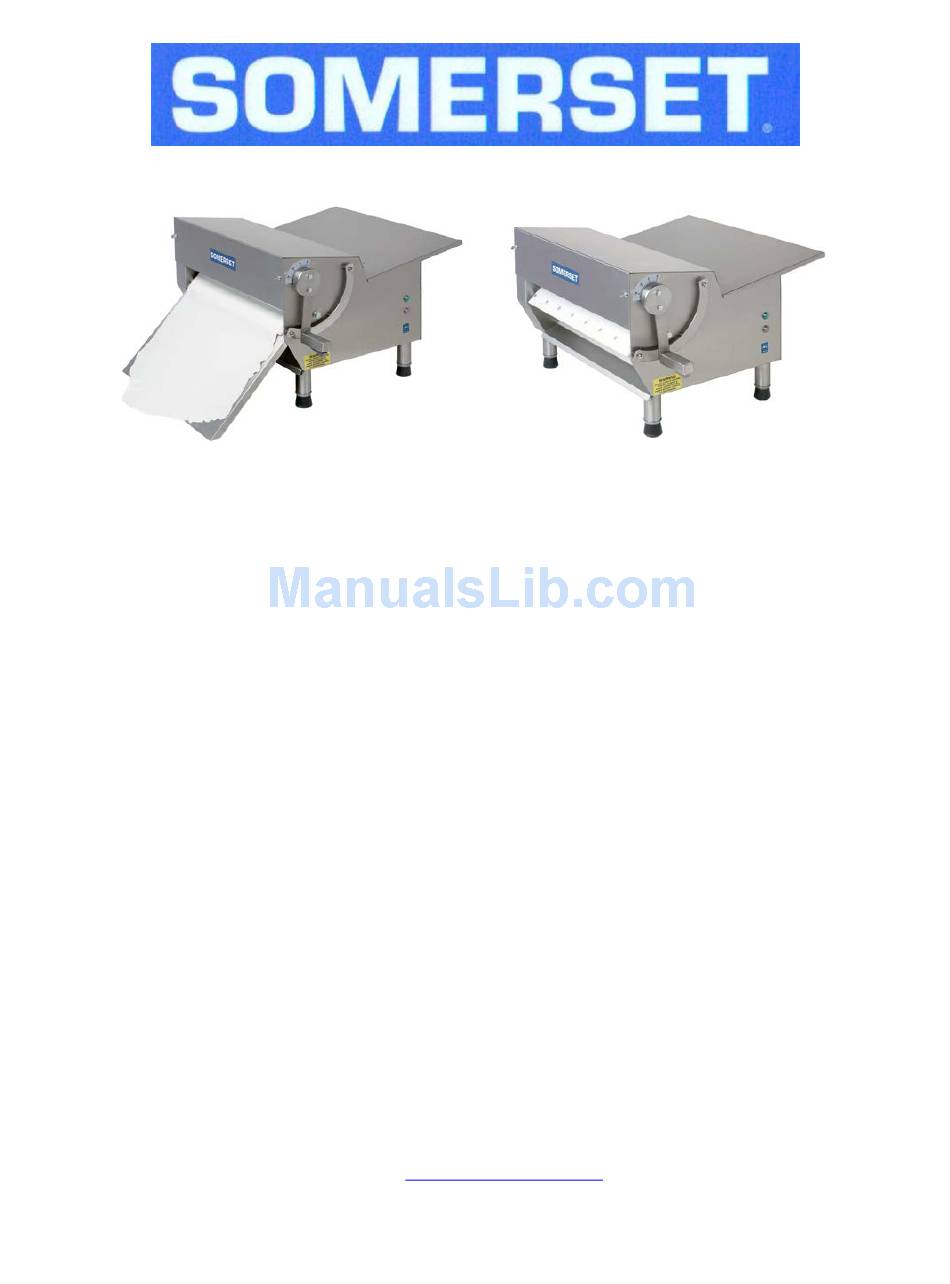

- Page 1 CDR-500 & CDR-600 Side Operated Dough Sheeter & Fondant Sheeters OPERATIONS MANUAL SOMERSET INDUSTRIES 1-3 ESQUIRE RD. • N. BILLERICA, MA 01862 • USA • 978-667-3355 Email: somerset@smrset.com Web: www.smrset.com...
-
Page 2: Uncrating And Setup
NOTICE: !! READ CAREFULLY ALL INSTRUCTIONS BEFORE YOU START.!! UNCRATING AND SETUP • Cut off the fastener wrapped around the machine and the base. • Lift the machine straight up out of the wooden base. • Install the machine in its final position or temporarily secure it to a solid surface. •... -
Page 3: Operation
OPERATION Dust the infeed tray with the flour before using the machine. For best results the dough to be rolled should be at room temperature. Dust the dough with flour when putting it on the infeed tray. Follow steps 1 to 3 as in the following diagram: Step 1: Place dough on the infeed Step 2:... - Page 4 CLEANING Before cleaning Turn power off and disconnect the power cord of the machine Remove the safety cover by removing the four thumbscrews. All scrapers are readily removable. Top scraper #3 Remove scraper from its mounting pins by pushing scraper downward. Unhook both springs by lifting scraper up and remove it.
- Page 5 Clean the rolls with dry cloth (never use water). Wipe rollers with lightly oiled cloth (use vegetable oil). Wash, dry and apply a thin film of vegetable oil on the edge of scraper that touches the roller. Install the scrapers in the opposite order of their removal. Close the safety cover and secure it with the 4 thumbscrews.
- Page 6 DWG. NO. DWG. NO. 12/13/05 CHECKED CHECKED 0600-PART 0600-PART FILES IS THE SOLE PROPERTY OF SOMERSET INDUSTRIES. IT MAY NOT 12/6/05 BE REPRODUCED IN PART, OR AS A ENG APPR. ENG APPR. FINISH FINISH WHOLE, OR SENT TO ANY OTHER VENDOR, MFG APPR.
- Page 7 DWG. NO. DWG. NO. CHECKED CHECKED 12/13/05 0600-PART 0600-PART FILES IS THE SOLE PROPERTY OF SOMERSET INDUSTRIES. IT MAY NOT 12/6/05 ENG APPR. ENG APPR. BE REPRODUCED IN PART, OR AS A FINISH FINISH WHOLE, OR SENT TO ANY OTHER VENDOR,...
- Page 8 DWG. NO. DWG. NO. 12/13/05 CHECKED CHECKED 0600-PART 0600-PART FILES IS THE SOLE PROPERTY OF SOMERSET INDUSTRIES. IT MAY NOT 12/6/05 BE REPRODUCED IN PART, OR AS A ENG APPR. ENG APPR. FINISH FINISH WHOLE, OR SENT TO ANY OTHER VENDOR, MFG APPR.
- Page 9 DWG. NO. DWG. NO. CHECKED CHECKED 12/13/05 0600-PART 0600-PART FILES IS THE SOLE PROPERTY OF SOMERSET INDUSTRIES. IT MAY NOT 12/6/05 ENG APPR. ENG APPR. BE REPRODUCED IN PART, OR AS A FINISH FINISH WHOLE, OR SENT TO ANY OTHER VENDOR,...
- Page 10 THE INFORMATION CONTAINED IN THIS DRAWING AND ASSOCIATED CAD DATA MATERIAL MATERIAL 12/13/05 CHECKED CHECKED FILES IS THE SOLE PROPERTY OF SOMERSET INDUSTRIES. IT MAY NOT 12/6/05 BE REPRODUCED IN PART, OR AS A ENG APPR. ENG APPR. FINISH FINISH SHEET 1 OF 4...
- Page 11 DWG. NO. DWG. NO. CHECKED CHECKED 12/13/05 0500-PART 0500-PART FILES IS THE SOLE PROPERTY OF SOMERSET INDUSTRIES. IT MAY NOT 12/6/05 ENG APPR. ENG APPR. BE REPRODUCED IN PART, OR AS A FINISH FINISH WHOLE, OR SENT TO ANY OTHER VENDOR,...
- Page 12 THE INFORMATION CONTAINED IN THIS DRAWING AND ASSOCIATED CAD DATA MATERIAL MATERIAL 12/13/05 CHECKED CHECKED FILES IS THE SOLE PROPERTY OF SOMERSET INDUSTRIES. IT MAY NOT 12/6/05 BE REPRODUCED IN PART, OR AS A ENG APPR. ENG APPR. FINISH FINISH SHEET 3 OF 4...
- Page 13 DWG. NO. DWG. NO. CHECKED CHECKED 12/13/05 0500-PART 0500-PART FILES IS THE SOLE PROPERTY OF SOMERSET INDUSTRIES. IT MAY NOT 12/6/05 ENG APPR. ENG APPR. BE REPRODUCED IN PART, OR AS A FINISH FINISH WHOLE, OR SENT TO ANY OTHER VENDOR,...
