Page 1: User Manual

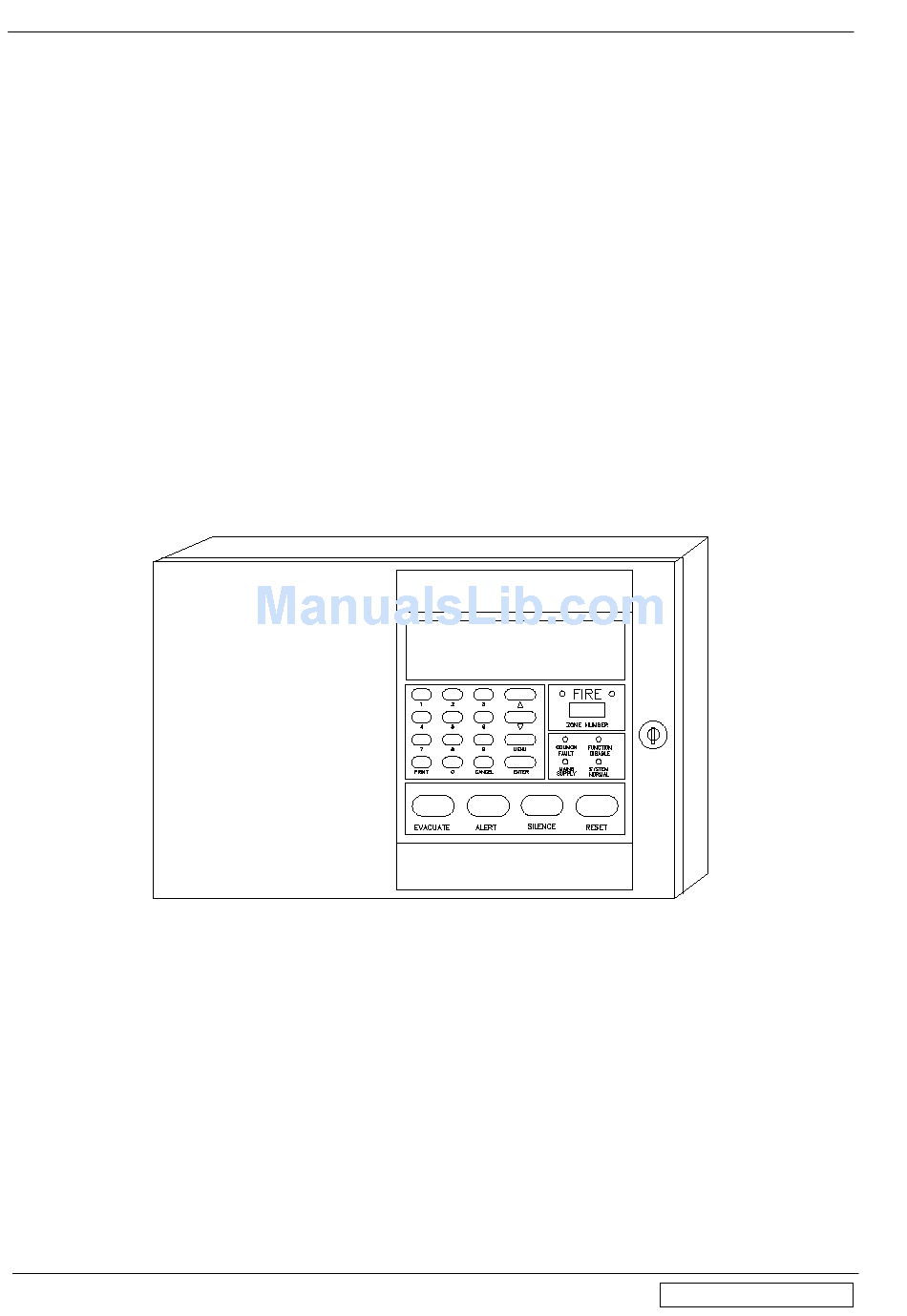

Radio Fire Alarm System – User Manual Page:1 Radio Fire Alarm User Manual EDA-M100/150/300 EDA-M200/350 For panels fitted with V3.00 or E3.00 and later firmware V3.01 Electro-Detectors V301_user Feb 2009... -
Page 2: Table Of Contents
Fault Alarm Evacuate Alert Silence Reset Print Advanced Operation Main Menu Isolate / Enable Devices Test Modes & Options Change Options Event Log Electrical connections and fuse ratings Fault descriptions Installation / system maintenance contact details Electro-Detectors V301_user Feb 2009... - Page 3 The Millennium range of control panels and detectors may only be installed, commissioned and serviced by an Electro-Detectors approved agent. Due to the specialised nature of our equipment we do not provide support to end users or non-approved agents. For advice or support contact the system maintenance company listed at the back of this manual.
-
Page 4: Basic Operations
In order to operate the panel the front panel door will have to be unlocked. (Note: This section describes operation of a system with standard configuration. Operation is for the EDA-M100 and EDA-M150 unless otherwise stated) EDA-M100 and EDA-M150 EDA-M200 2.1 Normal When no faults or alarms are being displayed, the display will appear dark. -
Page 5: Alarm
1st Floor South Wing Outside Room 12 Unit Removal Callpoint 0142 12:34 21-11-99 Ground Floor Main Entrance Opposite Reception Example - Fault Display for EDA-M100 and EDA-M150 A N Other Fire 01455 534 217 UNIT REM SOUND 03 Ground floor opposit... -
Page 6: Alert
The printer is only available on the EDA-M150. If a printer is not fitted a suitable message will be displayed. Electro-Detectors V301_user Feb 2009... -
Page 7: Main Menu
MAIN MENU Isolate / Enable Test Modes & Options Change Options View Event Log Exit Use ↑↓ to highlight and press enter to select Main Menu for EDA-M100 and EDA-M150 1.Isol Dev 5.Test 2.Isol Zone 3.Isol Aux Cancel 4.Event Log... -
Page 8: Isolate / Enable Devices
Isolating and enabling devices, zones and auxiliaries on the EDA-M200 This is similar to the EDA-M100 and EDA-M150. Once the option is selected units and zones can be isolated and enabled on the same respective screen. Devices do not have to be logged to the system to be isolated. To isolate a device or zone select the appropriate option and enter the number followed by ENTER. -
Page 9: Test Modes & Options
The test menu is relocated when accessed as an engineer - see section 7.0. Test System Test:OFF Timeout:030min Aux:ENABLED Bells:ISOLATED Auto Silence:OFF Sound Area:ALARM ↵ Use ↑↓ to highlight,Ent-select,Cancel-Exit Menu for EDA-M100 and EDA-M150 1.Test OFF 5.Bells 2.Aux ENAB ENAB 3.A.Sl OFF 0.Done 4.Zone ALARM 030min... -
Page 10: Change Options
Passwords are at no point visible on the system. If the password is forgotten an engineer will have to be called to set a new password. Language Not implemented Electro-Detectors V301_user Feb 2009... -
Page 11: Event Log
Only real events will be displayed i.e. events that occurred whilst not in a test mode or an engineering mode. To view the event log on the EDA-M200 select the appropriate option. There are no options for viewing particular event types. Use the cancel key to exit from the event log. Electro-Detectors V301_user Feb 2009... - Page 12 Viewing the terminal block from the front insert the mains input to the top of the terminal block. The left hand terminal is the Live, the middle terminal is the Ground / Earth and the right hand terminal is the Neutral connection. Millennium Series Power Terminal Block Electro-Detectors V301_user Feb 2009...
- Page 13 Radio Fire Alarm System – User Manual Page:13 4.1 Main Panel Power Supply Board Connections (EDA-M100/M150/M200) Connectors and Terminals CON1 To Receiver Unit CON2 To Processor Board CON3 To Expansion Board External Supply Ground External Supply 24V In Battery Ground...
- Page 14 Antenna Monitoring (See 5.2)** Antenna Monitoring (See 5.2)** * On very early repeater panels the battery connections were reversed to that given above ** On some versions of board the antenna monitoring links are vertical rather than horizontal. Electro-Detectors V301_user Feb 2009...
- Page 15 Wire Fault Smoke Det XXXX External Wire Fault (Smoke, heat, Sounder) Type Error Callpoint XXXX Device type is different to that specified in options Always report any fault messages displayed on the panel to the system maintenance company promptly. Electro-Detectors V301_user Feb 2009...
- Page 16 Radio Fire Alarm System – User Manual Page:16 6.0 Installation and maintenance information This system was installed by Date Telephone Number After hours telephone number Installer’s name This system is maintained by Telephone number After hours / Emergency telephone number Contract Number Electro-Detectors V301_user Feb 2009...
