IPM3400 Compact Power Meter
User guide
IA Networks Technology Co., Ltd.
5F-1, No.44, Sec. 2, Roosevelt Rd., Taipei, Taiwan
TEL：886-2-2395-3153
FAX：886-2-2395-3152
http://
www.iantech.com.tw E-mail：market_infor@iantech.com.tw

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IPM3400 and is the answer not in the manual?

Questions and answers

Summary of Contents for IA Networks Technology IPM3400

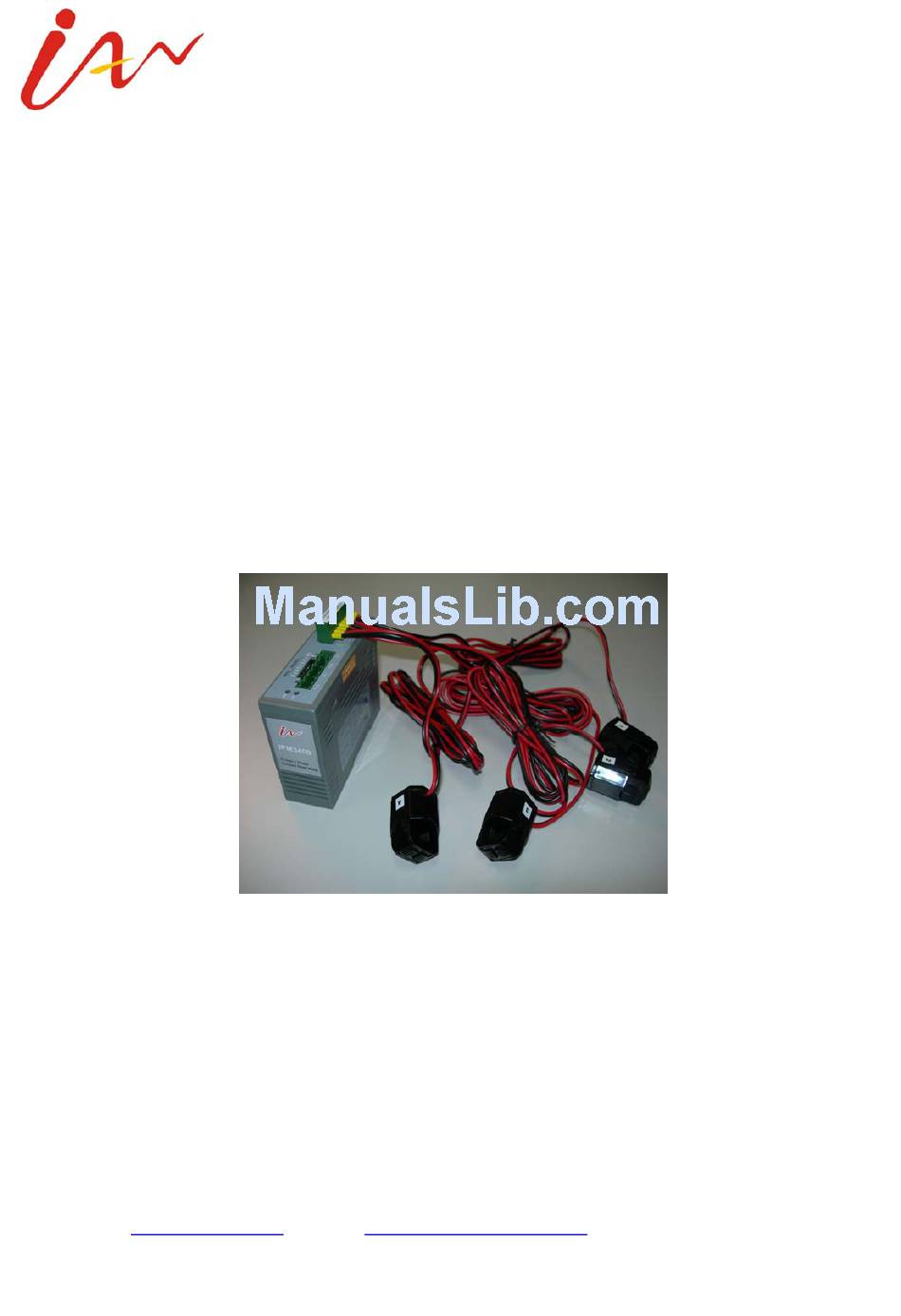

  • Page 1 IPM3400 Compact Power Meter User guide IA Networks Technology Co., Ltd. 5F-1, No.44, Sec. 2, Roosevelt Rd., Taipei, Taiwan TEL：886-2-2395-3153 FAX：886-2-2395-3152 http:// www.iantech.com.tw E-mail：market_infor@iantech.com.tw...

  • Page 2: Table Of Contents

    IA Networks Technology IPM3400 User Guide Content Chapter 1 Introduction 1.1 Introduction 1.2 Caution 1.2.1 Danger 1.2.2 Products Warranty and Customer Support 1.2.3 Limitation of Warranty Chapter 2: Specification Chapter 3 : Installation 3.1 Inspection 3.2 safety 3.3 Size and Latch 3.4 Mounting and Dismounting...

  • Page 3: Caution

    Chapter 1 Introduction 1.1 Product Introduction IPM3400 series are designed for general single phase or poly phase power measurement, with wide range. it con be applied either on low voltage primary side or medium/high voltage secondary side for its high accuracy (<1%, IEC62053-21) under 5A current. IPM3400 equipped with clip-on CT, standard communication, small size and low cost.

  • Page 4: Chapter 2 Specification

    IA Networks Technology IPM3400 User Guide Chapter 2 Specification Input V 10-300V Input I CT Φ10mm （60A） ， CT Φ16mm（100A） 、CT Φ24mm（ 200A） Aux Power DC 10-30V Frequency 60/50Hz Starting I <0.025A Wiring diagram 1-phase 4-channel Power Parameters V1, V1, V2, V2...

  • Page 5: Chapter3: Installation

    IA Networks Technology IPM3400 User Guide Chapter3: Installation 3.1 Inspection On receipt of the instrument and prior to installation, makes sure it has not been damaged during shipment. The instrument is no longer safe when, a) shows clear signs of damage...

  • Page 6: Mounting And Dismounting

    Please re-confirm the measure position。  IPM3400 can be installed as rail mounting mode or embedded, no need to drill a hole or screw to fix it（rail mounting width can up to the length of 35 mm ） 。 ...

  • Page 7: Chapter 4 : Wiring Diagrams

    IA Networks Technology IPM3400 User Guide Chapter 4 : Wiring Diagrams Voltage Input This instrument can measure voltage up to a maximum 300V. Higher than 300V, please  add the PT in front to protect the instrument. Confirm the voltage.

  • Page 8: Connection Diagrams

    1L 2S 2L 3S 3L 4S 4L）.After connection the CT’s, clip on CT’s. Make sure the arrow sign on CT’s follow current flow direction（K→L）Note: it must in same direction。 Connect the voltage input terminal. For IPM3400, connect V2- V2+ and V1- V1+。 Then, Connect RS485 D+ D- ，LonTalks D+ D- (”－”, ”＋”...

  • Page 9: Chapter 5 : Dip Switch On/Off

    IA Networks Technology IPM3400 User Guide  1P4W(IPM3400) Chapter 5 : Dip Switch ON /OFF Dip Switch Dip switch is used for Modbus address setting, default is 1 i.e. all OFF For example : Modbus address is 10，find the table of dip switch 1-6 is on, off, off, on, off, off ...
  • Page 10 IA Networks Technology IPM3400 User Guide...
  • Page 11 IA Networks Technology IPM3400 User Guide  SW7-8 are used to select Wh pulse output (IPM3400) to the LED for each of four channels IPM3400：Select Wh pulse output to LED Wh pulse output Wh1(ch1) Wh2(ch2) Wh3(ch3) Wh4(ch4)

  • Page 12: Chapter 6 Communication Formats

    IA Networks Technology IPM3400 User Guide Chapter 6 communication Formats 6.1 Specifications  Communication protocol :Modbus  Transport specification Bits per Byte：1 start bit 8 data bits, least significant bit sent first 1 or 2 stop bits（default = 1, stop）...

  • Page 13: Modbus Register

    IA Networks Technology IPM3400 User Guide 6.2 Modbus Register Modbus Module #1 Holding Register : Setup Parameter Modbus Register Data Default Parameter name Range Units Comment Type value Modicom Format 0: 9600 Comm_485_BaudRate 44097 0x1000 Word UInt 1: 19200 2: 38400...
  • Page 14 IA Networks Technology IPM3400 User Guide 34396 0x112B 34397- 0x112C- Primary kVA_c Dword Float 34398 0x112D 34399- 0x112E- Primary PF_c Dword Float 34400 0x112F 34401- 0x1130- Primary kWh_c Dword Float 34402 0x1131 34403- 0x1132- kvarh_c Dword Float 34404 0x1133 34405-...

  • Page 15: Appendix : Question And Answer

    IA Networks Technology IPM3400 User Guide 34640 0x121F 34641- 0x1220- kVAh_b DWord Int32 0~99999999 0~9999999.9 0.1kVAh 34642 0x1221 34643- 0x1222- DWord UInt32 0.1 Volt Primary 34644 0x1223 34645- 0x1224- DWord UInt32 0.1A Primary 34646 0x1225 34647- 0x1226- kW_c DWord Int32 Primary 0.1kW...
  • Page 16 IA Networks Technology IPM3400 User Guide Q3. the real power rate（kw）, if the value of measure is negative? （1）first check the current input end – line terminal, （check the connect is it 1S、1L、2S、2L、3S、 3L、4S、4L） ，base on white black, white black, white black follow the sequence order。...
