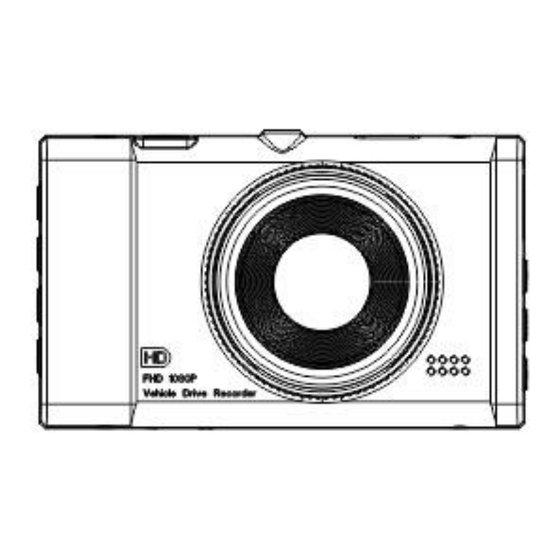

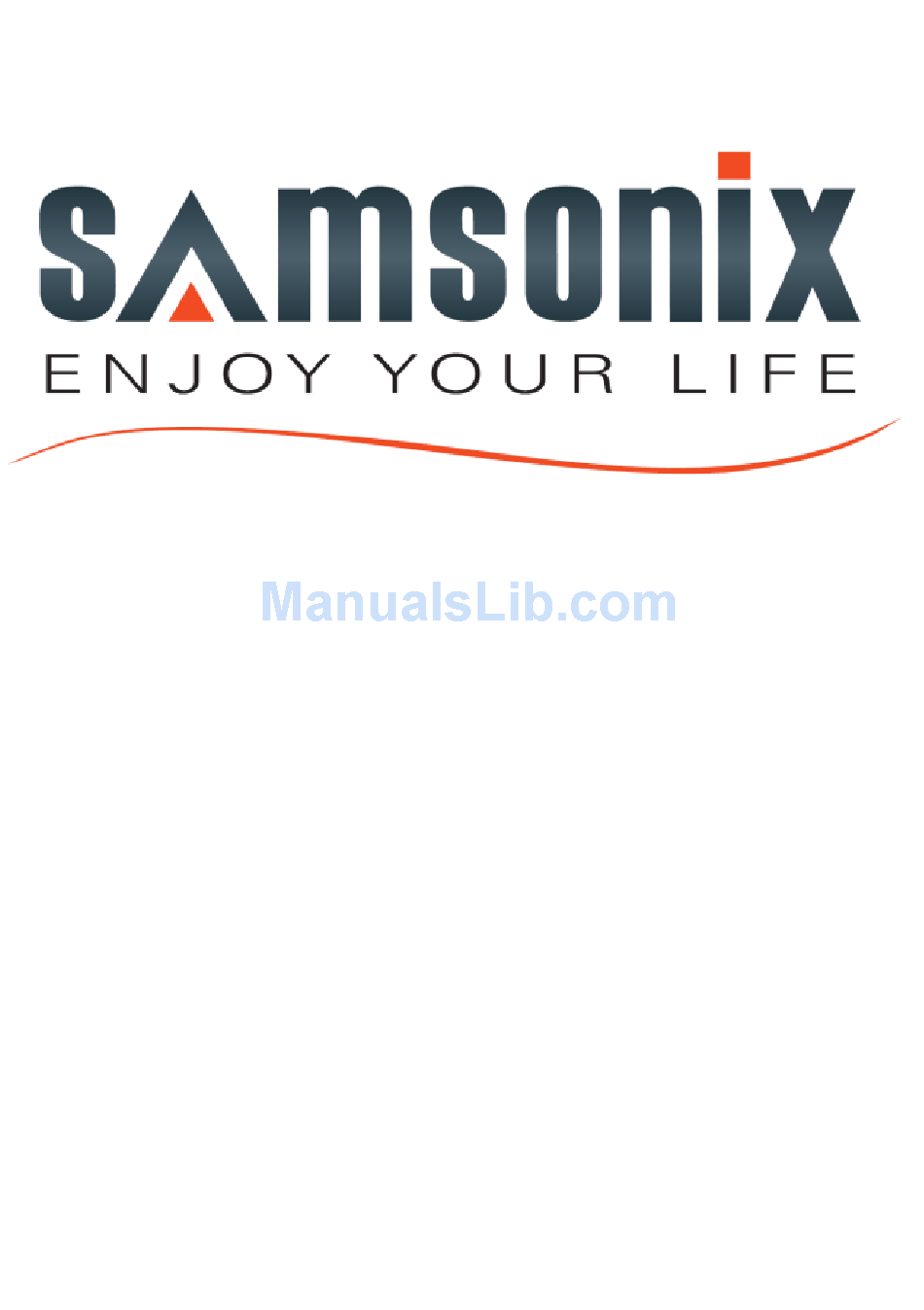

- Page 1 DVR-550 User manual...
- Page 2 Structure and key function introduction Key diagram 1.TF card slot 2.Up 3.Menu 4.Down 5.Reset 6.Mic hole 7.OK 8.Mode 9.Lock 10.Power 11.Mini USB port 12.Bracket port 13.Micro USB port Key function 1.Power 1.power on/off function Press power key shortly to power on device, press Power key...
- Page 3 about 3 seconds to be power off. 2.Open/close back light Press Power key shortly to open or close back light. (this function will not influence normal record.) 2.Menu At mode of suspending record/taking picture, press Menu key shortly to enter menu setting interface. At playback mode, press Menu key shortly to be deleting file interface.
- Page 4 Down page function at menu setting and playback mode. 2. Fast forward Press Down key long to be fast forward at playback mode. 3. Close/open audio record At power on or being recording mode, press Down key shortly to close or open audio record function.
-
Page 5: Function Introduction
For connecting DC 5V power for device. 10. Micro USB port For connecting back camera by cable. 11. TF card slot For inserting TF card, videos files are stored in TF card. Operation guide Device installation way: Shut down engine Insert TF card into device;... - Page 6 down engine, device will power off, video files will be saved automatically by segments, when TF card is full, early videos will be overwritten; (remark: recording time segment can be set to be 2/3/5 minutes.) Taking picture function At mode of suspending recording, press mode key to switch to be mode of taking picture, the icon of left-top of screen is changed to be camera icon, press OK key shortly to take a picture, if need to be back to record mode, press mode shortly to...
- Page 7 At mode of suspending recording, enter menu setting, press up/down page to be “date” option, press OK key shortly to enter menu setting. (remark: up/down key for adjusting time, mode key is for next option; to record valid video with right time, please set correct time before using device.) Non-audio record At power on mode or at status of being recording, press down...
- Page 8 Chipset Generalplus 2248 Video pixel 1.0 megapixel Viewing angle 120 degree Video resolution 1080P、720P Compression format MJPEG *********** Video file format Picture resolution 3264×2448 Picture format Frame rate 25FPS Storage -20℃~70℃ temperature Operation -10℃~60℃ temperature Operation humidity 15-65%RH TF card capacity Support TF card 4GB～32GB Power Mini USB 5V...
