A S S E M B L Y

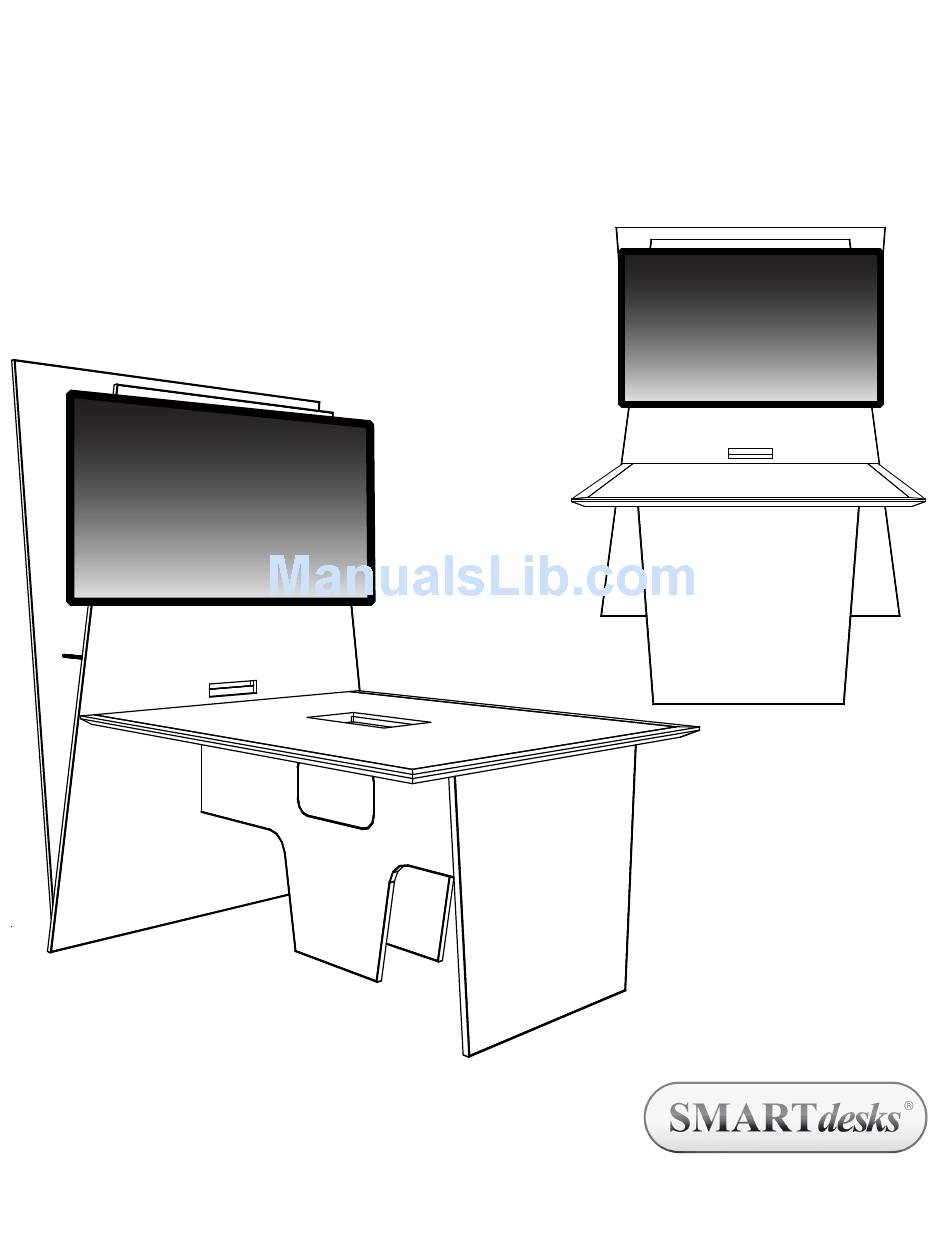

VISTA Video Collaboration Table
Assembly requires two people working together.
Video monitor and mounting bracket are not included and separately
purchased. Refer to your manufacturer's video monitor mounting
bracket instructions for wall mounting to VISTA's freestanding wall.
©2013 CBT Supply, Inc. dba SMARTdesks® All rights reserved.
SMARTdesks® is a registered trademark of CBT Supply, Inc.
I N S T R U C T I O N
Typical
M A N U A L
www.smartdesks.com
800 770 7042
™
Advertisement
Summary of Contents for SMART desks VISTA
- Page 1 Assembly requires two people working together. Video monitor and mounting bracket are not included and separately purchased. Refer to your manufacturer’s video monitor mounting bracket instructions for wall mounting to VISTA’s freestanding wall. www.smartdesks.com ©2013 CBT Supply, Inc. dba SMARTdesks® All rights reserved.
-
Page 2: Parts Identification
PARTS IDENTIFICATION Please note that the VISTA Video Collaboration Tables for this installation are NOT THE SAME. Each has been customized for its installation space. Be sure that your parts are for the same MARK NUMBER. One top banded on 3 sides •... - Page 3 Keel Side Panels 2 total quantity Table End Base Access Panel Panel(1 each) 2 total quantity Keel Stretchers 4 total quantity Male Maxifix Cam 262.87.003 Maxifix End Pin Female 262.87.781 Keku Clips Maxi Fix End Bolt Pins 2 to go through wall into wall end top Keel Bottom (2 for each table top) ...
- Page 4 Assembly should be done for mounting to a wall. The VISTA If the VISTA needs to be moved to a as close as possible to the final installa- front wall should be structurally different location, disassemble and...
- Page 5 Step 1 Make the Keel Base Assembly Start by affixing the Keel Base Panels and Keel Stretcher Panels to one side of the Keel. Use Minifix Pins and Cams. Install the second Keel Base with pins and cams. How Pins and Cams work The arrow of the cam points in the direction of the insertion Install the Table End Panel with pins and cams.
- Page 6 Step 2 Front Wall Assembly To make a free-standing structure, tie the front wall into the keel assembly with Maxifix pins and cams. Do this in the final position for the VISTA installation. Maxifix Cam 262.87.003 Maxifix End Pin 262.87.781 Install the uprights and shelf Use dowels to hold the uprights in place.
-
Page 7: Access Panel
Install the table top ACCESS PANEL Female surface connectors have been pre installed in the Keel Side Panels. Insert the Male Surface Connectors into the holes drilled on the bottom surface of the Table Top. T-EDGE CUTOUTS Capture the Surface Connectors and tighten the set screws. - Page 8 Install the back wall as the final step. Back Wall The back wall is the access panel for the monitor mount and the technology that is placed on the shelf. While cables can be fished through the Keel when complete, it takes less effort to do this with the back wall and tops removed.
- Page 9 800 770 7042 SMARTdesks Technical Assistance www.smartdesks.com...
- Page 10 800 770 7042 SMARTdesks Technical Assistance www.smartdesks.com...
- Page 11 800 770 7042 SMARTdesks Technical Assistance www.smartdesks.com...
- Page 12 800 770 7042 SMARTdesks Technical Assistance www.smartdesks.com...
