Summary of Contents for Telsyco MiniGate A

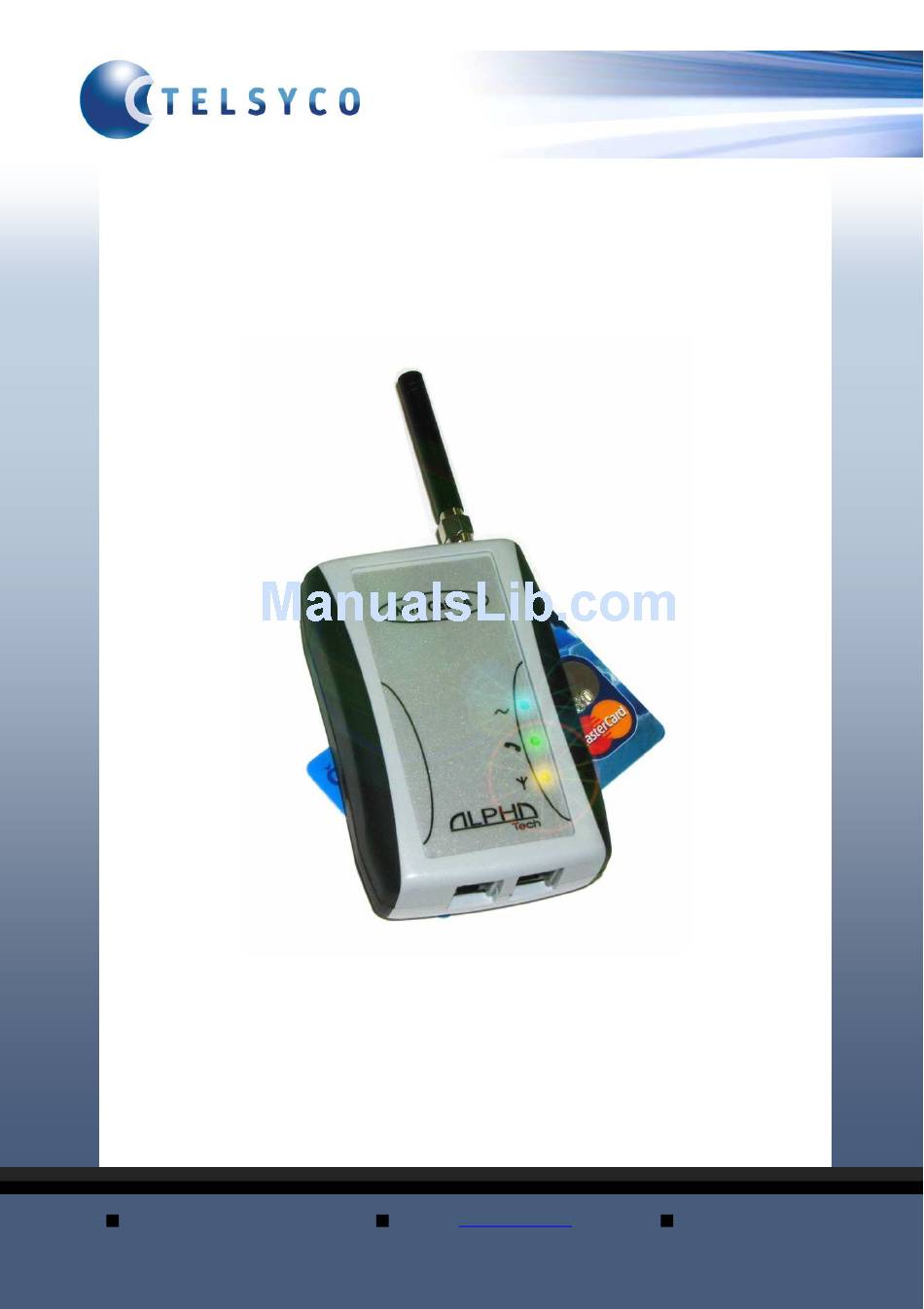

- Page 1 MiniGate A MiniGate A MiniGate A MiniGate A Installation guide V 1.0 TELSYCO s.r.o. e-mail: info@telsyco.com www.telsyco.com Prostřední 627/14 tel./fax: +420 241 765 832 141 00 Praha 4...
-
Page 2: Basic Features
Basic features: Mini Gate A is dual band GSM Gate based on Siemens GSM module TC 35 ( eventually MC 55) equipped by a lot of adjustable features increased comfort of service. It has been designed for GSM network 900 MHz as same as 1800 MHz. •... -
Page 3: Installation
INSTALLATION anntena Yellow button Power (Mini USB supply cable) telephone line - - 2... -
Page 4: Quality Of Gsm Signal
By pressing of yellow button release the SIM card holder. Insert the SIM card and replace the SIM card holder. Before inserting the SIM card we recommend checking various mobile phone state of the SIM card (logging with or without PIN, PIN, etc.) and set logging without PIN. When want logging... - Page 5 Connection of antenna When you connect magnetic antenna keep on mounting at bigger iron subject. This subject makes „against-weight“ at its depends the power of radiated signal When you inserted SIM card as same as all cables are connected (do not forget that Blue gate is connected on external line not on extension) connect device to main 230V.
- Page 6 The yellow LED flashing in period „PIN unreadable“. After calling to Mini gate you get busy tone. The SIM card requires PIN, which is not preprogrammed or is preprogrammed wrongly. The LED „communication to GSM„ is flash shortly one for 2 sec. After calling to Mini Gate you are hearing busy tone.
- Page 7 The Gate is equipped by USB port for direct control of GSM module Siemens TC35 (or MC35 or MC39 for GPRS) via virtual COM port. The Gate you can further use ordinary GSM modem for data transmission, internet connection or for SMS messages.
- Page 8 CONFIGURATION The programming mode is set after acknowledgement dialing to Blue Gate.In the analogue phone is waiting tone. After password inserting is tone changing to programming tone. Then you can programming each features of Blue Gate (via table of programming) Progress of programming: Dial 2 digits number of programming feature.
- Page 9 Notes to each parametres: 11 – 19 When you programm some prefixes the Mini Gate allows outgoing calls starts by those prefixes only. The others will get busy tone. When memories will be empty the calling wont be restricted (default). Memory of prefixes can content 1 digit only.
- Page 10 Notes: Programming is only by tone dial DTMF. Dont forget set even external line at PBX. Changes are valid after hang up only (finishing of programming mode). It is very important especially in acknowledge character changes- till hang up you must use previous acknowledgement.
- Page 11 Table of programming Dial number Dial number Dial number Dial number Feature Feature Feature Feature Default Default Default Default 0 0 n n n n Password nnnn to programming mode access 0 0 0 0 1 1 n n n n Memory x for permitted fix number (1 to 4 digits) 1 2 n n n n 1 3 n n n n 1 4 n n n n...
- Page 12 3 5 n n Number of dialled numeral, after its is dial send immediatelly (lenght of telephone number) nn=00 – function none active nn=01-19 – number of numeral telephone number 3 6 n n Ignoration of dial nn decimal of sec. After picking up nn=00-99 decimal of seconds 3 7 n n n n Storing of PIN 3 8 n...
- Page 13 Table of tones ≤≤≤≤≤≤≤≤≤≤≤≤≤≤≤≤≤≤≤≤ ≤ƒƒ≤≤≤ƒƒƒƒƒƒƒƒƒƒƒƒƒƒ Dial tone (up setting) Mini Gate is ready to accept dial ≤ƒƒ≤≤≤ƒƒ≤ƒƒƒƒƒƒƒƒƒƒƒ ƒƒƒƒƒƒƒƒƒƒƒƒƒƒƒƒƒƒƒƒ Busy tone – short tone repeated Called part is busy, doesnt exist, not permitted, etc.. ≤ƒƒ≤ƒƒ≤ƒƒ≤ƒƒ≤ƒƒ≤ƒƒ≤ƒ Ringing tone – long tone and pause ≤≤≤≤ƒƒƒƒ≤≤≤≤ƒƒƒƒ≤≤≤≤...
-
Page 14: Led Signalling
LED signalling Permanent light (lights up after 3 sec after power connection) ¤¤¤¤¤¤¤¤¤¤¤¤¤¤ Power supply of unit Permanent light ¤¤¤¤¤¤¤¤¤¤¤¤¤¤ line OFF HOOK Doesnt light line ON HOOK Flashing in rhytm of busy ≤ ≤ ≤ ≤ ≤ tone Programming or PC connection mode Flashing in 2 sec. -
Page 15: Technical Parametres
Technical parametres: Type Mini Gate A Operating position various Operating conditions temperature: +5° C ÷ +40° C, humidity: 10% ÷ 80% at 30° C Dimensions (mm) Weight Part of power supply Supply voltage 230 V (±10%) ( adapter) Power input max. - Page 16 Functionality: • Waiting for dial after pick up 1 - 99 sec or unlimited • Waiting for last digit of dial 1 - 15 sec • Dial after preprogrammed number of digits 1 - 19 • Immediate dial sent up setting „#“ or „*“ •...
- Page 17 Registered company address: TELSYCO, s.r.o. Prostřední 627/14 141 00 Praha 4 Czech Republic VAT: CZ28548302 Company is registered in the Commercial Register administered by the Municipal Court in Prague, Section C, Record 149478 TELSYCO s.r.o. Office: Kyjovská 1983/1 142 00 Praha 4...
