Savant OWC-200B Quick Reference Manual

The Savant® On-Wall Charging Dock is available in two colors: OWC-2000B (Black) or
OWC-200W (White). This Quick Reference Guide provides the information necessary to
install the On-Wall Charging Dock for Apple iOS devices.

Box Contents

(1) On-Wall Charging Dock (OWC-200B/W)
(1) Cut out template (009-0247-xx)
(1) On-Wall Dock Bezel (074-0191-xxB/W)
(1) Installation Kit – (Black - 075-0108-xx/ White – 075-0109-xx)
(1) Power cord, detachable 10A Plug, 1.83 M, 1250W (014-0035-xx) or appropriate
•
international cord.
(1) 24V DC 60 watt Power Supply (025-0046-xx)
•
(2) 2-pin Screw Down Connector (028-9160-xx)
•
(4) #6 x 1.5 Screw (039-0068-xx)
•
(2) #8-32 x 1.75 Screw (039-0147-xx)
•
(1) Media Dock Filler Plate (074-0225-xxB/W)
•
(1) Quick Reference Guide (this document)

Specifications

Environmental
Operating Temperature 32º to 104º F (0º to 40º C)
Operating Humidity 10% to 90% Non-condensing
Maximum BTU 9 BTU/hour
On-Wall Dock - Dimensions and Weight (with bezel)
Dimensions (H x W x D) * 6.53 in x 5.0 in x 2.7 in (16.6 cm x 12.8 cm x 6.9 cm)
Weight 0.5 lb/0.23 kg
Power
Supply 24V DC, 120-230V AC, 50/60 Hz
Maximum Power Draw 7 Watts
Power cable length Up to 100 meters (AWG 18)
Compliance
Safety and Emissions FCC Part 15 | CE Mark | C-Tick
RoHS Compliant
* Overall dimensions for charging dock, not cut out dimensions.
ELECTRICAL DISCONNECT: The 24V DC power adapter connected to the On-Wall
Charging Dock should be easily accessible in the event of an electrical malfunction.
SURGE PROTECTION: Use a surge-protected circuit for all components requiring 120-
230V AC, 50/60 Hz source power.
ELECTRICAL DISCONNECT: Remove power before working on the dock.
Copyright © 2012 Savant Systems LLC, SAVANT and RacePoint Blueprint are trademarks of Savant Systems, LLC.
Apple®, iTunes®, iPod touch®, iPod® Classic and iPod nano® are registered trademarks or trade names of Apple Inc.
All brand names, product names and trademarks are the property of their respective owners.
Savant Systems, LLC reserves the right to change product specifications without notice.
45 Perseverance Way, Hyannis, MA 02601
On-Wall Charging Dock
(OWC-200B/OWC-200W)
Quick Reference Guide

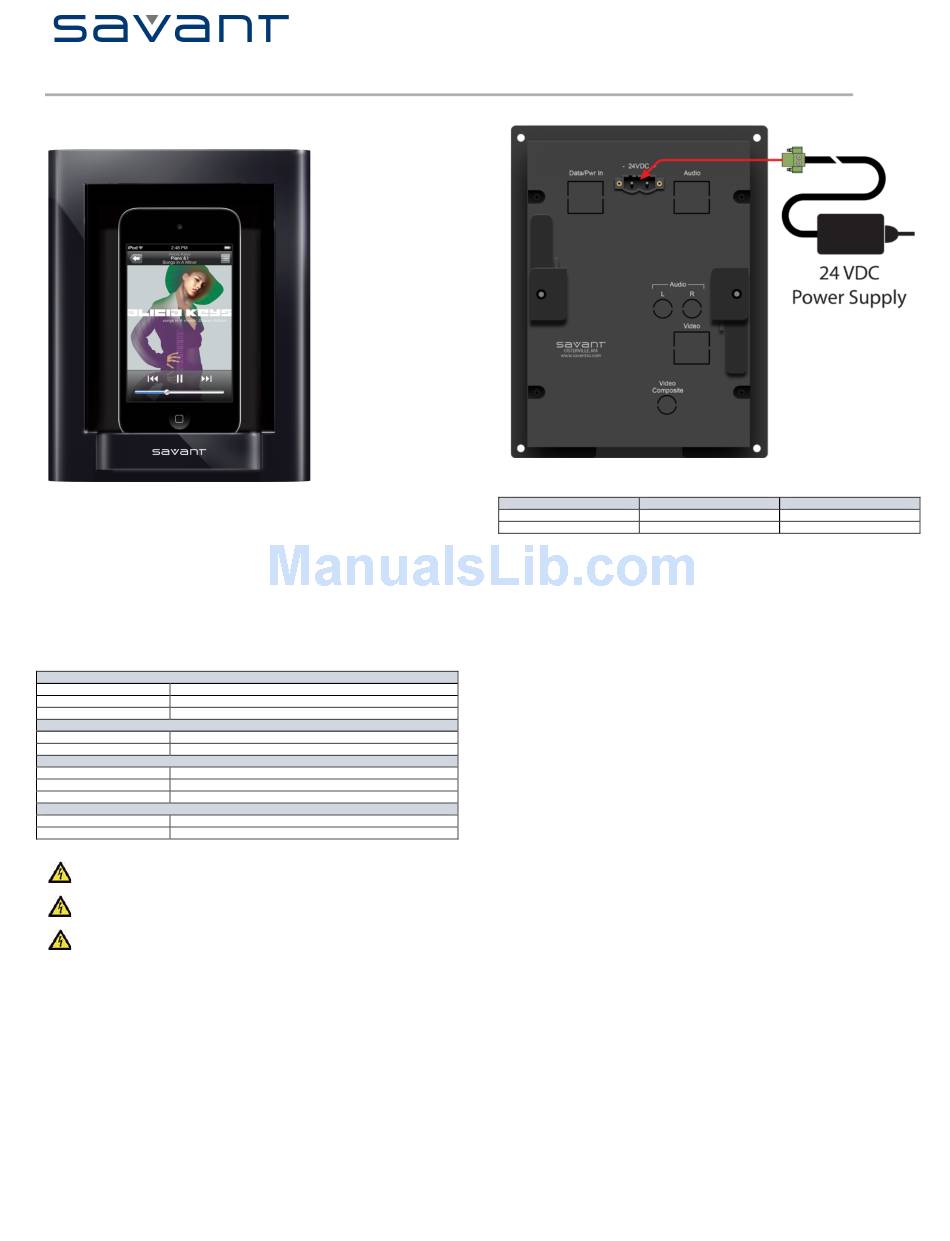

Wiring to Dock

Wiring and Pinouts
Wired Dock 24V DC
+ (Positive)
- (Negative)

Installation without RIB-OWMD Configuration Box

1. Connect the 24V DC power supply to the On-Wall Charging Dock and route through
the wall opening.
2. After making the connections to On-Wall Dock, position the unit in the opening and
secure with the two rotating mounting tabs.
3. Turn the tab screws clockwise; the tabs will grab the interior wall. Tighten until snug.
Do not over tighten.
Caution: Do not use a powered screwdriver to tighten the tabs; the tabs can be easily over
tightened.
4. Position the bezel over the On-Wall Dock and press, ensuring that the wall plate seats
properly.
Note: The On-Wall Dock also has screw-mounting holes for optional stud mounting.
Phone 508.683.2500 Fax 508.683.2600
White 24V DC In
Black 24V DC Return
Savant Confidential and Proprietary
SavantSystems.com
009-0422-03
OWC-200B-10
OWC-200W-10
091012
