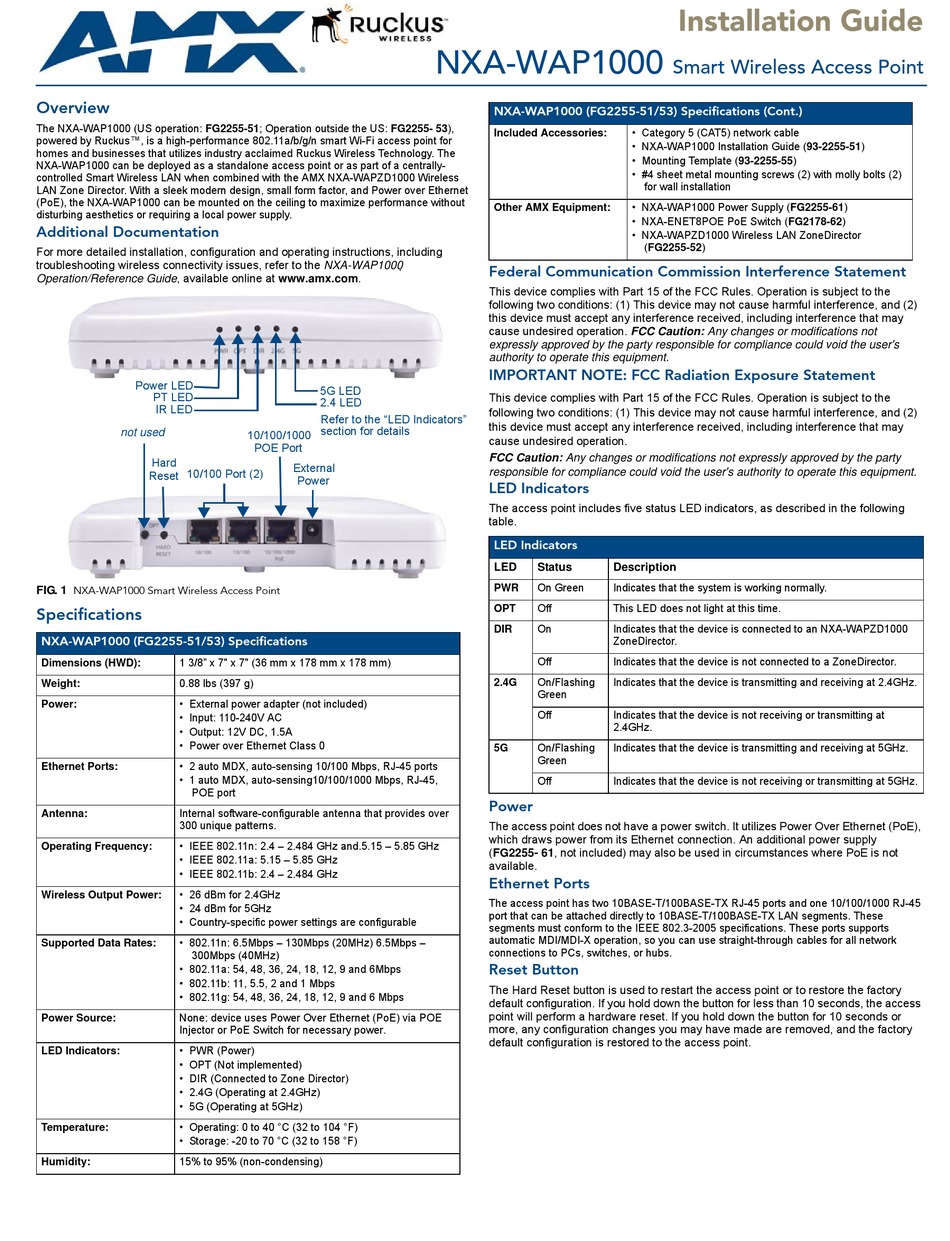

AMX NXA-WAP1000 Installation Manual

Overview
The NXA-WAP1000 (US operation: FG2255-51; Operation outside the US: FG2255- 53),
powered by Ruckus™, is a high-performance 802.11a/b/g/n smart Wi-Fi access point for
homes and businesses that utilizes industry acclaimed Ruckus Wireless Technology. The
NXA-WAP1000 can be deployed as a standalone access point or as part of a centrally-
controlled Smart Wireless LAN when combined with the AMX NXA-WAPZD1000 Wireless
LAN Zone Director. With a sleek modern design, small form factor, and Power over Ethernet
(PoE), the NXA-WAP1000 can be mounted on the ceiling to maximize performance without
disturbing aesthetics or requiring a local power supply.
Additional Documentation
For more detailed installation, configuration and operating instructions, including
troubleshooting wireless connectivity issues, refer to the NXA-WAP1000 
Operation/Reference Guide, available online at www.amx.com.
Power LED
PT LED
IR LED
not used
Hard
10/100 Port (2)
Reset
FIG. 1 NXA-WAP1000 Smart Wireless Access Point

Specifications

NXA-WAP1000 (FG2255-51/53) Specifications
1 3/8" x 7" x 7" (36 mm x 178 mm x 178 mm)
Dimensions (HWD):
0.88 lbs (397 g)
Weight:
• External power adapter (not included)
Power:
• Input: 110-240V AC
• Output: 12V DC, 1.5A
• Power over Ethernet Class 0
• 2 auto MDX, auto-sensing 10/100 Mbps, RJ-45 ports

Ethernet Ports:

• 1 auto MDX, auto-sensing10/100/1000 Mbps, RJ-45,
POE port
Internal software-configurable antenna that provides over
Antenna:
300 unique patterns.
• IEEE 802.11n: 2.4 – 2.484 GHz and.5.15 – 5.85 GHz
Operating Frequency:
• IEEE 802.11a: 5.15 – 5.85 GHz
• IEEE 802.11b: 2.4 – 2.484 GHz
• 26 dBm for 2.4GHz
Wireless Output Power:
• 24 dBm for 5GHz
• Country-specific power settings are configurable
• 802.11n: 6.5Mbps – 130Mbps (20MHz) 6.5Mbps –
Supported Data Rates:
300Mbps (40MHz)
• 802.11a: 54, 48, 36, 24, 18, 12, 9 and 6Mbps
• 802.11b: 11, 5.5, 2 and 1 Mbps
• 802.11g: 54, 48, 36, 24, 18, 12, 9 and 6 Mbps
None: device uses Power Over Ethernet (PoE) via POE
Power Source:
Injector or PoE Switch for necessary power.
• PWR (Power)

LED Indicators:

• OPT (Not implemented)
• DIR (Connected to Zone Director)
• 2.4G (Operating at 2.4GHz)
• 5G (Operating at 5GHz)
• Operating: 0 to 40 °C (32 to 104 °F)
Temperature:
• Storage: -20 to 70 °C (32 to 158 °F)
15% to 95% (non-condensing)
Humidity:
5G LED
2.4 LED
Refer to the "LED Indicators"
section for details
10/100/1000
POE Port
External
Power
NXA-WAP1000
NXA-WAP1000 (FG2255-51/53) Specifications (Cont.)
Included Accessories:
Other AMX Equipment:

Federal Communication Commission Interference Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation. FCC Caution: Any changes or modifications not
expressly approved by the party responsible for compliance could void the user's
authority to operate this equipment.
IMPORTANT NOTE: FCC Radiation Exposure Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
LED Indicators
The access point includes five status LED indicators, as described in the following
table.
LED Indicators
LED Status Description
On Green Indicates that the system is working normally.
PWR
Off This LED does not light at this time.
OPT
On Indicates that the device is connected to an NXA-WAPZD1000
DIR
ZoneDirector.
Off Indicates that the device is not connected to a ZoneDirector.
On/Flashing Indicates that the device is transmitting and receiving at 2.4GHz.
2.4G
Green
Off Indicates that the device is not receiving or transmitting at
2.4GHz.
On/Flashing Indicates that the device is transmitting and receiving at 5GHz.
5G
Green
Off Indicates that the device is not receiving or transmitting at 5GHz.
Power
The access point does not have a power switch. It utilizes Power Over Ethernet (PoE),
which draws power from its Ethernet connection. An additional power supply
(FG2255- 61, not included) may also be used in circumstances where PoE is not
available.
Ethernet Ports
The access point has two 10BASE-T/100BASE-TX RJ-45 ports and one 10/100/1000 RJ-45
port that can be attached directly to 10BASE-T/100BASE-TX LAN segments. These
segments must conform to the IEEE 802.3-2005 specifications. These ports supports
automatic MDI/MDI-X operation, so you can use straight-through cables for all network
connections to PCs, switches, or hubs.

Reset Button

The Hard Reset button is used to restart the access point or to restore the factory
default configuration. If you hold down the button for less than 10 seconds, the access
point will perform a hardware reset. If you hold down the button for 10 seconds or
more, any configuration changes you may have made are removed, and the factory
default configuration is restored to the access point.

Installation Guide

Smart Wireless Access Point
• Category 5 (CAT5) network cable
• NXA-WAP1000 Installation Guide (93-2255-51)
• Mounting Template (93-2255-55)
• #4 sheet metal mounting screws (2) with molly bolts (2)
for wall installation
• NXA-WAP1000 Power Supply (FG2255-61)
• NXA-ENET8POE PoE Switch (FG2178-62)
• NXA-WAPZD1000 Wireless LAN ZoneDirector
(FG2255-52)
