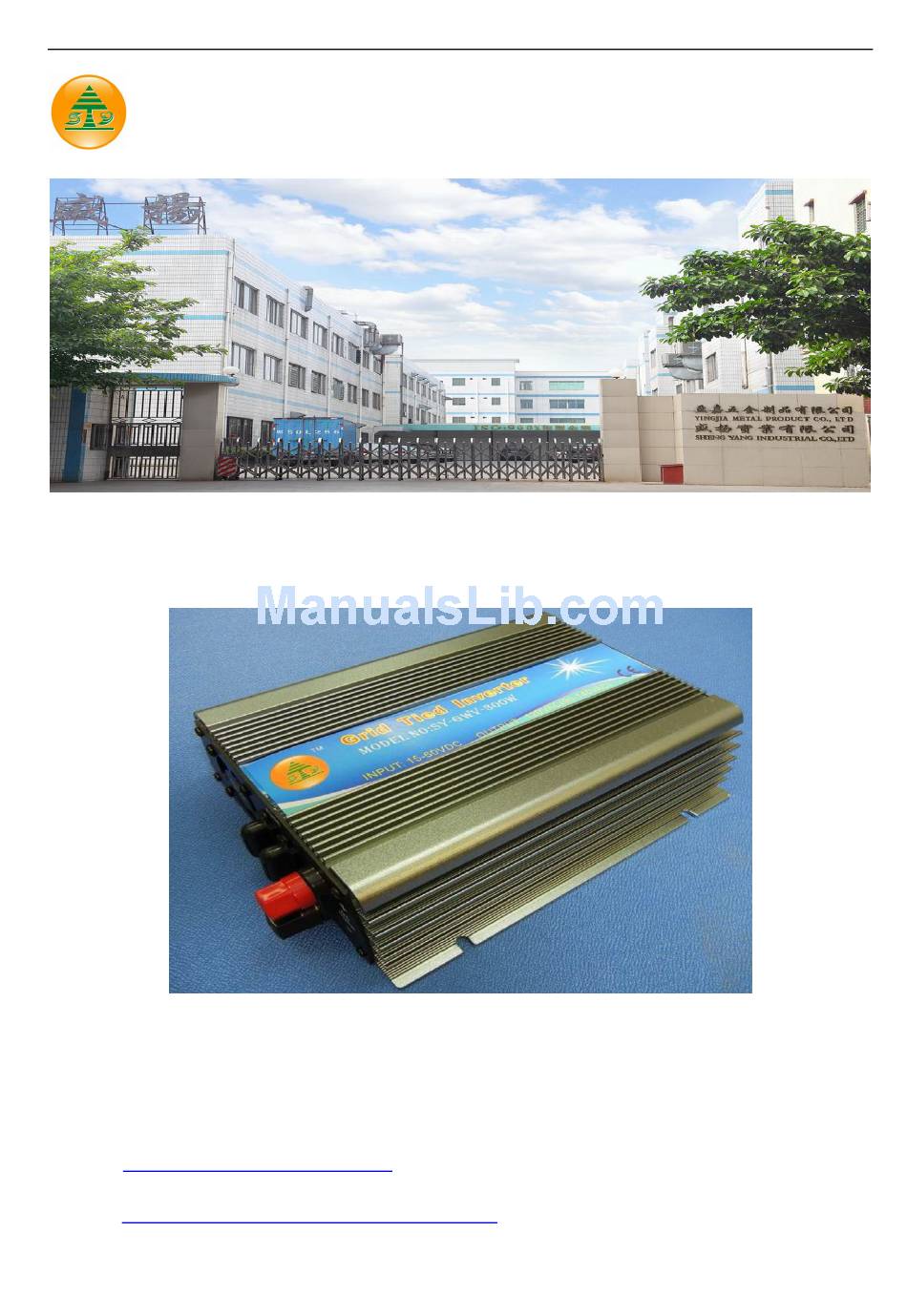

Dongguan Shengyang industrial Co., Ltd.
SY-GWV-500W Grid Tie Inverter
This data is a copyright of Dongguan Shengyang industrial Company Limited. Without the written permission of the
copyright holder, any unit or individual shall not be duplicate, disclosed to others or used， or we will be held liable in
liability. This guide and the latest information maybe have some error, but we will improve on time. If no prior notice
changes, but incorporated into the new user manual, Dongguan Shengyang industrial Co., Ltd. has the final say.
Tel：+86-0769-85372118/85372132/85372133
Fax：+86-0769-85372122/85099281
Website：http://www.shengyangmold.com.cn
http://syindustrial.manufacturer.globalsources.com
http://shengyangindustrial.en.made-in-china.com
E-mail:shengyang@sycorp.com.cn
Address: No1 ShangXin Road,Xin Nong Cun,Xin'an Community, Chang'an Town,DongGuan China
- 1 -
User Manual
1
GWV Grid Series
Advertisement
Table of Contents
Summary of Contents for Dongguan Shengyang industrial SY-GWV-500W
- Page 1 User Manual This data is a copyright of Dongguan Shengyang industrial Company Limited. Without the written permission of the copyright holder, any unit or individual shall not be duplicate, disclosed to others or used， or we will be held liable in liability.
-
Page 2: System Function
- 2 - GWV Grid Series System Function ） Wide voltage input(15-60VDC Achieve wide voltage input. 1、DC voltage input：15-60VDC 2、Second level power variable voltage conversion High-frequency two-way and one-way grid function 1、 High frequency direct modulation, AC half wave synthesis 2、... -
Page 3: Parameter Table
- 3 - GWV Grid Series Automatically Shut Down When The Power Output Of a Fault When the city power system is in failure, the inverter will automatically turn off the output. Current Limit Protection Current limit Stack Multiple Machines ... -
Page 4: Installation & Connection
- 4 - GWV Grid Series Packing and weight Net weight 1.3kg G weight 2.0kg Size (L x W x H) 21 x 16.5 x5.3cm Carton : 51x37x33CM Package (L x W x H) Inner box:34x25x15.5CM 6PCS/Carton Installation Wall hanging AC power cord length 1.8m Cooling... - Page 5 - 5 - GWV Grid Series Figure 3 2、Grid tied inverter used in the wind and solar street lights. Use this product, do not need to add solar panel controller, battery. Connection Method 1 (Figure 4 below): Figure 4 Connection Method 1: Wind energy, solar energy can supply to the grid at the same time, then achieve the highest efficiency.
-
Page 6: Input And Output
- 6 - GWV Grid Series 4、Input and output 1、DC input limit Input voltage range: 15V to 60V Solar Panel: Recommend using the power more than 500W and the standard voltage of 36V PV panels. If use other types of solar panels, For example: 18V solar panlar: ... - Page 7 - 7 - GWV Grid Series 1、Red LED： 1、Low-voltage protection (input DC voltage is less than 15VDC). 2、High-voltage protection (Input DC voltage is greater than 60VDC). 3、FAULT: Power grid failure or inverter their own fault. 4、Power output display: Follow the inverter power output size flow flashing quickly or slowly. 2、Green LED：...
