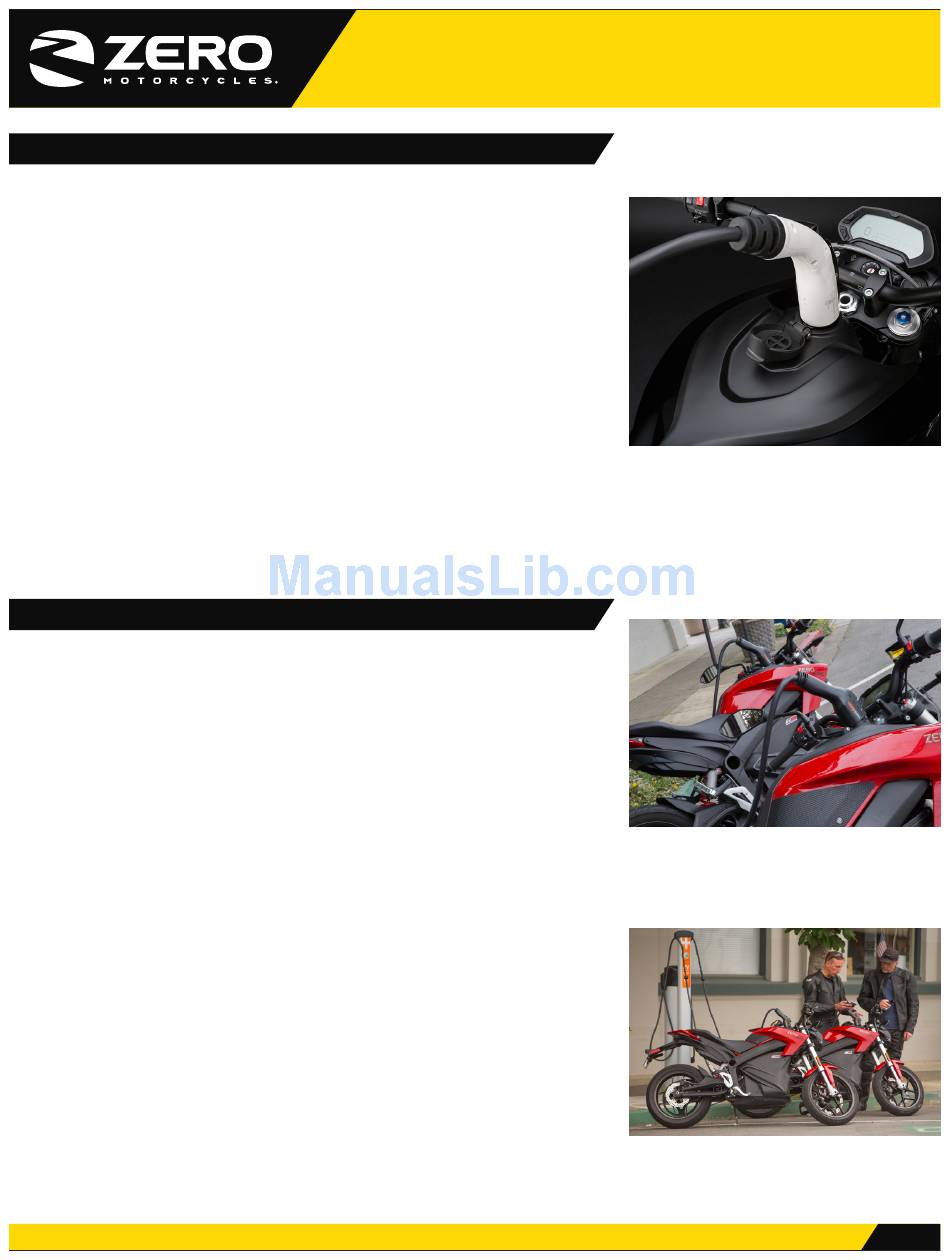

Zero Motorcycles CHARGE TANK User Manual

Overview

The Charge Tank effectively triples the on-board charging speed of 2015 and later
Zero S, SR, DS and DSR motorcycles when used with level 2 charging stations on
the J1772 standard. This dealer-installed 2.5 kW charger works in tandem with the
standard on-board 1.3kW charger to deliver a total of 3.8 kW of charging power.
This capability reduces typical charge times to about two to three hours (2.6 hours
for ZF9.8 power packs or 3.4 hours for ZF13.0 power packs). The result is up to 53
miles of riding range for each hour of charging time (based on city range).
It includes a new tank section that eliminates the tank bag from the motorcycle, and
is not compatible with motorcycles equipped with the Power Tank accessory. The
European version includes a Mennekes-to-J1772 charge cable.

Using The Charge Tank

The procedure for using the Charge Tank is the same around the world. However,
the process of using any specific charge station may differ, and you'll want to
familiarize yourself with their instructions if you are new to electric vehicle supply
equipment (EVSE). We recommend that you complete a few test charges with
representative and known working charge stations during your first few charging
attempts. Until you are confident in your use of public charging stations, we
suggest that you make sure the motorcycle has a sufficient state of charge for a
return trip home in case you encounter problems.
To save battery power and ensure battery longevity, your Zero motorcycle turns off
almost all power-consuming circuits when the key switch is in the OFF position
and the motorcycle's on-board charger is not connected to power. As a result,
your motorcycle must be turned ON prior to initiating any charge cycle using the
Charge Tank.
IMPORTANT: Unless your motorcycle is keyed ON prior to connecting a
charge station, the Charge Tank will not work.
To charge using the Charge Tank:
1. Ensure that the key switch is in the ON position and flip back the cover on the
Charge Tank inlet located on the top of the tank assembly.
If you have any questions, please contact your Zero dealer for proper usage or installation.
CHARGE TANK
User Guide
87-00069 Rev 01
1
