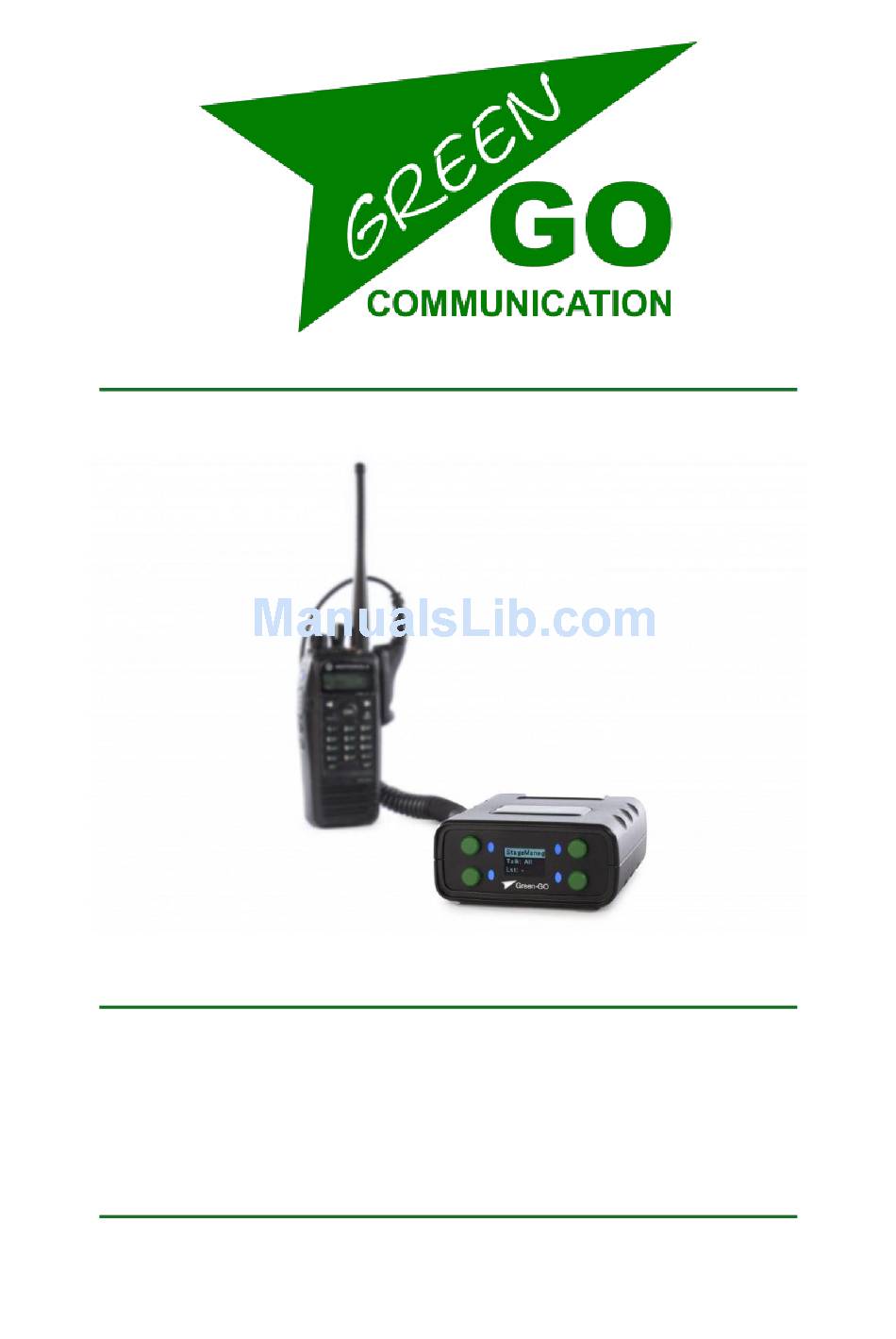

- Page 1 RDX Quick Start Guide...
-
Page 2: Product Description
Green-GO RDX Quick Start Guide Product description With the Green-GO Radio Interface you can connect your radio to the Green-GO network through a D-SUB 9 connector. Features • Connect your (Walkie-Talkie) radio to the Green-GO network • Push-To-Talk function to remotely operate the (Walkie-Talkie) radio •... -
Page 3: Setup Menu Navigation
Pressing the two buttons on the left-hand side of the screen simultaneously will open the RDX setup menu. Once in the menu, the button on the top left will act as the selection and confirmation button. The button on the bottom left will take you one step back out of the currently selected option or menu. - Page 4 Set Label Set a different label for the channel Group Select a group label User Select a user label Clear Clear the label set Talk Set the way the Talk button acts when pressed Latch / Momentary Short press: Latch / Long press: Momentary Latch ...
-
Page 5: General Options
Modifying the audio settings Audio Settings Volume Set the volume for the RDX. The volume range can be altered between -10dB and -60dB. AutoGain Set the dynamic amplification to avoid distortion. Available settings are Slow – Med – Fast – Off. If AutoGain is turned off the Max Gain option is disabled. -
Page 6: Configuration Cloning
User selection Set User Selection of the designated user of the RDX device StageManager Monitor Director etc. Configuration cloning Clone Config Clone a configuration file from the network Configuration File A Load configuration file A Configuration File B ... -
Page 7: Network Settings
Range: Always On – 10 sec – 30 sec – 1 min – 10 min – 30 min – 1 hour – 2 hours Scr bright Set the brightness of the RDX screen / Range: 0 – 15 LED bright Set the brightness of the LEDs / Range: Off – 1 – 2 – 3 – 4 – 5 - 6 – Max ... - Page 8 A suitable connector cable (detailed below) - together with the relay contacts - makes sure that the transmitter will be properly keyed to a radio. The diagram below shows the D-SUB 9 connections for linking the Green-GO RDX to a radio base station.
-
Page 9: Cable Connections
1.5 m to prevent signal loss. The radio base station can be linked to the RDX by attaching molded connectors (obtained from e.g. an external microphone or earphone) to the connector cable. - Page 10 Relay in series with microphone Jumper settings (DC path for microphone) (attenuator) Relay across microphone sleeves & earphone connector sleeves ( e.g. Uniden SPH, Motorola Radius P-50 ) Jumper settings (DC path for microphone) (attenuator)
-
Page 11: General Safety Instructions
General safety instructions Read all instructions - especially the safety requirements - in the user manual before use. - Keep these instructions - the safety and operating instructions should be retained for future reference. - Carefully follow all instructions. Cleaning Disconnect all connected supply and signal cables before cleaning the unit. -
Page 12: Declaration Of Conformity
Herewith take the full responsibility to confirm that the product Product Category: Communication equipment Name of product: GGO-RDX Which refer to this declaration are manufactured in the Netherlands and complies with the following product specifications and harmonized standards: Safety: LVD (Low Voltage Directive) 2014/35/EU, EN62368-1...
