SmartKing PA240510 User Manual

1. P roduct Introduction, F eature & Technical P arameters
1 1 Introduction: .
· PA240510 controls one door: 1 Reader(enter)+1 Reader(exit) or 1 Reader
(enter) +1 Exit button.
· Up to 1000 user capacity, each user owns one card and one PIN. Also it can be
connected with the exit button.
· All setting can be done through infrared remote control or keypad reader if
external reader is keypad one. It offers user easy operation & safe guarantee.
1.2 Feature :
· Compact, economical and practical, secure and reliable, and fit for type of 86
Box installation inside of room.
· If external Reader is keypad one, then all the setting of PA240510 can be done
on keypad reader.
· Using provided infrared remote control to do all the setting of PA240510.
· The door won't be opened even the external reader is damaged, or
encountered by strong magnetic or short circuit or any other illegal way.
· 1000 user capacity, apply to office, villa, household use etc.
· User information can be copied between every mini controller.
· Every user can change the password without master if external reader is
keypad one.
· Password is 4-6digits, more security.
· Wiring is very simple; can be done by users without professional knowledge;
can be connected with various electric lock and no need to change external
wiring.
4. Mas ter S etting
Note that all the following programming should be under master programming mode.
When master's PIN is wrong and the time is over 5s before you enter PIN again, it
will return to standby mode. After enter right master's PIN, it will also return to standby
mode if there is no valid operation in 30 seconds. Press"#" to confirm the input
number, return to previous menu by press "*", the indicator light will indicate the
operation mode.
To enter the mas ter programming mode
R ed R ed G reen L E D flas h s low Functions R emark
To enter the programming Factory default
6-8 digits master's PIN #
mode 888888
Function S ettings
R ed &
R ed G reen L E D
Green
Functions R emark
LE D flas h flas h quick
s lowly
6-8 digits new PIN # repeat
To change the master PIN
0
6~8 digits new PIN #
Read card
1-1000(ID),#, read card
1
8 or 10 digits card Rotate
To add card users
Operation
number #
1-1000(ID),#,8 or 10 digits
card number #
1.3 Technical Parameters:
· Input Voltage: DC12~14V
· Idle current : ≤ 11mA
· Lock Output load: ≤ 3A
· Time of copying user information: ≤ 8s
· Wiegand input format: 4Bit or 8Bit of pressing one key, 26-37Bit virtual card No.
· Dimension: 86(H)×86( W) ×20mm( T)
· Operating Temperature: -40~60
· Operating Humidity: 0~95%( non-condensing)
2. Ins tallation & C onnection Diagram(fit for type of 86B ox ins tallation)

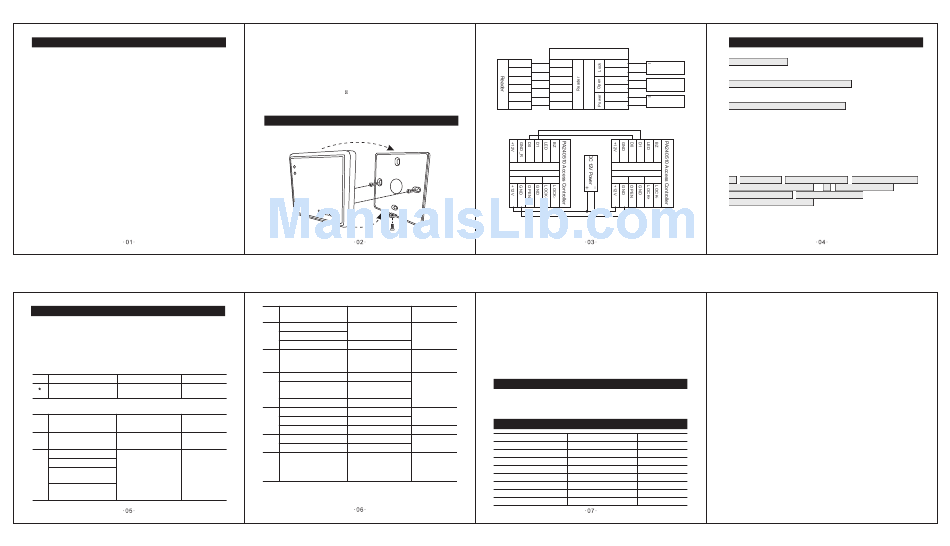

2.1 Installation Diagram:

1-1000(ID), #, 4-6 digits
To add PIN users
PIN, #
Read card
Delete one card Rotate
2 8 or 10 digits card number, #
Operation
1-1000(ID),# Delete one user
0000, # (Note: This is a
dangerous option, so use
2 Delete All users
with care)
0, #
Entry is by Card only
3 1, # Entry is by Card and
Factory default 2
PIN together
2, # Entry is by either card or PIN
0, # To set door relay time 50mS
Factory default 5s
4 1-98, # To set door relay time 1-98S
99, # Toggle mode
0, # Connect to A type of lock ①
5 Factory default 1
1, # Connect to B type of lock
Only useful for the
operation by
Copy user information ②
6 0000, #
infrared remote
control
Remark: ①Before you connect the electric lock to PA240510, make sure you already
set the type of lock. A type of lock refers to those lock that normally under standby
status ,there is no current for lock, when there is current the door will open.

2.2 Wiring Diagram

PA 240510
Access Controller
BZ BZ LOCK-
Electric Lock
LED LED LOCK+ +
D1 D1 GND
Door Button
D0 D0 OPEN
GND GND GND
DC 12V
Power
+
+12V +12V +12V
Figure 2：Wiring Diagram
Reader Reader
Power Open Lock Power Open Lock
Figure 3: Wiring of copying user information
B type of lock refers to those lock that normally under standby status, there is current
for lock, when there is no current the door will open.
②The wiring for copying the user information, pls see figure 3.
The user information can be copied from A to B or from B to A. The device should be
our Mini controller, and the master's password should be the same.
When the wring is done, then you can copy user information from A to B, use the
infrared remote control to do it, please avoid that device B receive the signals,
otherwise your operation will failed. After enter master programming mode, then
following the operation "6" in the table above, the GREEN light on around 8s, meaning
information is being copying from A to B, and versa vice.
5.R es et to F actory Default
Power off, press exit button and power on, the LED turns into RED&GREEN flash
quick, release exit button after you hear "beep, beep". And then you hear "Bee-eep",
means reset to Factory Default successfully. But it won't delete all user information.
6. S ound And L ight Indication
Operation Status Color of LED Buzzer
Stand by Red
Unlocking Green Bee-eep
Successful Green Bee-eep
Fail Beep Beep Beep
Entering PIN RED &Green flash slow
Swiping card RED &Green flash quick
Setting RED &Green flash quick
Copying user information Green
3.U s er Operation

3.1 Swiping Card to open door:

Swiping user card once , door will be opened.

3.2 Swiping Card+PIN to open door:

Swiping user card once, and enter 4-6digits PIN,# , door will be opened.

3.3 Card or PIN to open door:

Swiping user card once or enter4-6digits PIN, # , door will be opened.

3.4 Relay setting (Pulse mode and toggle mode):

Pulse mode: Everytime we swipe card or enter PIN, the door will be opened and
then locked in 0-98s. This delay time can be set.
Toggle mode: Everytime we swipe card or enter PIN, the door will be opened and
keep this status until we swipe card or enter PIN it will be locked, and vice versa.

3.5 Change the user's PIN

* , Swipe user card , Enter 4-6 digits old PIN,# , Enter 4-6 digits new PIN,# ,
Repeat Enter 4-6 digits new PIN,# Or * , Enter 1-1000(ID No.),# ,
Enter 4-6 digits old PIN,# , Enter 4-6 digits new PIN,# ,
Repeat Enter 4-6 digits new PIN,#
Remarks: PIN users have to get the ID No. and initial PIN from master. Card users
have to swipe card when change the PIN first time.
The initial PIN is 1234, it is only for changing new PIN, can't be used to open door.
SmartKing
support@smartking.com
™
www.smartking.com
SKU PA240510
PA 240510
Access Controller
User Manual
