Topcon FC-1000 Instruction Manual

INSTRUCTION MANUAL
DATA COLLECTOR
Thank you for purchasing the TOPCON Data Collector FC-1000.
For superior product performance, please read this instruction manual carefully and keep it in a convenient place for future reference.

GENERAL HANDLING PRECAUTIONS

•Before starting work or operation, be sure to check that the instrument is functioning correctly with normal performance.
•Always make sure instrument is dry before putting it in the soft case. Never store a damp instrument.
•Do not leave the instrument under strong sunlight for a long time. It may cause the instrument to malfunction.

DISPLAY FOR SAFE USE

In order to ensure the safe use of this product, prevent any danger to the operator or others, or damage to property, important warnings
are placed on the product and inserted in the instruction manual. We recommend that you become familiar with the meaning of these
Warnings and Cautions before continuing.
Display Meaning
Ignoring or disregard of this display may
WARNING
lead to the danger of death or serious injury.
Ignoring or disregard of this display may
CAUTION
lead to personal injury or physical damage.
• Injury refers to hurt, burn, electric shock, etc.
• Physical damage refers to extensive damage to equipment and structure
or furnishings.

Exceptions from Responsibility

1 The user of this product is expected to follow all operating instructions and make periodic checks of the product's performance.
2 The manufacturer, or its representatives, assumes no responsibility for results of a faulty or intentional usage or misuse including any direct, indirect, consequential damage, and loss of profits.
3
The manufacturer, or its representatives, assumes no responsibility for consequential damage, and loss of profits by any disaster, (an earthquake, storms, floods etc.), fire, accident, or an act of a third party and/or a usage in other than usual conditions.
4 The manufacturer, or its representatives, assumes no responsibility for any damage, and loss of profits due to a change of data, loss of data, an interruption of business etc., caused by using the product or an unusable product.
5 The manufacturer, or its representatives, assumes no responsibility for any damage, and loss of profits caused by usage other than explained in the user manual.
6
The manufacturer, or its representatives, assumes no responsibility for damage caused by wrong movement, or action due to connecting with other products.

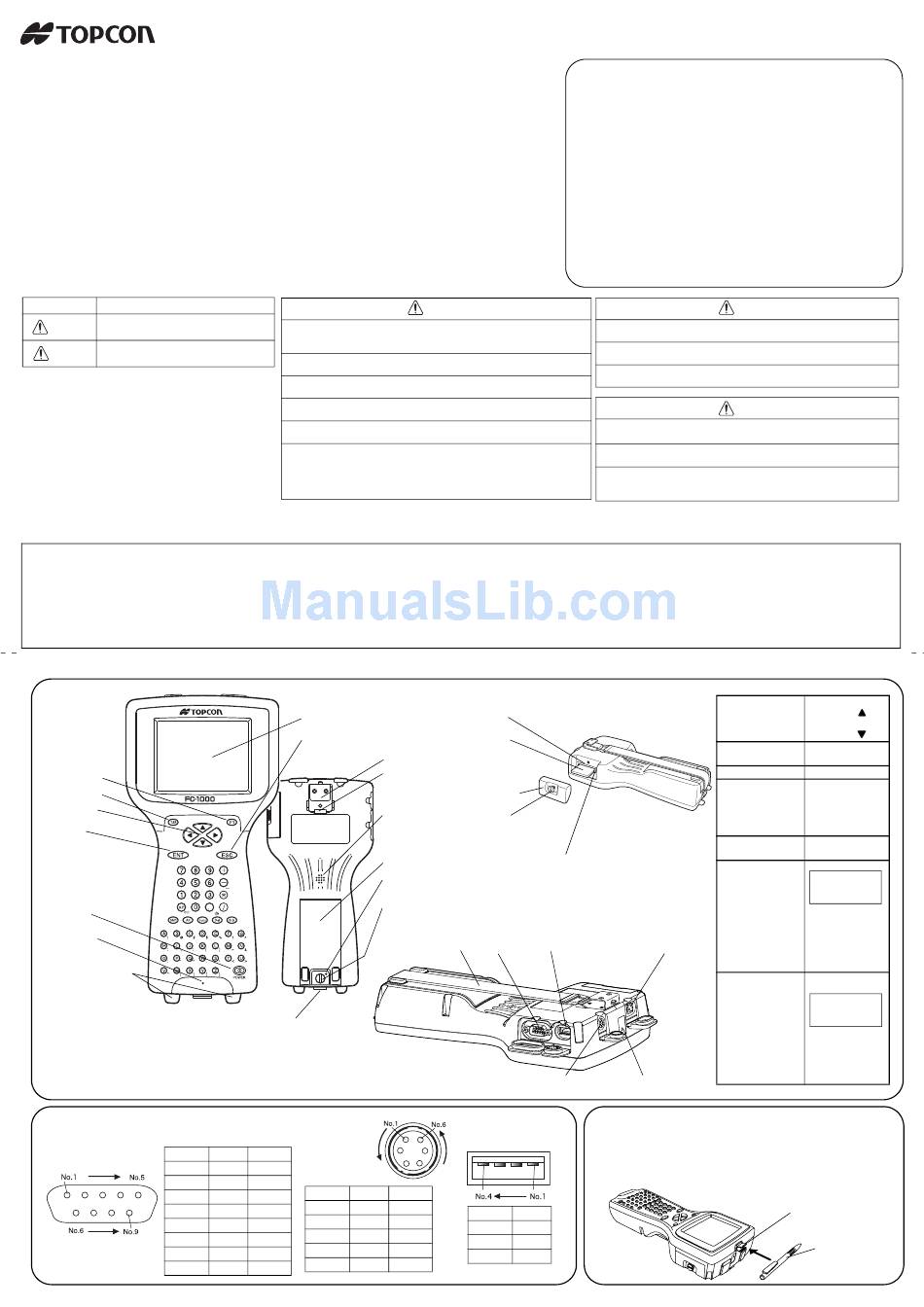

NOMENCLATURE AND FUNCTIONS

FC-1000
Function key
TAB key
Cursor keys
Enter key
Power key
Microphone
Hook for neckstrap

CONNECTORS

Serial COM1
No.1
No.2
No.3
No.4
No.5
No.6
No.7
No.8
No.9
FC-1000

SAFETY CAUTIONS

• There is a risk of fire, electric shock or physical harm if you attempt to disas-
semble or repair the instrument yourself.
This is only to be carried out by TOPCON or an authorized dealer, only!
• May ignite explosively.
Never use an instrument near flammable gas, liquid matter, and do not use in a coal mine.
• High temperature may cause fire.
Do not cover the charger while it is charging.
• Risk of fire or electric shock.
Do not use a wet battery or charger.
• Battery can cause explosion or injury.
Do not dispose in fire or heat.
• To reduce the risk of hazards, use only CSA/UL certified power supply cord set,
cord is Type SPT-2 or heavier, minimum No.18 AWG copper, one end is pro-
vided with a moulded-on male attachment plug cap (with a specified NEMA
cofiguration), and the other end is provided with a moulded-on female connec-
tor body (with a specified IEC non-industrial type configuration).
Display and Touch screen
Escape key
Hook for tripod
Hook for handstrap
Speaker
Battery cover
Hard reset switch
Inside the cover
Screw
To tighten or loosen the
screw, use a coin.
Hook for handstrap
Serial COM2
(Total Station)
DCD (IN)
RXD (IN)
TXD (OUT)
No.1 GND
DTR (OUT)
No.2 CTS
GND
No.3 TXD
DSR (IN)
No.4 RXD
RTS (OUT)
No.5 RTS
CTS (IN)
No.6 VDD
RI (IN)
WARNING
CF slot
CF card
CF slot cover
Screw
To tighten or loosen the
screw, use a coin.
CF card eject button
To eject the CF card, press the button.
USB Connector
Serial
Handstrap
(TYPE A)
COM1
Serial COM2
(Total Station)
USB Connector (Type A)
(IN)
No.1 VDD
(OUT)
No.2 V-
(IN)
No.3 V+
(OUT)
No.4 GND
(IN)

STANDARD PACKAGE COMPONENTS

Upon opening, make sure that all the followings are included.
American model
1 FC-1000 Instrument .................... 1set 1 FC-1000 Instrument.................... 1set
2 BT-59Q Battery .......................... 2pcs.
2 BT-59Q Battery .......................... 2pcs.
3 Battery charger BC-29 ................ 1pc. 3 Battery charger BC-29 ................ 1pc.
4 AC-DC converter AD-9B* ...... 1pc. 4 AC-DC converter AD-7C*
1)
5 Instruction manual ...................... 1vol.
5 Instruction manual ...................... 1vol.
6 Handstrap .................................... 1pc. 6 Handstrap .................................... 1pc.
7 Neckstrap .................................... 1pc. 7 Neckstrap .................................... 1pc.
8 Soft case ...................................... 1pc. 8 Soft case...................................... 1pc.
9 Stylus pen.................................... 1pc. 9 Stylus pen.................................... 1pc.
10 Stylus pen holder......................... 1pc. 10 Stylus pen holder ........................ 1pc.
11 Display protection sheet.............. 3pcs. 11 Display protection sheet.............. 3pcs.
12 End user license agreement......... 1pc.
12 Interface cable A-21.................... 1pc.
13 End user license agreement......... 1pc.
AD-9B AD-7C
* 1) is for AC 120V use, is for AC 230V use.
Components are different by the
2) markets.
WARNING
• The short circuit of a battery can cause a fire.
Do not short circuit battery when storing it.
• Battery can cause outbreak of fire.
Do not use any other type of charger other than the one specified.
• Risk of fire or electric shock.
Do not use any power voltage except the one given on manufacturers instructions.
CAUTION
• Do not allow skin or clothing to come into contact with acid from the batter-
ies, if this does occur then wash off with copious amounts of water and seek
• Do not connect or disconnect equipment with wet hands, you are at risk of
electric shocks if you do!
• Do not touch the charger, AC-DC converter or heating part of the instrument
for a long period while charging the battery.
There is a risk of low-temperature burn.
Shortcut Keys
Display Contrast
Front Light
ON/OFF
Ctrl Key
Soft Reset
Windows Start
Menu
Shortcut
Commands
AC adapter, external
battery Connector
Windows CE
Task Manager
RUN Charge LED
About Stylus Pen Holder
Stick the stylus pen holder and hold a stylus pen as shown below.
When sticking the holder, wipe the attachment surface of the instrument
finely.
European model
...... 1pc.
1)
Press
[Func]+[ ]
or
[Func]+[ ]
[Func]+[ . ]
[Func]+[S.P]
[Shift]
+
[Func]
+
[ESC]
[Func]+[ / ]
Press [Alt]
+
Tap on an item
is the same as a
right click on a
mouse. A menu is
displayed contain-
ing commands spe-
cific to the item.
Press [Alt]
+
[TAB]
to switch to
another active pro-
gram or to END
Task on
running pro-
gram(s).
Stylus pen holder
Stylus pen
