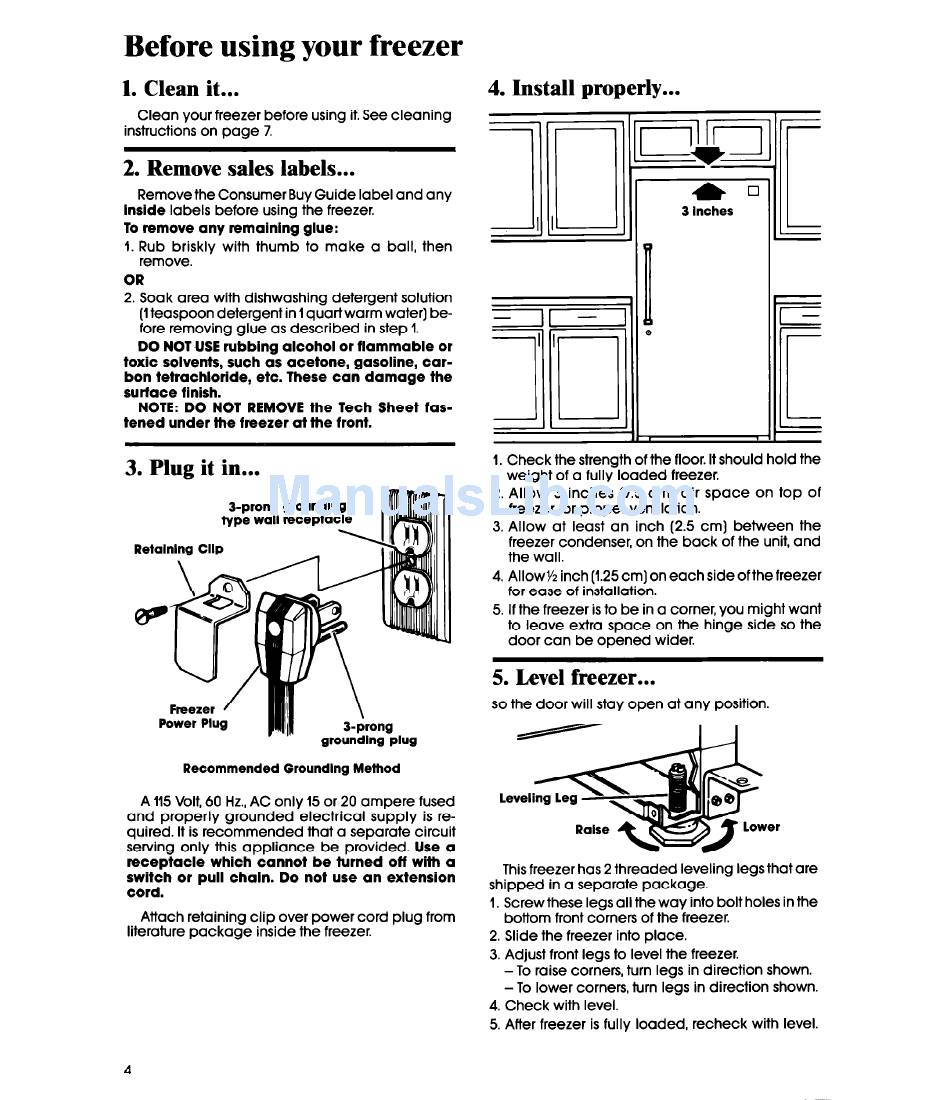

Before using your freezer
1. Clean it...
Clean your freezer before using it. See cleaning
instructions on page 7.
2. Remove sales labels...
Remove the Consumer Buy Guide label and any
Inside labels before using the freezer.
To remove any remaining
glue:
1. Rub briskly with thumb to make a ball, then
remove.
OR
2. Soak area with dishwashing
detergent solution
(1 teaspoon detergent in 1 quartwarm
water) be-
fore removing glue as described
in step 1.
DO NOT-USE rubbing alcohol
or flammable
or
toxic solvents, such as acetone,
gasoline,
car-
bon tetrachloride,
etc. These can damage
the
surface finish.
NOTE: DO NOT REMOVE the Tech Sheet fas-
tened under the freezer at the front.
3. Plug it in...
S-prong groundlng
type wall receptacle
Retalnlng
Clip
Freezer /
Power Plug
groundlng
plug
Recommended
Grounding
Method
A 115 Volt, 60 Hz., AC only 15 or 20 ampere fused
and properly
grounded
electrical
supply is re-
quired. It is recommended
that a separate circuit
serving only this appliance
be provided.
Use a
receptacle
which cannot
be turned off with a
switch or pull chain.
Do not use an extension
cord.
Attach retaining clip over power cord plug from
literature package
inside the freezer.
4. Install properly...
1. Check the strength of the floor. It should hold the
weight of a fully loaded freezer.
2. Allow 3 inches (7.5 cm] air space on top of
freezer for proper ventilation.
3. Allow at least an inch (2.5 cm] between
the
freezer condenser, on the back of the unit, and
the wall.
4. AllowY2 inch (1.25 cm] on each side of the freezer
for ease of installation.
5. If the freezer is to be in a corner, you might want
to leave extra space on the hinge side so the
door can be opened wider.
5. Level freezer...
so the door will stay open at any position.
This freezer has 2 threaded leveling legs that are
shipped in a separate package.
1. Screw these legs all the way into bolt holes in the
bottom front corners of the freezer.
2. Slide the freezer into place.
3. Adjust front legs to level the freezer.
- To raise corners, turn legs in direction shown.
- To lower corners, turn legs in direction shown.
4. Check with level.
5. After freezer is fully loaded, recheck with level.
4
