Summary of Contents for Uni-Art Precise DH1000

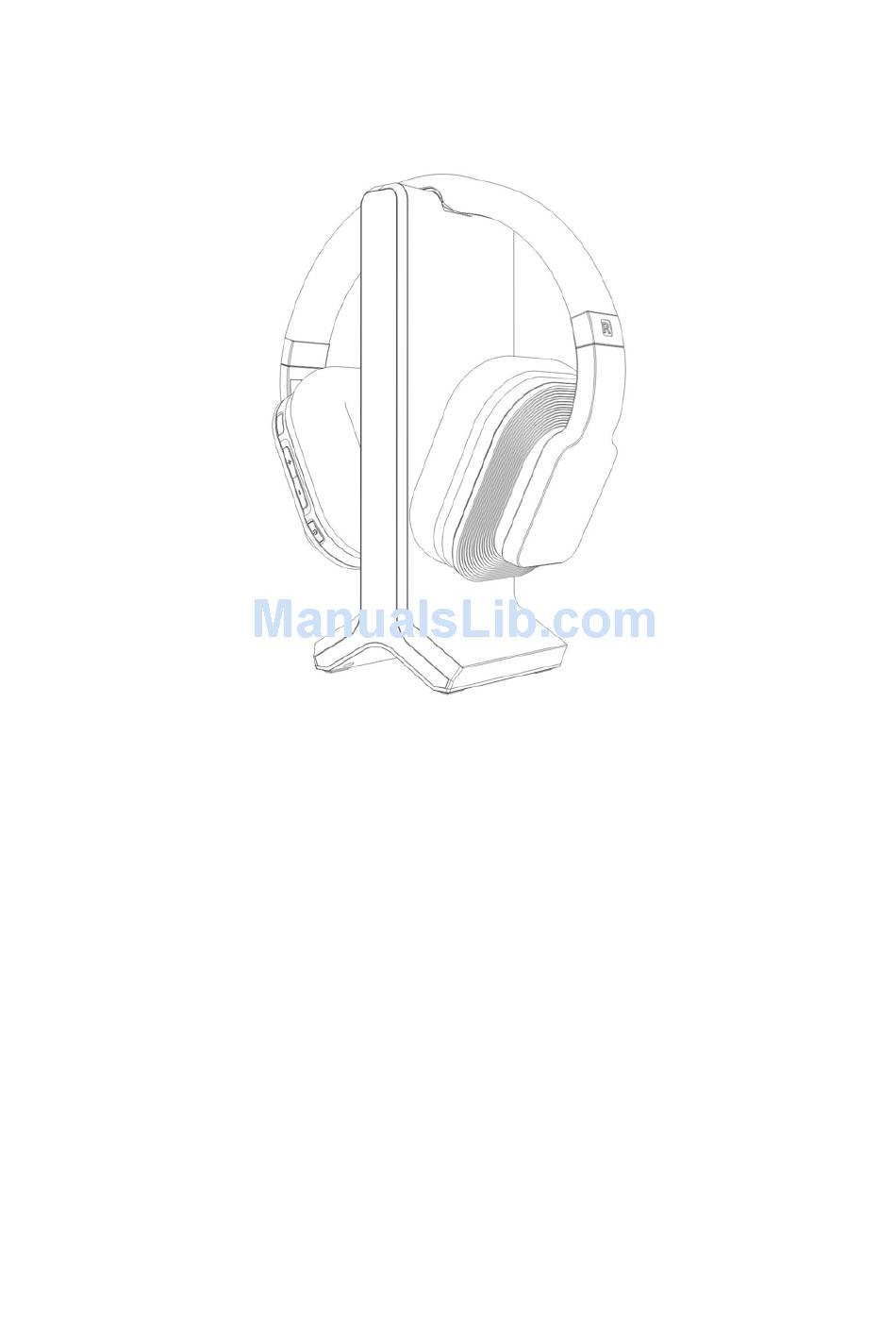

- Page 1 DH1000 2.4GHz Digital Headphone User Manual Please read before using this headphone.
- Page 2 INTRODUCTION This 2.4GHz Digital Wireless Headphone uses latest digital wireless technology that enables you to enjoy crystal sound stereo music and TV sound anywhere inside your home. Simply connect the transmitter to a desired audio source: DVD player, TV set, Hi-Fi system, MP3, iPod, or Smartphone. Without complicated wiring and installation, the system enables you to enjoy thrilling, lifelike sound in minutes.
-
Page 3: Component Part List
COMPONENT PART LIST Transmitter Charge LED Indicator Power LED Indicator Charging pins Attenuation select switch RCA Audio In socket Power on/off switch DC IN socket Headphone Receiver Charging contacts Battery Compartment (inside Right Hand Side of the Ear Pad) -
Page 4: Installation
Volume Control Power/Signal LED Indicator Power ON/OFF Direct Line-In Jack Accessories 13. RCA cable 14. 3.5mm ~ 3.5mm Direct Line-In Cable 15. AC/DC adaptor 16. NiMH AAA size batteries for Headphone (2 pieces) 17. 3.5mm ~ 6.3mm stereo plug INSTALLATION TRANSMITTER 1. -
Page 5: Operation
HEADPHONE RECEIVER To install AAA Rechargeable Batteries or replace Ear Pad, carefully rotate the Ear Pad Holder and take it away from the Headphone Cabinet. Insert 2 pieces of AAA size rechargeable batteries (supplied in the package) into the Battery Compartment of Headphone Cabinet (Right Hand Side ONLY). - Page 6 HEADPHONE RECEIVER Turn on the headphone by pressing the Power button for about 2 seconds. The LED will light up in RED, and then change to GREEN when Audio Signal link between Transmitter and Headphone Receiver is established. If no Audio Signal is detected, this LED will glow in RED constantly. Adjust the size of the Headband, place the Headphone on your head.
- Page 7 This Headphone can be used as a regular Wired Headphone by connecting your Audio Source with the Line-In Cable to the Headphone Jack shown below. IMPORTANT Switching Off For protection of the Transmitter and power saving, the Transmitter will be switched to Stand-by Mode automatically if there is no Audio Signal for approximately 5 minutes, LED will be OFF.
-
Page 8: Troubleshooting
WARNING • Never attempt to recharge conventional dry cells. • Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like. • Never use another type of battery or non-rechargeable batteries to replace the rechargeable (LR03/AAA) batteries supplied. -
Page 9: Technical Specifications
TECHNICAL SPECIFICATIONS Transmission Mode UHF Stereo Carrier Frequency 2.4GHz Digital Operation Voltage Transmitter, DC 5V 550mA Headphone, 2 x AAA size Rechargeable NiMH batteries (included) Frequency Response 30Hz~ 20KHz Distortion 0.5% S/N Ratio 70 dB Operation Distance Up to 30 meters... - Page 10 FCC INFORMATION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
