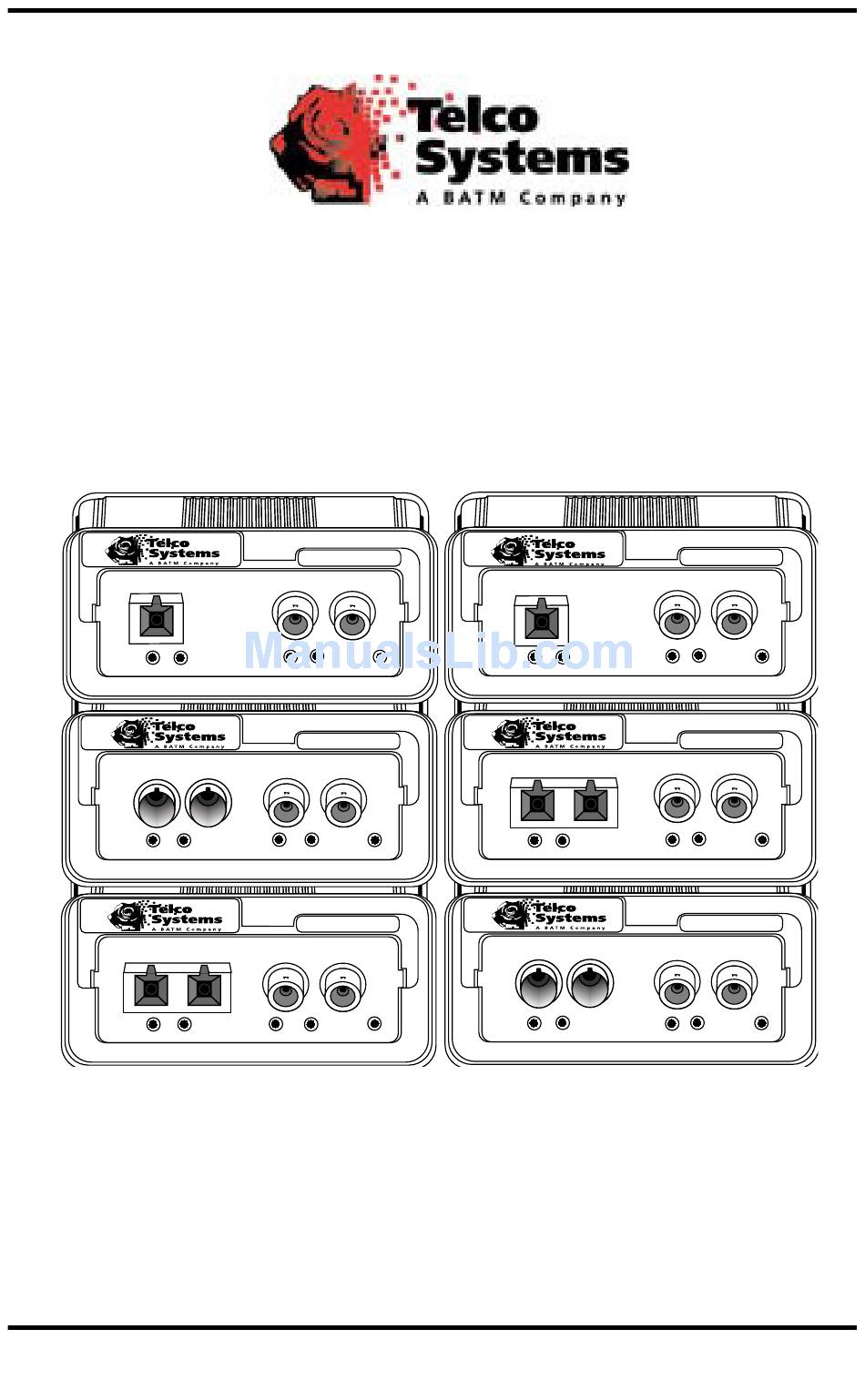

Telco Systems Metrobility T3 2115-23-01 Installation & User Manual

Metrobility t3 series; metrobility e3 series twister

Advertisement

Quick Links

T3/E3 "twister"
T3-BWDM
LBK
LK
T3-FX
MM
TX
RX
LBK
LK
T3-FX
SM
TX
RX
LBK
LK
Installation & User Guide
Models: 2115-23-01 / 2115-24-01 / 2115-25-01 / 2115-26-01 /
2115-27-01 / 2115-2J-01 / 2115-2X-01 / 2115-2Y-01 /
2175-23-01 / 2175-24-01 / 2175-25-01 / 2175-26-01 /
2175-27-01 / 2175-2J-01 / 2175-2X-01 / 2175-2Y-01
Metrobility
"twister"
®
2115
T3-TX
RX
TX
LK
LBK
PWR
®
"twister"
2115
T3-TX
TX
RX
LBK
LK
PWR
"twister"
®
2115
T3-TX
TX
RX
PWR
LBK
LK
®
®
E3-BWDM
LBK
LBK
LK
E3-FX
MM
RX
TX
LBK
LBK
LK
E3-FX
SM
TX
RX
LK
LBK
LBK
®
"twister"
2175
E3-TX
RX
TX
LK
PWR
®
"twister"
2175
E3-TX
RX
TX
LK
PWR
"twister"
®
2175
E3-TX
RX
TX
LK
PWR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Metrobility T3 2115-23-01 and is the answer not in the manual?

Questions and answers

Summary of Contents for Telco Systems Metrobility T3 2115-23-01

  • Page 1 Metrobility ® T3/E3 “twister” ® “twister” ® ® “twister” 2115 2175 T3-TX E3-TX T3-BWDM E3-BWDM ® ® “twister” “twister” 2115 2175 E3-FX T3-FX T3-TX E3-TX “twister” ® “twister” ® 2115 2175 T3-TX E3-FX E3-TX T3-FX Installation & User Guide Models: 2115-23-01 / 2115-24-01 / 2115-25-01 / 2115-26-01 / 2115-27-01 / 2115-2J-01 / 2115-2X-01 / 2115-2Y-01 / 2175-23-01 / 2175-24-01 / 2175-25-01 / 2175-26-01 / 2175-27-01 / 2175-2J-01 / 2175-2X-01 / 2175-2Y-01...
  • Page 2 No part of this publication may be reproduced, stored in a retrieval system, translated, transcribed, or transmitted, in any form, or by any means manual, electric, electronic, electromagnetic, mechanical, chemical, optical or otherwise, without prior explicit written permission of Telco Systems, Inc. © 2006 Telco Systems, Inc.
  • Page 3: Table Of Contents

    Warranty and Servicing ................23 Metrobility, Metrobility Optical Systems, and “twister” are registered tradmarks and the Metrobility Optical Systems logo is a trademark of Telco Systems, a BATM company. All others are trademarks of their respective owners. The information contained in this document is assumed to be correct and current. The manufacturer is not...
  • Page 4: Overview

    Overview Thank you for choosing the Metrobility T3/E3 media converter. The Metrobility T3/E3 media converter from Systems provides high-speed inte- gration and conversion of T3 (44.736Mpbs) or E3 (34.368Mbps) coaxial telco com- munication lines to fiber transport environments. The copper data stream is converted to optical signals for greater noise immunity and longer transmission.
  • Page 5: Installation Guide

    Installation Guide Follow the simple steps outlined in this section to install and start using your Metrobility T3/E3 media converter. Unpack the Media Converter and Accessories Check that the following components have been included with your order: • Metrobility T3/E3 media converter •...
  • Page 6: Step 3: Set The Switches

    Set the Switches A set of DIP switches is located on the back of the unit. On the T3 models, functional switches are clearly labeled and allow you to select from several modes of operation. On the E3 models, only the switches labeled CLP and FLP are functional.
  • Page 7: Step 4: Connect To The Network

    Connect to the Network The Metrobility T3/E3 model offers the ease of plug-and-play installation. Once power is applied to the unit, correct connectivity can be verified via the link (LK) LED. To connect to the network, insert the cables into the appropriate connectors as illustrated below.
  • Page 8 Coaxial Interface The coaxial interface provides two BNC connectors. The receive port is labeled RX and the transmit port is labeled TX. Each connector supports a maximum segment length of 1200 feet. Use only RG-59 cables. Fiber Optic Interface 2115-23-01, 2115-25-01, 2175-23-01 and 2175-25-01: The fiber optic multimode (MM) interface supports a maximum segment length of 2km for remote links.
  • Page 9: Step 5: Apply Power

    Apply Power Power is provided through the desktop power supply module. This power module is equipped with an S760 hollow-type plug for insertion into the DC jack located on the back of the unit and a standard IEC 320-type AC power receptacle.
  • Page 10 • AC 115V (North American): use a UL-listed and CSA-certified cord set consisting of a minimum 18 AWG, type SVT or SJT three-con- ductor cord, a maximum of 15 feet in length and a parallel blade, grounding-type attachment plug rated 15A, 125V. •...
  • Page 11: User Guide

    User Guide This section contains more detailed information regarding the operating features of the Metrobility T3/E3 media converter. LED Indicators The Metrobility T3/E3 media converter provides several LEDs on the front panel for the visible verification of unit status and proper functionality. These LEDs can aid in troubleshooting and overall network diagnosis and management.
  • Page 12: Theory Of Operation

    Theory of Operation Functional Block Diagram Line Fiber Interface FPGA Optic Coaxial Fiber Unit Circuit VCXO Line Transformers Coaxial to Fiber Data Path The receive (RX) port on the coaxial interface accepts an electrical signal. This signal is coupled to the line interface unit (LIU) through a line transformer. The LIU performs clock and data recovery and converts the signal into non-return to zero (NRZ) data and clock.
  • Page 13 Local Remote T3/E3 T3/E3 Coaxial Fiber Coaxial Unit Unit The following table describes how timing is affected if a failure occurs at various points in the network. s ' r n i l s ' t s t i s t i v i t , y l l i a...
  • Page 14: Link Loss Indications

    Link Loss Indications The following examples show the status of the LK LED under various link condi- tions and describe when unframed all ones are generated. (Loopback is disabled in these examples.) Note: An all-ones pattern indicates an alarm indication signal (AIS) for the E3 units only.
  • Page 15 Local T3/E3 Remote T3/E3 Remote Local Unit Unit Device Device Coax Fiber Coax All Ones green LED unlit LED Remote Coaxial Link Loss Loss of link to the remote device produces a red alarm condition at the remote site and should force the device to revert to its internal clock. If the remote device is configured to send back a yellow alarm under this condition, the two T3/E3 units will carry the alarm forward to the local device, as shown below.
  • Page 16: Loopback Modes

    Loopback Modes The Metrobility T3/E3 media converter features two loopback modes to help verify correct installation and to diagnose system problems. Normal During normal operation, without loopback, data from a local device (CSU, PBX, etc.) enters the local T3/E3 unitʼs coaxial receiver, passes through the fiber line be- tween the two converters, then exits the remote unitʼs coaxial transmitter to enter the remote equipment, and vice versa.
  • Page 17 Fiber Loopback In this mode, the incoming data and clock on the fiber line are looped back. The loop occurs in the FPGA. The data is still sent out the coaxial transmitter. How- ever, the data received at the BNC interface is ignored. In the example below, the remote T3/E3 unit has fiber loopback enabled.
  • Page 18: Topology Solutions

    Topology Solutions The Metrobility T3/E3 model is a point-to-point media converter designed to extend the reach of copper T3/E3 links and to provide protection from power surges and electromagnetic interference. Each model supports a single remote T3/E3 unit. Private Branch Exchange (PBX) up to 100km singlemode Metrobility T3/E3 Model...
  • Page 19: Technical Specifications

    Technical Specifications Network Connections Coaxial Interface Connector ______________________________________________ BNC receptacle Impedance ____________________________________________________ 75 ohms Signal Structure ________________________________ ANSI T1.404, T1404a (T3) _________________________________________ ITU G.703 (E3) Supported Link Length _______________________________________up to 1200 ft Cable Type _________________________________________ RG-59 coaxial cable Multimode Fiber Optic Interface Connector ___________________________________________________ ST or SC Wavelength ___________________________________________________ 1310 nm RX Input Sensitivity _______________________________ -31 dBm peak minimum...
  • Page 20 Singlemode Fiber Optic Interface — extended long haul distance support Connector ________________________________________________________ SC Wavelength ___________________________________________________ 1550 nm RX Input Sensitivity ____________________________________-37 dBm minimum Output Power _______________________________ -3.0 dBm to 0 dBm (9/125 µm) Supported Link Length ______________________________up to 100km full duplex Cable Type __________________________ 8.3/125, 8.7/125, 9/125, 10/125 µm F/O Singlemode BWDM Fiber Optic Interface Connector ________________________________________________________ SC...
  • Page 21: Acronyms And Abbreviations

    Acronyms and Abbreviations This list defines the acronyms and abbreviations used in this guide. AIS Alarm Indication Signal ANSI American National Standards Institute AWG American Wire Gauge B3ZS Bipolar Three Zeroes Substitution T3 line coding BNC Bayonet-Neill-Concelman connector BWDM Bidirectional Wavelength Division Multiplexed CLP Copper Loopback CSA Canadian Standards Association CSU Channel Service Unit...
  • Page 22: Product Safety, Emc And Compliance Statements

    Product Safety, EMC and Compliance Statements This equipment complies with the following requirements: • UL • ITU-G.703 • CSA • G.704 • EN60950 (safety) • G.706 • FCC Part 15, Class A • ANSI T1.403-1999 • EN55022 Class A (emissions) •...
  • Page 23: Warranty And Servicing

    Telco’s option and expense, to repair the defective product or part or deliver to Customer an equivalent product or part to replace the defective item. All products that are replaced will become the property of Telco Systems. Replacement products or parts may be new or reconditioned.
  • Page 24 US Headquarters 2 Hampshire Street Suite 3A Foxboro MA USA 02035 tel: 1.781.551.0300 • fax: 1.781.255.2344 www.telco.com Int'l Headquarters Germany Asia Pacific France tel: +972.9.866.2525 tel: +49 (0) 5331.8824.0 tel: (65) 6722.529901 tel: +33 (0) 1,567.12.773 5660-000042 E 12/06...
