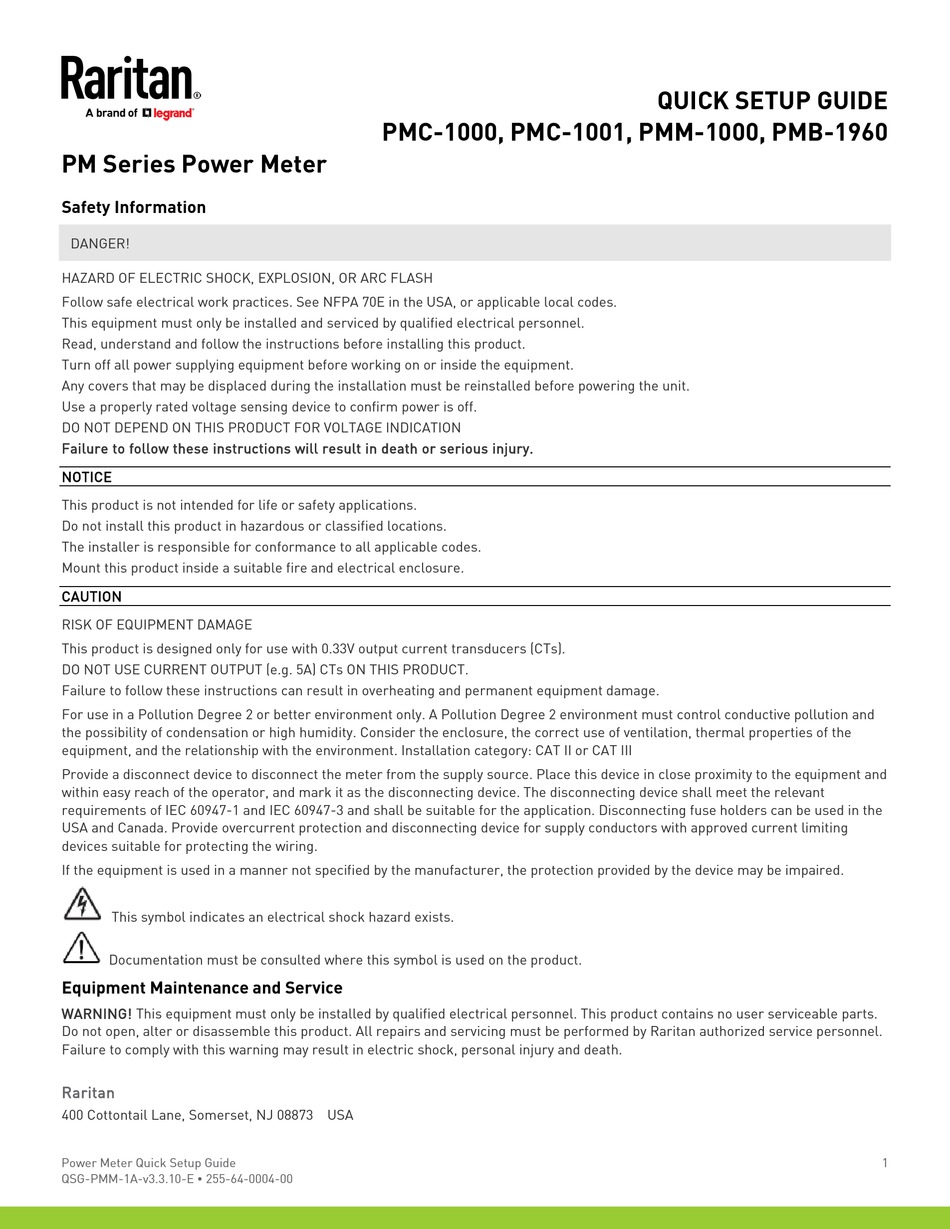

QUICK SETUP GUIDE
PMC-1000, PMC-1001, PMM-1000, PMB-1960
PM Series Power Meter

Safety Information

DANGER!
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
Follow safe electrical work practices. See NFPA 70E in the USA, or applicable local codes.
This equipment must only be installed and serviced by qualified electrical personnel.
Read, understand and follow the instructions before installing this product.
Turn off all power supplying equipment before working on or inside the equipment.
Any covers that may be displaced during the installation must be reinstalled before powering the unit.
Use a properly rated voltage sensing device to confirm power is off.
DO NOT DEPEND ON THIS PRODUCT FOR VOLTAGE INDICATION
Failure to follow these instructions will result in death or serious injury.
NOTICE
This product is not intended for life or safety applications.
Do not install this product in hazardous or classified locations.
The installer is responsible for conformance to all applicable codes.
Mount this product inside a suitable fire and electrical enclosure.
CAUTION
RISK OF EQUIPMENT DAMAGE
This product is designed only for use with 0.33V output current transducers (CTs).
DO NOT USE CURRENT OUTPUT (e.g. 5A) CTs ON THIS PRODUCT.
Failure to follow these instructions can result in overheating and permanent equipment damage.
For use in a Pollution Degree 2 or better environment only. A Pollution Degree 2 environment must control conductive pollution and
the possibility of condensation or high humidity. Consider the enclosure, the correct use of ventilation, thermal properties of the
equipment, and the relationship with the environment. Installation category: CAT II or CAT III
Provide a disconnect device to disconnect the meter from the supply source. Place this device in close proximity to the equipment and
within easy reach of the operator, and mark it as the disconnecting device. The disconnecting device shall meet the relevant
requirements of IEC 60947-1 and IEC 60947-3 and shall be suitable for the application. Disconnecting fuse holders can be used in the
USA and Canada. Provide overcurrent protection and disconnecting device for supply conductors with approved current limiting
devices suitable for protecting the wiring.
If the equipment is used in a manner not specified by the manufacturer, the protection provided by the device may be impaired.
This symbol indicates an electrical shock hazard exists.
Documentation must be consulted where this symbol is used on the product.
Equipment Maintenance and Service
WARNING! This equipment must only be installed by qualified electrical personnel. This product contains no user serviceable parts.
Do not open, alter or disassemble this product. All repairs and servicing must be performed by Raritan authorized service personnel.
Failure to comply with this warning may result in electric shock, personal injury and death.
Raritan
400 Cottontail Lane, Somerset, NJ 08873 USA
Power Meter Quick Setup Guide
1
QSG-PMM-1A-v3.3.10-E  255-64-0004-00
