Summary of Contents for Sonotec SONAPHONE T

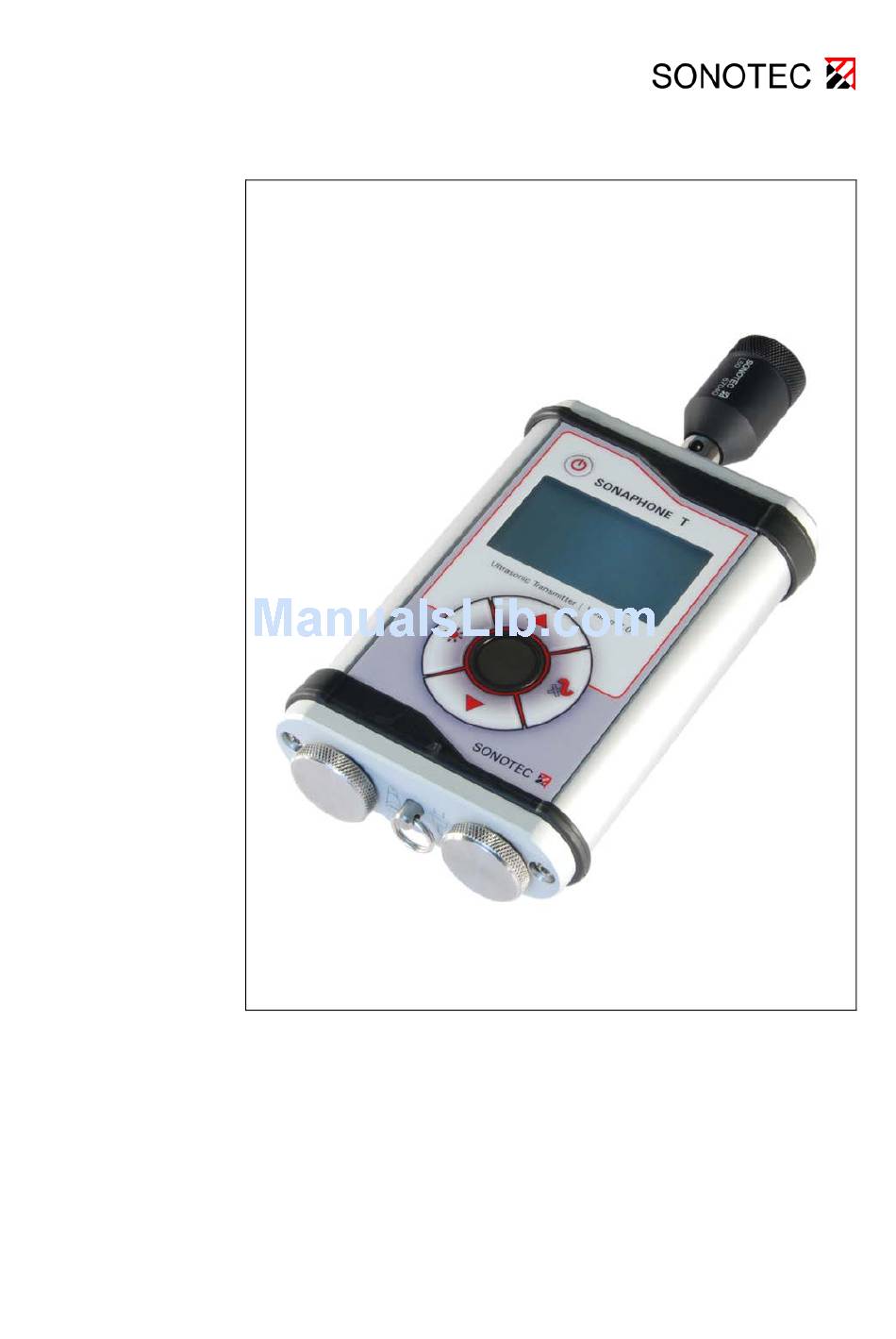

- Page 1 Ultrasonic Transmitter SONAPHONE T Version 2.0 Operating Manual...
- Page 2 © 2013 SONOTEC Ultraschallsensorik Halle GmbH All rights reserved The content of this manual is the property of SONOTEC Ultraschallsensorik Halle GmbH and is protected by copyright. Duplication and distribution in any form, particularly reprinting, photographic, mechanical or electronic reproduction, or in the form of storage in data processing systems or data networks, is prohibited without the consent of the copyright holder.
-
Page 3: Table Of Contents
Installing probes ........................ 10 Uninstalling probes ......................11 Operating the SONAPHONE T ....................12 Switching the SONAPHONE T on and off ................ 12 Setting the sound intensity ....................12 Switching on modulation ....................12 Switching on the light ......................12 Setting the display contrast and time ................ -
Page 4: Notes On The Operating Manual
General Thank you for choosing the SONAPHONE T. This manual forms part of the SONAPHONE T and should therefore be stored in its immediate vicinity where it can be accessed by all operators at any time. It contains all the information needed to ensure proper and efficient use, along with all the instructions to ensure safe operation of the SONAPHONE T. -
Page 5: Safety
2 Safety Safety Safety information The SONAPHONE T is a state of the art product that complies with all applicable safety regulations. The manufacturer has taken every possible action to guarantee safe operation. The user must ensure that safe use is not impaired. -
Page 6: Device Description
3 Device description Device description Designated use The SONAPHONE T is a special ultrasonic transmitter and serves as an auxiliary device for ultrasonic detectors in the SONAPHONE series for leak testing. The device provides detection of seal failures in windows, doors, cabins, climatic cabinets, vehicles or containers, which have sealing surfaces or rubber profile seals. -
Page 7: Display And Operating Buttons
Table 2: Description of the display elements Description of the operating buttons: Figure 3: Operating buttons Function Settings in the menu: Increase or decrease value Modulation: On/Off Enter key: Switch to menu or confirm value Light: On/Off Table 3: Description of the operating buttons SONAPHONE T... -
Page 8: L50 Ultrasonic Air Transducer
Depending on requirements, it can be used as a semi-sphere with 7 transmitters or as a full sphere with 14 transmitters. Figure 5: SONOSPHERE spherical transmitter Function Connecting cable Plug-in connector for the sphere halves 3, 4 Fixing: with suction cup, magnet or stand (without fig.) SONAPHONE T... - Page 9 3 Device description Table 5: Elements of the spherical transmitter SONAPHONE T...
-
Page 10: Commissioning And Installing
The slot for probes is provided with a notch which indicates the correct position for insertion. Install the required probe in the specified position. You must feel the connector click into place. The probe is installed and ready to use. SONAPHONE T... -
Page 11: Uninstalling Probes
4 Commissioning and installing Uninstalling probes Press the button to unlock the connector. Pull the probe carefully and straight to remove it from the slot. SONAPHONE T... -
Page 12: Operating The Sonaphone T
5 Operating the SONAPHONE T Operating the SONAPHONE T Switching the SONAPHONE T on and off Switch the device on or off by pressing the On/Off button. The screen shows the device name and version number for a short time. -
Page 13: Setting The Display Contrast And Time
5 Operating the SONAPHONE T Setting the display contrast and time Note Contrast and time can be selected individually. The points are dealt with one after the other via the menu navigation. To adapt the view to individual ambient conditions, the display contrast can be altered. -
Page 14: Cleaning And Care
6 Cleaning and care | 7 Maintenance and troubleshooting Cleaning and care Caution! Incorrect cleaning of the SONAPHONE T and its parts may damage the device. Cleaning is prohibited • with abrasive and aggressive cleaning agents • by immersion in liquids. -
Page 15: Technical Data
Optional Laptop carrying bag with foam plastic accessories Extension for the probes Power supply unit SONOSPHERE spherical transmitter Table 6: Technical data for SONAPHONE T SONOSPHERE Half or full spherical transmitter Dimension Ø 100 mm Weight 620 g without accessories Operating -10 °C ...
