Summary of Contents for Envision Ware RFID-READER PL

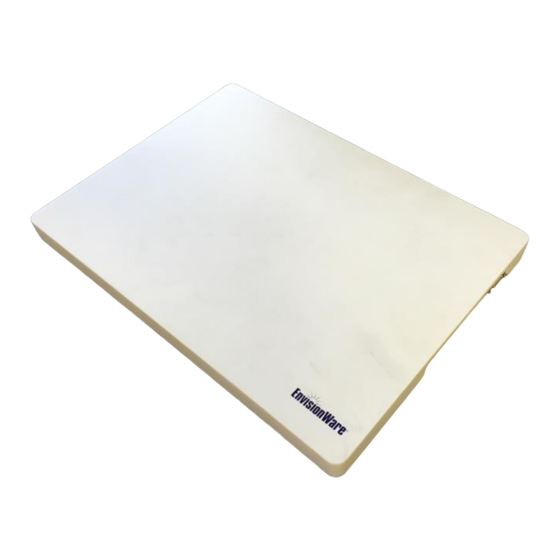

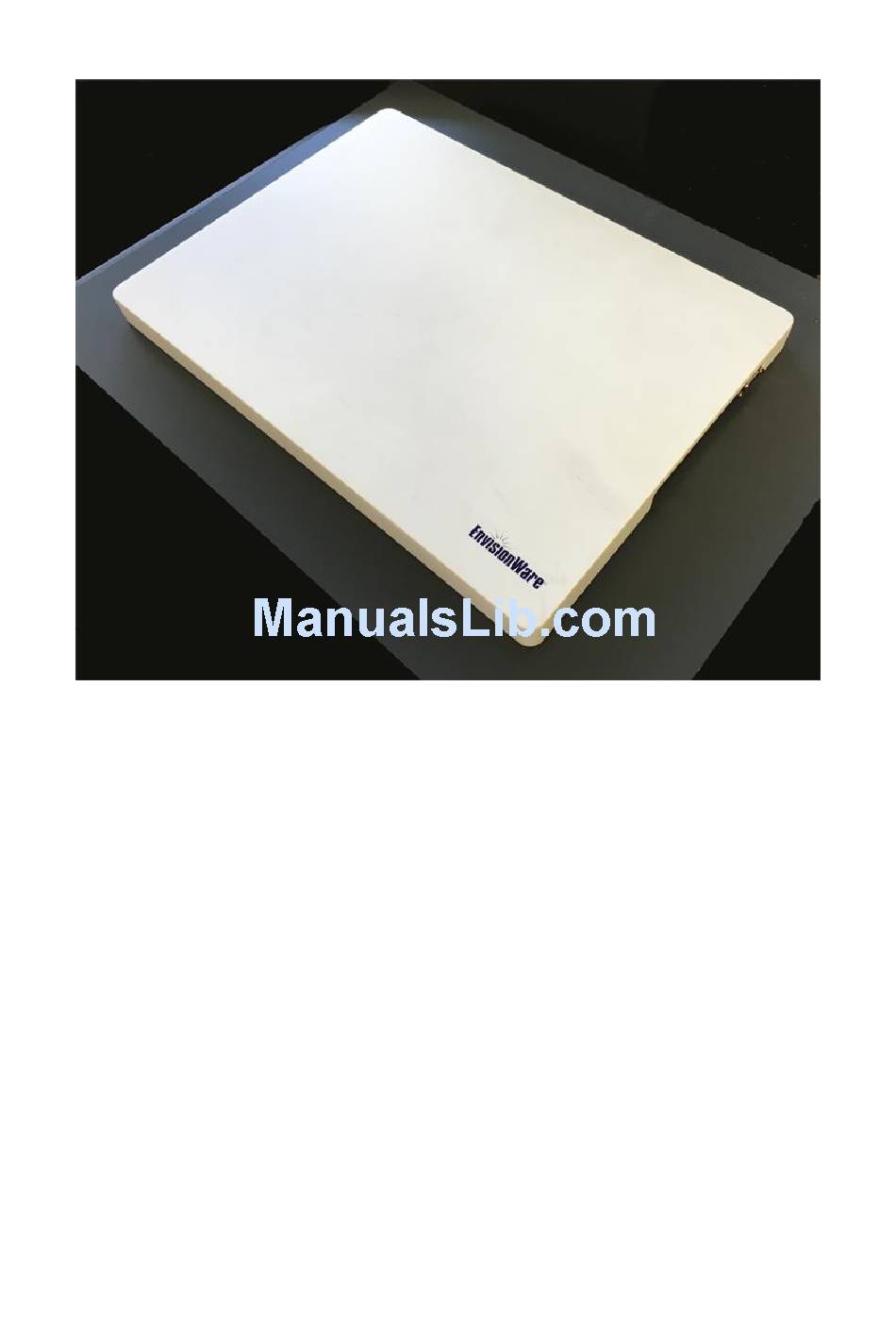

- Page 1 RFID Deskpad Reader Model RFID-READER PL User Guide Revision 1.0...
-
Page 2: Table Of Contents
Contents Product Description RFID-READER PL..............3 Features ........................... 3 Specifications........................3 Absolute Maximum Ratings ..................4 DC Characteristics ......................4 Connections ........................5 Installing the USB Drivers .................... 5 Reader setup tool--Px Explorer .................. 6 Install Px Explorer ......................6... -
Page 3: Product Description Rfid-Reader Pl
1. Product Description RFID-READER PL is a high performance ISO15693 protocol HF RFID reader. It is designed upon fully self-intellectual property. Based on proprietary efficient anti-collision algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID... -
Page 4: Absolute Maximum Ratings
Storage Temperature -20° to +70° C Supported Transponders ISO 15693 (ISO 18000-3 MODE 1) Protection class IP30 Relative air humidity 5…95 % (non-condensing) 4. Absolute Maximum Ratings 5. DC Characteristics... -
Page 5: Connections
- The virtual COM port (VCP) driver. The VCP driver emulates a standard PC COM port. After installation of the drivers, power up and connect your RFID-READER PL to a spare USB port on your PC to launch the Windows Found New hardware Wizard - Select “No, not this time”... -
Page 6: Reader Setup Tool--Px Explorer
8. Reader setup tool--Px Explorer The RFID-READER PL is delivered with the Px Explorer software tool intended to easily setup the reader, test it and perform reading and writing operations according to the antenna and type of tag to be used. In addition, Px Explorer can display additional information such as the Product Reference and Firmware version and revision. - Page 7 P200u reader. Open the Device Manager and select “View > Devices by type” Power up the RFID-READER PL and connect the USB cable to both your PC and the RFID-READER PL. Run Px Explorer. If the following window is displayed click yes.
-
Page 8: 10. Reading And Writing A Tag
RFID-READER PL is 115200 Bauds Click OK. Now Px Explorer is ready to communicate with your RFID-READER PL. Reading and Writing a Tag Px Explorer includes a Wizard function used to guide you each step of how to read or program a tag. We recommend using the Wizard function for users who are not familiar with all Px Explorer capabilities and features. - Page 9 Select the type of chip from the drop–down menu or place the tag on the antenna and click the “Detect “ button to automatically detect the tag type. Select the desired operation (Read or Write) and then click OK. All the necessary windows to perform the desired action will be automatically displayed on the screen.
