lmp LiNKTEMP User Manual

Non-contact
Hide thumbs Also See for LiNKTEMP:
Table of Contents

Advertisement

Quick Links

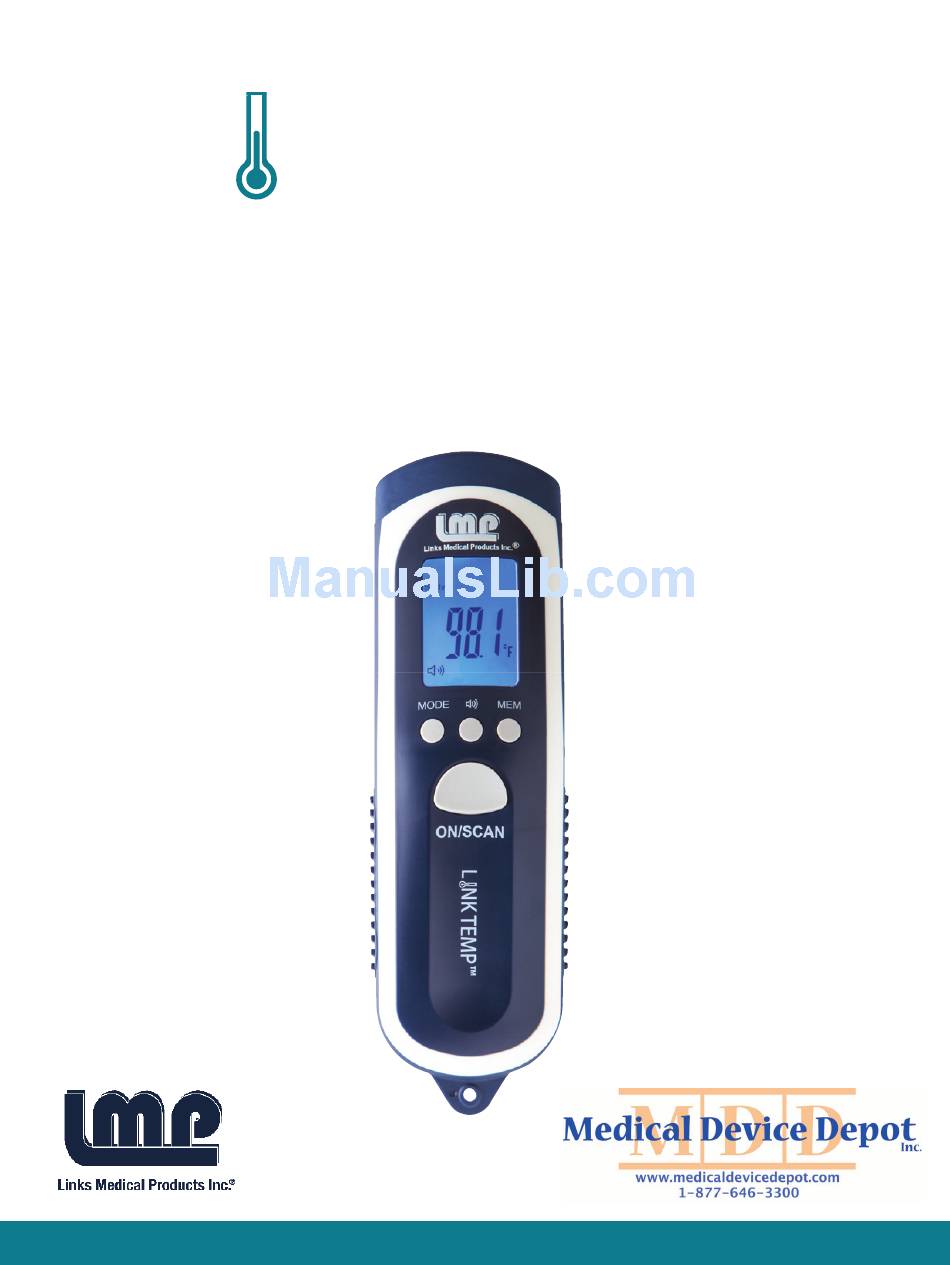

TEMP
L NK
TM
Non-contact
Infrared Thermometer
User Manual
LMP001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LiNKTEMP and is the answer not in the manual?

Questions and answers

Related Manuals for lmp LiNKTEMP

Summary of Contents for lmp LiNKTEMP

  • Page 1 TEMP L NK Non-contact Infrared Thermometer User Manual LMP001...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Product Description Intended Use Product Features Safety Precautions Using the Thermometer Taking a Measurement Temperature Mode Temperature Unit Viewing Data Memory Deleting Data Memory Setting Alarm Temperature Audio Setting High Temperature Alarm Low Battery Detection Changing the Battery Technical Speci cations Product Maintenance Cleaning and Disinfecting Instructions...

  • Page 3: Product Description

    Product Description LinkTemp™ is a professional grade thermometer that measures body (forehead), surface and room/ambient temperature instantly and accurately. The LinkTemp Non-contact Infrared Thermometer can be used as a non-invasive screening tool in a multi-patient environment. Intended Use LinkTemp is a non-contact, infrared thermometer intended to measure forehead temperature in a professional healthcare environment.
  • Page 4 • This device must only be used in an ambient temperature range of between 50˚F - 104˚F (10˚C - 40˚C). • Always keep device in a clean, dry area. • Do not expose the thermometer to electric shocks. • Do not expose the thermometer to extreme temperature conditions.

  • Page 5: Using The Thermometer

    The LinkTemp Non-contact Infrared Thermometer is pre-set at the factory. It is not necessary to calibrate the device when starting it up. However, in order to obtain reliable results, you are advised to allow the thermometer to acclimate to room/ambient temperature for 15 to 20 minutes before using each time there is a signi cant change in environmental temperature.

  • Page 6: Taking A Measurement

    Surface Temp Mode Body Temp Mode Room Temp Mode Celsius Temperature Display Value Fahrenheit Audio ON (English or Spanish) Memory Low Battery Indicator Taking a Measurement Taking a Measurement Taking a Measurement 1. Press ON/SCAN button to power on the thermometer. When the devise is ready, the LCD screen will turn blue.

  • Page 7: Temperature Mode

    5. The thermometer automatically turns o after 30 seconds of inactivity. Temperature Mode The LinkTemp Non-contact Infrared Thermometer can take body, surface or room/ambient temperature. 1. While the thermometer is turned on, press the MODE button to toggle through the three temperature mode options - BODY, SURFACE or ROOM.

  • Page 8: Temperature Unit

    Celsius and MODE button for Fahrenheit. Con rm by pressing MEM button. Then to exit the setting, press MEM button quickly two times. NOTE: The LinkTemp Non-contact Infrared Thermometer default setting is Fahrenheit. Viewing Data Memory 1. While the thermometer is turned on, press MEM button, which will display the last temperature reading.

  • Page 9: Setting Alarm Temperature

    Setting Alarm Temperature 1. While the thermometer is turned on, press the MODE and the button at the same time for 3 seconds. The screen will display F-1. 2. Press the MEM button one additional time to get F-2. Select MODE button to add 0.1˚F or 0.1˚C.

  • Page 10: Low Battery Detection

    BODY and SURFACE temp modes will display an ERR1 message and send out 2 sounds in a blue backlit screen. Low Battery Detection If the battery voltage is not more than 2.7V, the LinkTemp Non-contact Infrared Thermometer will display the ashed symbol to remind you to replace both batteries.

  • Page 11: Technical Speci Cations

    6.81” x 2.05” x 1.77” (173 x 52 x 45 mm) in L x W x H Warranty 18 months NOTE: The LinkTemp Non-contact Infrared Thermometer can take temperature readings below 89.6˚F or above 109.2˚F (32˚C or above 42.9˚C) but precision is not guaranteed outside of...

  • Page 12: Product Maintenance

    NOTE: The LinkTemp Non-contact Infrared Thermometer was conceived for professional use and should provide approximately 100,000 readings. Product Maintenance • The infrared sensor is the most important and fragile part of the thermometer. Take care when using, storing or cleaning.
  • Page 13 • 1/100 1% Bleach • Alcohol prep pads Disinfection should be carried out as per standard clinic procedures. No special precautions or procedures are required for the LinkTemp thermometer. If you have any questions, please contact our customer service department at (888) 425-1149.

  • Page 14: Accessories Included

    3. IP22 4. Continuous operation Troubleshooting If you have problems while using the LinkTemp Non-contact Infrared Thermometer, please refer to the following guide to help resolve the problem. If the problem persists, please contact our customer service department at (888) 425-1149.
  • Page 15 2. Under BODY mode: • When the measured value is < 89.6˚F (32˚C), the thermometer beeps once and reads Lo. • When the measured value is ≥ 89.6˚F (32˚C) and < the setting alarm temperature (factory default setting is 100.4˚F (38˚C), the thermometer beeps and reads the temperature.
  • Page 16 5. Under the SURFACE TEMP mode: • When measured value is < 32˚F (0˚C)， the thermometer beeps once and reads Lo. • When the measured value is ≥ 32˚F (0˚C) and ≤ 140˚ (60˚C), the thermometer beeps once and reads the temperature. •...
  • Page 17 Reasons for Lo message display Advice Make sure there is no obstruction Temperature reading is hampered or dampness prior to taking by hair or perspiration. temperature. Make sure there is no air blowing in Temperature hampered by an air the area of use, this could a ect the draft or dramatic change in ambient infrared reading.
