Industrial Scientific Ventis Pro Series Product Manual

Industrial Scientific Ventis Pro Series Product Manual

Gas detector
Hide thumbs Also See for Ventis Pro Series:
Table of Contents

Advertisement

Quick Links

See also: Product Manual

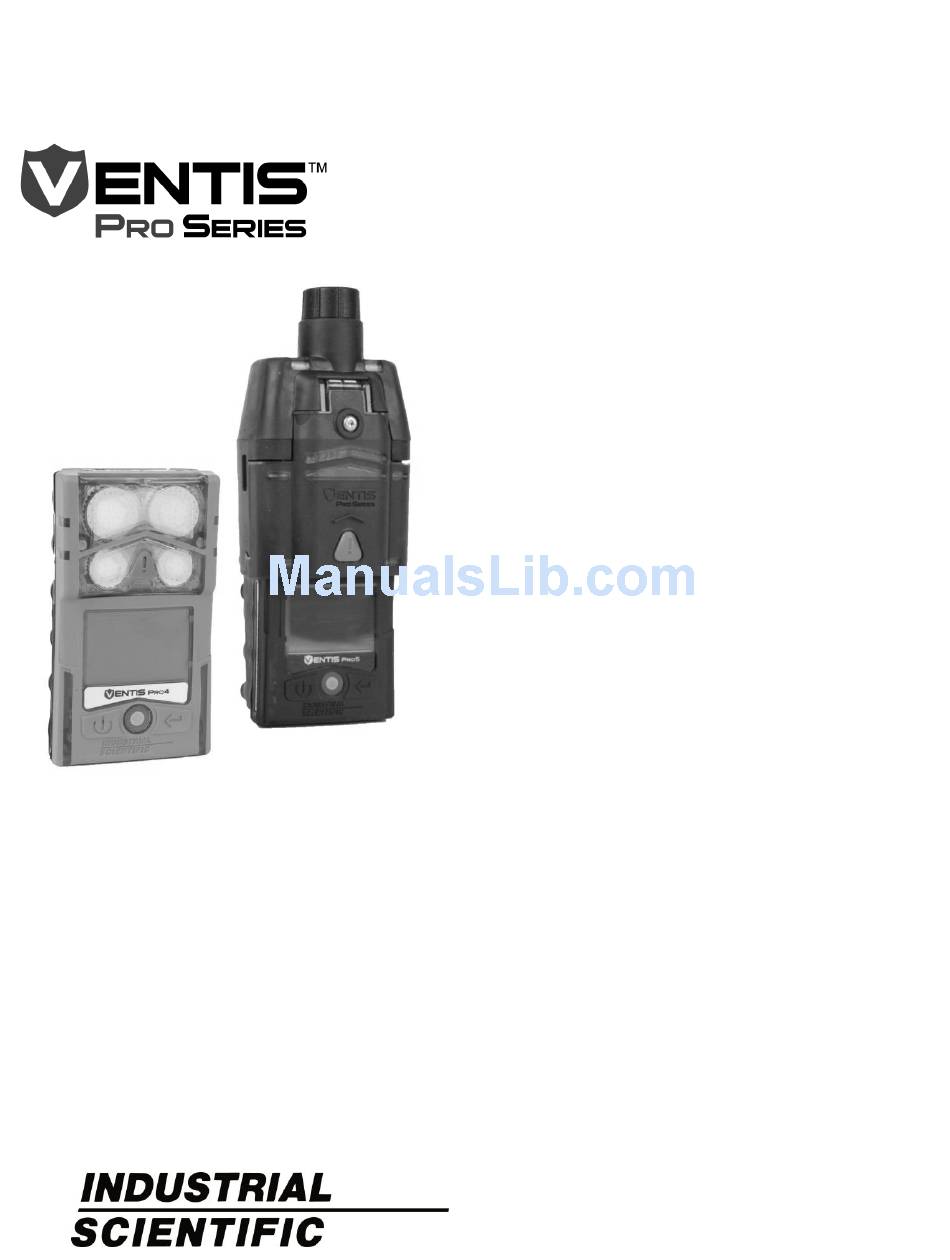

Product
Manual
The Essential Guide for
Safety Teams and
Instrument Operators
Edition 3
March 23, 2016
Part Number: 17156830-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ventis Pro Series and is the answer not in the manual?

Questions and answers

Related Manuals for Industrial Scientific Ventis Pro Series

Summary of Contents for Industrial Scientific Ventis Pro Series

  • Page 1 Product Manual The Essential Guide for Safety Teams and Instrument Operators Edition 3 March 23, 2016 Part Number: 17156830-1...
  • Page 2 Industrial Scientific Corporation, Pittsburgh, PA USA Industrial Scientific Co., Ltd. Shanghai, China © 2015, 2016 Industrial Scientific Corporation All rights reserved. Published 2016. Revision 1 www.indsci.com/ventispro...

  • Page 3: Table Of Contents

    Contents General Information ..................................1 Certifications ....................................1 Warnings and Cautionary Statements ............................2 Recommended Practices ................................4 Instrument Maintenance ................................4 First Use ....................................5 Wearing the Instrument ................................5 Remote Sampling ..................................6 Cold-weather Operation ................................6 Product Information ................................... 7 Overview .......................................
  • Page 4 The Instrument Buttons ................................49 The Instrument Display ................................50 Operating the Instrument ................................50 Information ....................................50 Utilities ....................................50 Wearing the Instrument ................................52 Alarms and Warnings At-a-glance .............................. 52 Alarms ..................................... 52 Warnings ....................................53 User-site Assignments ................................54 Alarms, Warnings, and Other Notifications .............................
  • Page 5 Tables and Figures Table 1.1 Hazardous area certifications ............................1 Table 1.2 Wireless certifications ............................... 2 Table 1.3 Warnings and cautionary statements ..........................2 Table 1.4 Recommended frequencies for instrument maintenance ....................5 Figure 2.1.A Sensor compatibility and installation locations for the Ventis Pro4 ................9 Figure 2.1.B Sensor compatibility and installation locations for the Ventis Pro5 ................
  • Page 6 Figure 7.1 Maintenance supplies and preparation .......................... 62 Table 7.1 Calibration failure: possible causes and recommendations .................... 66 Figure 8.1 Instrument diagram ............................... 68 Figure 8.2 Pump module diagram ..............................69 Table 8.1 Instrument and pump module parts list ........................... 69 Figure 8.3 Service Tasks ................................

  • Page 7: General Information

    General Information Certifications Warnings and Cautionary Statements Recommended Practices Certifications Instrument certifications at the time of this document's publication are listed below in Tables 1.1 and 1.2. Table 1.1 Hazardous area certifications Certifying Body Area Classifications or Identification Number Approved (CB) Temperature Range ATEX...

  • Page 8: Warnings And Cautionary Statements

    Table 1.3 Warnings and cautionary statements If it appears that the instrument is not working correctly, immediately contact Industrial Scientific. Only qualified personnel should operate, maintain, and service the instrument. Substitution of components may impair intrinsic safety, which may cause an unsafe condition.
  • Page 9 Table 1.3 Warnings and cautionary statements  If the temperature suddenly decreases, the CO reading will temporarily increase and the H S reading may temporarily decrease. The readings will stabilize when the sensor has acclimated to the change in temperature. For example, if the ambient-air temperatures changes from a "room temperature"...

  • Page 10: Recommended Practices

    Table 1.4. These recommendations are provided to help support worker safety and are based on field data, safe work procedures, industry best practices, and regulatory standards. Industrial Scientific is not responsible for determining a company’s safety practices or establishing its safety policies, which may be affected by the directives and recommendations of regulatory groups, environmental conditions, operating conditions, instrument use patterns and exposure to gas, and other factors.

  • Page 11: First Use

    The instrument performs a self-test during power on. For an instrument that is set for always-on, the instrument will automatically perform a self-test every 24 hours. The self-test can also be completed on demand by the instrument user. Note: The use of calibration gases not provided by Industrial Scientific may void product warranties and limit potential liability claims. First Use...

  • Page 12: Remote Sampling

    When sampling with the aspirated instrument, allow time for the air sample to reach the sensors and for the sensors to respond to any gases that are present. Industrial Scientific recommends the allowance of two minutes plus two seconds for each foot of sample tubing.

  • Page 13: Product Information

     Data storage for up to 60 alarm events, 30 error events, and 250 manual calibrations and bump tests  Downloadable using compatible accessories that are supported by iNet®, DSSAC, or Accessory Software from Industrial Scientific. Ventis™ Pro Series instruments use a multisensory alarm-warning-indicator system comprising audible, visual, and vibration signals.

  • Page 14: Compatibility

     The panic button provides instrument operators with the ability to turn on (and off) the instrument’s high-level alarm. This can alert others who are nearby that the instrument operator is in distress, someone else is in distress, or there is some concern about in-field circumstances. ...

  • Page 15: Figure 2.1.A Sensor Compatibility And Installation Locations For The Ventis Pro4

    Locations 1 or 2 Location 2 only Hydrogen Sulfide (H S); 17155304-2 LEL (Pentane); 17155304-K Oxygen (O ); 17155304-3 LEL (Methane); 17155304-L Methane, 0-5% vol; 17155304-M Locations 3 or 4 Carbon Monoxide (CO); 17155306-1 Carbon Monoxide with low Hydrogen cross-sensitivity (CO/H Low);...

  • Page 16: Batteries

    As shown below, the battery pack is compatible with the diffusion instrument only. The extended run-time battery can be installed for use with a diffusion or aspirated instrument. Table 2.2 Battery compatibility Rechargeable Batteries Part number Lithium-ion battery pack Extended-run-time Lithium-ion battery 17134453 17148313 Compatibility Ventis Pro Series diffusion Ventis Pro Series aspirated...

  • Page 17: Specifications

    Specifications Instrument The Ventis Pro Series’ instrument specifications are provided below in Table 2.3. Table 2.3 Instrument and pump specifications Item Description Display Monochrome LCD with automatic backlight User interface buttons Three (power button, enter button, and panic button) Case materials...

  • Page 18: Battery Specifications

    Battery Specifications Table 2.4 provides battery specifications, which include run time, charge time, charging temperature requirements, and expected lifetime. Table 2.4 Battery specifications Rechargeable Batteries Part number Lithium-ion battery pack Extended-run-time Lithium-ion battery 17134453 17148313 Llifetime 300 charge cycles 300 charge cycles Run time 12 hours 24 hours...

  • Page 19: Table 2.5 Sensor Specifications

    Table 2.5 Sensor specifications Gas type (abbreviation) Part number Ammonia (NH Carbon Dioxide/Hydrocarbons (CO /HC) 17155306-6 17155304-U Properties Category Toxic Toxic/Combustible Technology Electrochemical Infrared DualSense™ capable Installation location Ventis Pro4 None None Ventis Pro5 3 or 4 Operating conditions Temperature range -20 to +40 °C (-4 to +104 °F) -20 to +50 °C (-4 to +122 °F) RH range...
  • Page 20 Table 2.5 Sensor specifications Gas type (abbreviation) Part number Carbon Dioxide/Methane (CO 17155304-V Properties Category Toxic and Combustible Technology Infrared DualSense™ capable Installation location Ventis Pro4 None Ventis Pro5 Operating conditions Temperature range -20 to +50 °C (-4 to +122 °F) RH range 0-95% Performance...
  • Page 21 Table 2.5 Sensor specifications Gas type (abbreviation) Part number Carbon Monoxide (CO) Carbon Monoxide and Carbon Monoxide and Hydrogen Sulfide Hydrogen Sulfide (CO/H (CO/H 17155306-1 17155306-J 17155304-J Properties Category Toxic Toxic Toxic Technology Electrochemical Electrochemical Electrochemical DualSense™ capable Installation location Ventis Pro4 3 or 4 None...
  • Page 22 Table 2.5 Sensor specifications Gas type (abbreviation) Part number Hydrogen Cyanide (HCN) Carbon Monoxide with low Hydrogen cross-sensitivity (CO/H Low) 17155306-G 17155306-B Properties Category Toxic Toxic Technology Electrochemical Electrochemical DualSense™ capable Installation location Ventis Pro4 3 or 4 3 or 4 Ventis Pro5 3 or 4 3 or 4...
  • Page 23 Table 2.5 Sensor specifications Gas type (abbreviation) Part number Hydrogen Sulfide (H Hydrogen Sulfide (H 17155304-2 17155306-2 Properties Category Toxic Toxic Technology Electrochemical Electrochemical DualSense™ capable Installation location Ventis Pro4 1 or 2 3 or 4 Ventis Pro5 1 or 2 3 or 4 Operating conditions Temperature range...
  • Page 24 Table 2.5 Sensor specifications Gas type (abbreviation) Part number LEL (Methane) LEL (Pentane) Methane, 0-5% vol 17155304-L 17155304-K 17155304-M Properties Category Combustible Combustible Combustible Technology Catalytic bead Catalytic bead Catalytic bead DualSense™ capable Installation location Ventis Pro4 Ventis Pro5 Operating conditions Temperature range -20 to +55 °C (-4 to +131 °F) -20 to +55 °C (-4 to +131 °F)
  • Page 25 Table 2.5 Sensor specifications Gas type (abbreviation) Part number Nitrogen Dioxide (NO Oxygen (O Sulfur Dioxide (SO 17155306-4 17155304-3 17155306-5 Properties Category Toxic Oxygen Toxic Technology Electrochemical Electrochemical Electrochemical DualSense™ capable Installation location Ventis Pro4 3 or 4 1 or 2 3 or 4 Ventis Pro5 3 or 4...

  • Page 27: Getting Started

    The items that are shipped with the unit are listed below in Table 3.1. Each item should be accounted for during the unpacking process. If any item is missing or appears to have been damaged, contact Industrial Scientific (see back cover) or an authorized distributor of Industrial Scientific products. Table 3.1 Package contents...

  • Page 28: Hardware Overview

    Hardware Overview The instrument's main hardware components are identified below in Figures 3.1.A and 3.1.B for the diffusion and aspirated instruments, respectively (Ventis Pro5 shown). Front Red lights Sensor ports Sensor ports Panic button Blue lights Display screen Speaker iAssign™ touch area Power button Enter button Back...

  • Page 29: Figure 3.1.B Hardware Overview Aspirated Instrument

    Front Intake port Pump door hinge Barrel (houses water barrier) Pump door screw Pump door Panic button Red lights Blue lights Display screen Speaker iAssign™ touch area Power button Enter button Infrared data window Back Pump case (lower portion houses battery) Pump case screw (x4) Figure 3.1.B Hardware overview aspirated instrument...

  • Page 30: Display Overview

    Display Overview The instrument’s easy-to-read display screen has three main horizontal segments. From top to bottom, they are:  Status bar  Gas readings area  Navigation bar The instrument uses these areas to display symbols, numbers, abbreviations, and text in combinations that allow it to clearly communicate with its user: the instrument operator in the field or the safety team members who are responsible for maintaining the instrument.

  • Page 31: Figure 3.2.A Reading The Display During Operation

    Gas readings area In addition to the display of current gas readings, this area communicates status information about the installed sensors. Gas reading Gas, unit of measure, and current reading. Other symbols The indicated sensor is in a general state of failure. The indicated sensor failed zeroing.

  • Page 32: Figure 3.2.B Reading The Display During An Event (Warning Or Alarm)

    Status bar Gas readings area In the event of a warning or alarm, the gas readings area communicates the Full-screen alarm format event type, details about the alarm, and gas readings for all sensors. (gas-related) Event symbols Gas present, over-range alarm Gas present, high-alarm Gas present, low-alarm Gas present, alert (warning)

  • Page 33: Figure 3.2.C Reading The Display During Maintenance

    Status bar The display screen’s status bar indicates which maintenance procedure is in progress (bump test utility shown here). Utility symbols Bump test utility Zero utility Calibration utility Process in progress. Gas readings area The gas readings area communicates information about the process and results for any maintenance procedures (bump Other symbols test utility shown here).

  • Page 34: Figure 3.2.D Reading The Display While Working In Settings

    Figure 3.2.D Reading the display while working in settings In addition to the items described above, the Ventis Pro Series’ display will also feature, when relevant, the gas names, units of measure, and other symbols shown below.
  • Page 35 The up arrow indicates the number of days until the maintenance procedure is next due. Peak readings. User assignment. Site assignment. Return the instrument to Industrial Scientific. Security code is required. Data exchange or synchronization may be in progress. Indicates that the sensor is operating on DualSense technology.

  • Page 36: Power On

    Verify that all lights are functional. Verify that both signal types message will display. If the functional. are functional. instrument or its operator detect problems, contact Industrial Scientific for assistance.
  • Page 37 Start-up sequence Information Date and time Instrument information Regulatory information Instrument assignments If the battery has been — — Indicates the company, reinstalled or replaced, the person (user), and location instrument operator may be (site) to which the prompted to set the date instrument is currently and time, which can be assigned.

  • Page 38: Figure 3.3 Power On

    Pump test Block inlet Wait — When prompted, use a thumb to block the end of the sampling While the test is in progress, the display screen will ask the line, the water-stop opening. instrument operator to wait. Next, the test results will be displayed as "Passed"...

  • Page 39: Power Off

    Power Off If the instrument is set to remain on, power off may require the entry of the unit’s security code. Home Countdown Enter security code — — Start power-off Hold for the full Enter the Edit the displayed countdown. five-second diplayed value.

  • Page 41: Settings

    Settings that can be adjusted manually through the instrument are described in this Product Manual. These and other settings can also be adjusted through compatible Industrial Scientific docking stations and accessories supported by iNet, DSSAC, and Accessory Software; any changes made manually to the instrument will be overridden when the instrument is docked.

  • Page 42: Settings Menus

    If the code is unknown, settings can be accessed by invalidating the current security-code setting as follows: First, edit the displayed security-code value to 412. Then, simultaneously press and release . The first settings menu (1.0 Maintenance) will display. The instrument's settings can be returned to a protected state by setting a new security code (see the settings menu 6.0 Admin).

  • Page 43: Figure 4.1.A Example For Editing A Single-Item Setting

    Example 1. Editing a single-item setting Goal: Latch the instrument's alarms  From the 1.0 Maintenance menu, navigation leads to the 4.0 Alarm menu where the alarm-latch setting resides. Along the way, the navigation bypasses menus 1.0, 2.0, and 3.0. ...

  • Page 44: Reviewing And Editing Settings

    Press Press Press Press Bypass the settings for O Bypass the settings for CO. Bypass the settings for Highlight the first setpoint LEL. for H S (gas alert). — Press Press Press Press Bypass the gas-alert Bypass the low-alarm Save the new high-alarm Edit the value for the high- setting.

  • Page 45: Maintenance Menu

    Maintenance menu The maintenance menu serves mainly to provide the safety specialist with access to maintenance procedures (utilities), plus some general information and iAssign-related settings. Perform any utility:  Zero the installed sensors.  Calibrate the instrument.  Bump test the installed sensors. ...

  • Page 46: Figure 4.2.A Navigating And Using Maintenance Options

    TWA readings STEL readings Near-field communications User Assignment (current user (NFC) for iAssign highlighted) Next option Clear TWA Next option Clear STEL Next option Turn on or Scroll user Set user readings readings list Site assignment End of menu (current site highlighted) —...

  • Page 47: Start-Up Menu

    Start-up menu Control how the instrument will interact with its operator during start-up: permit or prohibit all-user access to each of item listed below. Maintenance utilities:  Zero the installed sensors.  Bump test the installed sensors. Maintenance status message: ...

  • Page 48: Operation Menu

    Operation menu Control how the instrument will behave during operation. Permit or prohibit all-user access, during operation, to each of the items listed below. Utilities: o Zero the installed sensors. o Calibrate the instrument. o Bump test the installed sensors. o View and optionally clear each summary reading (peak, TWA, or STEL).

  • Page 49: Alarm Menu

    iAssign functionality Temperature display Always-on functionality End of menu Next setting Set all-user Next setting Set unit of Next setting Revisit Access functionality measure functionality operation menus settings Figure 4.2.C Navigating and editing operation settings Alarm menu Control how the instrument will behave during alarms and some warnings. Set for each sensor, the concentration of gas that will cause each possible gas event listed below.

  • Page 50: Figure 4.2.D Navigating And Editing Alarm Settings

    Alarm menu Audio alarm Vibrating alarm Alarm latch Next menu Go to first Next setting Turn on or Next setting Turn on or Next setting Turn on or alarm setting Alert and alarm setpoints (H2S shown) Gas present, alert Gas present, low alarm Gas present, high alarm STEL alarm Next setting...

  • Page 51: Sensor Menu

    Sensor menu Control settings related to calibration and bump testing:  Choose the "quick" or "independent" process for calibration and bump testing, choose. Quick process. This process allows for only one application of gas. It is well suited for installed sensor combinations that use a calibration gas cylinder of the "blended"...

  • Page 52: Admin Menu

    Admin Menu Control the ways in which an instrument will interact with its user and set time-based values that are related to the data-log entries and bump testing. To help protect access to settings, set the instrument's security code value to any three-digit number from 001 to 999.

  • Page 53: Figure 4.2.F Navigating And Editing Admin Settings

    Maintenance intervals Bump test criteria Display-screen language Current date Next setting Set interval Next setting Edit Next setting Choose Next setting Edit values (days) percentage display- and time screen language Current time End of menu End of setting — Next setting Edit values Revisit Access...

  • Page 55: Operation

    Alarms and Warnings At-a-glance User-Site Assignments The Instrument Buttons Ventis Pro Series instruments have three buttons, the power button, the enter button, and the panic button. During operation, the buttons are used as described below in Figure 5.1 Panic Press and hold to turn on (or off) the instrument’s high-level alarm.

  • Page 56: The Instrument Display

    The Instrument Display After a unit has been powered on—its self-test and start-up sequence successfully completed—the gas readings should display. This display screen is referred to as “Home”, which will generally look like the samples shown below for a five-gas instrument (enlarged for detail) and a four-gas instrument. During operation, the home screen will display unless the instrument is using the screen to provide information about an alarm, warning, indicator, or status item, or the instrument operator has accessed another option.

  • Page 57: Figure 5.3 Operation Instruction

     View and optionally clear the peak readings.  View and optionally clear the TWA readings.  View and optionally clear the STEL readings. When a reading is cleared, its value is reset to zero and its time-related setting is also reset to zero. Figure 5.3 (below) describes and illustrates how to access information and utilities.

  • Page 58: Wearing The Instrument

    Alarms notify the instrument operator of danger. The Ventis Pro Series instruments have alarms of two intensities, high and low. Alarms are persistent. They turn off when the alarm-causing event is no longer detected, unless they are latched. A latched alarm can...

  • Page 59: Warnings

    Display screens shown above indicate that gas is present at the high-alarm level ( ). When an alarm is caused by another type of event, the display screens will feature a different symbol as shown below. High alarm Gas present (over-range event) Gas present (high-alarm event) STEL event System error...

  • Page 60: User-Site Assignments

    User-site Assignments iAssign™ tags can be used to change the instrument’s user-site assignments. Each tag can contain a user name, site name, or both. Note: An instrument’s settings may or may not permit the use of iAssign technology. iAssign tag iAssign touch area Results (success and failure shown) To assign the instrument to the user-site data that is on an...

  • Page 61: Alarms, Warnings, And Other Notifications

    Take seriously all alarms, warnings, and indicators, and respond to each according to company policy. Alarms The Ventis Pro Series instruments have alarms of two different intensities, high and low. Alarms are persistent: they turn off when the alarm-causing event is no longer detected; however, if the instrument’s alarm latch setting is on, an alarm will remain on until the user presses to turn it off.

  • Page 62: Table 6.1 Alarm Events (List)

    Table 6.1 Alarm events (list) Alarm symbol Alarm level Alarm event Description Gas alarms The detected gas concentration is outside the sensor’s Gas present High measuring range. (over-range) The detected gas concentration exceeds the high-alarm Gas present High setpoint. (high-alarm) The cumulative measure of a detected gas exceeds the High STEL...

  • Page 63: Figure 6.1 Alarm Events (Display Screens)

    Alarm level: High Gas present, over-range alarm — Gas present, high alarm STEL alarm — Critical low battery System alarm Man-down alarm Panic alarm alarm Alarm level: Low Gas present, low alarm TWA alarm — Figure 6.1 Alarm events (display screens)

  • Page 64: Warnings

    Warnings Warnings turn on and off repeatedly. The more urgent the warning, the shorter the time between on-off occurrences: a warning that repeats every two seconds is more urgent than a warning that repeats every thirty seconds. Warnings persist until the event is resolved. In some cases, an unresolved warning will cause an alarm. For example, if the man-down warning turns on and the instrument operator does not turn it off, the instrument and its signals will change from warning status to alarm status.

  • Page 65: Indicators

    Failures and Errors Some failures and errors are easily resolved by qualified personnel (see Table 6.3 below). For other errors or failures, contact Industrial Scientific for assistance. Table 6.3 Failures and errors The sample display screen (left) indicates a sensor failure. The position of the “F” means it is the LEL sensor that is in failure.

  • Page 66: Table 6.4 Critical Errors

    When a failure is caused by conditions other than those listed above, an error code will display. Some indicate a possible installation error or compatibility issue; qualified personnel may attempt to resolve these and other errors (see Table 6.4 below). For all other error codes, contact Industrial Scientific for assistance. Table 6.4 Critical errors The display screen reproduction shown here (left) is an example of a critical error.

  • Page 67: Maintenance

    This chapter provides instruction for manually completing these utilities: bump testing, zeroing, and calibration. These procedures can also be completed using compatible Industrial Scientific docking stations and accessories that are supported by iNet, DSSAC, or Accessory Software. Elsewhere in this product manual (Chapter 1), are the definitions and recommended practices for each procedure.

  • Page 68: Supplies And Preparation

     Turn on the gas cylinder.  View the results.  Remove the calibration cup.  Turn off the gas cylinder. Supplies and Preparation Use Figure 7.1 as a guide to gathering supplies and preparing the calibration gas cylinders. Supplies ...

  • Page 69: Instruction

    Instruction Figure 7.2.A through 7.2.C provide maintenance instruction in this order: zeroing, calibration, and bump testing. The independent process is shown for calibration and the quick process is shown for bump testing. Zeroing Zero utility Zero Progress Zero Results When the zero is completed, the instrument will emit an audible indicator and display results as follows:...
  • Page 70 Calibration progress Calibration results When the calibration is completed, the instrument will display a calibration results of passed or failed, along with the sensor's span reserve percentage. — Passed The span reserve percentage is an indicator of the sensor's Cancel Failed remaining life.
  • Page 71 Bump testing (quick process shown) Place the prepared Visually inspect the calibration cup over the calibration cup to ensure its instrument case top. edges along the top and sides align with the Press down to secure instrument case top edges. the cup in place;...

  • Page 72: Table 7.1 Calibration Failure: Possible Causes And Recommendations

    Table 7.1 Calibration failure: possible causes and recommendations Possible causes for calibration Recommendations failure The sensor's span reserve percentage is The sensor is due for replacement. less than 50%. The gas cylinder did not contain the Repeat the calibration with a suitable gas cylinder. calibration gas in the concentration needed.

  • Page 73: Service And Warranty

    Service Guidelines Service tasks that can be completed by Industrial Scientific customers are described in this Product Manual. Table 8.1 indicates which parts and components are customer replaceable. All other service tasks should be performed only by Industrial Scientific or an authorized service center.

  • Page 74: Instruction

    Instruction Figures 8.1 and 8.2 provide disassembled views of the instrument and its pump module, respectively, identifying their parts and components. Use Table 8.1 to determine which items are customer replaceable and identify their part names and part numbers. Figure 8.1 Instrument diagram...

  • Page 75: Figure 8.2 Pump Module Diagram

    Figure 8.2 Pump module diagram Table 8.1 Instrument and pump module parts list Diagram Part name Customer Part Notes number replaceable number Instrument 1 (includes Dust barrier kit 18109435 Includes ten of each sensor dust barrier 1A, 1B, and and ten speaker dust barriers. 2 ( includes Case top assembly 17156049-XY...
  • Page 76 Table 8.1 Instrument and pump module parts list Diagram Part name Customer Part Notes number replaceable number Sensor water barrier kit 18109436 Includes one water barrier for each sensor port. 4, 4a, and 5 See "Table 2.5 Sensor specifications" for details about sensor compatibility and permitted installation locations.
  • Page 77 Door assembly 17156945-X X indicates color, where 0 = black and 1 = orange. Gaskets — — Inlet water barrier 17152395 — Inlet cap 17129909 — *For items that are not customer replaceable, contact Industrial Scientific or an authorized service center.
  • Page 78 Power off the instrument before disassembling it or performing any service task. Pump installation Unscrew and remove the Unscrew, lift, and remove the Loosen the pump door screw. Slide the pump door down; belt clip. Store the clip, battery pack from the lift it to open.
  • Page 79 Pump cap and water barrier replacement To unscrew and remove the Remove the water barrier Place the new water barrier inside the inlet barrel; the side pump cap, turn it in a from the inlet barrel. with the larger filter surface should face the user. counterclockwise direction.
  • Page 80 Clip replacement Clip only (use with battery pack) — Lift the clip's cover. To remove the clip, use a torx To attach the clip, put the washer onto the screw and place screwdriver to access the the screw in the clip's middle hole. clip's screw.
  • Page 81 Instrument disassembly Instrument disassembly and reassembly is required for the service tasks described below, sensor water barrier replacement and sensor replacement. Using a torx screwdriver, Lift the battery pack away Using a torx screwdriver, Hold the case bottom near loosen all four captive screws from the instrument.

  • Page 82: Figure 8.3 Service Tasks

    Sensor replacement (LEL sensor shown) Hold the sides of the sensor firmly then pull it straight up and Position the new sensor to Secure the sensor in place by away from the instrument. align its connectors with their applying gentle pressure to receptacles on the the sides of the sensor case.

  • Page 83: Warranty

    Buyer’s actual damages or the price paid to Industrial Scientific for the Products that are the subject of Buyer’s claim. All claims against Industrial Scientific must be brought within one year after the cause of action arises, and Buyer expressly waives any longer statute of limitations.

  • Page 85: Assignments

    Procedures Introduction When user and site names are assigned to Ventis Pro Series instruments, the information is saved in the instrument data log. Assignment data can provide valuable insight into exposure data and user behavior, while being useful when managing assets and investigating potential issues. Instrument assignments can be made using iNet or DSSAC, with Accessory Software, through instrument settings, and with iAssign.
  • Page 86 Sample scenario 2: The iAssign app can be used to assign the location “Tank 1” to an iAssign tag. The tag can then be installed at the entrance to Tank 1. When Ventis Pro Series instrument operators enter Tank 1, they can touch their instruments to the tag and the location assignment will be saved to the instrument.

  • Page 87: Procedures

    Procedures The first screen that displays when the iAssign application is launched is its home screen. The home screen provides access to read, write, or view tag purchasing information. It also provides access to write tags through a batch process. To return to the home screen at any time, tap the menu button in the title bar. Menu button Read tag: Use to view the user, site, or both user and...

  • Page 88: Table 9.1 Iassign Functionality

    Table 9.1 iAssign functionality Read tag — Select the read tag menu The touch tag to phone The tag information will display. option. message will display. Note: If the device is unable to read the tag, a red X will Touch the tag against the display.
  • Page 89 Table 9.1 iAssign functionality Buy tags — Select the buy tags menu. A list of available tags will display. Available tag types include: Standard tag: A lightweight, adhesive tag that can be attached to an ID badge or other clean, flat surface. Waterproof tag: A lightweight, adhesive tag with a waterproof coating that can be attached to an ID badge or other clean, flat surface.
  • Page 90 Transfer assignments to a Ventis Pro Series instrument — — To transfer the user and site assignment data to a Ventis When an assignment is successfully made, the instrument...

  • Page 91: Appendix

    Appendix Supplemental Information about Gases and Sensors Toxic Gases A sensor is designed to detect for and measure the presence of a particular gas, the "target gas"; however, it may also respond to other gases. When this is the case, the sensor is said to have "cross-sensitivity" to another gas, which will interfere with the target-gas readings.

  • Page 92: Combustible Gases

    Combustible Gases Tables A.2 and A.3 provide the LEL for select combustible gases as they apply to specific sensors. These tables also provide correlation factors that can help determine the percentage LEL when the actual gas differs from the gas that was used to calibrate the instrument. For example, if the instrument reads 10% LEL in a pentane atmosphere, and was calibrated to methane, the actual percentage LEL is determined as follows: Locate the table cell where the sample gas (pentane) intersects with the calibration gas (methane).
  • Page 93 Table A.3 LEL correlation factors for the sensor 17155304-U Calibration gas Propane (% vol) Sample gas Acetone 3.28 Butane 0.97 Chloromethane 0.966 Cyclopentane 1.62 Dichloroethane 8.57 Ethane 1.01 Ethanol 1.65 Ethyl Acetate 1.69 Ethylene 3.43 Ethylene Oxide 0.845 Hexane Isopropanol 1.43 Methane Methanol...
