m2model Discovery micro Assembly Instructions

Micro size discus launched glider

Table of Contents

Download this manual

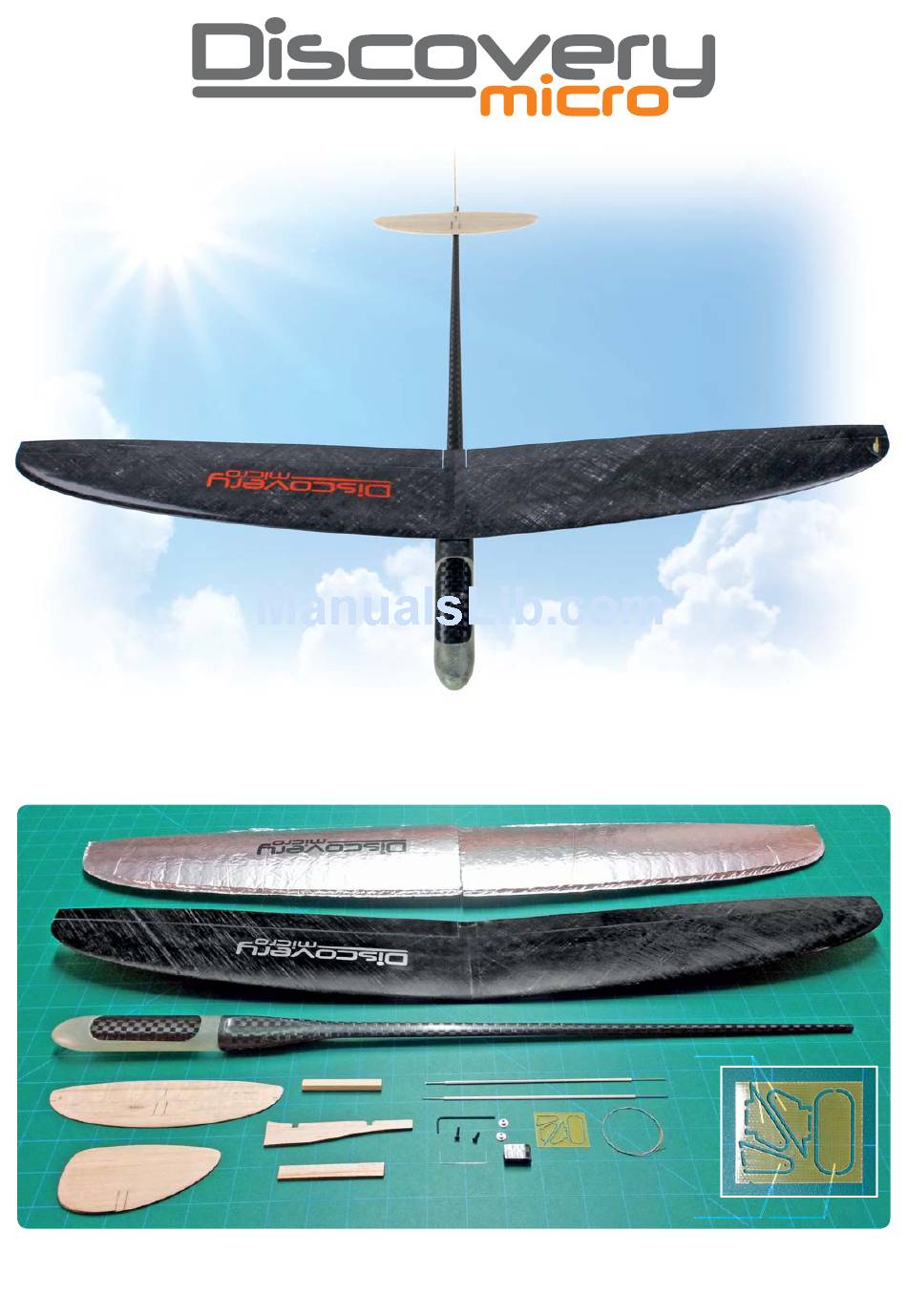

Kit contents: wing and wing covers, fuselage + canopy, coated balsa rudder and elevator, elevator pylon, balsa wing-mount

and servo board, spruce spacer for installation of the elevator, pushrods, leader wire, screws and nuts for fi xing wing, hexagonal

key, torsion spring for elevator and milled horns and launching peg

micro size discus launched glider

ASSEMBLY INSTRUCTIONS

aileron horn

elevator horn

launch peg

Table of Contents

Do you have a question about the Discovery micro and is the answer not in the manual?

Page 1: Assembly Instructions
micro size discus launched glider ASSEMBLY INSTRUCTIONS aileron horn elevator horn launch peg Kit contents: wing and wing covers, fuselage + canopy, coated balsa rudder and elevator, elevator pylon, balsa wing-mount and servo board, spruce spacer for installation of the elevator, pushrods, leader wire, screws and nuts for fi xing wing, hexagonal key, torsion spring for elevator and milled horns and launching peg...
Page 2 Specifi cation Wing span ......695 mm Aspect ratio ........8,4 Lenght ........647 mm Wing airfoil ....... AG series Wing area ......5,8 dm Flying weight from ....50 g 10 mm Recommended Radio Equipment • lightweight receiver: Graupner GR-12S, Spektrum AR6310, FrSky VD5M, TFR4 (Fasst) etc.
Page 3 Elevator deflection ..........3 mm up and 5 mm down Brake ....... ailerons 15 mm down and elevator 2 mm down m2model wishes you a lot of fun with your Discovery micro! Put rudder to the fuselage, check if the perpendicular to the elevator...
