Summary of Contents for viveroo free flex

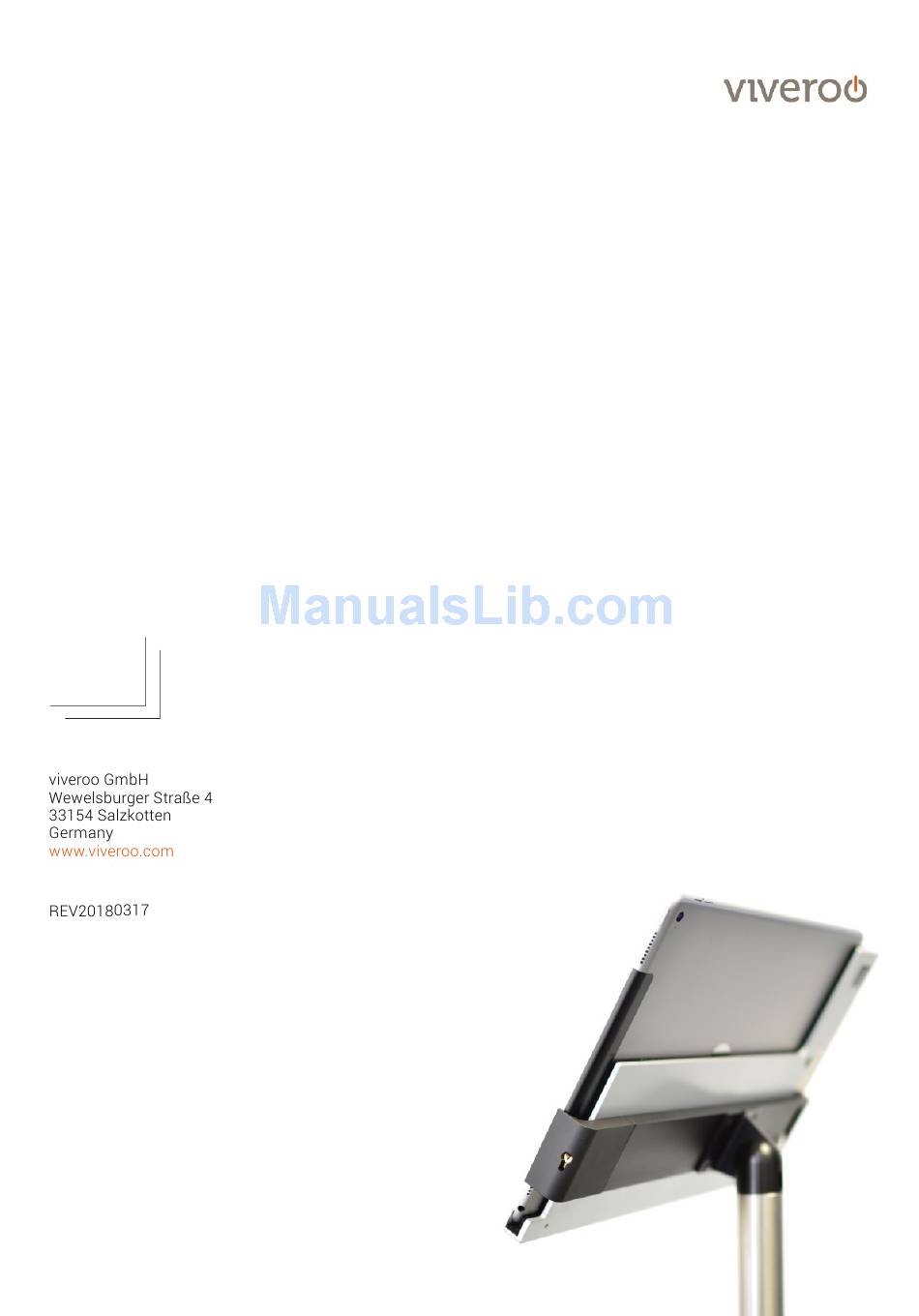

- Page 1 User manual & Installation guide free flex free...
-
Page 2: Safety Information
Care and Cleanse your free flex as needed with a soft micro fiber cloth and clear water only. Dampen the micro fiber cloth and wipe the surfaces gently. Cleansing Use stainless steel cleaner to clean pipe and base. -
Page 3: Technical Data
Electrical Lightning to USB-A cable connections All free flex have CE certification. free flex is quality "Made in Germany". CE & Co. We use only high-quality parts and components produced by market leaders. free flex customers are proud of their iPad Garage. -
Page 4: Operation
Slide it to the right to the Lightning connector. Push it until you hear a click tone that indicates the safe hold of the iPad. free flex in portrait position: Put the iPad from the upper left on the vertical guide rail. Slide it to the bottom to the Lightning connector. -
Page 5: Installation
(Required tool: 5mm Allen key) ! Note: The free flex frame can be changed from portrait to landscape format at any time with the help of this step. A 90° stop ensures the perfect final position of the frame after turning. - Page 6 (Required tool: 2,5mm Allen key) The swivel joint is now rotatable by 360° in the standpipe. By tightening the screw you can control the ease of stiffness of the rotation. free flex, User manual & Installation guide page von...
- Page 7 Installation There are now two options for installation: The standard version includes a screw base to mount the free flex directly to a surface, for example furniture or kitchen countertops. Steps 5.1 - 5.5 consider this path. Furthermore, the free flex can be mounted on an optionally available base/pedestal and retains its mobility. The assembly shows steps 6.1-6.3.
- Page 8 Step 5.5 Connect the standpipe to the screw base by turning the screw to the right. (Required tool: 4mm Allen key) free flex, User manual & Installation guide page von...
- Page 9 Connect the standpipe to the screw base by turning the screw to the right. (Required tool: 4mm Allen key) Step 6.4 The free flex stands on rubber feet for optimal stability. If necessary, felt points are included. In addition, a cable clip is included to fix and guide the USB cable.
- Page 10 You will also find the instructions and the drilling template digitally in the download area of our website www.viveroo.com If you have any questions about the installation of your free flex please do not hesitate to contact us: by e-mail: info@viveroo.com...
-
Page 11: Warranty
Apple, iPad and Lightning are registered trademarks of Apple Inc. viveroo GmbH - Wewelsburger Str. 4 - 33154 Salzkotten, Deutschland - T +49 5258 220990 - info@viveroo.com - www.viveroo.com free flex, User manual & Installation guide...
