Pan and Cover
DHB2SS-20
Power On/Off Switch
DHB2SS-27
Pan and Cover
LIMITED WARRANTY
This product is warranted to be free from defects in material and/or
workmanship for a period of 1 year from date of original installation, not to
exceed 18 months from the date of manufacture.
Any component which proves to be faulty in material and/or workmanship
will be replaced or repaired (at the option of Prince Castle, Inc.) without
cost to the customer for parts and labor. This warranty covers on-location
service (i.e. trip charges and/or mileage). Travel mileage is limited to
100 miles (200 Kilometers) round trip (one trip warranty) from an
authorized service agency or its sub-service agency.
This warranty is subject to the following exceptions/conditions:
• Use of any non-genuine Prince Castle parts voids this warranty.
• All labor to be performed during regular work hours. Overtime premium
(the incremental amount) will be charged to the customer.
• Damage caused by carelessness, neglect and/or abuse (e.g.,
dropping, tampering or altering parts, equipment damaged in shipment,
by fire, flood or an act of God) is not covered under this warranty.
• All problems due to operation at voltages other than that specified on
equipment nameplates are not covered by this warranty. Conversion to
correct voltage is the customer's responsibility.
• This equipment must be serviced by Prince Castle Authorized Service
Agency or a Prince Castle Service Technician during the warranty
period.
542-515revB

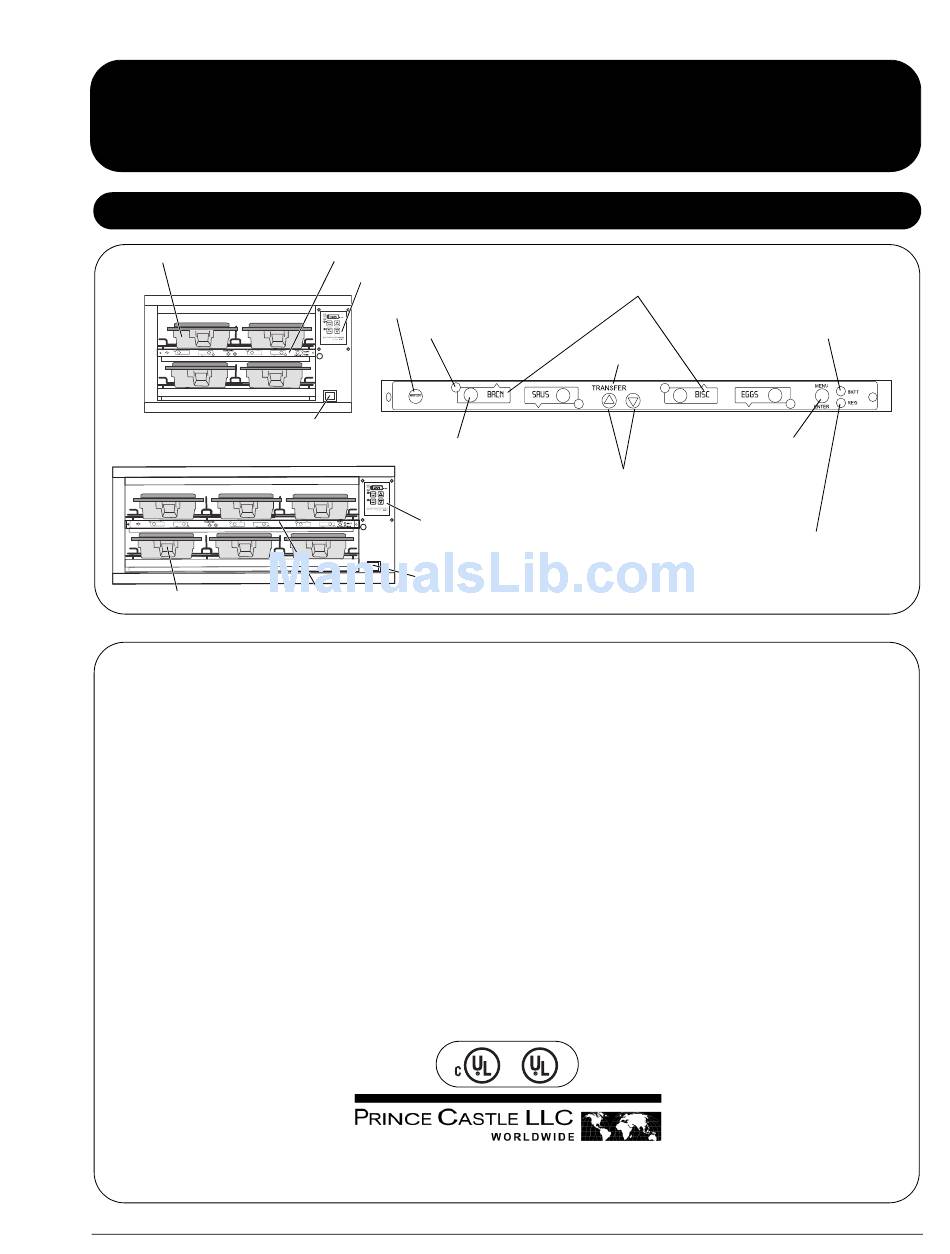

Product Identification
Button Bar
Temperature Control Panel
PRINCE CASTLE
LOGO Button
LED Timers (tri-color)
(qty. 4 or 6)
Pan Buttons
(qty. 4 or 6)
Temperature Control Panel
Power On/Off Switch
Button Bar
355 East Kehoe Blvd. • Carol Stream, IL 60188 USA
Telephone: 630-462-8800 • Toll Free: 1-800-PCASTLE
Fax: 630-462-1460 • www.princecastle.com
Upper Pan Displays
(qty. 2 or 3)
Transfer Button
UP and DOWN Arrow
Buttons
TABLE OF CONTENTS
Product Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
®
CastleNet
Communications Network . . . . . . . . . . . . . . . . . . . . . . . . .
Factory Presets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Exploded View and Parts List (DHB2SS-20) . . . . . . . . . . . . . . . . . . . .
Exploded View and Parts List (DHB2SS-27) . . . . . . . . . . . . . . . . . . . .
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Holding Bin
DHB2SS-20/27
BKFT (Breakfast) LED
MENU/ENTER Button
REG (Regular Menu) LED
7 – 10
Printed in USA 10/10 © 2010
1
2
2
3
4
11
12
13
14
15
16
Advertisement
Table of Contents
Related Manuals for Prince Castle DHB2SS-20
Summary of Contents for Prince Castle DHB2SS-20
- Page 1 (the incremental amount) will be charged to the customer. Exploded View and Parts List (DHB2SS-20) ....• Damage caused by carelessness, neglect and/or abuse (e.g., dropping, tampering or altering parts, equipment damaged in shipment, Exploded View and Parts List (DHB2SS-27) .
-
Page 2: Specifications
Refer to CASTLENET COMMUNICATIONS NETWORK in this manual. Prince Castle reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment. -
Page 3: Operation
Product Holding Bin DHB2SS-20/27 Operation Turn power On/Off switch to ON position. Press all PAN buttons. Load pan covers (if used) onto pan racks and insert racks into the unit. Allow 30 minutes for heaters to reach operating temperature. The... - Page 4 Operation (continued) To change a menu selection for a specific pan cavity, use the following steps: A. Press and hold the PRINCE CASTLE LOGO button for 6 seconds. All D. Press the UP or DOWN Arrow E. Press the MENU/ENTER button Pan displays will show PROG.
-
Page 5: Setting The Temperature
U225 Press the UP or DOWN Arrow button until the desired setpoint Press the PRINCE CASTLE LOGO button to save the new temperature is displayed. setpoint value. Repeat steps 2 – 5 to change the setpoint for any other heater. -
Page 6: Calibrating Heaters
A. Press and hold the PRINCE CASTLE LOGO and ACTUAL A. Press the UP or DOWN Arrow button until the temperature TEMP buttons for 5 seconds. The colon (:) LED indicator will displayed matches the reading obtained in Step 2. -
Page 7: Programming The Menus
A. The SET PRODUCT TIME menu is used to change the Hold and Cook-More times. B. Press and hold the PRINCE CASTLE LOGO button, then immediately press and hold the MENU/ENTER button until the display shows one of the programming menus. -
Page 8: Setting The Alternating Display Interval
A. The Alternating Display Interval allows the timer bar displays to alternate between the product name and remaining Hold time. The default setting is 5 seconds. B. Press and hold the PRINCE CASTLE LOGO button, then immediately press and hold the MENU/ENTER button until the display shows one of the programming menus. -
Page 9: Changing Product Names
A. The EDIT PRODUCT NAME menu is used to change a default product name to one of your own choosing. B. Press and hold the PRINCE CASTLE LOGO button, then immediately press and hold the MENU/ENTER button until the display shows one of four programming menus. -
Page 10: Set Volume Level
A. The SET MAXIMUM TRANSFER TIME menu is used to set the amount of time allowed to make a product transfer from one pan to another. B. Press and hold the PRINCE CASTLE LOGO button, then immediately press and hold the MENU/ENTER button until the display shows one of the programming menus. -
Page 11: Castlenet ® Communications Network
BIN 1 BIN 2 BIN 3 bin. A PDA (or similar device) or a notebook with Prince Castle ® MenuView software is used to connect to the network and enter the desired changes. -
Page 12: Factory Presets
Product Holding Bin DHB2SS-20/27 Factory Presets Product Menu Details Product Display Name Hold Minutes Cook-More Minutes Burger BUR1 Burger BUR2 Chicken Patty CHX1 Chicken Patty CHX2 Chicken Patty CHX3 Chicken Wing WING Fish FISH Eggs EGGS Sausage SAUS Bacon BACN... -
Page 13: Troubleshooting
Product Holding Bin DHB2SS-20/27 Troubleshooting PROBLEM PROBABLE CAUSE SOLUTION Display flashes Open relay. Circuit inoperable. Consult authorized Service Technician. Display flashes Shorted relay. Circuit inoperable. Consult authorized Service Technician. Open heater. Unplugged ribbon cable between power and main circuit boards. -
Page 14: Exploded View And Parts List (Dhb2Ss-20)
Product Holding Bin DHB2SS-20/27 Exploded View and Parts List (DHB2SS-20) Ref. Part No. Description Ref. Part No. Description 542-121S Upper Heater Assy DHBPAN-A 1/3 Size Pan (Pkg of 6) 542-059S Lower Heater Assy 78-184S Power Switch 542-169S Rack Kit 88-609S... -
Page 15: Exploded View And Parts List (Dhb2Ss-27)
Product Holding Bin DHB2SS-20/27 Exploded View and Parts List (DHB2SS-27) Ref. Part No. Description Ref. Part No. Description 541-833S Upper Heater Kit 541-734S Main PCB Kit 541-832S Lower Heater Kit 541-719S Display PCB Kit 541-465S Rack Kit 88-709-2-11S Speaker Kit... -
Page 16: Wiring Diagram (Dhb2Ss-20 And -27)
Product Holding Bin DHB2SS-20/27 Wiring Diagram (DHB2SS-20 and -27) 355 East Kehoe Blvd. • Carol Stream, IL 60188 USA Telephone: 630-462-8800 • Fax: 630-462-1460 Printed in USA 10/10 © 2010 Toll Free: 1-800-PCASTLE Prince Castle LLC www.princecastle.com...
