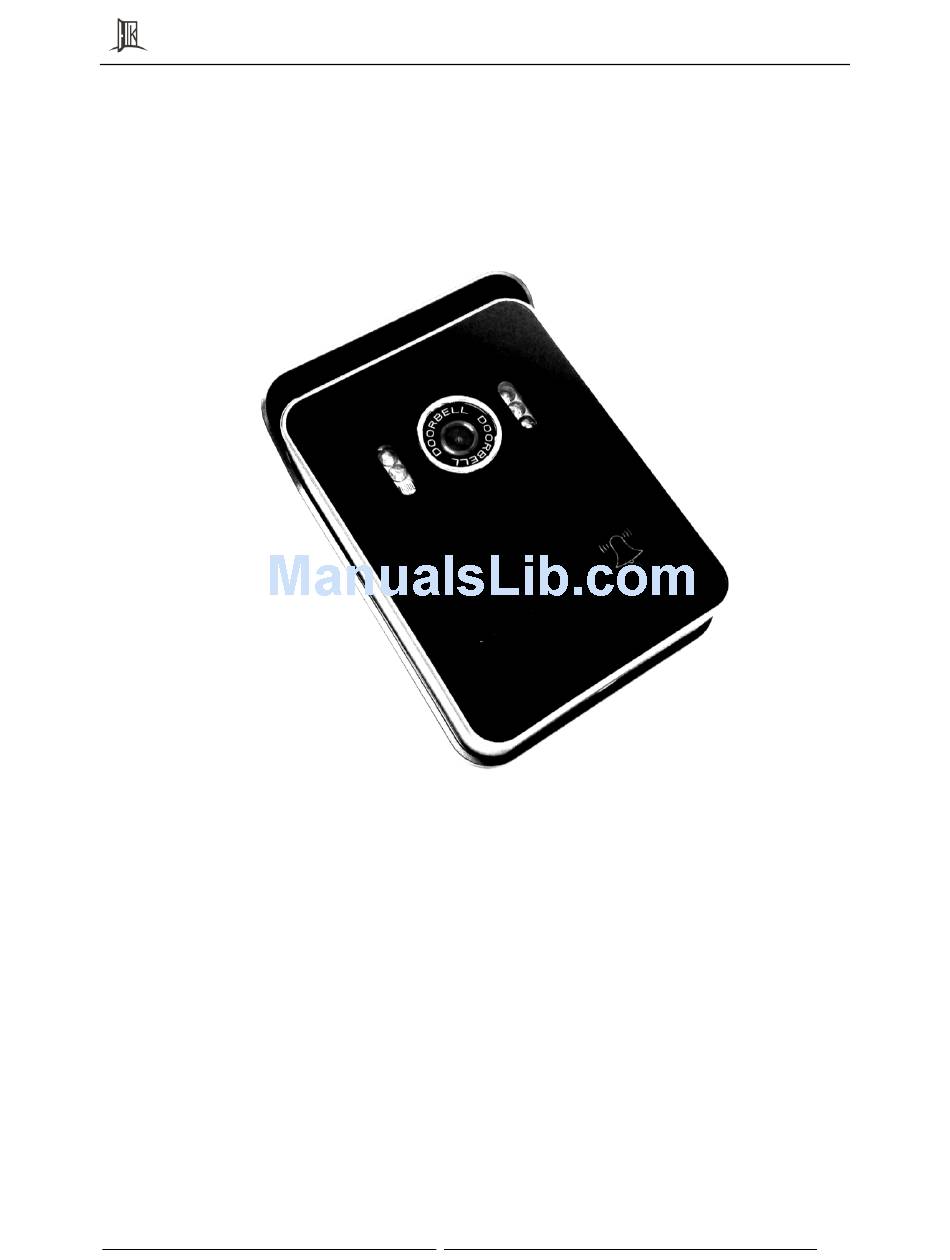

Page 1 Instruction Manual of Wifi Doorbell User Manual of Video Doorbell...
Page 2 Instruction Manual of Wifi Doorbell 1. Introduction: With mobile apps, two way audio and WiFi connection, WiFi video doorbell can make the user to have video conversation with the visitors and also control the lock whenever wherever they are. When the visitors press the doorbell, the camera will notify the app on user’s smart phone, then user can have video conversation with the visitors and decide whether to open the door or not.
Page 3: Overview Of The Device
Instruction Manual of Wifi Doorbell 2. Overview of the device...
Page 4: Before Using The Device
Instruction Manual of Wifi Doorbell 3 .In the box  WiFi door intercom*1 pcs  12V/1A Power Adapter*1 pcs  Mounting Bracket*1 pcs  Quick Installation Guide*1 pcs  （Premium Edition contains an indoor dingdong doorbell, customers are free to choose whether or not need to be equipped）...
Page 5: Download And Install The App
Instruction Manual of Wifi Doorbell 5. Download and Install the app The device can support iOS device and android device both ways of remote viewing: 1. iOS app can be searched and acquired from Apple “APP Store” by typing “Kdoor Pro”;...
Page 6 Instruction Manual of Wifi Doorbell 6. Start Using The Device Android Configuration Step 1 Using one of the homeowners’ Android phones, search for “Kdoor Pro” app on the Google Play store. Look for the icon shown. Then download and install to the users phone.
Page 7 Instruction Manual of Wifi Doorbell Step 3 Wait a full 60 seconds for the intercom to fully boot up. Step 4 Press and hold the call button for more than 3 seconds. A loud tone will be heard. The intercom will now be in configuration mode for 5 minutes.
Page 8 Instruction Manual of Wifi Doorbell Step 5 Step 6 Enter settings on the phone, select Enter the following password… WiFi and scan for networks. The 123456789 phone should detect the intercom. The network name will be BELL- XXXXX Step 7 Step 8 Now open the Kdoor Pro App on On the next screen, select search as...
Page 9 Instruction Manual of Wifi Doorbell Step 9 Step 10 The phone should then find the On the next screen the intercom should device. Select it as shown. be showing online status. Select the settings button. Step 11 Step 12 Enter WiFi settings as shown. Select option to manage wifi networks and the intercom will now scan networks in the area.
Page 10 Instruction Manual of Wifi Doorbell Step 13 Step 14 Select the network which the home Enter the home owner’s WiFi password owner is normally using. and press DONE. The intercom should now re-boot and the phone should then re-connect to the normal wifi network...
Page 11 Instruction Manual of Wifi Doorbell Step 15 Step 16 Wait 2 minutes for the intercom to You may now press the call button and come back online, and then open the check that the intercom calls the phone app. The intercom should be showing successfully.
Page 12 Instruction Manual of Wifi Doorbell I-phone Configuration Step 1 Using one of the homeowners’ iphones, search for “KdoorPro” app on the Apple Store. Look for the icon shown. Then download and install to the users phone. Step 2 Locate the intercom on a bench or table beside the home router, along with the user phone.
Page 13 Instruction Manual of Wifi Doorbell Step 3 Wait a full 60 seconds for the intercom to fully boot up. Step 4 Press and hold the call button for more than 3 seconds. The intercom will sound a long tone, and now be in configuration mode for 5 minutes.
Page 14 Instruction Manual of Wifi Doorbell Step 5 Step 6 Enter settings on the phone, select Enter the following password WiFi and scan for networks. The 123456789. Now the iphone is phone should detect the intercom. directly connected to the intercom. The network name will be BELL- XXXXX) Step 7...
Page 15 Instruction Manual of Wifi Doorbell Step 9 Step 10 The intercom should now have been Now the app should show the bell ID, detected. Select as shown. Default usename & password details. Press DONE as shown. Step 11 Step 12 Enter Settings as shown.
Page 16 Instruction Manual of Wifi Doorbell Step 13 Step 14 Select the network which the home Enter the home owner’s WiFi owner is normally using. Note the password and press JOIN. The scan button at top if the iphone does intercom should now re-boot. not automatically scan for networks.
Page 17 Instruction Manual of Wifi Doorbell fully stabalise Using the Intercom on iPhone Note: Because of restrictions by Apple, your iphone will receive a notification message first. If your screen is locked, you must swipe the notification banner, then unlock the screen before the intercom app can begin calling the phone in full as shown…...
Page 18 Instruction Manual of Wifi Doorbell Please take note at the end of the process, the phone should show the success message as shown. If it shows a fail message, please repeat the process.
Page 19: Range Test
Instruction Manual of Wifi Doorbell Range Test Before fully installing this product, it is strongly recommended to temporarily power the intercom at the gate and position the antenna to check that it is within range of the WiFi router. The manufacturer will not give a full refund for a product which is not returned in brand new condition.
Page 20 Instruction Manual of Wifi Doorbell 1. For longer range applications, check if the router is, or can be located at the front of the building, preferably near a window or glass, as this will greatly extend range 2. If it is not possible to have the WiFi router at the front of the building, then consider installing a standard “on the market”...
Page 21: Installation
Instruction Manual of Wifi Doorbell Installation Assuming satisfactory operation at full range, you are ready to fully install the product. Mount the intercom at the desired height for pedestrian or car users. The camera angle is wide at 120 degrees to cover most scenarios. Power supply If possible, locate the power supply as close as possible to the intercom.
Page 22 Instruction Manual of Wifi Doorbell TIP: Most technical calls received are due to installers using CAT5 or alarm cable to power the unit. Neither are rated to carry enough power (1.5 amp peak). Please use following cable sizes… Up to 2 metres (6 feet) – Minimum 0.5mm2 (20 gauge) Up to 4 metres (12 feet) –...
Page 23 Instruction Manual of Wifi Doorbell Wiring Connect power as shown. Please use only the power adaptor provided. Lock control wiring Depending on your requirements, the intercom and keypad have both normally closed and normally open output contacts for connection to existing electric locks or gate automation controllers.
Page 24: Installation Diagram
Instruction Manual of Wifi Doorbell Installation diagram: Note: The manufacturer can only support the use, operation and functionality of the intercom themselves. Professional wiring to door release or automatic gate systems is the responsibility of the installer. Please consult a security integrator for further support.
Page 25: Relay Output
Instruction Manual of Wifi Doorbell Relay output The app has an option to switch the relay output from normally open to normally closed. This is not normally needed because the relay output terminals already have hard connections for N/O and N/C contacts as standard. The relay time may need changed to suit lock applications.
Page 26 Instruction Manual of Wifi Doorbell Adding Additional Smartphones or Devices Step 1 Step 2 Go to settings on the app screen Select add user settings. for the existing phone or device. Step 3 Step 4 Select ADD to create a new user Create a new username and password for that user.
Page 27 Instruction Manual of Wifi Doorbell Step 5 Step 6 On the new phone, open the app Enter the BELL ID (Copy from the existing and press to ADD Intercom. connected device) or press search to find the device, enter new user name and passcode, and press DONE.
Page 28 Instruction Manual of Wifi Doorbell Using the Intercom on Android When the intercom calls your phone, answer the call and note the options shown.. Other options…...
Page 29 Instruction Manual of Wifi Doorbell Using the Intercom on iPhone When the intercom calls your phone, answer the call and note the options shown. Note: Because of restrictions by Apple, your iphone will receive a notification message first.If your screen is locked, you must swipe the notification banner, then unlock the screen before the intercom app can begin calling the phone in full.
Page 30 Instruction Manual of Wifi Doorbell Other options… You may view live video from the intercom at any time as shown below.
Page 31: System Settings
Instruction Manual of Wifi Doorbell Other Introduction System Settings Monitor max. Time, Conversation max. Time and Call wait max. Time can be setup in system settings. User can also restart the device in system settings.
Page 32: Alarm Settings
Instruction Manual of Wifi Doorbell Alarm Settings The device support motion alarm, user can get notice if there is any motion is detected. Equipment Time Settings...
Page 33: Reset Settings
Instruction Manual of Wifi Doorbell Reset Settings Users can use the elongated object (for example: toothpick Small screwdriver) extending into the reset hole. Hold down the reset button 3 To 5 seconds, the doorbell will automatically restart and restore the factory settings.
Page 34 Instruction Manual of Wifi Doorbell Indoor dingdong Instructions Dingdong By using battery power.In the factory, we have completed the configuration. Customers only need to install batteries can be used normally. When the doorbell button is pressed, Mobile APP simultaneous ringing of the indoor Dingdong, customer can use phone or Dingdong open the door lock.
Page 35: Fault Finding
Instruction Manual of Wifi Doorbell Fault Finding The 3 most common cause of failures on the wifi intercom are as follows… 1. Unstable wifi network or excessive network traffic. 2. Range too long causing wifi drop out intermittently. 3. Excessively long power cable run from the 12v dc adaptor to the intercom causing poor range, no video, long connection times, or unstable operation.
